BIG FURNITURE WAREHOUSE DELTA Assembly Instructions Manual

Shoe and boot cabinet

Advertisement

Quick Links

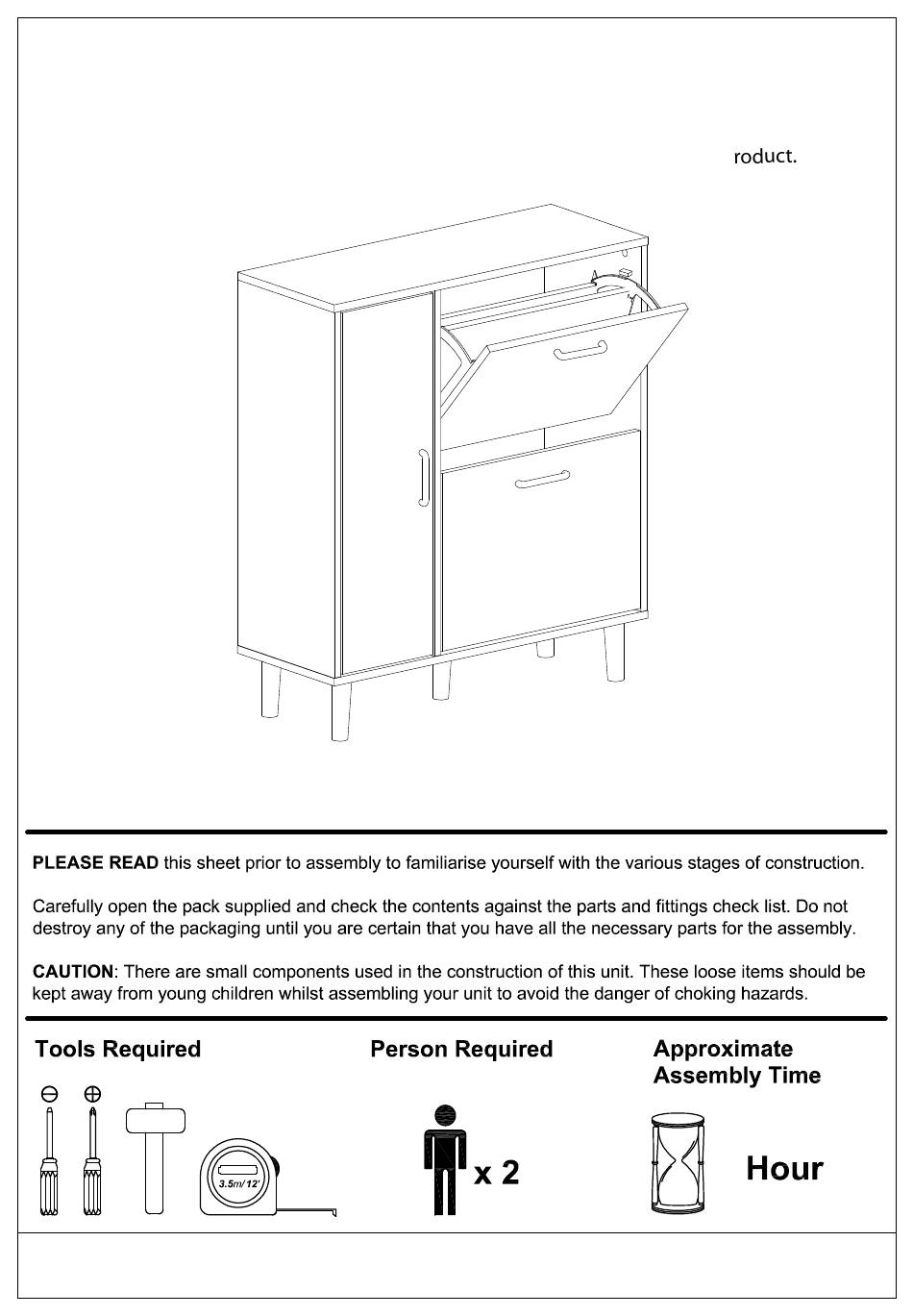

DELTA SHOE AND BOOT CABINET
ASSEMBLY INSTRUCTIONS
Thank you for purchasing the MULTI SHOE AND BOOT CABINET.
Please read the instructions carefully to ensure safe operation of the p
Size: (W)750 x (D)290 x
(H)860mm
Colour : White / L.Grey / Taupe / D.Grey
1
1/2
Batch No :
V2 10/20
