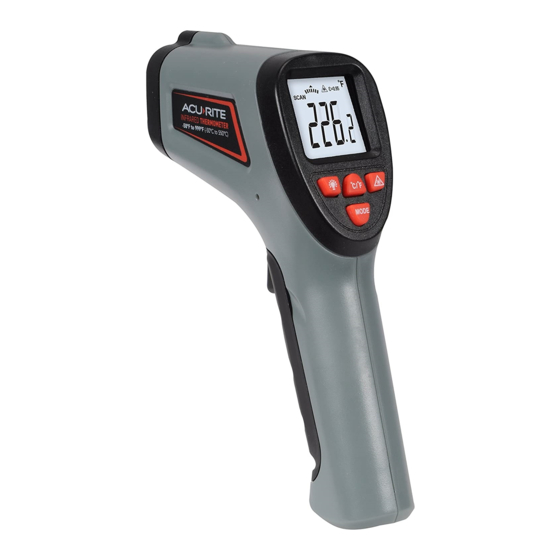

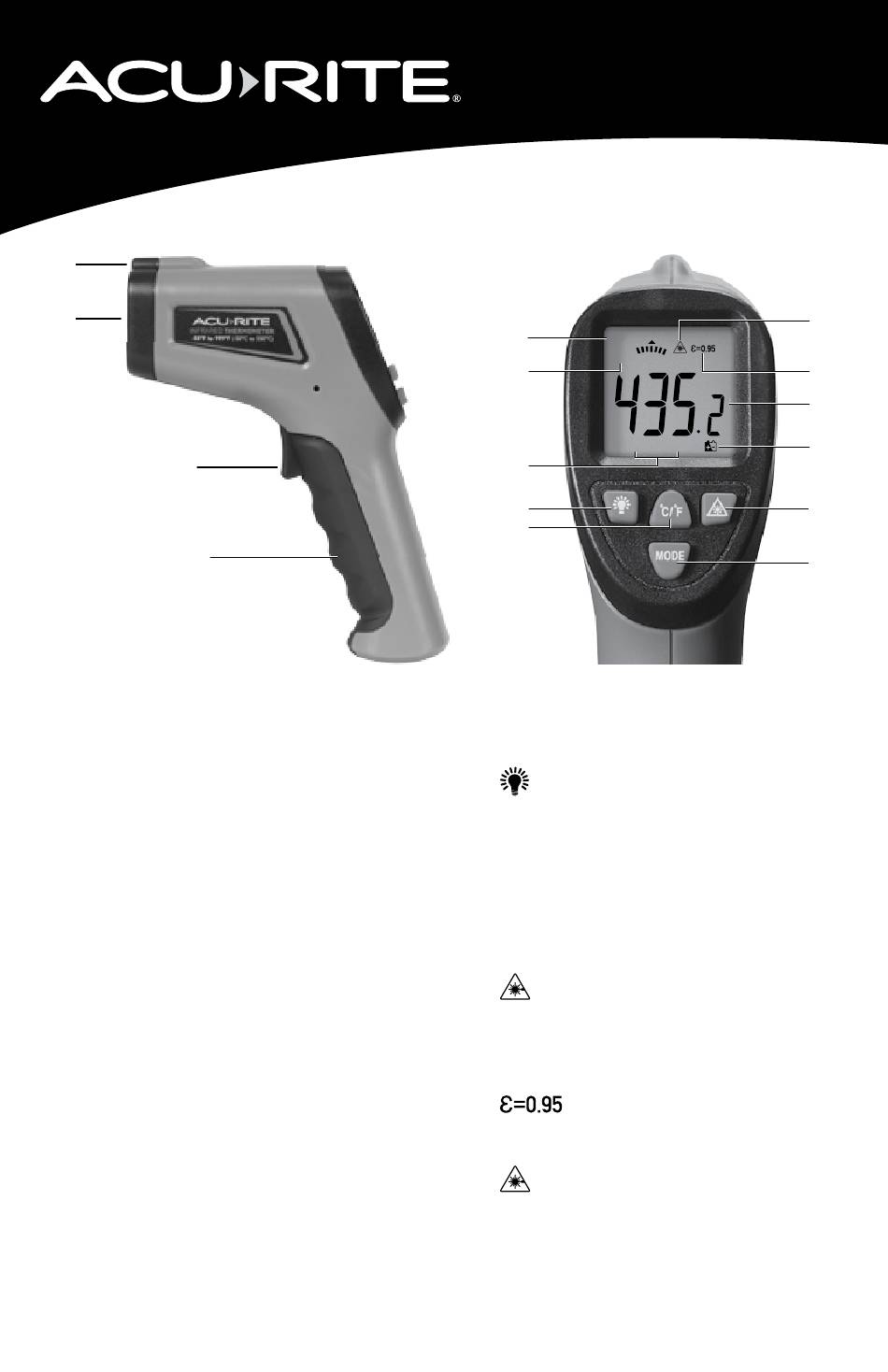

Features & Benefits
SIDE
1.
Laser Sight
For aiming accuracy.
2. Infrared Sensor
3. Trigger
Pull to turn on unit and measure temperature.
4. Battery Cover
DISPLAY
5. HOLD Indicator
Displays when Trigger is released and the
last recorded temperature is being shown.
6. SCAN Indicator
Displays when the thermometer is
recording temperature reading.
7.
MAX Indicator
Indicates viewing highest temperature
recorded since thermometer was last
turned on.
MIN Indicator
Indicates viewing lowest temperature
recorded since thermometer was last
turned on.
Infrared Thermometer
5
HOLD
SCAN
6
7
8
9
8.
Button
Press to enable or disable the display
backlight.
9. °C/°F Button
For selecting temperature units.
10. MODE Button
Press to cycle through MIN, MAX and
current temperature readings.
11.
Button
Press to enable or disable the laser sight.
12. Low Battery Indicator
13. Temperature Reading
14.
Indicator
Indicates thermometer's preset emissivity.
(see page 3).
15.
Indicator
Indicates laser function is enabled.
Instruction Manual
model 02084
°
F
MAX
MIN
15
14
13
12
11
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 02084 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACU-RITE 02084

Summary of Contents for ACU-RITE 02084

  • Page 1 Instruction Manual Infrared Thermometer model 02084 ° HOLD SCAN Features & Benefits SIDE Button Laser Sight For aiming accuracy. Press to enable or disable the display 2. Infrared Sensor backlight. 9. °C/°F Button 3. Trigger Pull to turn on unit and measure temperature.

  • Page 2: Install Or Replace Battery

    SETUP Install or Replace Battery 1. Flip open the battery compartment. 2. Connect 1 x 9V battery to the battery connector and insert into the battery compartment, as shown. 3. Close the battery compartment. Connect & Insert Battery 1 x 9V Battery Open Battery Compartment Select Temperature Units, Backlight &...

  • Page 3: Using The Thermometer

    OPERATION Using the Thermometer Pull the trigger of the Infrared Thermometer to measure the surface temperature of an area. Field of Measurement The Infrared Thermometer measures average surface temperature on the basis of distance to spot diameter (D:S) ratio. This ratio is the size of the area being measured by the thermometer as it relates to distance.

  • Page 4: Troubleshooting

    Substance Thermal emissivity Substance Thermal emissivity Asphalt 0.90 to 0.98 Cloth (black) 0.98 Concrete 0.94 Human skin 0.98 Cement 0.96 Lather 0.75 to 0.80 Sand 0.90 Charcoal (powder) 0.96 Earth 0.92 to 0.96 Lacquer 0.80 to .095 Water 0.92 to 0.96 Lacquer (matt) 0.97 0.96 to 0.98...

  • Page 5: Specifications

    Specifications -58ºF to 999ºF; -50ºC to 550ºC TEMPERATURE RANGE 0.95 fixed value EMISSIVITY Output <1mW, Wavelength 630 - 670nm, class 2 (II) DIODE LASE laser product 6–14 um SPECTRAL RESPONSE 1 x 9V alkaline battery POWER 12:1 D:S RATIO FCC Information This equipment complies with Part 15 of FCC RF Rules.

  • Page 6: Limited 1-Year Warranty

    Limited 1 Year Warranty We expressly disclaim all liability for special, consequential, or incidental damages, whether arising in tort or by contract AcuRite is a wholly owned subsidiary of Chaney from any breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, Instrument Company.
  • Page 8 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights are the property of their respective owners. AcuRite uses patented Printed in China 02084 INST 040416 technology. Visit www.AcuRite.com/patents for details.
