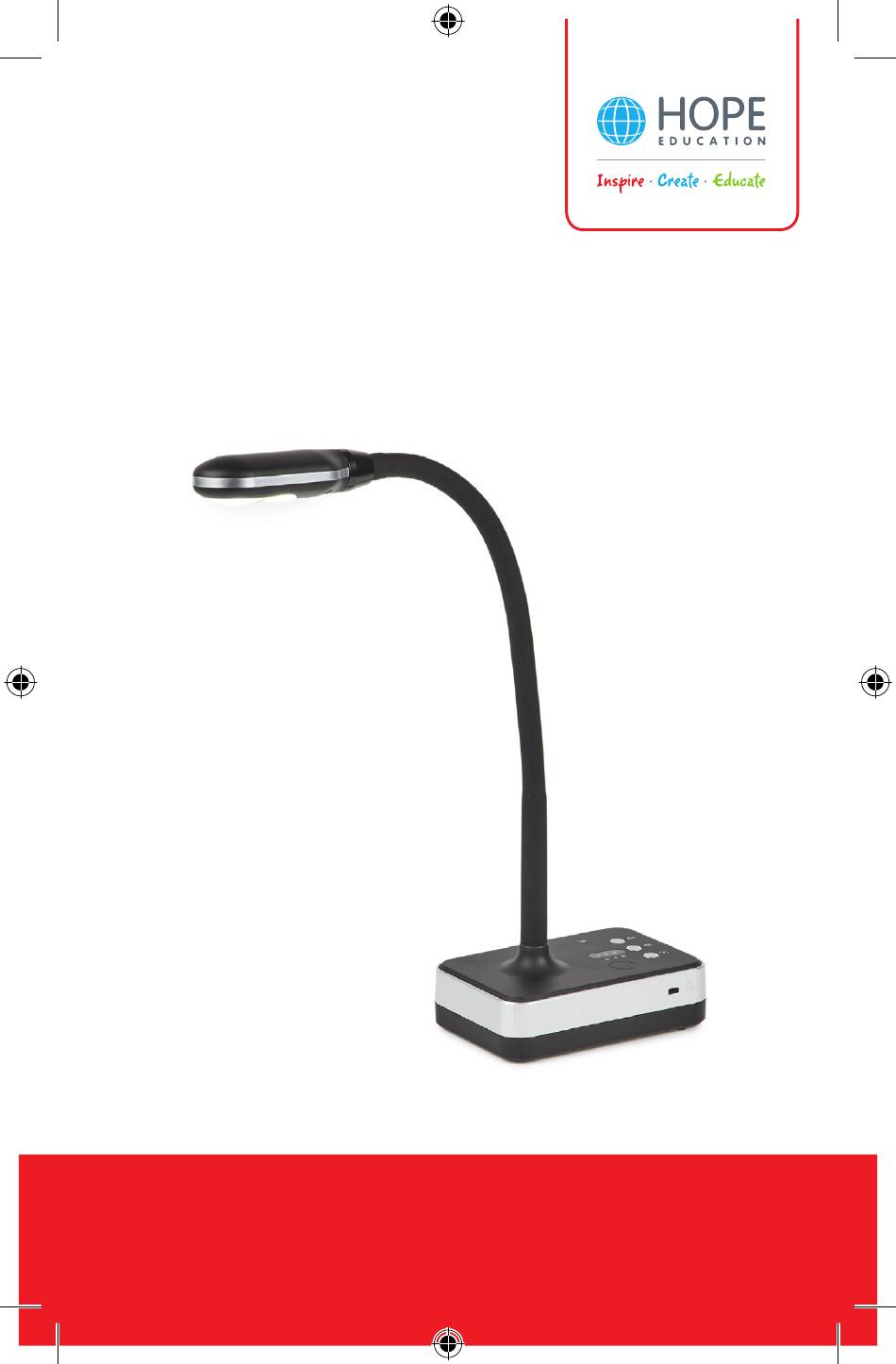

- Page 1 5MP USB/WiFi Visualiser Models The home of inspirational and innovative resources for Primary & Early Years...
- Page 2 Disclaimer Thank you for choosing our 5MP USB/WiFi Visualiser. Please read this manual carefully before use. The information contained in this document is subject to change without notice. Notice: 1. Please don’t leave the equipment under the sun or close to any heating objects.
-
Page 3: Hardware Introduction

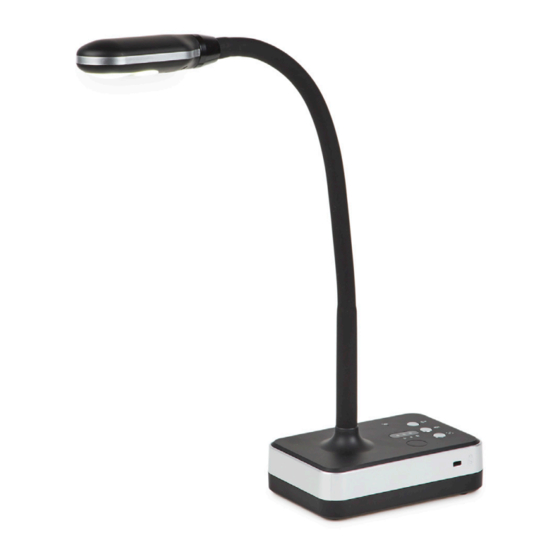

Hardware Introduction Product features Model: 5MP USB visualiser (I) Camera Lens (2) LED light (3) Flexible goose neck (4) Power Indicator Light: Red for low battery, Orange for under 50%, and Green for full power (5) Microphone Indicator light: if illuminated recording can be made... - Page 4 Model: 5MP WiFi visualiser (I) Camera Lens (2) LED light (3) Flexible goose neck (4) WIFI Indicator Light: Green for power on and Red for WIFI mode (5) Mode Light: Green for USB mode and Red for WIFI mode (6) Power Indicator Light: Red for low battery, Orange for under 50%, and Green for full power (7) Microphone (8) Light Control Button: 3 levels of brightness...
- Page 5 System connection diagram Online mode system diagram Visualiser Note: Open the device, connect the power supply and USB cable to PC. Then open software which will then go into preview mode.
- Page 6 5MP WiFi visualiser system diagram Visualiser Note: Check device isn’t connected via USB cable, then connect power cable and power on. The software will automatically check for devices. How to connect with wifi? 1. Download Eloam WiFi APP from the App Store 2.
-
Page 7: Product Specification
Product specification Spec. WiFi Reso. Main 5.0 MP 2592*1944 5.0 MP 2592*1944 Support online & WiFi Working mode Support online mode Doc, book, card, Doc, book, card, Scan range passport, 3D object, etc. passport, 3D object, etc. Scanning size Scanning speed Auto focus Auto focus Focus mode... -
Page 8: Software Installation
Software Installation System requirements Windows: • Windows/Intel Compatible Personal Computer • 1.0 Ghz Pentium Minimum • CD-ROM Drive • 512MB RAM or above • USB 2.0 Port • Microsoft Windows XP/Windows Vista/Windows 7/Windows 8/ Windows 10 *Higher requirements might be needed when scanning or editing a large quantity of image data. -
Page 9: Troubleshooting
Trouble Shooting Designation Description Solution 1. Check if the VGA, CVBS, power supply are connected “Offline Equipment through the correctly, Shut off the power mode” VGA, CVBS cable connect and open again; appears black to projector or TV, appears 2. Default to VGA output,no screen. - Page 10 Designation Description Solution 1. Device with auto-exposure function, when open software, the video will have the process from black to light. 2. Insufficient light, to Shooting effect is not ideal, capture in light-filled Images uneven appear uneven color image, environment; and unclear and not clear, partial dark.
