State 12/2020 Version 1.1
Technical Manual

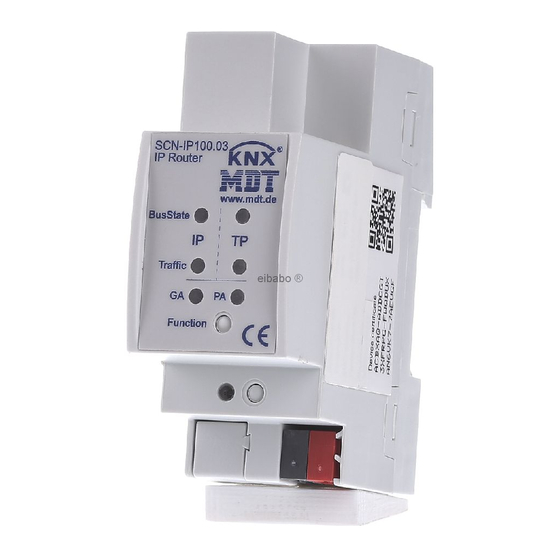

MDT IP Router
SCN-IP100.03
Further Documents :
Datasheets :
https://www.mdt.de/EN_Downloads_Datasheets.html
Assembly and Operation Instructions :
https://www.mdt.de/EN_Downloads_Instructions.html
Solution Proposals for MDT products:
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Advertisement
Table of Contents
Related Manuals for MDT Technologies SCN-IP100.03
Summary of Contents for MDT Technologies SCN-IP100.03
- Page 1 Technical Manual MDT IP Router SCN-IP100.03 Further Documents : Datasheets : https://www.mdt.de/EN_Downloads_Datasheets.html Assembly and Operation Instructions : https://www.mdt.de/EN_Downloads_Instructions.html Solution Proposals for MDT products: MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 2: Table Of Contents
4.1 Settings IP Router with Secure ....................20 4.1.1 General ..........................20 4.1.2 Device – Settings ........................22 4.1.3 Device – IP Configuration ....................23 MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... - Page 3 6.4 E-Mail – Error codes & remedy ....................54 6.5 Receive E-Mail as push message ....................54 6.6 Receive E-Mail as SMS ......................54 MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
- Page 4 8 Attachment ............................57 8.1 Statutory requirements ........................ 57 8.2 Disposal routine ........................... 57 8.3 Assemblage ..........................57 8.4 History ............................57 MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 5: Overview
The IP Router receives the date and time of the NTP server and can distribute them as the "master" to further KNX devices via the bus. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 6: Overview Leds & Operation
The master reset also resets the secure settings to the FDSK (Factory Default Setup Key). This means that the device can only be downloaded with the FDSK MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 7: Commissioning Without Data Secure
Green and Yellow: forwarding all Table 1: Overview LEDs 2.5 Commissioning without Data Secure The following procedure is recommended for commissioning the SCN-IP100.03: 1. Insert the application „SCN-IP000.03 – KNX IP Router“ 2. Configuration of the IP-Router: 3. Transfer of the physical address and the application of the IP Router. For this, the programming button must be pressed shortly. -
Page 8: Commissioning With Data Secure
2.6 Commissioning with Data Secure The following procedure is recommended for commissioning the SCN-IP100.03: 1. Insert the application „SCN-IP100.03 – KNX IP Router with Secure“ 2. Input of the FDSK (see sticker on the side of the device) 3. Configuration of the IP Router. -
Page 9: Firmware Update
Also, all settings in the web browser such as e-mail addresses etc. are reset to default settings. Therefore, make a note of the entered addresses etc. in advance. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 10: Topology
This topology is described as a flat topology as there are KNX main- or backbone lines. The telegrams of the KNX line are transmitted directly to the Ethernet MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 11: Area Coupler
In the above example each area got 2 subordinated lines, which e.g. can be linked with the line coupler SCN LK001.01. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 12: Mixed Use
It needs to be noted that the IP Router as a line coupler gets the physical address from an open area, such as shown in picture above 2.1.0. The IP router as an area coupler (1.0.0) can get further lines subordinated MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 13: Bus Access Function (Knxnet/Ip Tunneling)
The following figure shows the exemplary structure of a network with two IP Routers used in each case as an area coupler: Figure 5: Installation example MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 14: Safety - Ip Secure/Data Secure
This key must be identical in all devices. The key is assigned independently by the ETS and cannot be changed. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 15: Commissioning Password
* if not overwritten by the ETS user - in case of multiple devices - with an identical authentication code The authentication code can be changed in ETS in the same way as the commissioning password, see Figure 2 above. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 16: Commissioning/ Secure Commissioning
Tunneling refers to a KNX point-to-point connection on the TCP/IP network. For each IP Secure device, it can be decided whether the tunneling connections are transmitted "Secure" or "Plain", see Figure 3 above. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 17: Mixed Operation
FDSK directly or if you do not have it at hand, you can do this later by confirming this dialogue with "Later". MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... - Page 18 (authorisation of the other party for access to the project) need to be entered before the connection is established. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 19: Advanced Security Mechanisms
Access to the KNX installation from the Internet should be realised via a VPN connection 3.6 Requirements for KNX IP Secure/Data Secure ETS 5.7.2 is required for commissioning Data Secure/IP Secure. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 20: Settings - Ip-Router
Setting of the automatic release 10 min Manual Function time from manual mode to 1 hour automatic mode 4 hours 8 hours MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... - Page 21 Setting the HTTP port for the Web interface 8080 DNS Server Entering the DNS address [0.0.0.0] Table 2: General Settings – IP Router MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 22: Device - Settings
Activation/deactivation of Secure Tunneling. If Secure Tunneling is activated, the communication via the tunneling connection is encrypted, see also “3 Safety – IP Secure/Data Secure” MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 23: Device - Ip Configuration
Note: If the KNX IP Router is only to be used in the local LAN, the entry 0.0.0.0 can remain. The network settings of the communicating PC can be read in the network settings of the PC. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 24: Settings Ip Interface Without Secure
Defines the behavior after manual disabled changeover pass all telegrams pass physical telegrams pass group telegrams Table 3: General Settings (without Secure) MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 25: Ip Configuration
Domain Name Server of the network only with manual IP address 0.0.0.0 assignment Table 4: Settings – IP Configuration (without Secure) MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 26: Example Of Assigning Ip Addresses
It must be ensured, no numbers are assigned twice. The following settings can therefore be made in the IP Interface: IP address of the IP Router: 192.168.1.31 Subnet of the IP Router: 255.255.255.0 MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 27: Knx Multicast Address
If via KNX/IP routing a new IP routing multicast address gets loaded into the device, so the ETS gives the error message "Download Failed". A new download should then finish without problems. This behavior has systemic reasons. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 28: Main Line
For all other "Configuration", the parameters for "Group telegrams, Main group telegrams 14/15 and Physical telegrams" are set to fixed values - according to the setting. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... - Page 29 Only the physically addressed telegrams which will leave the line of the KNX/IP Router are transmitted from the KNX bus to IP. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 30: Sub Line
Group: Repetition if errors Defining whether the message is to on sub line normal be repeated in case of failure reduced MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... - Page 31 Configuration from sub line: This parameter can be used to suppress programming from the TP/KNX side, thus achieving a higher level of safety. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 32: Communication Settings
Figure 18: Settings ETS4 – Communication Here the IP Router should be listed in the “Discovered connections”: Figure 19: Settings ETS4 – Discovered connections MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... - Page 33 "Settings": Figure 20: ETS4 – Local Interface Settings Here, the first tunneling address can be assigned. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 34: Procedure Ets 5
For the selected IP router / IP interface, the first tunneling connection can then be set: Figure 23: ETS5 – IP Tunneling connection MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 35: Set Tunneling Connections
15.15.242, 15.15.243 and 15.15.244. When the first address was assigned to x.x.255, so the further tunneling addresses are not assigned automatically! MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 36: Procedure For Ip Router With Secure
By selecting the tunneling channel, the name and address can be changed in the “Properties”. Figure 26: Set Tunneling Address ETS5 – Properties MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 37: Parameter -> E-Mail Client
The device name is displayed in the e-mail and can be integrated via macros in the email. It is advisable here to assign a meaningful name of the object, in which the IP interface is used. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 38: Web Interface
"Timeout startup of the web interface after reset" or to activate the web interface only via object and deactivate when not in use! MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 39: Time/Date
3 Byte Sending Time Date 3 Byte Sending Date Date/Time 8 Byte Sending Date and Time Table 9: Communication objects – Time/Date MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 40: E-Mail Functions
1 Bit Yes/No 1 Bit Present/Absent Present Absent 1 Bit Day Night 1 Bit Night Night Table 10: Status elements – 1 Bit MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... - Page 41 Setting the value of the status element 1 Byte 2 Byte 4 Byte 14 Byte next status element Table 15: Communication objects – Status elements MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 42: Bit Alarms
Length Usage Bit Alarm 1 1 Bit Triggering the first alarm bit next Bit alarm Table 17: Communication objects – Bit Alarm MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 43: Macros
The semicolons separate the name of the device as subject and the text of the email. After that date, an additional line break is generated. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 44: Text Alarms
Text alarm 1 1 Bit Setting the value for the text alarm next Text alarm Table 19: Communication objects – Text Alarm MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 45: Status Reports
Sending the status report; is displayed only when the send condition is set to “object” next Status report Table 21: Communication objects – Status report MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 46: Specific Behavior And Error Handling
Table 24: Communication object – E-mail buffer Error code and email buffer are reset if a transmission was successful or the error condition is no longer fulfilled. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 47: Overview Communication Objects
Status element 1 according to parameters 1 Byte 2 Byte 4 Byte 14 Byte next Status element Table 25: Overview – Communication objects MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 48: Secure Group Address Communication
- Open Workplace “Group Addresses” -> select the relevant group address -> In “Properties” for the group address you get: Figure 35: Changing the security settings for the group address MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 49: Web-Interface
Go to the Windows Explorer and open the folder “Network”. Here your IP Router should appear with the specified host name. Double-click on the Router your default browser is invoked with the correct address. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 50: Overview Web-Interface
It is possible to perform a firmware update for the IP Router. For more information see 2.7 Firmware Update. If you have any questions, please contact MDT Support at support@mdt.de MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 51: Settings Of E-Mail Functionality
To set up E-mail functionality, open the menu “E-mail” and click "Settings": Figure 38: Web Interface – Destination E-Mail test Subsequently, the following menu opens: Figure 39: Web Interface – E-Mail settings MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... - Page 52 At the provider web.de it is further required that the sending of e-mails via external programs needs to be activated in the settings: Figure 41: Example 2 – Server data (German) MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
- Page 53 Then the status is displayed and if so, an error is displayed. The significance of the error codes is shown in 6.4 E-Mail – Error codes & remedy MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
-
Page 54: E-Mail - Error Codes & Remedy
Telekom. If your email provider does not support any SMS-service for e-mails, so third parties like SMS77 - https://www.sms77.de/ - can be used. MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 55: Index
Figure 40: Example 1 – Server data (German) ..................52 Figure 41: Example 2 – Server data (German) ..................52 Figure 42: Web Interface – Destination E-Mail Test ................53 MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 56: List Of Tables
Table 23: Communication object – E-mail Error code ................46 Table 24: Communication object – E-mail buffer ................. 46 Table 25: Overview – Communication objects ..................47 MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de... -
Page 57: Attachment
V1.0 - First Version of the 3rd generation of IP Interfaces – SCN-IP000.03 05/2019 V1.1 - General corrections; descriptions "Update", "Reset" extended 12/2020 MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de...
