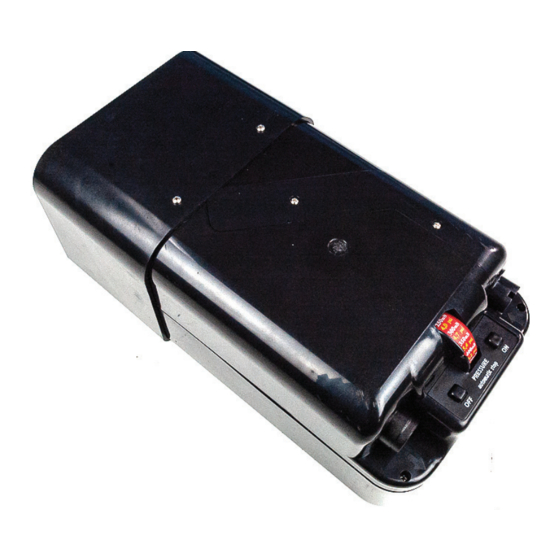

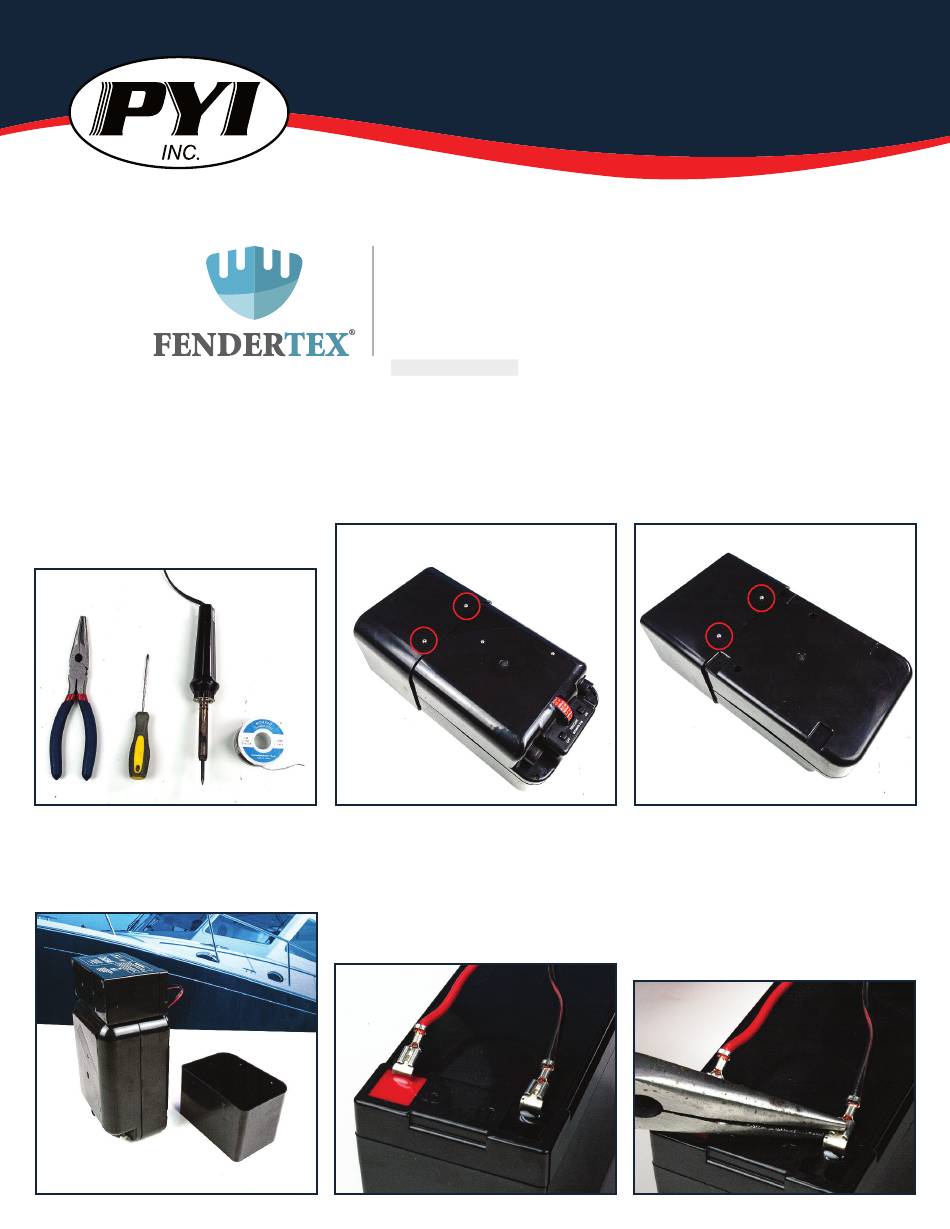

PYI FENDERTEX FX-BST-800 Assembly Instructions

TOOLS NEEDED
• Needle-Nose Pliers
• Screwdriver (Philips Head)
• Soldering Iron
• Solder
STEP 2
Remove the battery case from the pump to
expose the wire leads.
FX-BST-800
ASSEMBLY INSTRUCTIONS
* Assembly required.
STEP 1
Using a Philips head screwdriver, unscrew the two screws located on the front of the pump's battery
housing and the two screws located on the back of the pump's battery housing.
FRONT
STEP 3
Attach the black (negative) lead wire from the
pump to the black (negative) terminal on the
battery. Attach the red (positive) lead wire
from the pump to the red (positive) terminal
on the battery.
Quality Marine
Equipment Since 1981
BACK
STEP 4
Using a pair of needle-nosed pliers, crimp the
wire connectors onto the batteries terminals for
a secure connection. (Take care not to touch both
battery terminals or lead wires at the same time.
This could cause sparking and possible short-
circuiting of the pump)
