Audio Pro Sub Evidence MKII Specifications

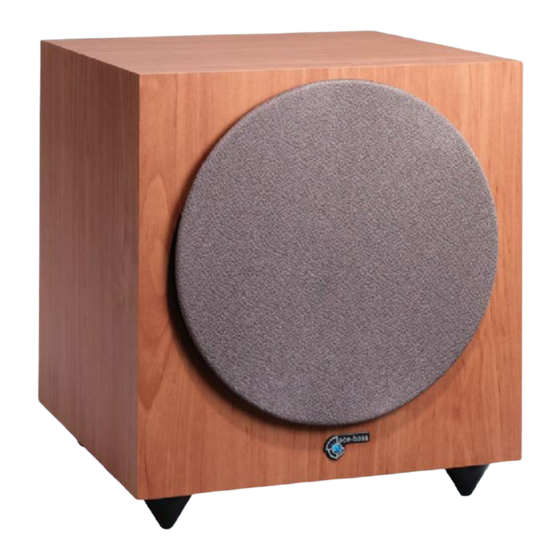

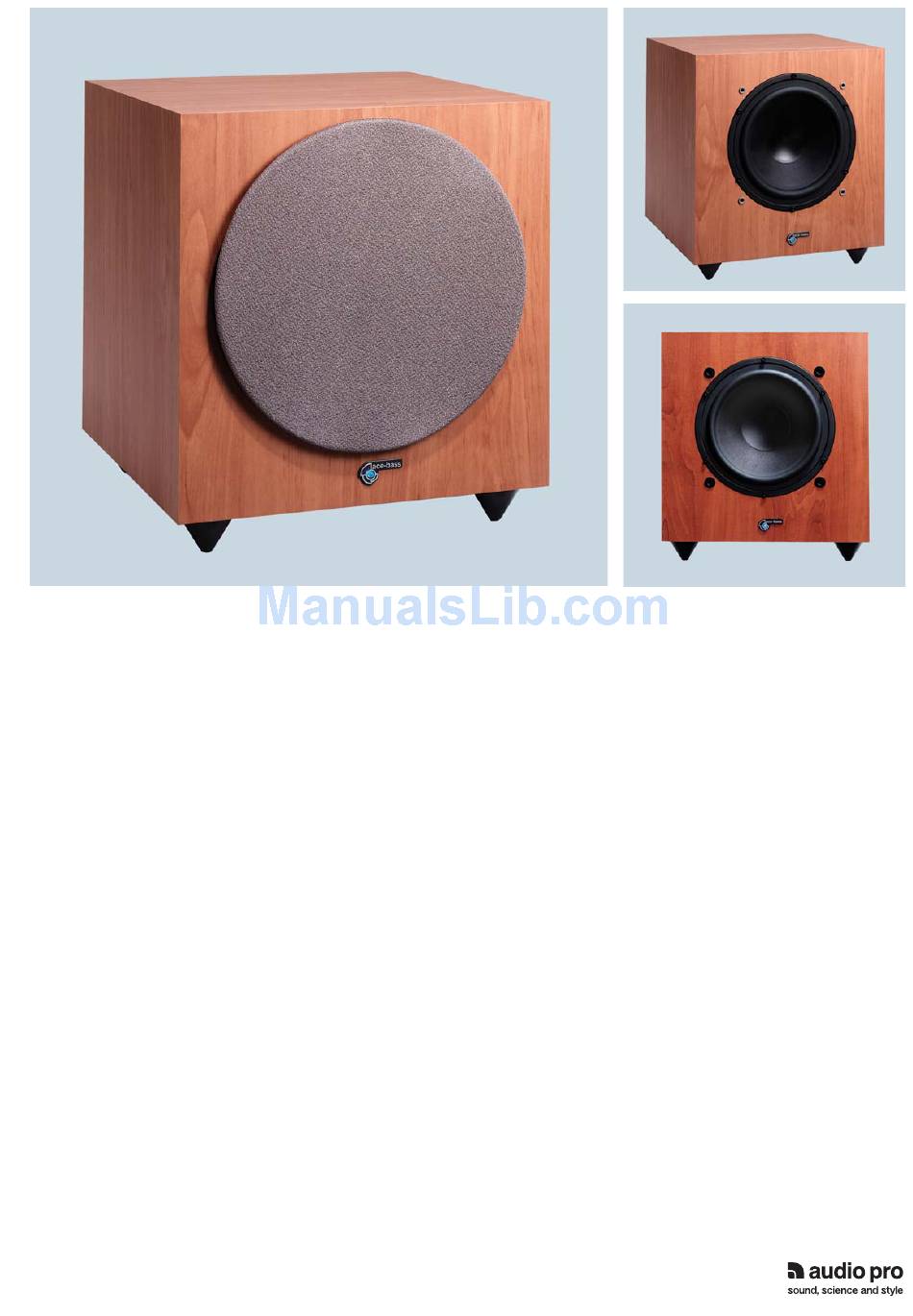

SUB Evidence MKII
With its pure, deep bass reproduction, this powered sub-
woofer will raise your enjoyment of HiFi or home theater to
a whole new level.
Sub Evidence MKII is equipped with an 8" long-throw
bass element driven by a 150W ace-bass® amplifi er.
Ace-bass® is Audio Pro's patented technology that allows
us to deliver deep, powerful bass sound from small
enclosures. Its controls enable you to steplessly adjust
level as well upper frequency limits between 50 Hz and
100 Hz, guaranteeing a well-balanced HiFi and home
theater listening experience.
The bass refl ex port is down-fi red, ensuring good contact
with the listening space. On the back of the speaker you
will fi nd both high- and low-level inputs, which makes it
connectible to most amplifi ers and receivers.
Design-wise, Sub Evidence MKII is matched with all
speakers in the Evidence series.
SUB EVICDENCE MKII
Type: Powered subwoofer with bult-in ace-bass®
amplifi er, bass refl ex
Amplifi er: 150 W rms
Woofer: 8" long-throw
Frequency adjustment: 27-100 Hz
Lo-pass fi lter: 50-100 Hz, variable 24 dB/octave
Hi-pass fi lter: 100 Hz, 6 dB/octave
Dimensions (WxHxD): 320x352x370 mm
Weight: 13 kg
Connectors: Line and speaker level input, clip terminal
and RCA-input
Adjustments: Auto standby, variable level adjustment,
variable frequency adjustment 50-100 Hz
Cabinet: MDF
Finish: Vinyl foil
Colors: Tara-oak, cherry
