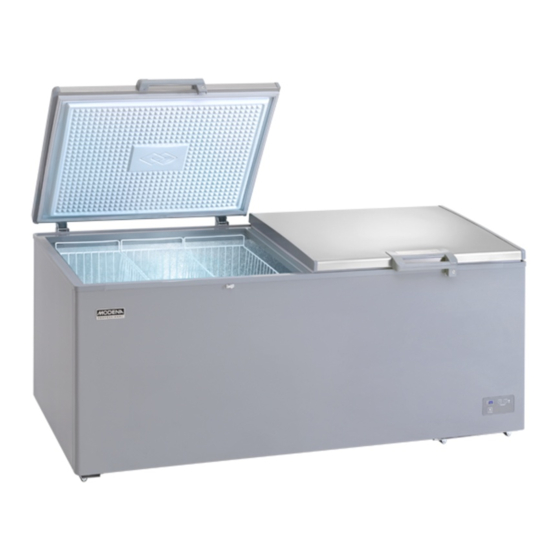

- Page 1 User Manual Book Chest Freezer Conserva Series Conserva Series MD 10 W, MD 20 W, MD 0106 W, MD 0156 W, MD 37 W, MD 65 W, MD 0206 W, MD 0316 W, MD 0956 W, MD 130 W MD 0516 W...
-
Page 2: Introduction
Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the- art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. -
Page 3: Table Of Contents
TABLE OF CONTENT PAGE Introduction Part 1: Safety Information Part 2: Name of Parts Part 3: Quick Start Guide Part 4: Maintenance Part 5: Troubleshooting Part 6: Specification... -
Page 4: Part 1: Safety Information
Part 1: Safety Information READ THIS INSTRUCTION MANUAL CAREFULLY! • WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. • WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. - Page 5 • ATTENTION! If power outage occurs, unplug the power cord. Wait at least 10 minutes before starting the appliance to avoid damage to the compressor. • ATTENTION! If the refrigerating appliance is left empty for a long period of time; switch it off, defrost, clean, dry, and leave the door open to prevent mould from developing within the appliance •...
-
Page 6: Part 2: Name Of Parts
Part 2: Name of Parts Door Basket Cabinet Control panel Caster wheels *Above picture is for reference only. Difference between the picture and actual product may occur **Feature and equipments differ by each product... -
Page 7: Part 3: Quick Start Guide
Part 3: Quick Start Guide PRODUCT INSTALLATION • Install the freezer on even and sturdy surface. Uneven surface may cause objects in it to fall. • Provide adequate space for air circulation between the freezer and the wall or other objects. Back and side clearance is 10 cm, and top clearance is 70 cm. - Page 8 INITIAL USE Open the freezer door for a while to provide good air circulation before Clean the inner cabinet before use Please wait 30 minutes before turning on the freezer. Oil in the compressor may circulate to the refrigerant system during the transportation or distribution process When turning the freezer for the first time, cabinet may become warm and the compressor will operate in a very long time to achieve ideal...
- Page 9 DIGITAL CONTROL 1. Temperature display 2. Temperatur setting 3. Fast freezing indicator lamp 4. Fast freezing button • Press the (+) button to increase or (-) button to decrease the temperature. (Temperature range: 10°C to -28°C) • To activate Fast Freezing, set the temperature from -1°C to -28°C, and press and hold the Fast Freezing button for 5 seconds.
- Page 10 FREEZING FRESH FOOD Freezer is suitable for freezing fresh food and storing frozen food for a long period of time. Place fresh foods on the bottom of the compartment. STORING FROZEN FOOD When you want to start the freezer after a long time, adjust the thermostat to highest level and wait until 2 (two) hours before storing anything inside the freezer.
-
Page 11: Part 4: Maintenance
• Consuming ice cubes immediately from the freezer may result in frost burns. • It is recommended to label each individual package with storing date to keep tab of the storage period. TIPS ON STORING FROZEN FOODS • Make sure that the commercially frozen foods were adequately stored by the retailer. - Page 12 IMPORTANT! Essential oils and organic solvent may damage plastic components. For example lemon water, orange water, butyric acid, cleaner that contains acetic acid. • Do not allow such substances to come in contact with the appliances. • Do not use abrasive cleaners. •...
-
Page 13: Part 5: Troubleshooting
LED LAMP REPLACEMENT If your freezer is equipped with LED lamp, contact Service Center for lamp replacement. LED lamp replacement must be performed by qualified technician. ENVIRONMENTAL NOTICE The packaging material used is recyclable. We recommend that you separate plastic, paper and cardboard and give them to recycling agents. - Page 14 Problem Possible Cause Recommended Action damaged fuse replace if needed • • Defective socket Malfunction must be repaired by qualified electrician • • Appliance is Thermostat not Adjust the thermostat until it’s cold not cold properly adjusted • • Too much food Rearrange or reduce •...
-
Page 15: Part 6: Specification
Part 6: Specification MODEL MD 10 W MD 20 W MD 37 W Capacity (Liter) Power Input (Watt) ≤-18 ≤-18 ≤-18 Temperature (°C) Color White White White Door with lock Wheels Control panel Analog Analog Analog Defrost drain hole Basket (pcs) Refrigerant R600a R600a... - Page 16 MODEL MD 65 W MD 0956 W MD 130 W Capacity (Liter) 1300 Power Input (Watt) ≤-18 ≤-18 ≤-18 Temperature (°C) Color White White White Door with lock Wheels Control panel Analog Analog Analog Defrost drain hole Basket (pcs) Refrigerant R290 R290 R134a...
- Page 17 MODEL MD 0106 W MD 0156 W MD 0206 W Capacity (Liter) Power Input (Watt) ≤-18 ≤-18 ≤-18 Temperature (°C) Color White White White Door with lock Wheels Control panel Analog Analog Analog Defrost drain hole Basket (pcs) Refrigerant R600a R600a R600a Rated Voltage (V)
- Page 18 MODEL MD 0316 W MD 0516 W Capacity (Liter) Power Input (Watt) ≤-18 ≤-18 Temperature (°C) Color White White Door with lock Wheels Control panel Analog Analog Defrost drain hole Basket (pcs) Refrigerant R600a R290 Rated Voltage (V) 220-240 220-240 Rated Frequency (Hz) Product dimension...
- Page 19 MODEL MD 10 MD 15 MD 20 A Capacity (Liter) Power Input (Watt) ≤-18 ≤-18 ≤-18 Temperature (°C) Color Grey Grey Grey Door with lock Wheels Control panel Digital Digital Digital Defrost drain hole Basket (pcs) Refrigerant R600a R600a R600a Rated Voltage (V) 220-240 220-240...
- Page 20 MODEL MD 30 MD 45 MD 60 Capacity (Liter) Power Input (Watt) ≤-18 ≤-18 ≤-18 Temperature (°C) Color Grey Grey Grey Door with lock Wheels Control panel Digital Digital Digital Defrost drain hole Basket (pcs) Refrigerant R600a R134a R134a Rated Voltage (V) 220-240 220-240 220-240...
- Page 21 MODEL MD 75 MD 95 Capacity (Liter) Power Input (Watt) ≤-18 ≤-18 Temperature (°C) Color Grey Grey Door with lock Wheels Control panel Digital Analog Defrost drain hole Basket (pcs) Refrigerant R290 R134a Rated Voltage (V) 220-240 220-240 Rated Frequency (Hz) Product dimension 1950x845x830...
- Page 22 11/20 PT MODENA INDONESIA Jl. Industri Raya I Blok D-8, Jatiuwung, Tangerang 15135...
