INSTRUCTIONS
Cone of Vision Tester
for X-Series Flame Detectors
Q1201C Laser Holder and Laser
APPLICATION
The Q1201C is used with Det-Tronics X-Series Flame
Detectors (X3301, X3302, X2200, X5200, X9800) for
identifying the detector's cone of vision (COV). The
Q1201C easily attaches to the front of the detector for
use during system startup, checkout and re-alignment.
DESCRIPTION

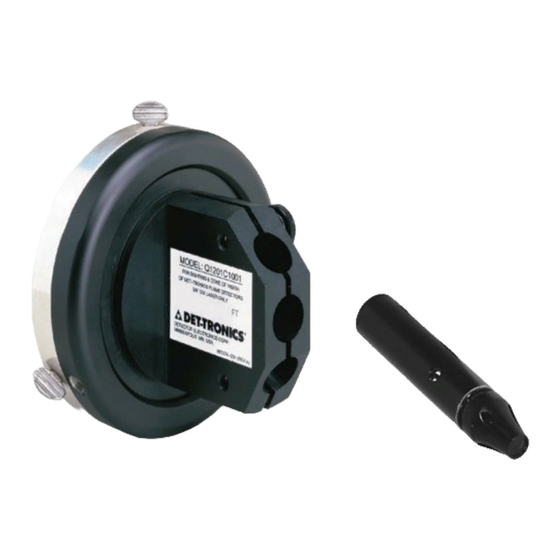

Q1201C LASER HOLDER
The Q1201C is designed to hold the Laser, which
projects a red beam of laser light to show the exact
center of the cone of vision of the detector.
additional holding positions are available for locating
the outside edges of the cone of vision for either 30
degrees off-center or 45 degrees off-center. While the
laser is being used to locate the perimeter of the cone
of vision, it can be rotated 360 degrees to identify the
ON AXIS
FOR CENTER OF COV
1.2
1.2 ©2020 Detector Electronics Corporation
Two

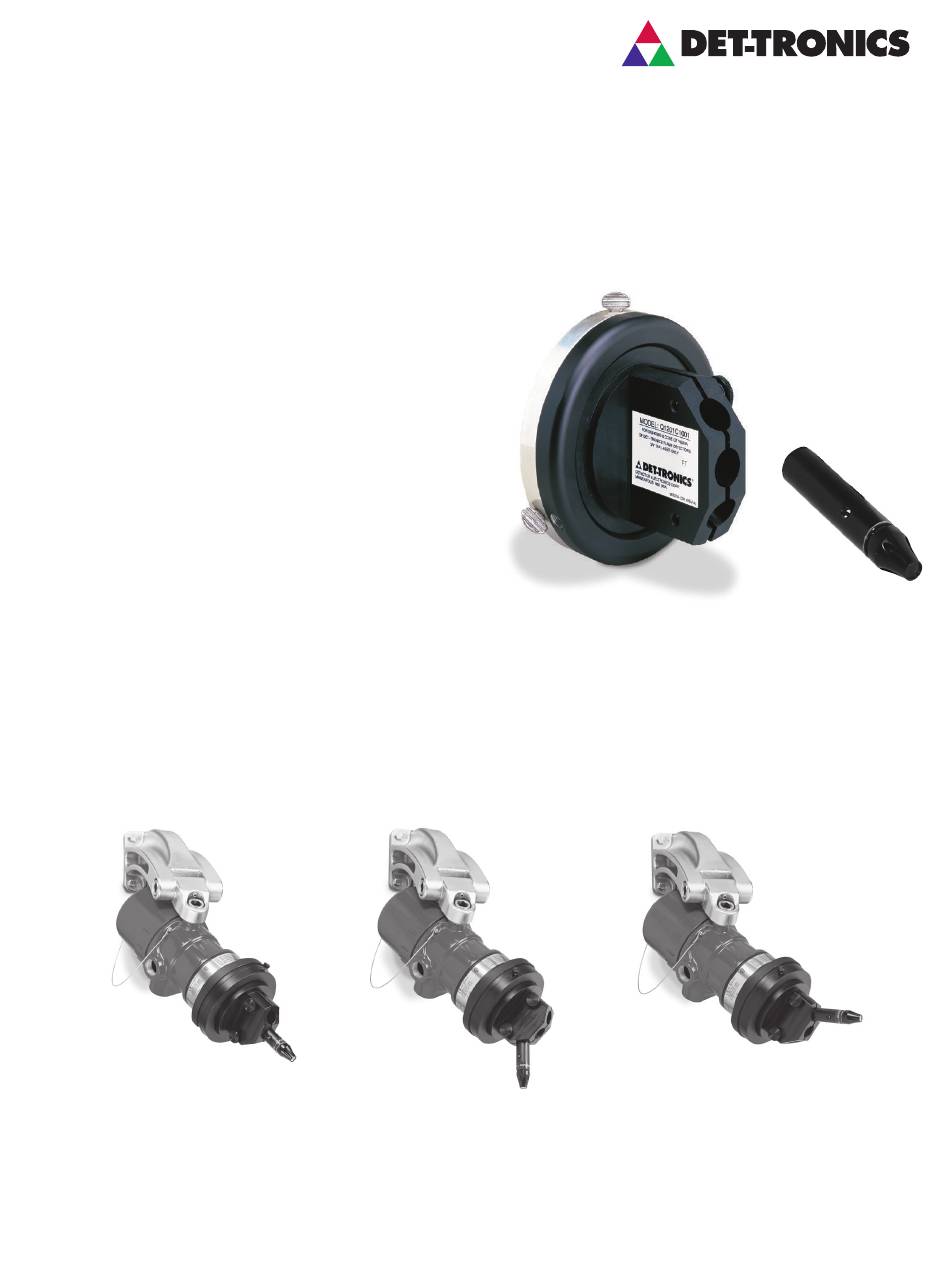

entire area of coverage of the flame detector. Figure
1 shows the Q1201C Laser Holder with the Laser
positions indicated.
45 DEGREES OFF CENTER
FOR 45 DEGREE PORTION OF COV
Figure 1—Laser Positions in Q1201C Laser Holder
1
30 DEGREES OFF CENTER
FOR 30 DEGREE PORTION OF COV
