Summary of Contents for Slootsmid SK
-
Page 2: Foreword

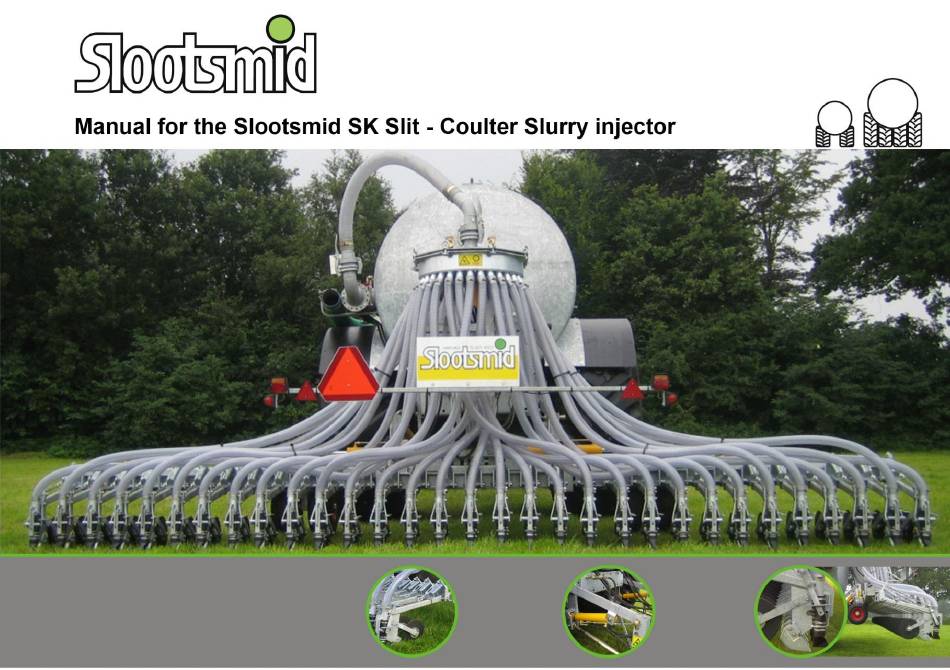

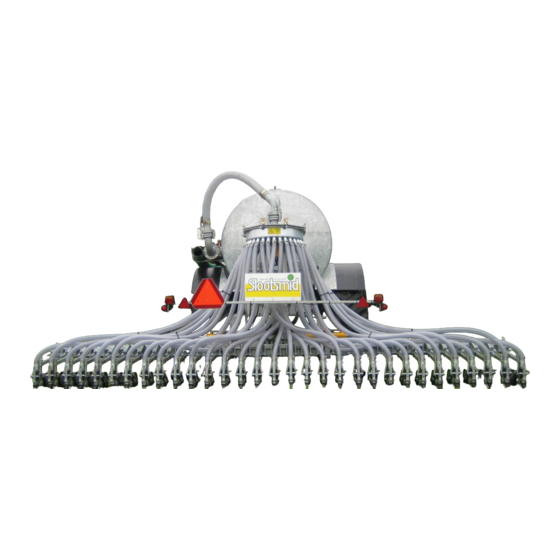

Foreword Congratulations! You are the owner of a Slootsmid (SK) Slit – Coulter Slurry injector. Produced for the modern farmer. We think that with buying this Slootsmid injector you have made a good choice. We are persuaded, when used appropriate the machine can be used for many years. -
Page 3: Table Of Contents
Index Foreword ............................ 1 Index ............................3 1. Guarantee ..........................4 2. EU declaration of conformity for machinery ................. 5 3. Safety instructions ........................6 4. Connecting description ......................8 5. Tuning the working depth....................13 6. Working with the machine ....................17 7. -
Page 4: Guarantee
The guarantee includes only the defects who find there assignable cause in material or production faults. The guarantee is limited to delivering material at no costs. This only on the judgment from Slootsmid. The possibility to claim ends at six months after delivery of the machine. Also in judicious use, wrong or no maintenance, wrong recovery and changes to the machine the possibility to claim will expire. -
Page 5: Eu Declaration Of Conformity For Machinery
(Guide 2006/42/EG) appendix II B Manufacturer Slootsmid Mesttechniek B.V. Adres Korenbree 40-A, 7271 LH Borculo The Netherlands Herewith declares that, The Slootsmid SK slit–coulter slurry injector Serial number ____________________________ Year of manufacture ____________________________ Delivery date ____________________________ Meet the requirements of the machinery guide (Guide 2006/42/EG, last changed); appendix VII part B Accomplished in Borculo at, ___________________________* M.A.C.B. -
Page 6: Safety Instructions
3. Safety instructions The on the machines attached stickers inform the user a safe use with the machine. 1. Following these instructions is very important for your own safety! Stickers which are damaged need to be replaced! 2. Use this machine only when all protection is complete, intact and in functional condition. The protection prevents the access to dangerous areas and prevents other people. - Page 7 3.1 Safety stickers The on the machine attached stickers inform the user a safe use with the machine. Following the instructions is very important for your own safety! Stickers which are damaged need to be replaced.
-
Page 8: Connecting Description
4. Connecting description Connecting the machine behind the tank. 1. The condition is that the tank a continuous frame. 2. Connect the lift consoles with the support pieces according the sketch to the tank. 3. Connect the lift consoles the toplines and the lift cylinders according next photo. See the concept lifting device and the concept stabilization collars. - Page 9 • Connect for the SK 3M 2x18 MM hydraulic lines. • Connect for SK 4M, the SK 5M and SK6M 2x18MM hydraulic lines for the manpower and 2x15 mm. hydraulic lines to fold up. • Attach the machine to the tank and enclose the hydraulic lines.
- Page 10 4.2 Hydraulic diagram...
- Page 11 4.3 Concept extension parts...
- Page 12 4.4 Concept suspension 4.5 Concept stabilization cutting Lower Lower connectpoint connectpoint injector tank...
-
Page 13: Tuning The Working Depth
8. Presume the work position ever the spring pressure is changed. 9. The mending of spring pressure at the SK when you postpone the stated gibbet, you can repair the spring pressure. 10. Start the gear – box at the pump tank. (Look at the diagram of the pump tank) 11. - Page 14 Manometer Distancebolt for adjusting bottompressure...
- Page 15 Angle of 10 degrees Horizontal Gibbet (adjustable)
- Page 16 5.1 Tuning folding out the machine When you fold the machine up and down, there are large powers. For a good dividing of the powers and a maximum load to occur, the arms must be move step by step and steady. You can adjust the fold down speed with a stew valve on the cylinder.
-
Page 17: Working With The Machine
6. Working with the machine Make sure that nobody is on, or at the injector. Spread the machine (security unlocks automatically) Set when driving the machine on lowering and set the valve handle on lowering. Set when driving the machine on lifting and put the handle from the valve in neutral. Always lift the machine in the highest position. -
Page 18: Maintenance
7. Maintenance Frequently using the machine • Clean the cutting filter daily • Check the grease points every week • Check the lights before you drive on the public roads Machine at storage: • Clean the cutting filter, oil coating and clean air valves •... - Page 19 7.1 Lubrication points Clean the lubrication points every week...
-
Page 20: Hydraulic Order Valve
8. Hydraulic order valve 1. Spherical plug (lowering) 2. Spherical plug 3. Spherical plug 4. Pre – loading device 5. Press mending (average ground pressure) 6. Gauge pressure valve 7. Manometer Automatic sequeceblock... -
Page 21: Troubleshooting
The machine does not want to lift. A. The distributor stuck. Solution: Clean the distributor. Pay attention for your fingers! B. Intrusion in the hydraulic block. Solution: Ask Slootsmid. Anti lowering valve C. Automatic quick couple is broken. Solution: Trace it en replace it. - Page 22 The machine goes down during the transport. A. Leaving of the anti fall down valve, for example through dirt. Solution: Clean the valve, ask the producer. B. Leaving wristbands from lift cylinders. Solution: Repair the cylinders. The machine distribute irregular or not. A.
-
Page 23: Technical Information
: 5 to 30 m3 per ha. Quotation : automatic with a rank valve For the SK 4M, SK 5M en SK 6M type, 1 double valve for the quotation and 1 double valve for fall up and down is needed. - Page 24 Slootsmid Mesttechniek B.V. Korenbree 40-A NL-7271 LH BORCULO GLD The Netherlands Telephone: +31 (0)545-745 090 E-mail: info@slootsmid.com Internet: www.slootsmid.com...
