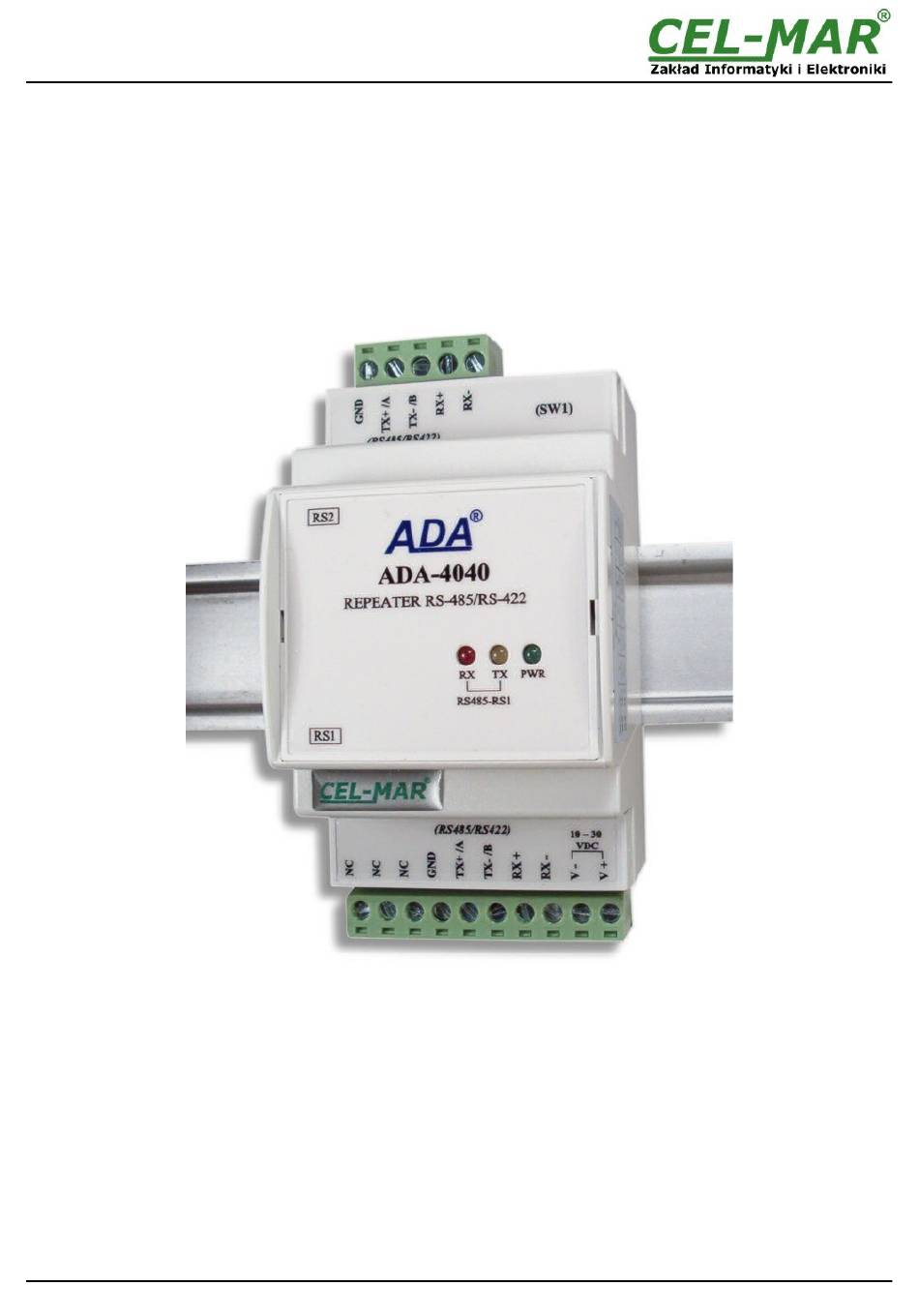

- Page 1 ADA-4040 User manual ADA-4040 Separator-repeater RS-485 / RS-422 Copyright © 2001-2020 CEL-MAR sp.j. io_ada-4040_v3.30_en...
-
Page 2: Table Of Contents
ADA-4040 Contents 1. GENERAL INFORMATION..................................3 1.1. WARRANTED INFORMATION..............................3 1.2. GENERAL CONDITIONS FOR SAFE USE........................... 3 1.3. CE LABEL...................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................3 1.5. SERVICE AND MAINTENANCE..............................3 1.6. PACK CONTENTS..................................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2. -
Page 3: General Information
ADA-4040 1. GENERAL INFORMATION Thank you for your purchase of CEL-MAR Company product. This product has been completely tested and is covered by a two year warranty on parts and operation from date of sale. If any questions or problems arise during installation or use of this product, please do not hesitate to contact Technical Support at +48 41 362-12-46 or e-mail support@cel-mar.pl. -
Page 4: Description
The ADA-4040 transmits data at baud rate up to 230,4 kbps, through four or two twisted-pair connected to a terminal block. To RS485/422 bus created by the use ADA-4040, it is possible to connect 32 devices, operating in half duplex or full duplex mode. The 1kVDC or 3kVDC galvanic isolation and ~3kVDC optoisolation in signals line separate RS1/OUT (RS485/RS422) interface from RS2/IN (RS485/RS422) interface. -
Page 5: Installation
– not powering the converters form the power-circuit of devices generate large impulse disturbance like contactors, relays, inverters. 3.1. ASSEMBLING The ADA-4040 case is adapted to assembly on TS-35 (DIN35) rail. To install converter should mount device on the rail upper part of the case then press bottom part to hearing characteristic „Click” sound. -
Page 6: Separation Of Rs485 (4-Wire)/ Rs422 Interface Of Device From The Rs485 (2-Wire) Bus
ADA-4040 3.2.1.3. SEPARATION OF RS485 (4-WIRE)/ RS422 INTERFACE OF DEVICE FROM THE RS485 (2-WIRE) BUS Device with RS485 (4W) ADA-4040 interface RS485 (4W) connector RS485 (4W) RS485 (2W) Tx+ / A Tx+ / A Tx- / B Tx- / B... -
Page 7: Extension And Separation Of Rs485(4W) Bus Segments
ADA-4040 3.2.1.6. EXTENSION AND SEPARATION OF RS485(4W) BUS SEGMENTS RS485 (4W) connector RS485 (4W) connector RS485 (4W) connector Fig 8. Extension about 1200m and separation of RS485(4W) bus segments... -
Page 8: Extension And Separation Of Rs485(2W) Bus Segments
ADA-4040 3.2.1.7. EXTENSION AND SEPARATION OF RS485(2W) BUS SEGMENTS RS485 (2W) connector RS485 (2W) connector RS485 (2W) connector Fig 9. Extension about 1200m and separation of RS485(2W) bus segments... -
Page 9: Extension And Separation Of Rs485(2W) & Rs485(4W) Bus Segments
ADA-4040 3.2.1.8. EXTENSION AND SEPARATION OF RS485(2W) & RS485(4W) BUS SEGMENTS RS485 (2W) connector RS485 (2W) connector RS485 (2W) connector Fig 10. Extension and separation of RS485(4W) 4-WIRE and RS485(2W) 2-WIRE bus segments... -
Page 10: Gnd Terminal Connection
3.3. POWER SUPPLY The power supply to ADA-4040 should be DC (regulated) from the scope 10 V= to 30V= and nominal power 2W. The power cable from DC power supplies to the device must not be longer than 3m. Observe the polarity, connect positive (+) of DC power supplies to V+ and negative (-) end to V- terminal. -
Page 11: Versions
ADA-4040 - Electronics version: Basic Special Galvanic isolation: Order example: 1kV=, 2-way Product Symbol: ADA-4040-1-23-3 1 – basic electronics version, 1kV=, 3-way 2 – 1kV=,3-way galvanic isolation, 3kV=, 2-way 3 – cover without inlets, plug-in screw terminal block 3kV=, 3-way Terminal &... - Page 12 Thank you for purchasing CEL-MAR Company products. We hope that this user manual helped connect and start up the ADA-4040 separator-repeater. We also wish to inform you that we are a manufacturer of the widest selections of data communications products in the world such as: data transmission converters with interface RS232, RS485, RS422, USB, Current Loop, Fibre-Optic Converters and Ethernet or Wi-Fi.
