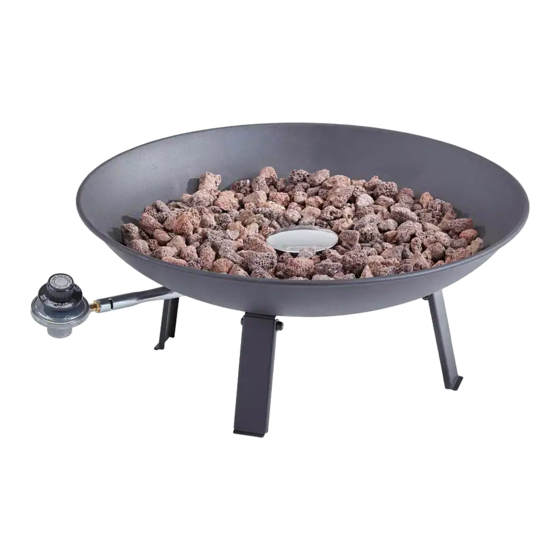

Outdoor Fire Bowl
Model No. 085-1559-4
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the owner's manual thoroughly
before installing or servicing this
equipment. If the information in this
manual is not followed exactly, a
fire or explosion may result causing
property damage, personal injury or
loss of life.
Save these instructions for future use. If you
are assembling this unit for someone else,
give this manual to him or her to read and
save for the future.
Assembly Instructions
Toll-free: 1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING
Do not store or use gasoline or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
must not be stored in the vicinity of
this or any other appliance. If you
are assembling this unit for someone
else, give this manual to him or her to
read and save for the future.
WARNING
For outdoor use only.
This appliance can produce carbon monoxide
which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 085-1559-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for for Living 085-1559-4

  • Page 1 Outdoor Fire Bowl Model No. 085-1559-4 DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odour continues, keep away from the appliance and immediately call your gas supplier or fire department.
  • Page 2 Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8 | Made in China...
  • Page 3: Warranty

    Table of Contents Important Safety Instructions Parts List Assembly Operation Cleaning and Maintenance Technical Specifications Warranty Warning! Please read and understand this entire manual before attempting to assemble, operate or install the product. Failure to follow the dangers, warnings and cautions contained in this instruction manual may result in a fire or explosion causing damage to property, serious bodily injury or death.
  • Page 4 Model No. 085-1559-4 • You must use a propane tank that has a collar to protect the gas valve. • DO NOT fill tank over 80 percent full. • The tank system must be set up for vapour withdrawal. •...
  • Page 5 Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate the appliance. For assistance with repair or replacement of the burner or any other parts, call FOR LIVING at 1-877- 483-6759.
  • Page 6 Model No. 085-1559-4 Body - 1 Regulator - 1 Lava Rocks - 1 bag (7.7 lbs)
  • Page 7 Let us help you! DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST! 1-877-483-6759 If you have questions regarding your product, require warranty assistance, or have damaged or missing parts, please call our customer service toll-free helpline. Contact us for assistance; we’re here to help. IMPORTANT: Please read and understand this manual before any assembly.
  • Page 8 Model No. 085-1559-4 Step 1 Requires 1, 2 Screw the regulator 2 onto the preassembled burner tube on the body 1. Step 2 Requires 1 Unfold out the four preassembled legs from the bottom of the body 1.
  • Page 9 Step 3 Requires 1, 2 Check that the control knob on the regulator 2 is turned to the "OFF" position. Attach a 1 lb. propane gas tank (not included) into the bottom of the regulator 2. Step 4 Requires 1, 3 Pour the bag of lava rocks 1 into the firebowl on the body 1.
  • Page 10 Model No. 085-1559-4 Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections.
  • Page 11 • Before performing any maintenance always disconnect propane gas tank. • Keep the heating item free and clear from combustible materials. • Visually inspect burner for obstructions and keep tank enclosure free and clear from debris. • Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/lava rocks/ LavaGlass™...
  • Page 12 12 lb 15 oz 5.89 kg This For Living product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear...
