Patent Pending

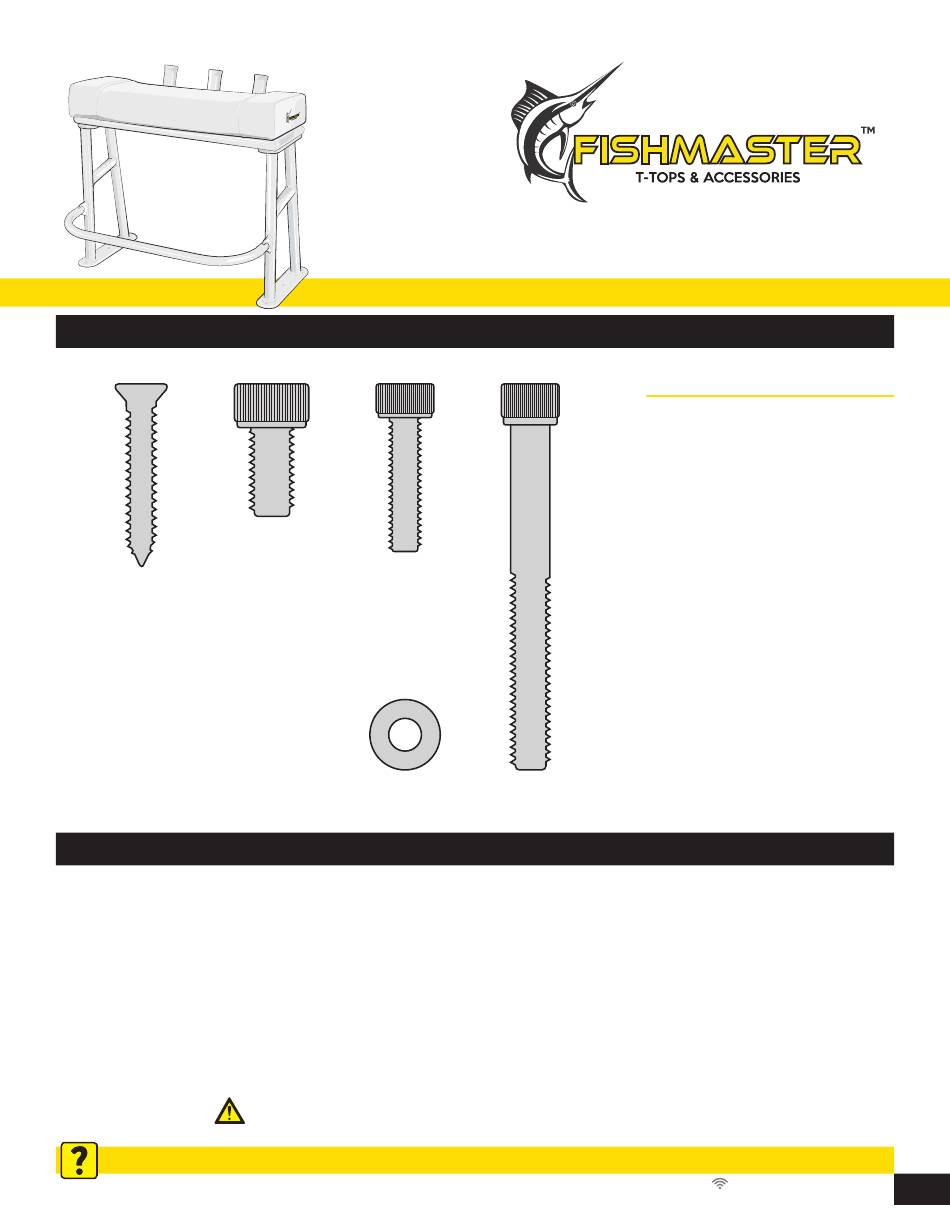

Original Leaning Post Included Hardware Identification
(6) 1.5" x 1/4"
(4) M10 x 40
Gather additional necessary tools and materials:
• Blue painter's tape
• Black permanent marker
• Tape measure
Do you have installation questions? Call us @ 877.777.8693 Monday - Friday, 8am-5pm EST
©2019 Fishmaster

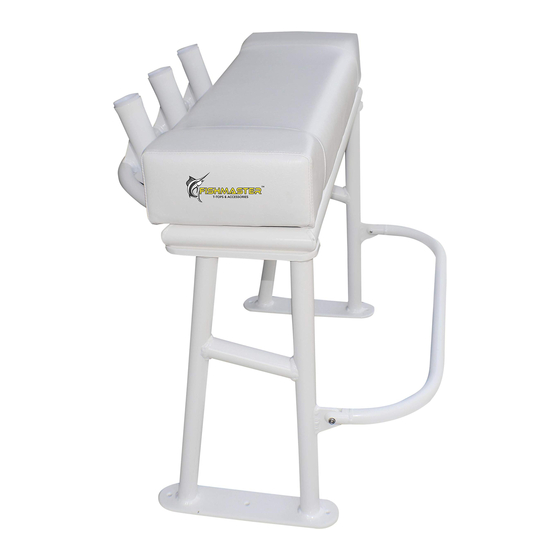

Original Leaning Post
(2) M8 x 30
(4) M6 x 25
Washers
• Cordless drill with 1/8" bit
• 45° chamfer bit
• Metric allen wrench set
WARNING: If you are unfamiliar with your boat's construction,
please seek professional advice before installing your leaning post.
2640 Byington Solway Rd, Knoxville, TN 37931
INSTALLATION MANUAL
Verify all parts are included
(4) M6 x 25
before you begin.
(1) Leg Base (R)
(1) Leg Base (L)
(1) Seat Platform
(1) Foot Rest
(1) Seat Cushion
(6) 1.5" x 1/4" Deck Screws
(4) M10 x 40 Bolts
(2) M8 x 30 Bolts
(4) M6 x 25 Shoulder Bolts
(4) M6 Washers
• Phillips head screwdriver
• Tube of 3M 5200
Marine Adhesive
877.777.8693
fishmaster.com
