Summary of Contents for Delton 883C
- Page 1 883C Wood/Building Material MOISTURE METER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TITLE PAGE Introdution..............1 Specification............1/2 LCD explanation............2 Faceplate instruction..........3/4 Operation instruction...........4 Performing measurement..........4 Automatic power-off feature........4 Data hold..............4/5 LED indications for moisture and related settings..5 Note................6 Declaration...............6 Disposal of this article..........7... -
Page 3: Introdution
INTRODUTION This instrument can be used to measure the moisture level in sawn timber (also paper,cardboard) and hardened materials(mortar,concrete plaster).It displays the moisture level directly. In addition, it can also measure environment temperature. It is portable and very easy to use. ... - Page 4 reading≥30%：±4% Material:reading<1.4%:±0.1% reading:≥1.4%±0.2% Temperature:not specified Low Battery Indication:Symbol “ ” shown on the display Automatic Power-Off Battery: 9V Zinc-carbon battery Operating Environment:Temperature:0℃~40℃ Relative humidity:<85% Storage Environment:Temperature:-10℃~50℃ Relative humidity:<85% Size:80*40*20mm Weight:about 150g (including batteries)
-
Page 5: Lcd Explanation
LCD EXPLANATION Symbol Meanings: “ ”---- Batteries are low and should be replaced “ ”----Wood moisture measurement mode is selected.In this mode,you can measure the moisture level of sawn timber,paper or cardboard. ”-----Material moisture measurement mode is “ selected.In this mode,you can measure the moisture level of hardened material(mortar concrete or plaster). -

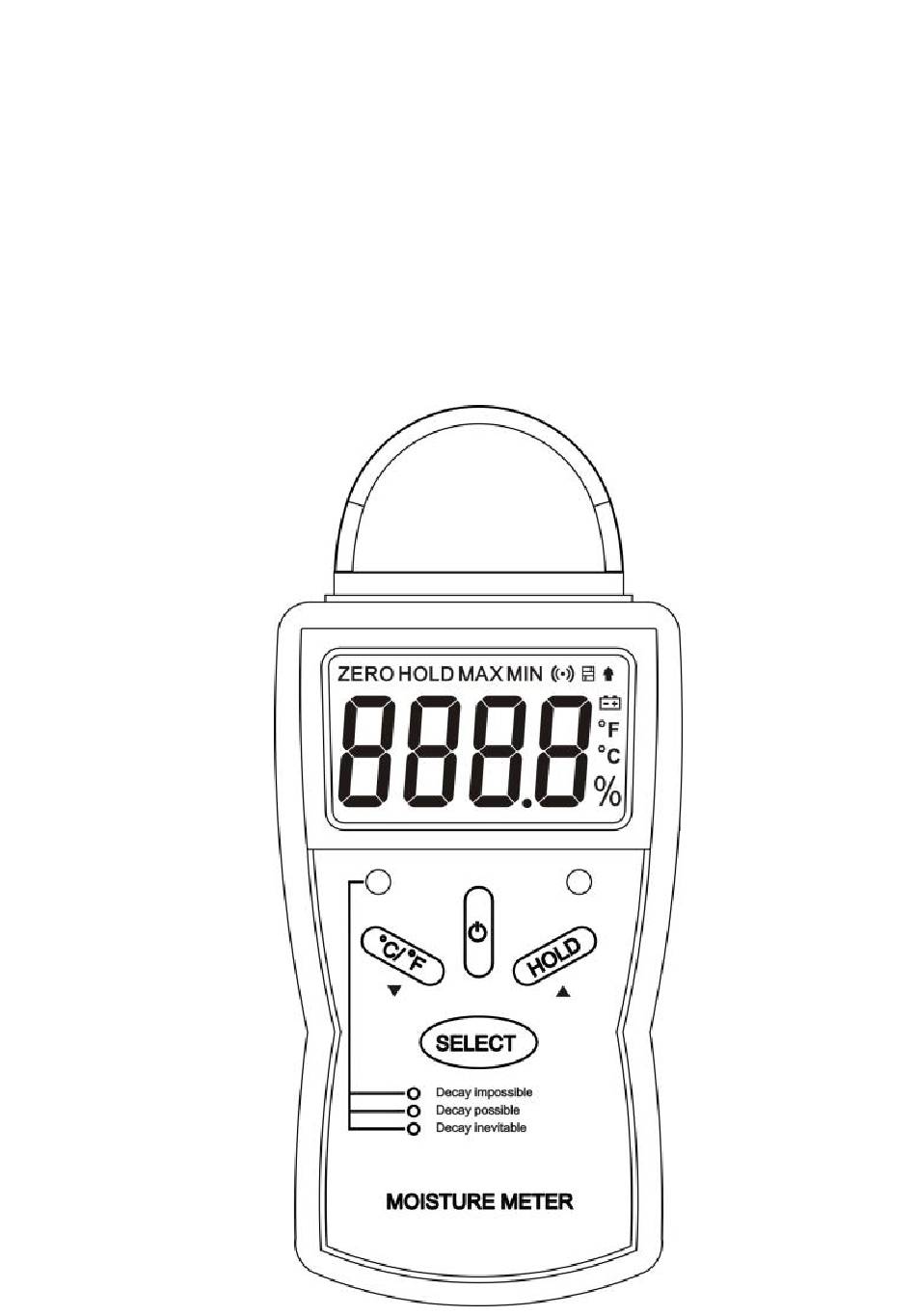

Page 6: Faceplate Instruction
FACEPLATE INSTRUCTION Probe 2. Indicatior for moisture... -
Page 7: Operation Instruction
Degrees or Fahrenheit select key 4. Wood moisture or Material moisture select key, Reduction of the value when set the warning value Power 6. Auto backlight sensor 7. Data Hold; Add the value when set the warning value 8. LCD ... -
Page 8: Automatic Power-Off Feature
For temperature measurements,the display shows the present environment temperature directly. For moisture measurements, Take off probe shield and press the pins of two sides with fingers , Insert the pins into the object approx. 5mm, which display the containing water of the object. ... - Page 9 There are two values for controlling the warning of LED light, namely AL1 and AL2. The factory defaults of wood moisture are: AL1=13, AL2=18, and for Material moisture, they are: AL1=0.3, AL2=0.8, If the measured value is less than 13, the green indicator will be turned on. If it is higherthan 18, the red indicator will be turned on.
-
Page 10: Note
NOTE Keep the instrument dry. Keep the probe clean. Keep the instrument and battery out of reach of infant and child. Some factors (such material type temperature can affect moisture measurement result and may make it necessary to correct the displayed value.Don’t use the instrument in the case of inspections or for reference purposes.
