Moore Industries CPT HLPRG Quick Start Manual

Pc-programmable signal isolater/converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

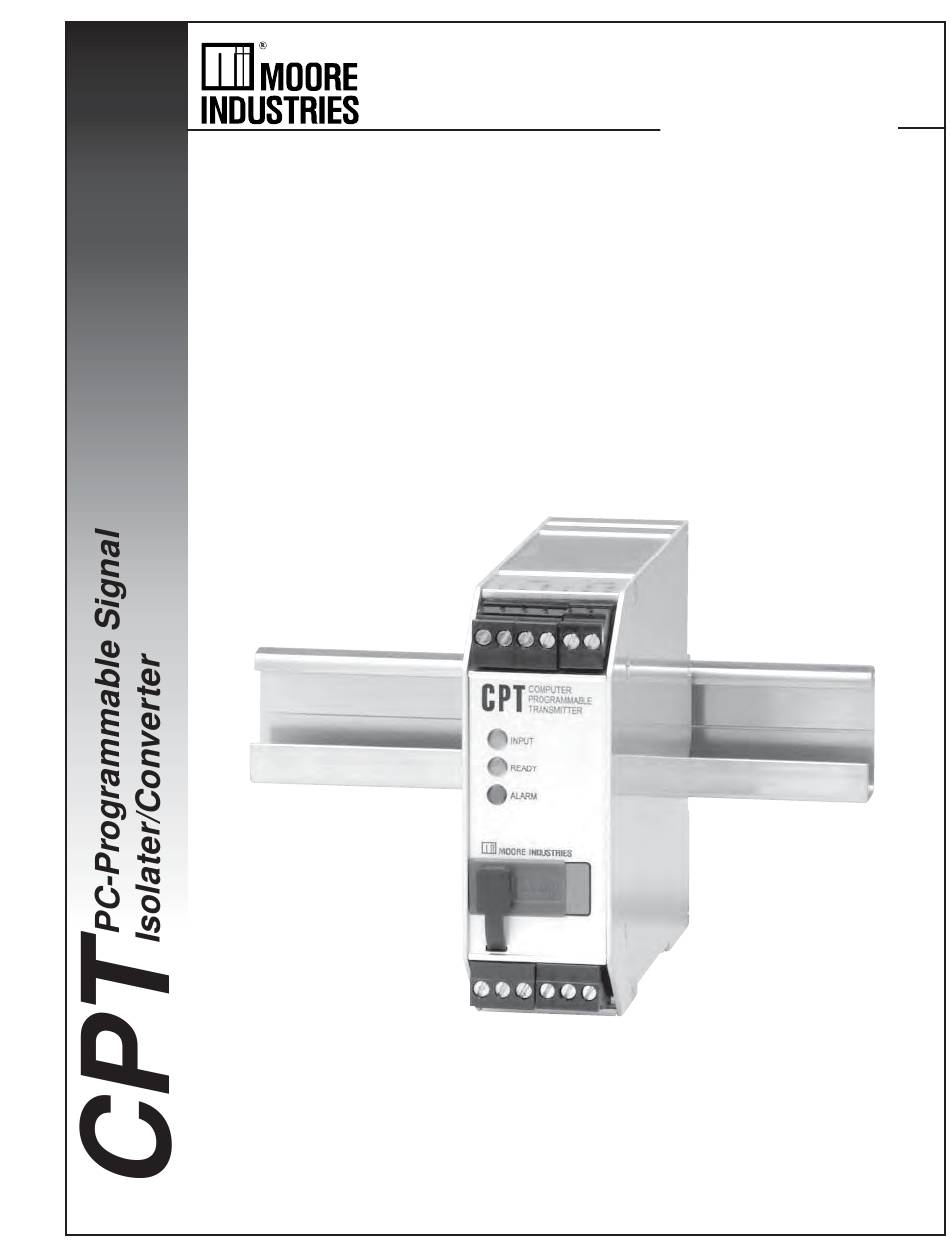

CPT
PC-Programmable Signal
May 2016
Isolater/Converter
225-708-00 D
HLPRG
All product names are registered trademarks of their respective companies.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPT HLPRG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moore Industries CPT HLPRG

Summary of Contents for Moore Industries CPT HLPRG

  • Page 1 PC-Programmable Signal May 2016 Isolater/Converter 225-708-00 D HLPRG All product names are registered trademarks of their respective companies.

  • Page 2: Table Of Contents

    Table of Contents Introduction ............................. About this Manual ......................4 The CPT ........................... 4 Model and Serial Numbers....................4 Options ..........................4 Specifi cations ....................5 Dimensions ........................6 Confi guring the CPT ..................7 Installing the Confi guration Software ................8 Connecting the CPT to the PC ..................
  • Page 3 Custom Table ....................16 Installation ..................... 17 Mounting the CPT ......................17 Making the Electrical Connections ................. 17 Recommended Ground Wiring Practices ............... 17 CE Conformity ........................ 17 Operation ....................... 17 Maintenance ........................17...

  • Page 4: Introduction

    The CPT Introduction The CPT is a PC-Programmable, user-confi gurable, This is the users’ manual for the Moore Industries transmitter. The instrument includes an analog output CPT PC-Programmable Transmitter (HLPRG: Volt and and an optional alarm (relay) output. The alarm can Milliamp input limits).

  • Page 5: Specifi Cations

    PC-Programmable Signal Isolater/Converter Specifi cations Performance Input Accuracy: Current, Performance Maximum Load Indicators LED Type: INPUT LED: ±0.01% of max. span (continued) Resistance: 1kohm Dual color LED indicates (±2 microamps); Voltage, Line Voltage Effect: input failure ±0.01% of max. span ±0.002% of span per 1% READY LED: Green LED (±1mV)

  • Page 6: Dimensions

    PC-Programmable Signal Isolater/Converter Figure 2. CPT (HLPRG) Dimensions WHEN INSTALLED 136mm (5.36 in) WHEN INSTALLED 131mm (5.16 in) 124mm 35mm (4.89 in) (1.38 in) COMPUTER PROGRAMMABLE TRANSMITTER 53mm INPUT (2.09 in) READY ALARM 100mm (3.94 in) 48mm (1.89 in) Table 2. Terminal Designations Top Terminals (Left to Right) Input Type Current Input (HLPRG)

  • Page 7: Confi Guring The Cpt

    Confi guration File and stored in the to change. All operating parameters are set using a instruments’ memory. You can save a backup copy of PC and Moore Industries’ Intelligent PC Confi guration the fi le on your PC hard drive or disk. The transmitter software.

  • Page 8: Installing The Confi Guration Software

    Refer to Table 3 for the equipment needed. one or more transmitters at a later time. Insert the Moore Industries Interface Solution The CPT must be connected to the PC in order to: PC Confi guration Software CD into the CD trim input, trim output, assign a tag, perform a loop drive of the PC.

  • Page 9: Pc Confi Guration Software Summary

    PC-Programmable Signal Isolater/Converter PC Confi guration Software Summary Figure 4. Most of the CPT (HLPRG) Operating Parameters can be set from the Main Screen of the Confi guration Program Once the default confi guration has been saved to disk, 5. Input Confi guration– Select 50/60Hz Rejection it is safe to program other parameters.

  • Page 10: Confi Guration

    PC-Programmable Signal Isolater/Converter 10. Alarm Parameters– Use this to choose an alarm Confi guration mode and confi gure as either a Trip, Fault or Band alarm. Select whether to use as a Fail Safe or NON Fail Safe Alarm. You may also choose a Delay (0- Output Level if Failure 120sec) and a Deadband (0-100%).

  • Page 11: Alarms

    PC-Programmable Signal Isolater/Converter Figure 5. Band Alarm Parameter Graph Alarms Trip Low and Trip High Alarms In the Alarm Parameters portion of our CPT Confi guration Program you may choose a “Trip Low” and “Trip High” limit. In choosing your limits you are setting the parameters for your unit to notify you if your process input drops below (Trip Low) or exceeds (Trip High) your trip point setting.

  • Page 12: Trimming/Damping

    PC-Programmable Signal Isolater/Converter Trimming/Damping Figure 6. PC Confi guration Software Trimming/Damping Tab To access the Trim feature, click the Trimming/ Before you attempt to perform the Sensor Trim Damping tab . Trimming increases the measurement function ensure that the Status section of the screen accuracy of the parameter you are trimming by indicates “Measurements On”.
  • Page 13 PC-Programmable Signal Isolater/Converter Figure 7. Trimming the CPT (HLPRG) VOLTAGE SOURCE MULTIMETER CURRENT – SOURCE A +OUT A -OUT 2-WIRE TRANSMITTER COMPUTER PROGRAMMABLE TRANSMITTER INPUT READY ALARM AC OR DC POWER SUPPLY The Interface Solution Experts...

  • Page 14: Output Trim

    PC-Programmable Signal Isolater/Converter Loop Test Output Trim A Loop Test may be performed in order to check Output Trimming increases the measurement accuracy of your CPT by calibrating its output to the device output performance and accuracy and to trim other that is receiving the output.

  • Page 15: Output Damping

    PC-Programmable Signal Isolater/Converter Output Damping A possible source for the occurence above is a rapid change on the input. Another possiblity would Output Damping allows you to introduce a delay into be an existing output level of 5.6mA upon Start the response of your unit in order to stop short-lived Measurements from a PC.
  • Page 16 “Save Table” button. format. The fi les are saved to/read to/read from the “Moore Industries\Custom Curves” folder. This makes To open or use this saved table at a later time, click it simple to save the custom table for downloading to the “Open Table”...
  • Page 17 We perform a battery of stringent quality • Any Moore Industries product in a metal case or assurance checks on every unit we ship. If any Moore housing should be grounded.
  • Page 18 In other cases, the Moore Industries’ representative will advise you of the repair cost and esti- mated return date, if requested in your letter. Repair in such instances must be authorized by a purchase order number before the equipment can be repaired and returned.
