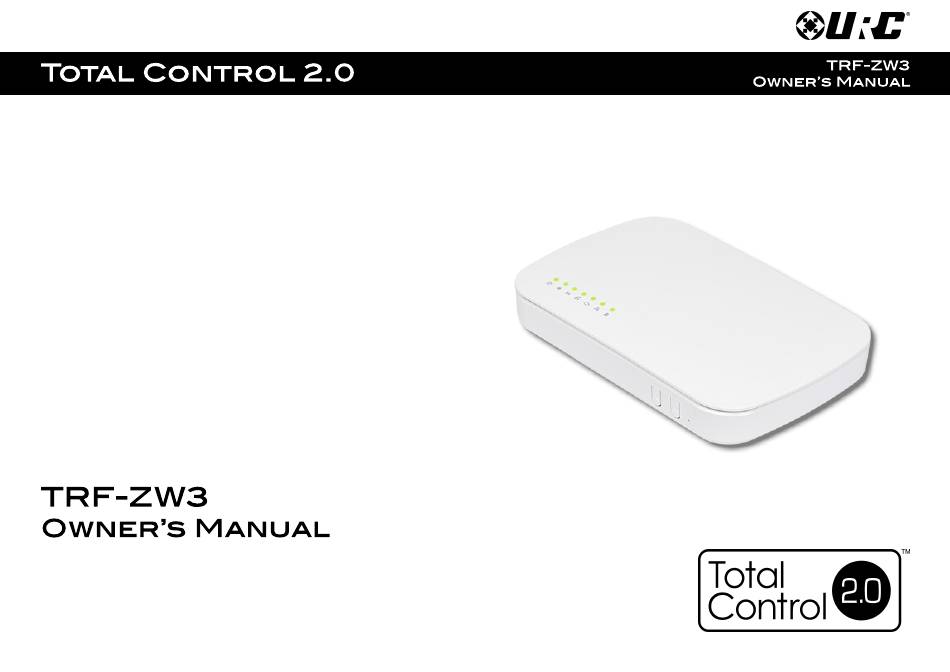

URC TRF-ZW3 Owner's Manual

Total control 2.0
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for URC TRF-ZW3

Summary of Contents for URC TRF-ZW3

  • Page 2: Table Of Contents

    Table of Contents Congratulations....................................................1 Features and Benefits..................................................1 Compatibility.......................................................2 Device Layout and Connections..............................................3 LED Indicator Lights..................................................5 Installation......................................................7 Using the TRF-ZW3.....................................................7 Including (pairing) a Device..............................................7 Excluding a Device..................................................8 Restricting Installer Access................................................9 Hardware Specifications................................................10 Warranty Statement..................................................10...

  • Page 3: Congratulations

    Z-Wave devices and your compatible URC control system, integrating them seamlessly together into a single user interface for control and automation. Incorporating this gateway as part of a URC control system offers a myriad of potential additions to your home.

  • Page 4: Compatibility

    ● ZigBee & Bluetooth Support (Limited): Parts List: The TRF-ZW3 has the ability to communicate with devices using either a ZigBee or Bluetooth protocol. ZigBee/Bluetooth devices must be included in the UI7 ● TRF-ZW3 Z-Wave Gateway programming portal library. Control of these devices is limited and not supported by URC.

  • Page 5: Device Layout And Connections

    Device Layout and Connections: 1. USB Port: Provides features and support for advanced applications. 2. Ethernet Port: Connects the gateway physically to the local network via an ethernet cable. 3. 12V Power Receptacle: Connects to the included power adapter. 4. Sync Button: Used to start the selection mode between available radios. Begin the selection process by pressing the Sync button.
  • Page 6 6. Reset Button: For use only when directed by URC Technical Support. This button is recessed and can be pressed with a paperclip: ● Reset Network Settings: Press the button three (3) times within six (6) seconds. ● Factory Reset: Press the button six (6) times within six (6) seconds.

  • Page 7: Led Indicator Lights

    LED Indicator Lights: There are seven (7) indicator lights on the TRF-ZW3, below are their potential values: a. Power LED: Three (3) available states: ● LED On: Indicates the device is powered on. ● LED Off: Indicates the device is powered off.
  • Page 8 e. Service LED: Provides information on the status of the cloud service. Three (3) available states: ● LED On: Cloud service is connected and working properly ● LED Off: No Cloud service installed ● Flashing: Cloud service is not sending data properly. f.

  • Page 9: Installation

    2. Follow the pairing/un-pairing instructions for the Z-Wave device (devices provide manufacturer-specific instructions). 3. When paired successfully, the TRF-ZW3’s Z-Wave light flashes rapidly for less than a second, then returns to the inclusion state. 4. Pressing the Sync button again returns the gateway to its normal operation mode.

  • Page 10: Excluding A Device

    Excluding a Device: 1. Press-n-hold the Sync button for three (3) seconds. The Z-Wave light blinks faster, twice every second to indicate that the gateway is in exclusion mode. 2. Follow the pairing/unpairing instructions for the Z-Wave device. 3. When the device has been successfully unpaired, the Z-Wave LED flashes rapidly for less than a second, then returns to the exclusion state. 4.

  • Page 11: Restricting Installer Access

    By default, your certified integrator continues to have access to your Z-Wave system via the URC web portal after the system setup is complete. This includes the ability to remotely control your Z-Wave devices, remove devices, access Settings, and other pertinent information.

  • Page 12: Hardware Specifications

    Memory: DDR3 256 MB (2) years from the date of purchase by the end-user, but no longer than forty- eight (48) months from the date of shipment of the URC equipment by URC to an USB Port: 1 USB 2.0 authorized URC dealer or distributor.
  • Page 13 CERTAIN IMPLIED WARRANTIES, INCLUDING AN IMPLIED WARRANTY OF In the event of any warranty claim, URC will, at its sole option, repair the URC MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, MAY BE equipment using new or comparable rebuilt parts, or exchange the URC AVAILABLE WITH RESPECT TO URC EQUIPMENT.
  • Page 14 THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO DATA, COMPUTER SYSTEMS OR COMPUTER PROGRAMS. URC’S LIABILITY, IF ANY, FOR DIRECT DAMAGES OF ANY FORM SHALL BE LIMITED TO ACTUAL DAMAGES, NOT IN EXCESS OF AMOUNTS PAID BY END USER FOR THE URC EQUIPMENT.
  • Page 15 Precautions and Information Concerning Rechargeable Lithium Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B Polymer Battery: digital device, pursuant to part 15 of the FCC Rules. These limits are designed to ●...
  • Page 16 FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
