TWO YEARS WARRANTY
www.bodorcnc.com

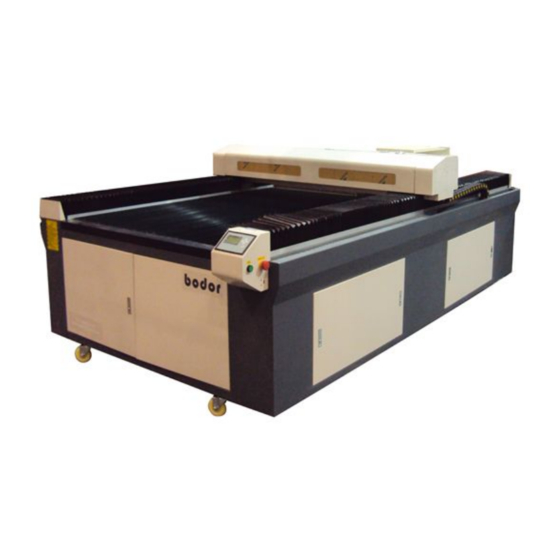

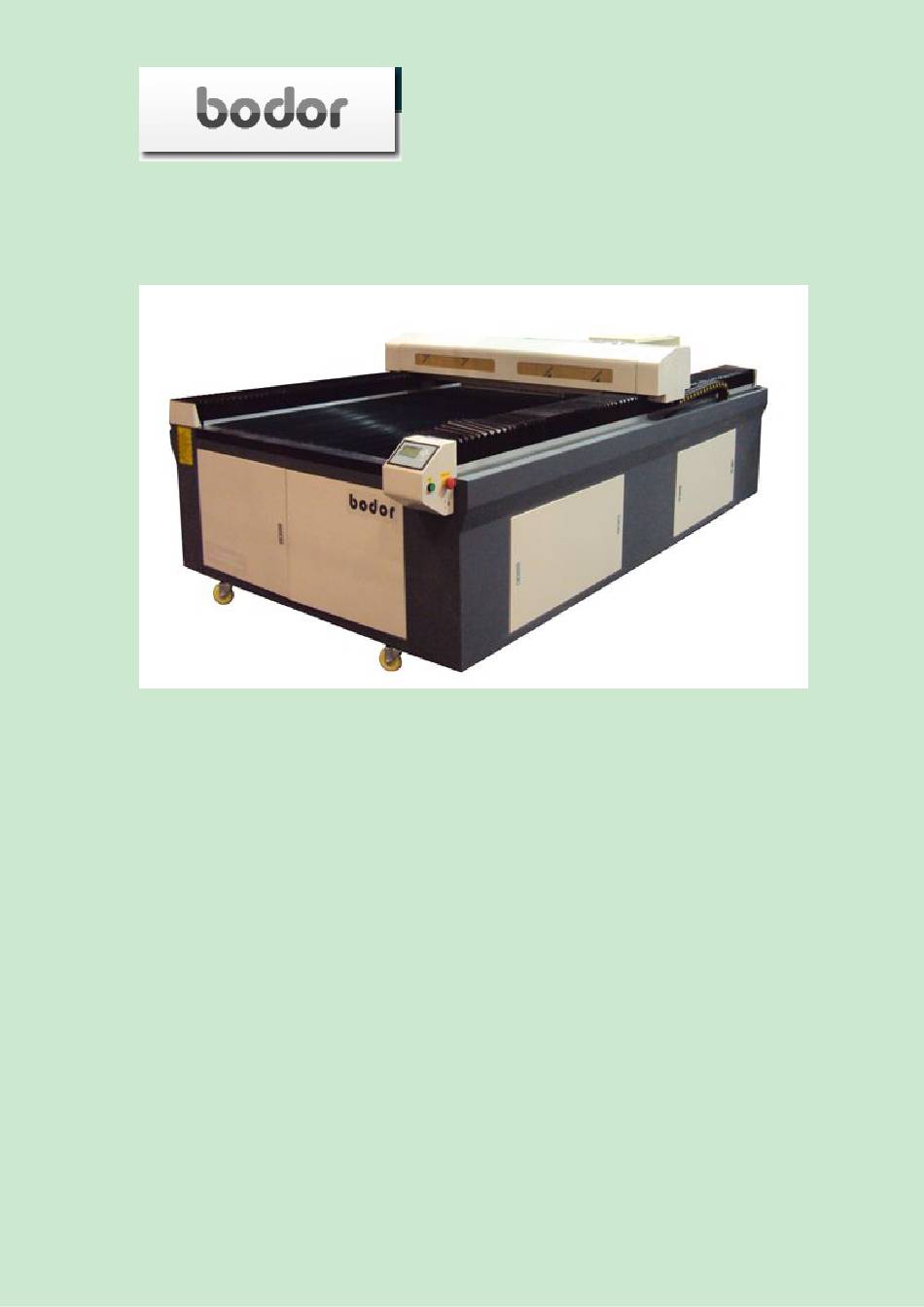

Bodor Laser Cutting Bed
BCL-B Series
Product's Description：Laser cutting bed BCL-B Series
1.To meet the demand of cutting in large width,Bodor cutting machine bed adopts the
machine tool-level chasis to ensure the stability and accuracy in high speed working.
2.The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up
with the advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
3.The new style laser tube which is stable and extra durable can make nice smooth
cutting work at one time, never need a secondary processing
4.The wholly open type stainless steel working platform was specially treated,
operates
easy and never fray.
5.The automatic feeding system can be added to save time and cost, and to improve work
efficiency.
6.With red light positioning device accurately indicates the location of the processing of
the laser head, eliminate the trouble about manual positioning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bodor BCL-B Series
Summary of Contents for Bodor BCL-B Series
- Page 1 BCL-B Series Product’s Description：Laser cutting bed BCL-B Series 1.To meet the demand of cutting in large width,Bodor cutting machine bed adopts the machine tool-level chasis to ensure the stability and accuracy in high speed working. 2.The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up with the advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
- Page 2 TWO YEARS WARRANTY www.bodorcnc.com Specifications: Laser cutting bed BCL-B Series Model BCL1318B BCL1325B BCL1530B Option Working area 1300*1800mm 1300*2500mm 1500*3000mm According to demands Laser power 60w/80w/100w/130w/150w/180w Laser type Sealed co2 laser tube,10.6μm Cooling type Water cooling Cutting speed 0—30000mm/min Laser output control 0—100% software setting...
- Page 3 TWO YEARS WARRANTY www.bodorcnc.com Taiwan HIWIN linear guide rail Anticaustic tool section DSP control system Optional Configuration: Imported ball screw honeycomb platform Protecting cover Applicable Industries: Garments sampling, large format tailoring ,leather industry ,shoemaking ,decoration,furniture ,advertisement, packing and printing ,molding and crafts industries,etc.
- Page 4 TWO YEARS WARRANTY www.bodorcnc.com...
- Page 5 TWO YEARS WARRANTY www.bodorcnc.com...
- Page 6 TWO YEARS WARRANTY www.bodorcnc.com...
- Page 7 TWO YEARS WARRANTY www.bodorcnc.com Training to Use We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures.
