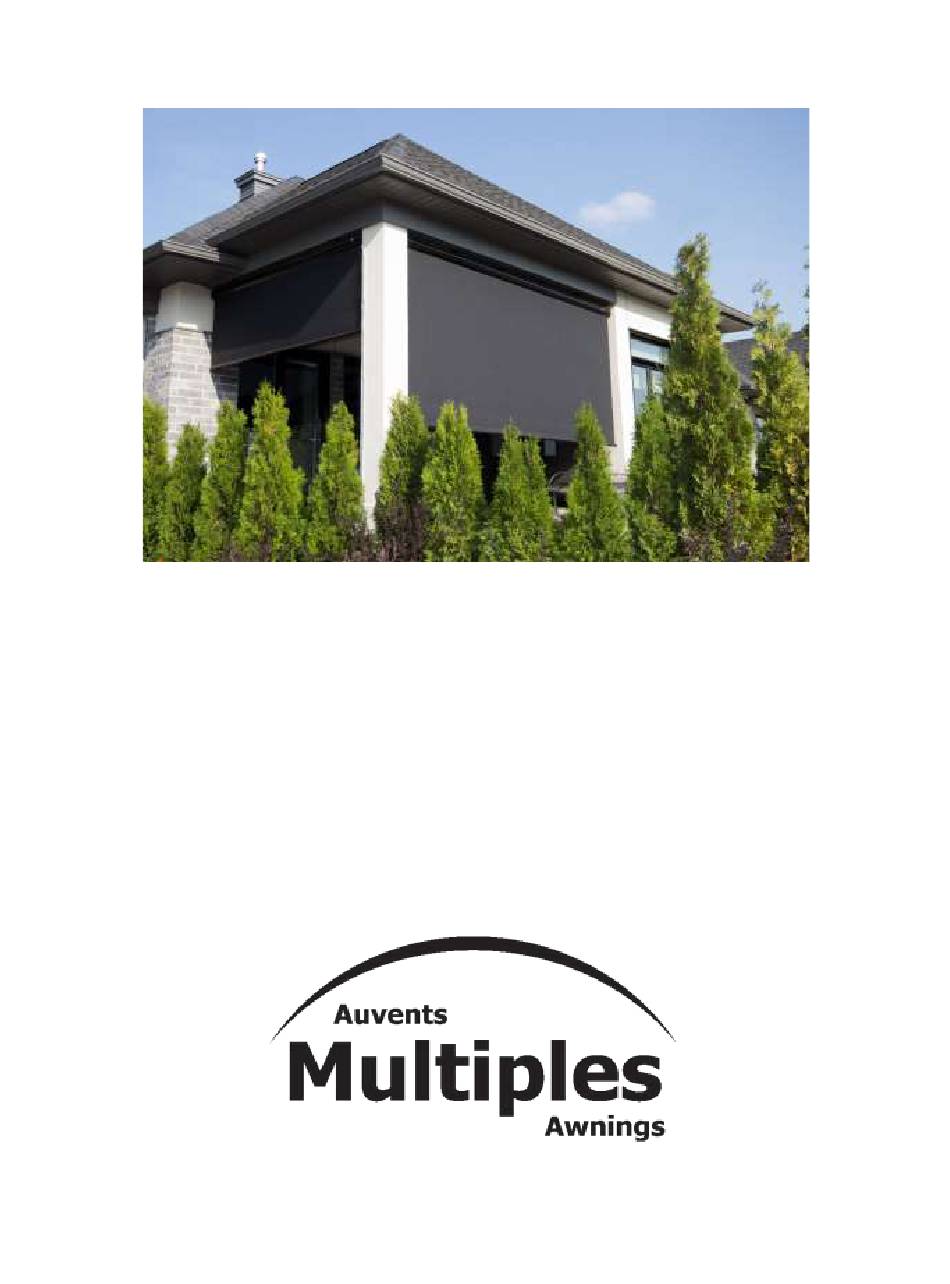

- Page 1 Motorized and manual Multi-Shade User and Installation Manual February 2021...
-
Page 2: Table Of Contents
5.B Programming an extra remote …………………………………………………………………………..……………………… 15 5.C Reversing the remote direction ……………………………………………………………………………………………….… 16 5.D Setting the initial limit ………………………………………………..…………………………………………………………….. 16 5.E Setting the opening and closing limits ……………………………………………………...………………………………. 16 6 FAQ ………..…………………………………………………………………………………………………………….…………………………. 17 Contact us ………………………………………………………………………………………………………………….………………………. 19 February 2021 v1 Multiple Awnings... -
Page 3: Read Me
Ratchet and Socket (5/16’’) Philips screwdriver to open the tube Masking tape (optional) Security knife for unpacking Measuring tape Stud finder (optional) Pencil (Ink marker or carpenter’s pencil) February 2021 v1 Multiple Awnings... -
Page 4: Requirement
4. Put the casing on easels or balance it between two stable chairs. 5. Put the manual crank aside. 6. Remove the plastic wrapping with caution using a safety cutter. DO NOT USE a regular knife or an X-acto, doing so could damage the casing. February 2021 v1 Multiple Awnings... -
Page 5: Box Contents
1.4 Box contents Manual Multi-shade Motorized Multi-shade One Multi-shade One Multi-shade One Manual crank (wrapped around the casing). Hardware bag: Hardware bag: 2 Cable-guide brackets 1 Remote 2 Cable guides 2 Cable-Guide brackets ... - Page 6 1. Installation Manual 2. Remote control 3. Installation screws 4. Floor or wall cable-guide bracket 5. Brackets February 2021 v1 Multiple Awnings...
-
Page 7: Bracket Installation
THE INSTRUCTIONS THAT FOLLOW ARE IDENTICAL WHETHER YOU INSTALL YOUR CASING IN SOFFIT OR WALL MODE. You will notice that there are two (2) grooves on the case (see figure 1). One groove for installation above and the other for wall mode. February 2021 v1 Multiple Awnings... -
Page 8: Wall And Soffite Anchors Installation
6. Use a 3/32” bit to drill the 1-inch deep holes through the siding. 7. Use a Philips screwdriver to tighten the 3 # 8 1/3” wood screws thereby securing the bracket to the wall. Figure 3 Figure 4 February 2021 v1 Multiple Awnings... -
Page 9: Mansonry Structures
4. We recommend positioning each bracket between 6” to 12” from the end of the casing. For casings wider than 6 ft, position the third bracket as close as possible to the center of the system. Figure 4 February 2021 v1 Multiple Awnings... -
Page 10: Mounting The Casing
2. Untighten the “lower nut” to its maximum (Figure 6). 3. Thread the guide cables through their respective plastic holes, located at the extremities of the charge bar. 4. Insert the cable thought the hexagonal head of the guide cable’s support mechanism. Figure 7 February 2021 v1 Multiple Awnings... -
Page 11: Testing The Installation
6. If the system lowers down only to 7 ft. This is a factory calibration. If you wish to work with the open and close limits, see section 5.E. 7. We highly recommend you read the maintenance section to maximize the longevity of your system. February 2021 v1 Multiple Awnings... -
Page 12: Connect The Motor To The Ac Outlet And Operate The Shade
Test the operation of the remote control using the “up” and “down” buttons (see figure 11). The motor’s opening and closing limits have been programmed and tested at the factory. When exiting the factory, your shade opens seven feet (7 ’). To change these limits, follow the instructions in Appendix February 2021 v1 Multiple Awnings... -
Page 13: Maintenance And Safety
1. Using a soft brush and/or a vacuum cleaner remove any dust and dirt from the dry fabric. 2. To remove dirt, use a sponge, non-abrasive soap and a mild water temperature. February 2021 v1 Multiple Awnings... -
Page 14: Motor And Remote
(i.e., winter). Battery replacement procedure: 1. Once the battery is exposed remove it from the plastic holder. 2. Place the new battery in the plastic holder. 3. Slide back the carrying tray into the remote. February 2021 v1 Multiple Awnings... -
Page 15: Winter Storage Procedure
If the red light does not come on at all or flash for less than five (5) seconds, you will need to replace the battery (see section 4.2). Figure 14 February 2021 v1 Multiple Awnings... -
Page 16: B Programming An Extra Remote
5. The motor is coupled to the transmitter. 6. Make sure the motor is running in the correct direction. If the direction of the buttons is reversed, see section 5.C to Figure 11 change the directions. February 2021 v1 Multiple Awnings... -
Page 17: C Reversing The Remote Direction
1. Raise the shade by pressing "up" (see Figure 15) to the desired opening position. 2. Press “stop” once, then hold “stop” for five (5) seconds, the motor will make 3 beeps and 2 movements. 3. The new opening limit is successfully programmed. February 2021 v1 Multiple Awnings... - Page 18 5. If the motor is not rotating in the correct direction, simultaneously press the "up" and "down" buttons on your remote control, until the motor emits three (3) Figure 15 beeps (review section 5.E from the beginning). February 2021 v1 Multiple Awnings...
-
Page 19: Faq
Check if the outlet has power. The Multi-Shade stops before it is completely open and/or it opens to far and the fabric becomes loose. The opening and closing limit of the motor needs to be adjusted. February 2021 v1 Multiple Awnings... -
Page 20: Contact Us
This fraying does not spread to the rest of the fabric. You may simply cut them off with scissors. Contact us : Multiple Awnings inc. 1505A, rue de l’Industrie Beloeil, QC, Canada J3G 0S5 www.multipleawnings.com...
