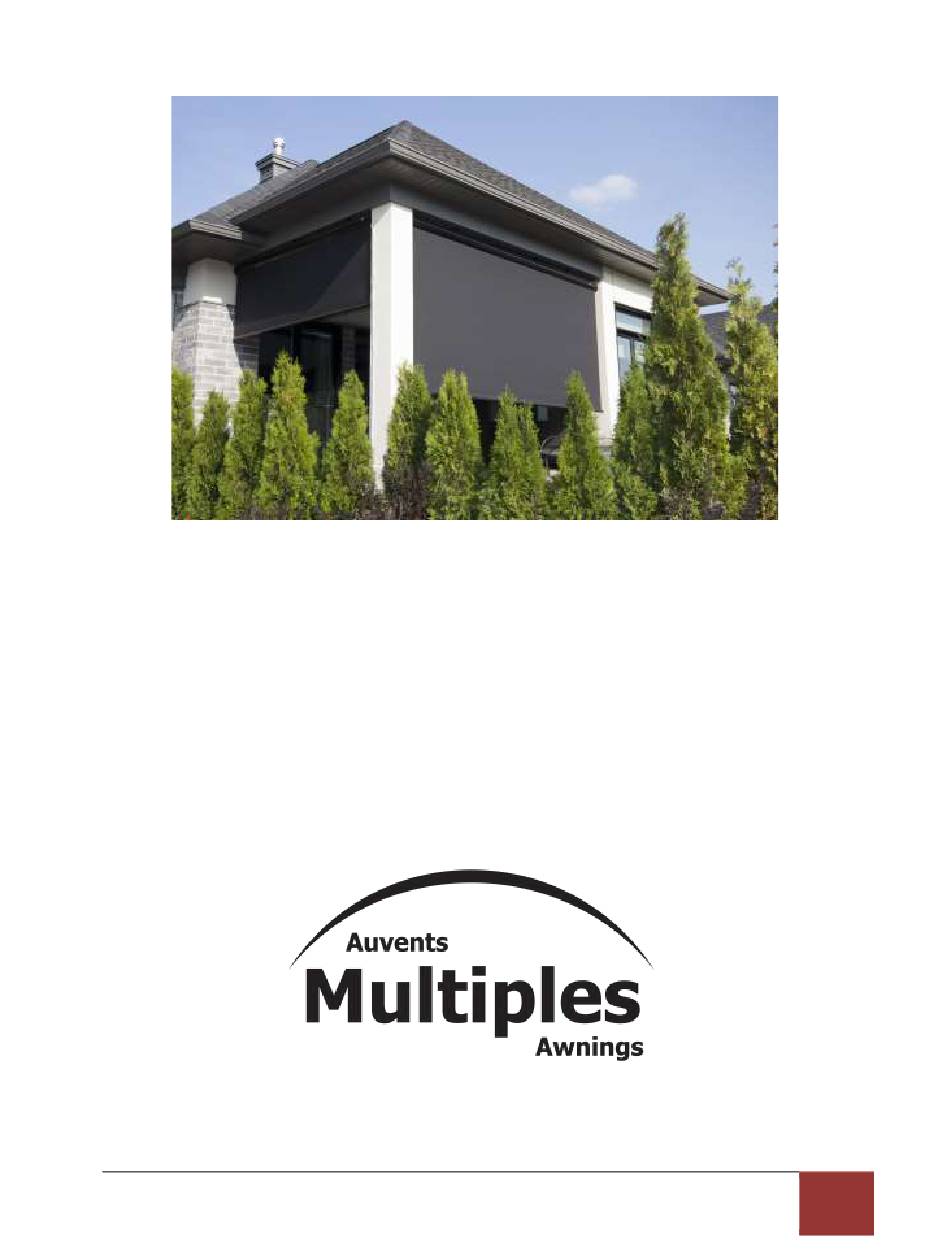

- Page 1 Solar powered Multi-shade User and Installation Manual February 2021 Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021...
-
Page 2: Table Of Contents
10. Troubleshooting guide ....26 5.5 Channels of your remote ... 12 Contact 5.6 Adjustments and finishing us……………………..…………………………….. 27 touch ..........12 Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 3: Read Me
WARNING: Your Multiple Shade is not made to support high winds and accumulation of snow and/or ice. This can severely damage your Multi-shade and/or cause it fall which could result in bodily and material damage while subsequently voiding the warranty. -
Page 4: Requirements
(or) 3 brackets for casings greater (1/4’’ x 1 3/4’’) plus 2 masonry screws per cable guide support than 6 feet Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... - Page 5 1. Installation Manual 2. Remote control 3. Installation screws 4. Floor or wall cable-guide bracket 5. Brackets Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021...
- Page 6 7. Anchors for wall installation Figure 1 In wall configuration, the solar panel adds 1.75 inch to the height of the Multi-shade. Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021...
-
Page 7: Overview And Anchors
Figure 3 Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 8: Brackets Installation Wall And Soffit
(use a level). Do not over tighten the wood screws before adjusting the level since you may need to do some readjustments. Figure 4 Figure 5 Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 9: Masonry
Install them in the brick body, at least 0,5 inch from the edge of the brick (see Figure 6). Do not use the fasteners for hollow surfaces like hollow cement blocs. Visit a hardware store for the Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 10: Casing Installation
(2) ladders, raise the casing and push the groove of the casing into the lips of the brackets (see figure 3). A bit of pressure might be necessary. Figure 3 Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 11: Cable Guides Set-Up
Drill the holes with a proper drill bit, and then screw the supports in place very tightly. Figure 10 Figure 11 Figure 12 Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 12: Testing The Strength And Opening
When your solar shade left our factory, channel #1 was the one that was programmed. Therefore this is the one that you need to select to operate your solar shade. Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 13: Adjustments And Finishing Touch
15). The solar panel integrates an internal 24V battery that powers the 24V motor supplied with the solar powered Multi-shade. The solar panel can be installed in the top groove of the Multi-shade’s casing when your Multi-shade is on a wall type installation. For soffit type installations, two (2) wall brackets are included with the solar panel. - Page 14 Screws to fix the solar panel to the wall Anchor for fixing the panel to the top of the sun visor Wall ties, attach to anchor #3 Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021...
-
Page 15: Solar Panel Installed On Multi-Shade Casing
1. Insert the casing bracket (already installed at the back of the solar panel) into the top groove of the Multi-shade’s casing, insert the large lip first and snap in the other lip (see figure 16). - Page 16 4. Have your helper hold the solar panel with the wall brackets directly over the pilot holes and secure these solar panel wall brackets into the structure with the supplied screws. Test the solidity of this installation. Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021...
-
Page 17: Programming The Limits
Multi-shade controls the CLOSE limit. 5. Turn the endless screw which is at the rear of the Multi-shade clockwise to change the close limit of your Multi-shade (to close more), turning counter clockwise will back off the close limit if the motor kept running after you had Multiple Awnings inc. - Page 18 Multi-shade controls the OPEN limit. 5. Turn the endless screw which is at the front of the Multi-shade counter clockwise to change the open limit of your Multi-shade (to open more), turning clockwise will back off the open limit if the motor kept running after you had pressed the close button (see step 3).
- Page 19 NOTE: All motorized Multi-shade‘s fabric should come out from the front of the casing. Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021...
-
Page 20: Safety And Advice
Standard maintenance: Thoroughly remove the dust from the dry Solar Shade fabric by vacuum cleaning, or by gently brushing. NEVER Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 21: Maintenance Of The Electric Motor And Remote Control
Remove the old battery and put in place the new battery while making certain to respect the polarity. Re-install the battery cover. Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 22: Remove The Solar Shade From The Anchors
7.3. Remove the shade from the anchors Before removing the Multi-shade from the anchors, it is important to close it completely and secure it in the closed position with rope or elastic cords. It must also be unplugged from the solar panel if attached to the wall. -
Page 23: B Memorizing A New Remote Control
(1) more and jog again. Then press the “up” (close) button on the remote once, the motor will emit three (3) beeps and jog twice (2) which indicates Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 24: C Erase A Remote Controlfrom The Memory
7. Briefly press button P2 on the remote control B. The motor will jerk and the indicator light will come on six (6) times. Your remote control B is now erased from memory. 8.Test the remote control B. Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 25: Remote Direction Change
9. Removing the Multi-shade from the brackets Before removing the Multi-shade from the brackets, it is imperative to close it completely, and to tie it down in the closed position with ropes or bungees. Once this is done, remove the cable guides from their supports and roll them up properly. -
Page 26: Troubleshooting Guide
Solution 2 If your solar shade stops while opening or closing or immediately after it has moved, this could indicate that the overheating Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021... -
Page 27: Contact Us
1505A, rue de l’Industrie Beloeil, QC, Canada J3G 0S5 www.multipleawnings.com www.zonepatio.ca (Canada) www.zonepatio.com (USA) E-mail : csd@multipleawnings.com Toll free : 1-866-441-4182 (Canada) (USA) 1-800-736-0906 Multiple Awnings inc. – 1505A rue de l’Industrie, Beloeil QC, J3G 0S5 CANADA Multi-Shade EN V01 February 2021...
