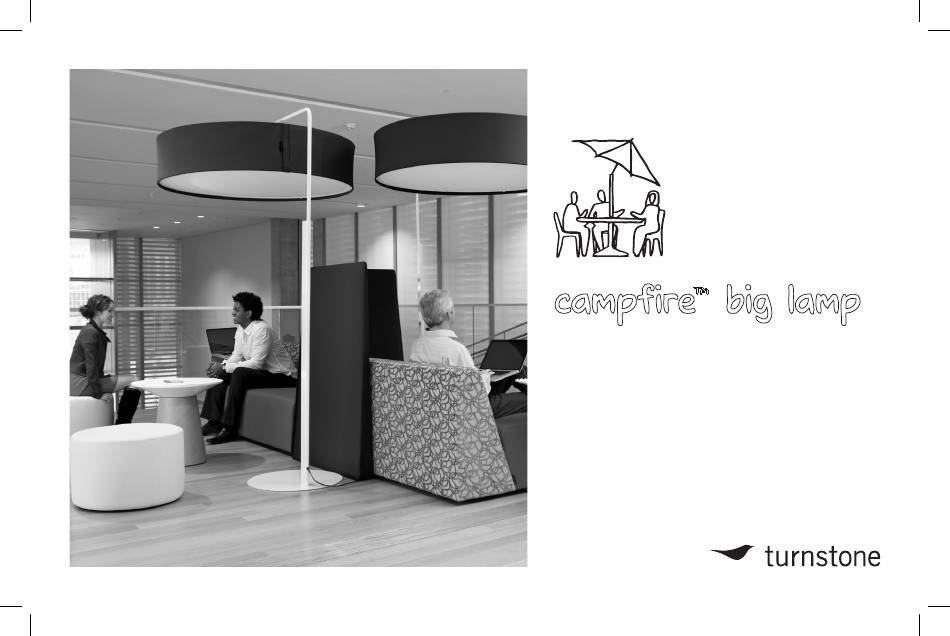

- Page 1 campfire™ big lamp Assembly Instructions...
- Page 2 BOX #3 For assembly videos go to myturnstone.com/campfire/instructions tools needed Here's what's in the box BOX #1 Base (1) time needed assembly video X screw (4) Size: 5/16-18 (shown at actual size) Upper Boom (1) BOX #2 myturnstone.com/campfire/instructions Y screw (1) time needed Size: #6 cover (shown at actual size)
- Page 3 STEP STEP Attach base Start screws to post. in boom plate. Use Z screw Size: #10-24 x 1/2" (shown at actual size) Use X screw Size: 5/16-18" (shown at actual size) • First, find the base. It’s the circular thing that looks like a metal pizza. •...
- Page 4 STEP STEP boom tube Pull cord Connect through top connectors. post. • Remove tape from the connector cord push cord up at the top of the post opening. • Pull out slightly so connector comes out of the top as shown. post •...
- Page 5 STEP STEP Insert boom Install lock tube and plate. notch. notch in boom tube Use X screw. Size: 5/16-18” (shown at actual size) • Fully insert the boom tube into the post up to the notch in the tube. Watch for the notch, don’t go •...
- Page 6 Add legs. STEP STEP Install cover Attach hub plate. to cantilever. cantilever Use Z screw Size: #10-24 x 1/2” (shown at actual size) Use Y screw. Size: #6 cover (shown at actual size) • Place hooks on the bottom of the hub into the rectangular holes in the cantilever.
- Page 7 Note: The shade and diffuser are packaged folded up. They have Great. Make sure the Turnstone logo label is at the bottom and the logo reads upwards. room to unfold it, or you might knock down any surrounding beverages. spring steel supports that will Now align it with the notch in the cantilever hub.
- Page 8 STEP STEP Snap on Attach cantilever shade to to shade. boom post. tips Stepping into the shade as it rests on the ottoman makes lifting it up to the boom post • Snap the top ring of the shade to •...
- Page 9 STEP STEP Level shade, Attach install light diffuser not level. • Unfold the diffuser. Remember this thing bulb. to shade. flys open quickly so all of your friends should stand back. • Insert the four clips into the slots on the bottom ring.
- Page 10 Visit myturnstone.com to see more spots. STEP Plug in. You’re finished! • Plug in, step down, enjoy!
- Page 11 All rights reserved. ©2010 Steelcase Inc. Printed in the U.S.A. on recycled paper. E Data subject to change. Trademarks used herein are the property of Steelcase Inc. Some products and services may not be available in all countries. Your Turnstone representative can provide you with details.
