Verify the contents of your packing box
• ATTO FastStream SC 5300. Note the serial
number of your FastStream SC 5300 for later
use: ____________________________
• Power cord
• Ethernet cable
• RS-232 serial cable
• "L" brackets
• Setup CD including Express Power Center,
ExpressStripe, QuickNAV, Benchmark tool,
Celerity driver, installation guides and
Installation and Operation Manual
Install the Celerity storage adapter
1
Power off your computer and install the ATTO
Celerity storage adapter in the bottom PCI-X or
PCIe slot of your HP XW Workstation.
2
Power up your system.
3
Install the Celerity driver by clicking the
setup.exe file located in the Celerity folder on
the included setup CD. Follow the instructions
and continue to the next step.
N ote
®
Windows
users: click OK for each warning
message box presented.
© 2007 ATTO Technology Inc. PRMA 000-0365-000
Parity protection kit for MediaDock
Installation Guide
Install the FastStream SC 5300
1
Place the FastStream SC 5300 on a stable flat
surface or install it into a standard 19" rack by
attaching the supplied "L" brackets
2
Connect the Ethernet port to your network
using a Cat 5e Ethernet cable or better.
3
Connect your SCSI cables to the MediaDock™
II chassis in single bus mode or split bus mode.
See Exhibit 1 and Exhibit 2.

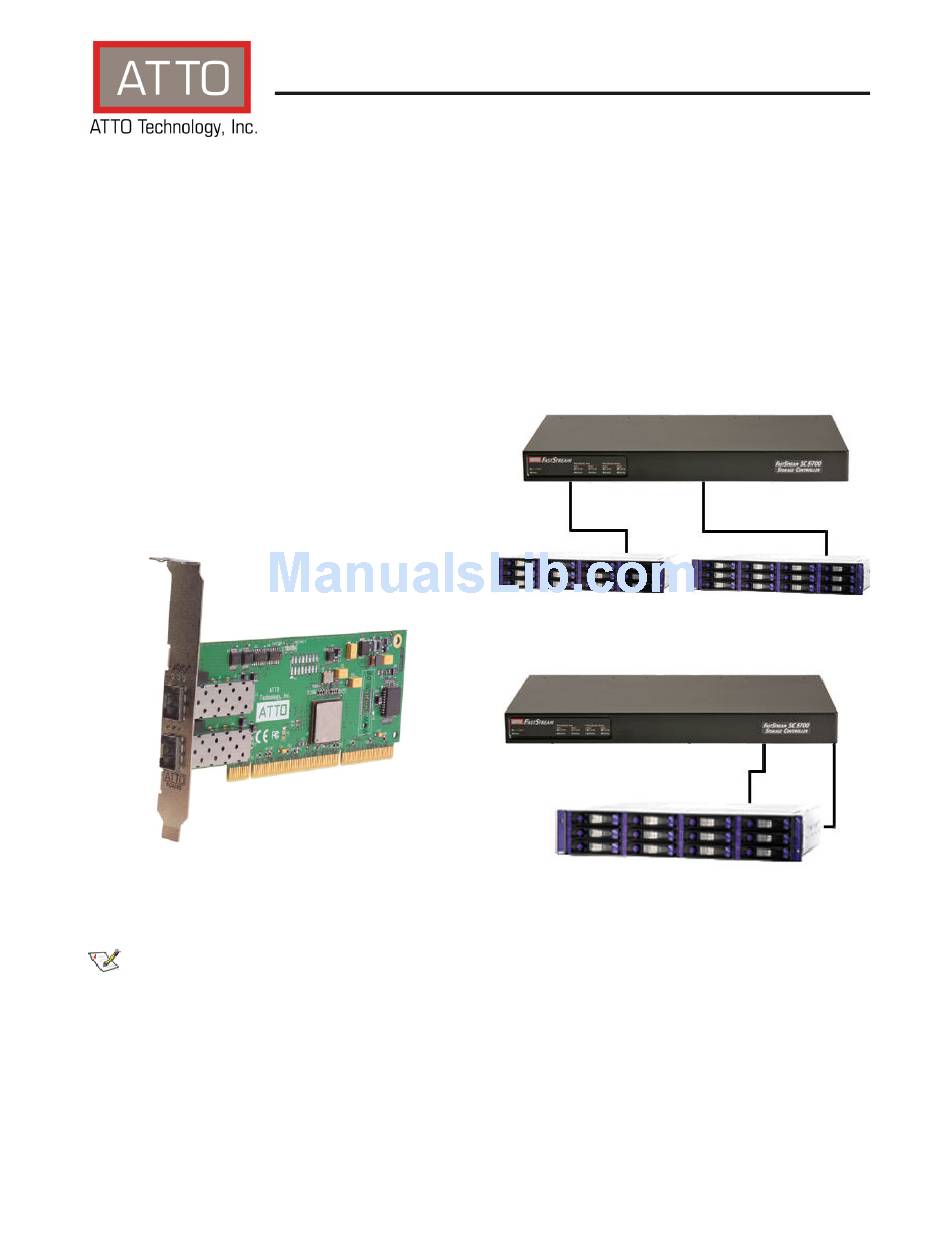

Exhibit 1 FastStream SC 5300 in single bus attached to
MediaDock II units
Exhibit 2 FastStream SC 5300 in split bus attached to
a MediaDock II
4
Connect the LC-LC Fibre Channel cables from
the FastStream SC 5300 to the Celerity storage
adapter.
5
Connect the AC power cord from the
FastStream SC 5300 to the proper AC source
outlet.
6
Turn on power to the FastStream SC 5300
using the switch on the back of the appliance.
..............................................................................
1
Advertisement
Related Manuals for ATTO Technology FastStream SC 5300
Summary of Contents for ATTO Technology FastStream SC 5300
-
Page 1: Installation Guide
Windows users: click OK for each warning message box presented. © 2007 ATTO Technology Inc. PRMA 000-0365-000 Install the FastStream SC 5300 Place the FastStream SC 5300 on a stable flat surface or install it into a standard 19” rack by attaching the supplied “L”... -
Page 2: Discover The Ip Address
Configuration may take more than two hours. N ote Once the initial setup is complete, close your browser and configure the RAID protected storage in your specified operating system. Refer to the Monitor page periodically to note system health. © 2007 ATTO Technology Inc. PRMA 000-0365-000... - Page 3 RAID group you want to create. Press OK. N ote If you are using a single bus configuration, you must create two RAID groups. © 2007 ATTO Technology Inc. PRMA 000-0365-000 PC users: continue to Express Power Center Mac® users: continue to ATTO ExpressStripe.
- Page 4 ATTO Disk Benchmark Tool included on your installation CD. Reboot your Mac. Launch ExpressStripe and enter the following registration information. Name: Your Name Company: ATTO FastStream SC 5300 Serial Number: 100fb66b Authorization Code: 27adwdd6q6wb3a72 © 2007 ATTO Technology Inc. PRMA 000-0365-000...
- Page 5 Click on the RAID 0 button. Select all drives connected to the ATTO FastStream SC 5300 by clicking the open Apple key and A. © 2007 ATTO Technology Inc. PRMA 000-0365-000 10 Click Next. 11 The Create RAID 0 Volumes screen appears. Click on Next.
- Page 6 16 To ensure that your ATTO FastStream SC 5300 has been configured properly, run the benchmark utility included in the ExpressStripe application. 17 Select Quit to exit from ExpressStripe and begin using your FastStream SC 5300. © 2007 ATTO Technology Inc. PRMA 000-0365-000...
