- Page 1 Zeroscope 1U Dual Channel Oscilloscope, Frequency Meter and Tuner Manual (English) Revision: 2020.10.26...
-
Page 2: Table Of Contents
Scope Type Using Tune Mode Hz Display Note Name Display Reference Pitch and Averaging Time Trigger Source Trigger Detection Level CH 1 Offset CH 2 Offset Grid Display Screen Saver FIRMWARE Change Log TECHNICAL SPECIFICATIONS Zeroscope 1U Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
Before Your Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module: ●... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: If you are using another manufacturer’s power supply,... - Page 6 You should immediately check that all your modules have powered on and are functioning correctly. If you notice any anomalies, turn your system off right away and check your cabling again for mistakes. Zeroscope 1U Manual...
-

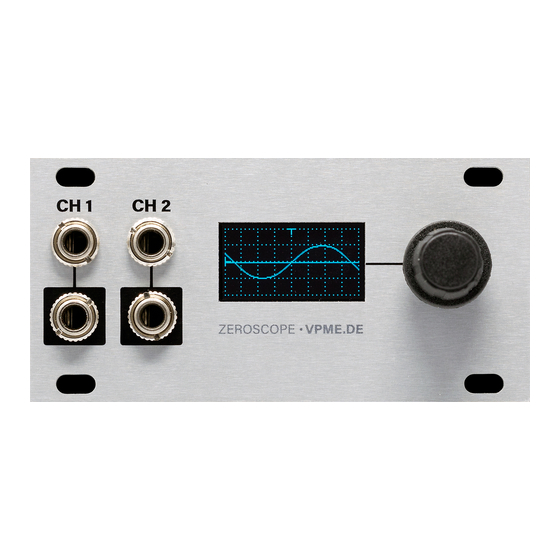

Page 7: Front Panel
CH 1 output jack, so signals pass unimpeded through the Zeroscope 1U. This allows you to monitor signals without needing to re-patch or use signal multipliers. [4] CH 2 output: As with CH 1, the signal appearing at the CH 2 input jack is normalled to the CH 2 output jack, so signals pass unimpeded through the Zeroscope 1U. -
Page 8: Basic Operation
BASIC OPERATION In its basic mode, Zeroscope 1U displays the waveforms for both CH 1 and CH 2, and gives you control over the display height of these two waveforms plus their displayed periodicity. Connect CV or audio signals to either or both the CH 1 and CH 2 inputs. -
Page 9: Advanced Operation
ADVANCED OPERATION Zeroscope 1U offers several advanced display and triggering options, located within an Advanced Settings menu. Long-press (>1 sec) the encoder to open the Advanced Settings menu. A small menu of options appears to the right of the display. -
Page 10: Using Tune Mode
A note is perfectly in tune if a box surrounds the note name. In this illustration, the box around the note name for CH 1 indicates that it’s playing a C1 note, and that it’s perfectly in tune. Zeroscope 1U Manual... -
Page 11: Reference Pitch And Averaging Time
With Hz display active, turn the encoder (without pushing it) to change the avg setting (slow, normal, fast) Switch to the Note Name display, and turn the encoder (without pushing it) to change the ref tuning value. Zeroscope 1U Manual... -
Page 12: Trigger Source
If you set a trigger threshold beyond the voltage limits of the current waveform, you’ll see a small T? icon appear in the lower left corner of the display, indicating that it failed to detect a trigger. Zeroscope 1U Manual... -
Page 13: 1 Offset
± 10V (-10000µV - +10000µV). Waveforms can be offset Grid Display With this option selected, push-turn the encoder to select between two options: grd: on turns on the scope’s background grid grd: -- turns off the scope’s background grid Zeroscope 1U Manual... -
Page 14: Screen Saver
Screen Saver In order to extend the life of your screen, Zeroscope 1U features a built-in screen saver, which turns off the display after a user-definable length of time. If the screen has turned off, simply press or turn the encoder to turn the display back on. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS Width 16 hp Maximum Depth 26 mm Current Draw 8 mA @ +12V 0 mA @ -12V Zeroscope 1U Manual...
