2.2 Mounting
(cont.)
___________________________________________________________________________________
The actual mounting location often depends on the place-
ment of nozzles or openings into the vessel. Do not mount
the instrument through a nozzle which exceeds the cote-
shield element on the sensing element. See Figures 2-1
and 2-3. Be sure to protect the insulation on the sensing
element against cuts and scrapes during installation.
C O T E - S H I E L D
Z-tron Level Control
4
I N S E R T I O N
L E N G T H
C O T E - S H I E L D
L E N G T H
METAL
INSULATION
TUBE
E L E M E N T

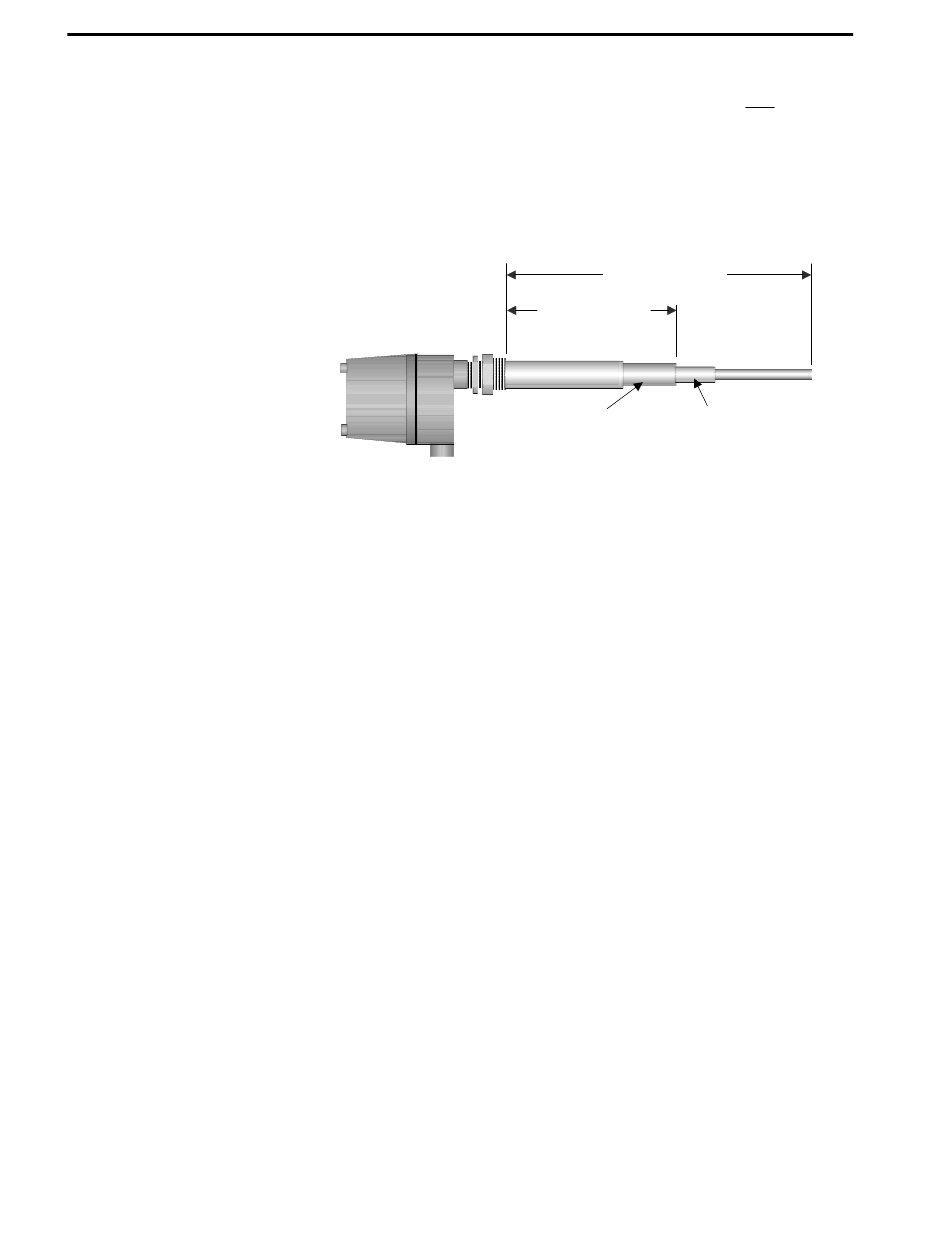

Figure 2-3
Installation
I N S U L A T I O N
