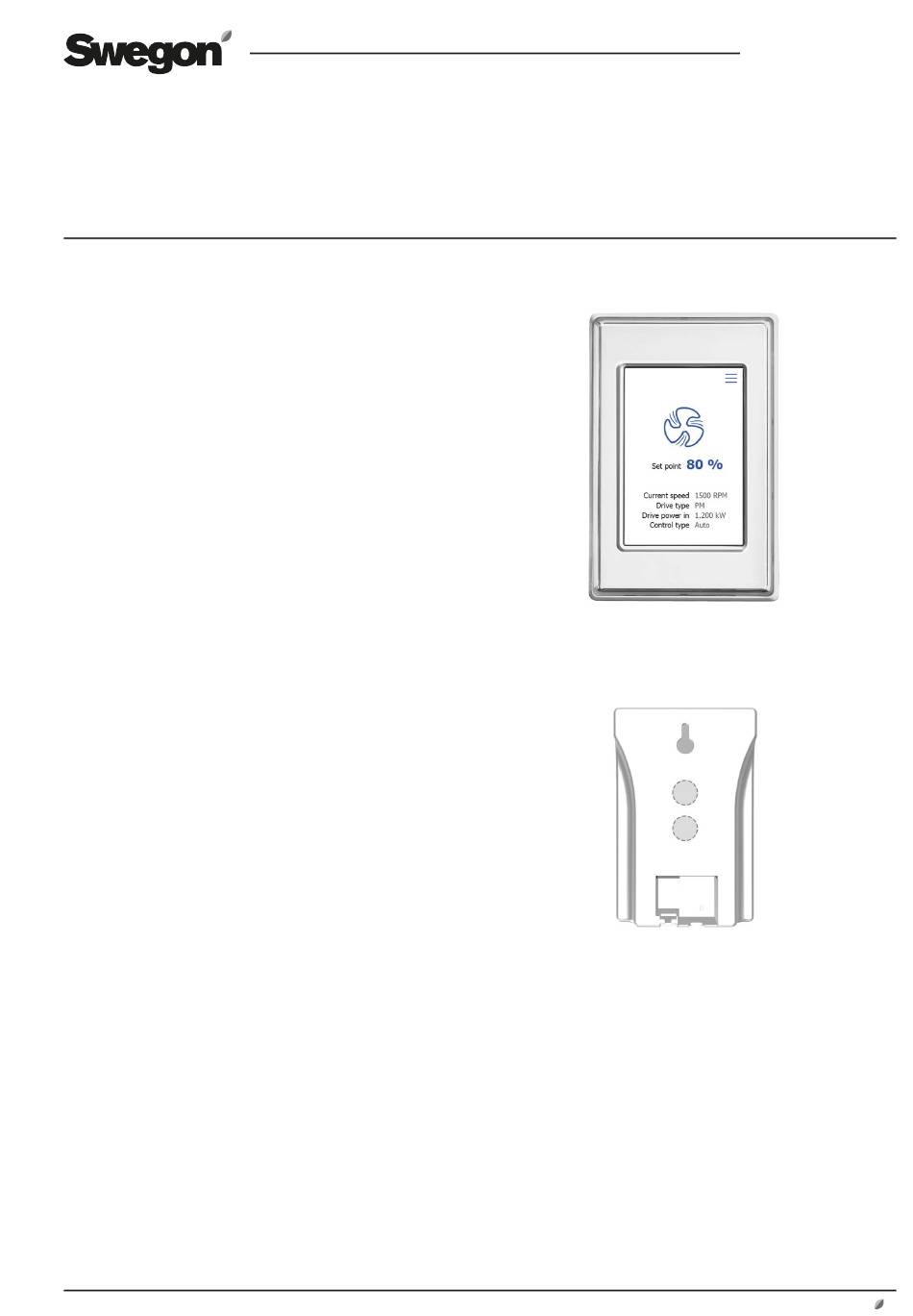

Instructions for the hand-held terminal
of the fan motor control system, TBLZ-4-75
SILVER C
1. General
The hand-held terminal TBLZ-4-75 is a control panel with
touch screen that is used to set motor parameters on
SILVER C. The hand-held terminal communicates with the
motor control system via a Modbus interface.
2. Installation
The hand-held terminal can be mounted on a fl at surface
using screws or magnets.
There is a keyhole slot at the rear of the hand-held termi-
nal for mounting with a screw, which is inserted on a fl at
surface, see the diagram to the right. Use a screw with
a maximum diameter of 3.5 mm and a max. length of 9
mm.
The black shock-absorbing casing comes with two mag-
nets that make it possible to hang the hand-hand terminal
on a vertical, fl at and metallic surface.
3. Technical data
Supply voltage
Modbus RTU
Enclosure class
Relative humidity
Ambient temperature
Dimensions without
Dimensions with
shock-absorbing casing
Max. power consumption
Swegon reserves the right to alter published specifi cations without notice.
From the motor control
system's wiring terminal
1 x RJ12 (RS485)
IP21
0 – 95 % (non-condensing)
-10... +40 °C (in operation)
80 x 121 x 42 mm
86 x 127 x 51 mm
900 mW
EN.TBLZ475.190701
www.swegon.com
1
Advertisement
Table of Contents
Related Manuals for Swegon TBLZ-4-75
Summary of Contents for Swegon TBLZ-4-75
- Page 1 -10... +40 °C (in operation) Dimensions without shock-absorbing casing 80 x 121 x 42 mm Dimensions with shock-absorbing casing 86 x 127 x 51 mm Max. power consumption 900 mW www.swegon.com Swegon reserves the right to alter published specifi cations without notice.
- Page 2 Active warnings and alarms can be read. • Modbus: Modbus settings for motor control system • Configuration: The motor control system can be configured. • Software: The software version can be read. www.swegon.com Swegon reserves the right to alter published specifications without notice.
- Page 3 Modbus setting for 10 seconds before searching for the alternative Modbus setting. 4.6 Shock-absorbing casing The hand-held terminal is equipped with a silicone casing that protects against shocks, oils and dirt. www.swegon.com Swegon reserves the right to alter published specifications without notice.
- Page 4 The highest level for the hand-held terminal’s menu tree is shown below. The settings menu contains eight sub- menus, some of these submenus in turn have their own submenus. www.swegon.com Swegon reserves the right to alter published specifications without notice.
- Page 5 The RJ12 connector is not correctly connected Check the contact connections in both the hand-held termi- nal and the motor control system. Connect the RJ12 cable to Port "A" in the motor control system. www.swegon.com Swegon reserves the right to alter published specifications without notice.
- Page 6 EN.TBLZ475.190701 www.swegon.com Swegon reserves the right to alter published specifications without notice.
