Instructions for the hand-held micro terminal of the fan
motor control system, TBLZ-1-75 SILVER C
1. General
The hand-held micro terminal is used for setting the motor
parameters of the SILVER C.
2. Installation

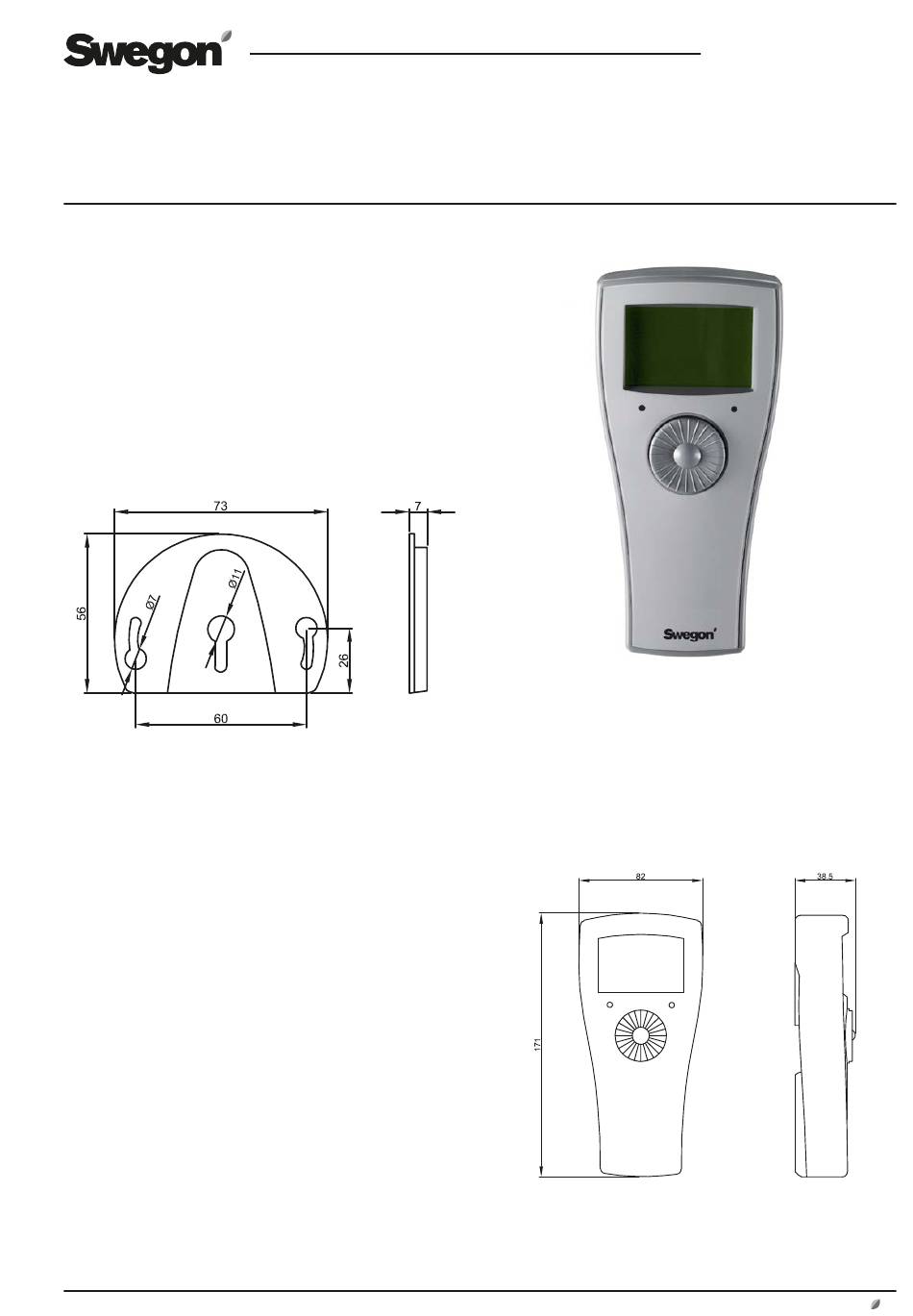

The hand-held micro terminal can be hung in the wall
mounting supplied, See illustration below. Mount the wall
mounting on a flat surface.
To lift the hand-held micro terminal out of the wall mount-
ing, slide it upward and then draw it out.
3. Technical data
Supply voltage From junction box
Modbus RTU
Enclosure class:
Humidity
Ambient temperature
Dimensions
Weight
We reserve the right to alter specifications.
2 x RJ12/6/6-pole RS485
IP21
10 – 95 % - non-condensing
-30.. +50 °C (Storage)
0.. +40 °C (in operation)
171 x 82 x 38.5 mm
150 g
GB.TBLZ75.150526
www.swegon.com
1
Advertisement
Related Manuals for Swegon TBLZ-1-75 SILVER C
Summary of Contents for Swegon TBLZ-1-75 SILVER C
- Page 1 GB.TBLZ75.150526 Instructions for the hand-held micro terminal of the fan motor control system, TBLZ-1-75 SILVER C 1. General The hand-held micro terminal is used for setting the motor parameters of the SILVER C. 2. Installation The hand-held micro terminal can be hung in the wall mounting supplied, See illustration below.
- Page 2 "0". The baudrate will then be set to 38.4 Kbit/s. If the function selector switch is subse- quently set to position "1", the user-preset parameters will be activated again. www.swegon.com We reserve the right to alter specifications.
- Page 3 Status of the EC control system's boot program version. Term SW ver. Status of the hand-held micro terminal's program version. Exit Return to the Main menu. *= Depends on size of the connected control system www.swegon.com We reserve the right to alter specifications.
-
Page 4: Electrical Connections
In the junction box the contact ”C” should be used for con- nection of the hand-held micro terminal. Both the RJ12 connectors are active and can be used in the hand-held micro terminal. www.swegon.com We reserve the right to alter specifications. - Page 5 Ramp time down Set point Time 11. The ratio between the rpm and the min. and max. settings Velocity Max. perm. speed of rotation Min. speed of rotation % out Oversteer set point www.swegon.com We reserve the right to alter specifications.
- Page 6 GB.TBLZ75.150526 www.swegon.com We reserve the right to alter specifications.
