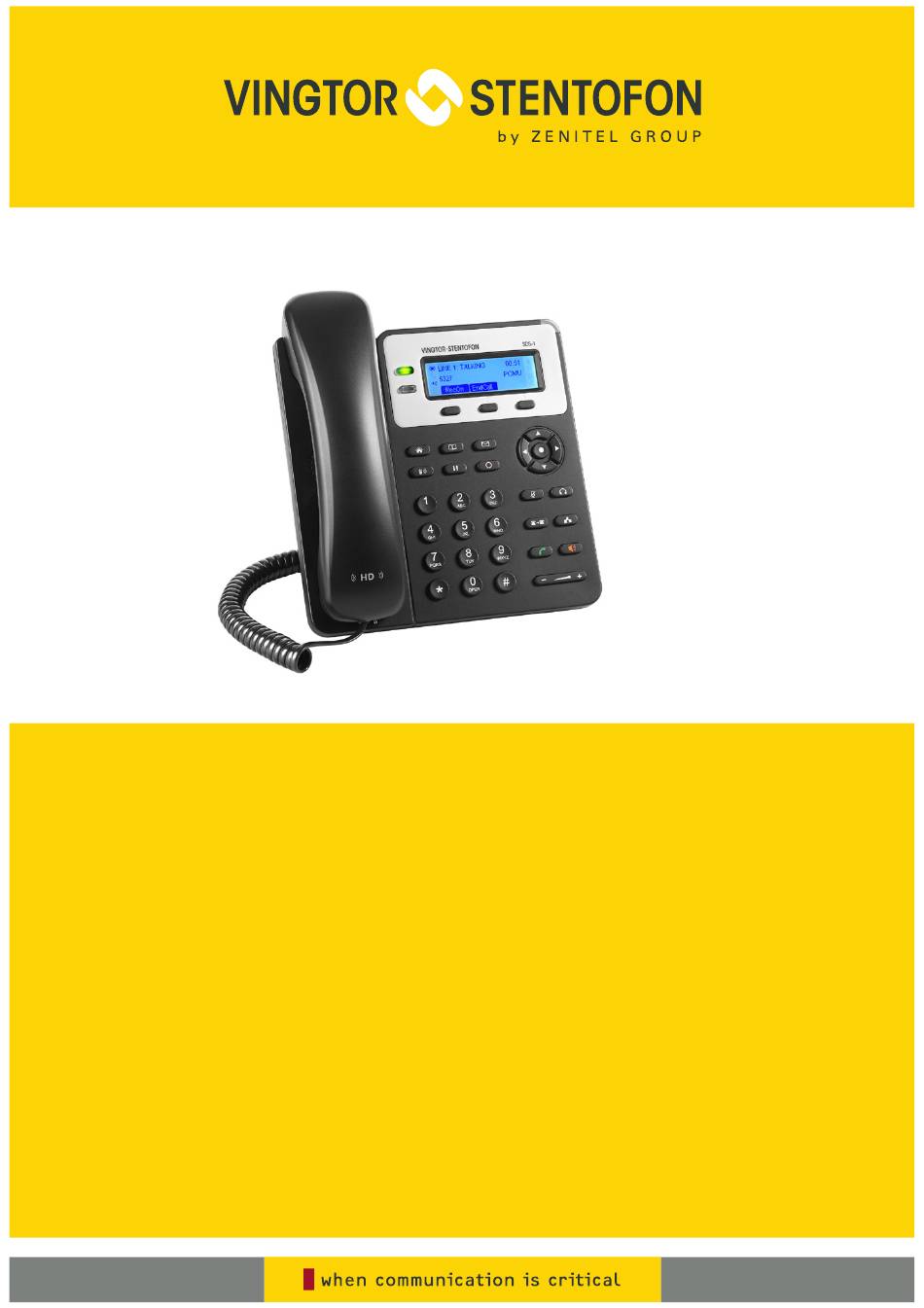

- Page 1 Quick Installation & Configuration Guide SDS-1 SIP Desk Station with Display & Dual LAN Technical Manual 1490000010 ...
- Page 2 The SDS-1 is a product developed for Zenitel Norway AS and is primarily used as part of a Zenitel Norway AS IP Intercom solution. The SDS-1 is not pre-configured to support or carry emergency calls to any type of hospital, law enforcement agency, medical care unit (“Emergency Service(s)”) or any other kind of...
-
Page 3: Package Contents
Overview • SDS-1 SIP Desk Station with Display and Dual LAN (Item Number: 1490000010) SDS-1 is a Small Business HD IP phone that features 2 lines with 2 SIP accounts, 132x48 backlit graphical LCD, 3 XML programmable context-sensitive softkeys, dual network ports with PoE and 3-way conference. The SDS-1 delivers HD... -
Page 4: Phone Installation
Phone Installation Installing the Phone with Phone Stand UPPER LOWER Installing the Phone (Phone Stand): 1. Insert the hooks on top of the stand into the slots on the back of the phone 1. Insert the hooks on top of the stand into a slots, you have options •... - Page 5 2. Firmly slide the stand upward to lock it in place. Installing the Phone (Wall Mount): 4. Pull out the tab from the handset cradle (see figure below). 5. Rotate the tab and plug it back into the slot with the extension up to hold the handset while the phone is mounted on the wall.
-
Page 6: Phone Configuration
For further information on the configuration of AlphaCom, SIP, and Pulse, please go to wiki.zenitel.com. Configuring the SDS-1 Using the Keypad 1. Make sure the phone is idle. 2. Press the Menu key to access the keypad menu to configure the phone. - Page 7 4. Enter the phone’s IP address in your PC’s browser. 5. Log in by entering the default Username: admin and Password: alphaadmin 6. Register the account on the SDS-1 by selecting ACCOUNTS > Account 1/2 > General Settings to configure Account Name, SIP Server (AlphaCom or...
-
Page 8: Alphacom Configuration
Account Active: Check Yes button SIP Server: IP address of AlphaCom server SIP User ID: Directory Number of SDS-1 phone Authenticate ID: Same as SIP User ID Note: For changes to take effect, it may be necessary to temporarily disable the account. - Page 9 AlphaCom SDS-1 Audio Settings Check in AlphaPro under Users & Stations the codec that has been ● selected for the SIP phone (normally G722) ● Select Account 1 > Audio Settings Set all codecs from the Preferred Vocoder list to the one defined in ●...
-
Page 10: Pulse Configuration
Enter the values shown above for the parameters Account Active: Check Yes button SIP Server: IP address of intercom station set as Pulse Server SIP User ID: Directory Number of the SDS-1 phone Authenticate ID: Same as SIP User ID... - Page 11 The SDS-1 will display the text of the Group Call as entered under Nickname. If the SDS-1 is busy in a regular call when a Group Call is made, it will by default not play the Group Call audio. If Paging Barge is set to value 2 or higher, the current call will be placed On Hold, and the Group Call audio will be broadcast.
- Page 12 Zenitel Norway AS Sandakerveien 24C 0403 Oslo, Norway WE HAVE 24/7 CUSTOMER SERVICE GLOBAL: +47 4000 2700 USA: 800 654 3140 Mon-Fri 09:00 to 17:00 CST cs@zenitel.com For Warranty and RMA information, please visit www.zenitel.com DOC NUMBER A100K11892 customer.service@zenitel.com 6.11.18 Zenitel and its subsidiaries assume no responsibility for any errors that may appear in this publication, or for damages arising from the information therein.
