- Page 1 Installation Guide Special Instructions This is a mains powered device. Observe safety precautions and isolate from mains before commencing installation. Video Instructions Additional video instructions are available from climote on request...
- Page 2 Contents Page Details Installation, Wiring and Power-up Functional Tests and Commissioning Remote Access Test Diagnostics 9 – 11 Thermostat Options 12 – 14 Customer Training Safety Information...

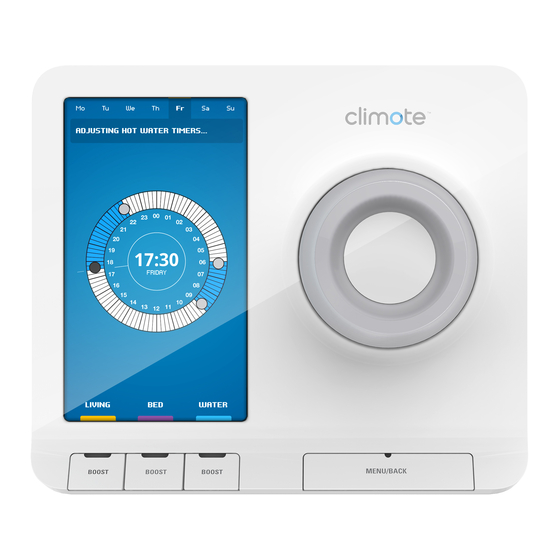

- Page 3 Inside the Box Back-plate Also included 1. Fixing screws. climote HUB 2. Quick start guide. 3. Pocket guide. 4. Safety information. Attach Back-plate to Wall-box (1)
- Page 4 SIM aligns with angle in SIM holder base and slide carrier back up until it latches home. Note: climote uses either country SIMs (eg Vodafone, O2) or M2M SIMs. M2M SIMs (see example) use a slightly different test process - see step 8.
- Page 5 Attach Unit to Wall-plate (4) Attaching the Unit 1. Ensure main body screws are fully loosened. 2. Align unit directly above back-plate. 3. Twist down and engage hinge. 4. Push firmly to close and engage clip. 5. Tighten main body screws. Removing the Unit 1.
- Page 6 6. Press Living Boost again and select Cancel Boost. Boost light is extinguished and heating is turned off in living zone. 7. Repeat for all active zones. Commission climote HUB (7) 1. Navigate to Zone Setup Using the Menu/Back button and Scroll Wheel, select : 4.
- Page 7 Device Mobile Number and ask them to save it to their phone. To text M2M SIMs (see example) international SMS may need to be enabled on the installer’s phone. climote provides an alternative local SMS service – see Customer Training, steps U2, U3.
- Page 8 If the signal strength shows below 25% (even if start-up completes normally) you may need to fit an external antenna. Check the signal strength and if in doubt, contact climote. 4 Unable to If manual SMS works but the Installer Website test rejects the unit,...
- Page 9 Installation Guide Thermostat Options, including climote DEGREE Remote Thermostat Preparation (T1) 1. Climote HUB 1. Ensure climote HUB is fitted and installed in line with Installation Guide. Serial Number Reset button 2. Climote DEGREE 1. Open climote DEGREE. 2. Select desired location and affix climote DEGREE back-plate to wall (see Location (T3)).
- Page 10 Commission climote HUB (T2) 1. Navigate to Zone Setup Using the Menu/Back button and Scroll Wheel, select : Menu. Settings. Installer Settings. Commission Device. Zone Setup. 2. Set up Zones and Thermostats Select : Active zones – On or Off (see Setup (T5)) Turn scroll wheel to change, push to select, select “Next”.
- Page 11 One, two or three zones may be set to “On”. Match the existing zone configuration. Zone set up • Options are “Off”, “Rem” or “Int” (Zone 1 only) or “Cyl” (Zone 3 only). • The climote HUB has an internal thermostat which may only be configured for Thermostat Zone 1 (select “Int”).
- Page 12 Installation Customer Training Basic customer training should be carried out at installation. This guide highlights the fundamental user training elements. Additional video instructions are available at www.climote.com Unit & Text Demonstration (U1) 1. Explain the basic unit features 1. Zones and Dashboard 2.
- Page 13 Register. Select country code and drop leading zero from customer’s mobile phone number Default location is Home. Other will show if Home already selected for another climote device. Phone number is displayed once mobile phone number is entered. User Text Demonstration (U3) 1.
- Page 14 Always and Set temp 3 –Show Boost App Demonstration (U4) Customers can download the climote app from the appropriate app store at any time. After registration, ask the customer to log into the app with their credentials 1 - Explain dashboard,...
- Page 15 Notes...
- Page 16 Zone 3 Relay out 5(2)A Unit conforms to EN 60730-1:2000 & EN 60730-2-7 Electric Shock Protection Class II. The climote HUB is completely protected by its enclosure Installation The unit must be installed by a qualified electrician Safety Information – climote DEGREE...
