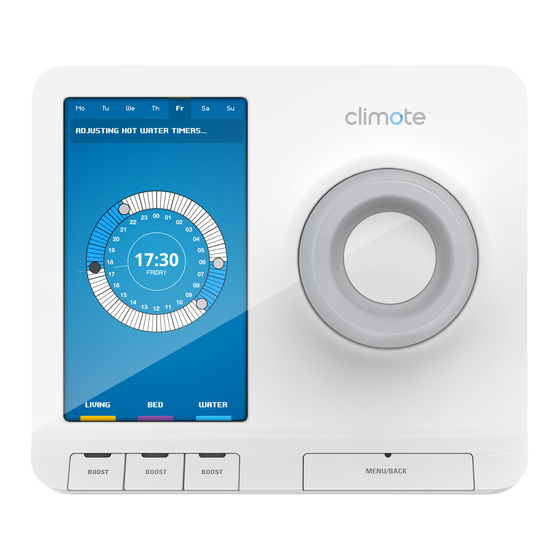

climote
HUB
Installation Guide
Special Instructions
This is a mains powered device. Observe safety precautions and isolate from
mains before commencing installation
Video Instructions
Additional video instructions are available from climote on request

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HUB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Climote HUB

  • Page 1: Installation Guide

    Installation Guide Special Instructions This is a mains powered device. Observe safety precautions and isolate from mains before commencing installation Video Instructions Additional video instructions are available from climote on request...
  • Page 2 Contents Page Details Installation, Wiring and Power-up Functional Tests and Commissioning 7 – 8 Remote Access Test Diagnostics 11 – 13 Thermostat Options 14 – 15 Customer Training Safety Information...
  • Page 3 Inside the Box Back-plate Also included 1. Fixing screws. climote HUB 2. Quick start guide. 3. Pocket guide. 4. Safety information. Attach Back-plate to Wall-box (1)
  • Page 5 Attach Unit to Wall-plate (4) Attaching the Unit 1. Ensure main body screws are fully loosened. 2. Align unit directly above back-plate. 3. Twist down and engage hinge. 4. Push firmly to close and engage clip. 5. Tighten main body screws. Removing the Unit 1.
  • Page 6 6. Press Living Boost again and select Cancel Boost. Boost light is extinguished and heating is turned off in living zone. 7. Repeat for all active zones. Commission climote HUB (7) 1. Navigate to Zone Setup Using the Menu/Back button and Scroll Wheel, select : 4.
  • Page 7 Username and Password 1. All the climote website test functions can be carried out from a browser on any laptop, tablet or mobile device. The installer site also supports temporary installer access to the user’s climote web site, but this...
  • Page 8 Adjust status and rename zones if required. “Other settings” grants temporary access to the user’s climote web site, but only until the user has registered Be sure to “Save” changes on this page. They will then be communicated to the device At this stage the unit is commissioned and ready for user registration and training.
  • Page 9 If the signal strength shows below 25% (even if start-up completes normally) you may need to fit an external antenna. Check the signal strength and if in doubt, contact climote. 4 Unable to If manual SMS works but the Installer Website test rejects the unit,...
  • Page 10 Notes...
  • Page 11 Installation Guide Thermostat Options, including climote DEGREE Remote Thermostat Preparation (T1) 1. Climote HUB 1. Ensure climote HUB is fitted and installed in line with Installation Guide. Serial Number Reset button 2. Climote DEGREE 1. Open climote DEGREE. 2. Select desired location and affix climote DEGREE back-plate to wall (see Location (T3)).
  • Page 12 Commission climote HUB (T2) 1. Navigate to Zone Setup Using the Menu/Back button and Scroll Wheel, select : Menu. Settings. Installer Settings. Commission Device. Zone Setup. 2. Set up Zones and Thermostats Select : Active zones – On or Off (see Setup (T5)) Turn scroll wheel to change, push to select, select “Next”.
  • Page 13 One, two or three zones may be set to “On”. Match the existing zone Zone set up configuration. • Options are “Off”, “Rem” or “Int” (Zone 1 only). • The climote HUB has an internal thermostat which may only be configured for Thermostat Zone 1 (select “Int”). Settings •...
  • Page 14 Customer Training Customer Training Basic customer training should be carried out at installation. This guide highlights the fundamental user training elements. Additional video instructions are available at www.climote.com Unit & Text Demonstration (1) 1. Explain the basic unit features 1. Zones and Dashboard 2.
  • Page 15 3 –Show Boost temp App Demonstration (4) Customers can download the climote app from the appropriate app store at any time. After registration, ask the customer to log into the app with their credentials 1 - Explain dashboard, 3 – Press zone dial and...
  • Page 16 EN 60730-­­1:2000 & EN 60730-­­2-­­7 Sooware Classifica8on Class A to EN 60730 Electric Shock Protec8on Class II. The climote HUB is completely protected by its enclosure Installa8on The unit must be installed by a qualified electrician !&^#,N )*^0-L&/0* _ $'%L0,# 6[\K[[...
