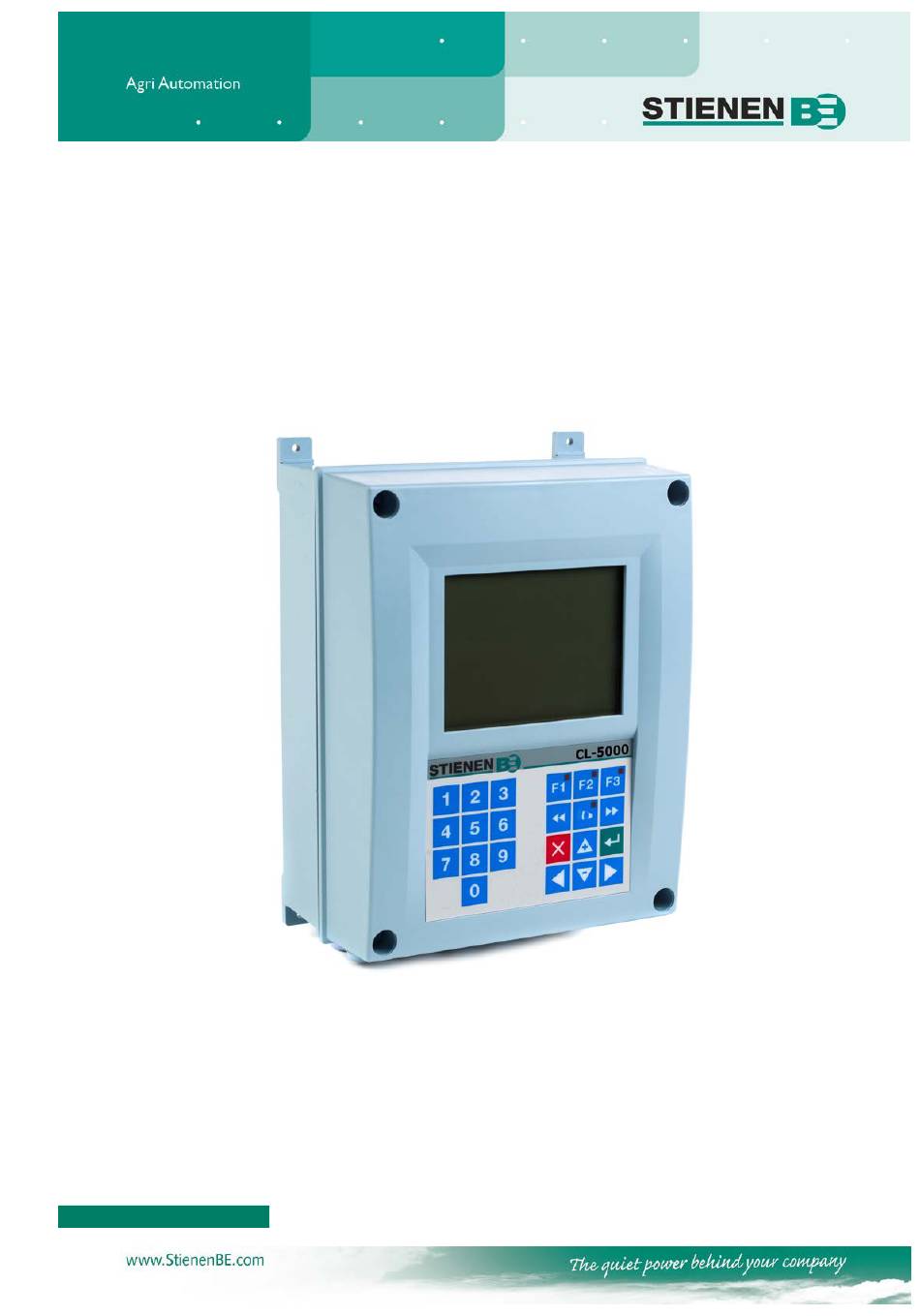

  • Page 1 USER MANUAL CL-5000(-i) CATTLE COMPUTER © StienenBE / CL-5000-G-EN02120...
  • Page 2 Shut down power before opening the cattle computer! This cattle computer contains exposed live parts! Only to be opened by authorized personnel! WARNING Although utmost care has been given to the quality of this equipment during the design and manufacturing stages, technical malfunctions can never be ruled out.

  • Page 3: Table Of Contents

    CONTENTS PAGE INTRODUCTION Window Keyboard Alarm key Overview Symbols MAIN MENU Access code CLIMATE CONTROLS House temperature Relatieve of absolute temperatuurinstelling Ventilation groups Cooling Miscellaneous Compensations Overviews Alarm TIMERS Controlled timer On/off timer Close curtains Date/Time Overview COUNTERS Clear all counters Water counter Feed counter Counter 3...
  • Page 4 If the software version of a module or peripheral device does not comply with the requirements of the operating software, you have to perform a software update for the module and/or peripheral device. CLEANING HR-SENSOR OR MEASURING FAN WITH A HIGH-PRESSURE SPRAY GUN IS NOT ALLOWED Remove the RH-sensor from the room and store them somewhere safe before cleaning the room.

  • Page 5: Introduction

    I/O MODULES I/O module: You can use I/O modules to extend the number of outputs of the CL-5000 cattle computer, via the MODULE bus. The control computer indicates which output must be driven by the CL-5000 cattle computer. VENTILATION GROUPS The CL-5000 cattle computer has a maximum of 9 ventilation groups divided into: 1x main ventilation group;...

  • Page 6: Window

    WINDOW Column with settings and/or measurements Column with calculated and/or Title bar corrected settings Screen number Graphic (function key F3) You can use the key to Time & Date select the next control number. You can use the key to select the previous control number.
  • Page 7 NUMERICAL KEYS (0..9) The numerical keys can be used to enter a abcŕâćç2ABCŔÂĆÇ screen number, a value or text deféčęë3DEFÉČĘË .,1'-:+ Entering text jkl5JKL Numerical keys 2..9 can be used to change ghiîď4 the name of a control group (left, right, mnońôöś6MNOŃÔÖŚ...

  • Page 8: Alarm Key

    ALARM KEY Hot key for alarm screen. The LED in the alarm key lights if there is an alarm on one of the controls. Here you can switch the main alarm on and off. When the main alarm is off, the LED in the alarm key will flash to indicate that the main alarm is off.

  • Page 9: Overview

    The current house temperature is shown on the display. If an outdoor sensor has been installed, the current outside temperature is also shown. If the CL-5000 has an RH sensor, the display shows the current RH. Page 9 from 32...

  • Page 10: Main Menu

    MAIN MENU If you use access codes, it is advisable to write the code down and store it somewhere safe. If you forget the access code, you can no longer change any settings. As soon as one access code is active, you can only change the setting by entering the correct access code.

  • Page 11: Climate Controls

    CLIMATE CONTROLS HOUSE TEMPERATURE The temperature used as the reference value for controlling the ventilation groups, coolers and heaters is called the house temperature. Note! If you set a low house temperature, take into account that there is a risk of the water freezing in winter. RELATIEVE OF ABSOLUTE TEMPERATUURINSTELLING Control Relative setting...

  • Page 12: Ventilation Groups

    VENTILATION GROUPS With fan group Bandwith Maximum Current ventilation Minimum Temperature [°C] Current temperature House temperature Temperature setting TEMPERATURE SETTING The temperature on the basis of which the main ventilation group controls; this setting is relative to the house temperature. The calculated temperature on the basis of which the ventilation group controls is shown behind the temperature setting.
  • Page 13 OPTIONS START FAN 2 / FAN 3 If the fan group consists of multiple fan controls, you have to set the percentage at which the 2 fan control have to be switched on (switch-on percentage relative to the total capacity of the controlled fan group) behind “Start fan 2”...

  • Page 14: Cooling

    CURRENT FLAP OPENING The current flap opening of the ventilation group is shown in this line. The ventilation groups “Left/Right/Front and Rear” are identical as regards their settings and they are all set in a similar manner. COOLING On/Off cooling Proportional cooling COOLING This line enables you to switch the cooling on or off.

  • Page 15: Miscellaneous

    MISCELLANEOUS HUMIDIFICATION This window enables you to switch the humidification control on or off and to set the relative humidity percentage. Below this percentage the humidification control is active. TEMPERATURE MONITORING (THERMO-DIFFERENTIAL) The temperature monitoring function is activated by your installer (max. 4 sensors). The current measurement of each sensor is compared with the measurement of one minute ago.

  • Page 16: Compensations

    TEMPERATURE 2/3/4 Heating/cooling You can switch the heating/cooling On/Off here. Temperature setting This is the temperature at which the heating/cooling controls. This setting is always an absolute setting. Bandwidth The bandwidth determines the 'sensitivity' of the heating/cooling. A short bandwidth will cause the heating/cooling to react to a rise in temperature very quickly.
  • Page 17 RH compensation only influences ventilation/flap position. This means that the ventilation/flap position effort will be greater if the value measured is higher than the value set for “RH compensation”. If 0.0 is set, this means that RH compensation does not affect the ventilation and/or the flap position.
  • Page 18 Wind influence of outside temp. Here you can set whether the outside temperature should influence the wind compensation. Max. influence below Ventilation/flap positions will experience maximum influence of the wind if the actual outside temperature is lower than this value. No influence above Temperature [°C] Ventilation/flap positions will not experience any...
  • Page 19 Corrected ventilation front: 5 - (12,86*0,6) = -2,72% becomes 0% Corrected ventilation rear: 5 - (12,86*0,6) = -2,72% becomes 0% Wind compensation (absolute) = ((Cur. wind speed – Wind influence from) / (10 – Wind influence from)) * 10 * factor Influence of outside temperature = (No influence above –...
  • Page 20 Wait after rain After rain, the CL-5000 will wait for a certain time before the flaps are sent a control signal again, based on temperature. You can enter this waiting time in this line. The remaining waiting time is shown next to this (is only shown after rain).
  • Page 21 Rain influence (adjusted per ventilation group) With meteo station Wind side / perpendicular side Enter the maximum flap position for the wind side during rain here. When the rain level exceeds the pre-set threshold (“rain level setting”) and the wind speed exceeds the pre-set value (“From”), the maximum flap position is limited to the pre-set value (“Max.vent.”).

  • Page 22: Overviews

    OVERVIEWS A table with the minimum and maximum temperatures of the past week, of the selected option, will be shown. In addition, the table will show the times when the minimum and maximum values occurred on the relevant days. -99,9 ºC Temperature sensor failure ???.? ºC Invalid room temperature RESET MIN/MAX TEMP.

  • Page 23: Alarm

    ALARM ALARM HOUSE TEMPERATURE The temperature limits apply to all ventilation groups. GROUPS TEMPERATURE Groups: Left/right/front/rear Wind compensation takes place after RH compensation, if applicable. You can only switch the alarm on/off in these screens. The alarm limits shown are the calculated alarm limits and depend on such factors as the preset house temperature limits and the preset temperature of the control itself.
  • Page 24 COOLING The alarm limits can be set separately for every individual cooling. MISCELLANEOUS Alarm RH This window enables you to switch on/off the alarm of the humidification control. The minimum and maximum alarm limits cannot be set to less than 20%. Alarm CO2 This window enables you to switch on/off the alarm of the CO2 control.
  • Page 25 Alarm temperature controls Here you can set the alarm limits for temperature controls. You can switch the temperature alarm on or off in this screen. In addition, the current temperature of the temperature control and the current outside temperature are displayed. Behind "Alarm status" the current alarm status of the control is shown. Alarm outside temperature You can switch the outside temperature alarm on or off in this...

  • Page 26: Timers

    TIMERS CONTROLLED TIMER Controlled timers enable a light regulation to be used, so that the lights are gradually switched on/off. A light regulation enables you to create ideal day and night conditions (dawn program). The lights are switched on at the time set at point 1 (05:30) and their intensity is controlled to 100% in a time of 30 minutes (...

  • Page 27: On/Off Timer

    ON/OFF TIMER Time-controlled “off”. “off” by twilight switch. TIME ON/OFF 9:00 18:00 23:00 6:00 TIMER 100% OUTPUT TWILIGHT SWITCH CLOSE CURTAINS To prevent mice or other pests from nesting between the curtains, you can have the curtains open and close a bit every day. All curtains are then sent open a short distance one by one (in turns) to then resume their previous positions.

  • Page 28: Counters

    COUNTERS CLEAR ALL COUNTERS All counter readings are erased, contrary to the setting “Clear counter” for the individual counters, where only the counter readings of the selected counter are erased. Caution! When the counter is cleared the data for today is also deleted. In addition, the overviews of the amounts fed and the...

  • Page 29: Alarm

    ALARM To be able to signal possible broken pipes or leaks in time, this screen enables you to set the maximum amount of water/feed that can flow through the pipes during the preset period before an alarm is generated. You can set a dose alarm for each counter. Page 29 from 32...

  • Page 30: Alarm

    ALARM ALARM STATUS If the alarm relay is de-energized (alarm delay time has lapsed) the cause of the alarm relay being de-energized will be displayed. In addition, you can switch the main alarm on and off. When the main alarm is off, the LED in the alarm key will flash to indicate that the main alarm is off.

  • Page 31: Alarm Codes

    The module number set for the terminal does not exist ● Module not installed Poor or no connection between CL-5000 and module. ● Module not responding Module address not found, check the settings on the module Module reset alarm...

  • Page 32: System

    SYSTEM This screen shows the device name and type (140=CL-5000) as well as the software program version and software date. DEVICE DATA Language: You can set the language of the screen texts here. The language in this example is set to ENG (English).
