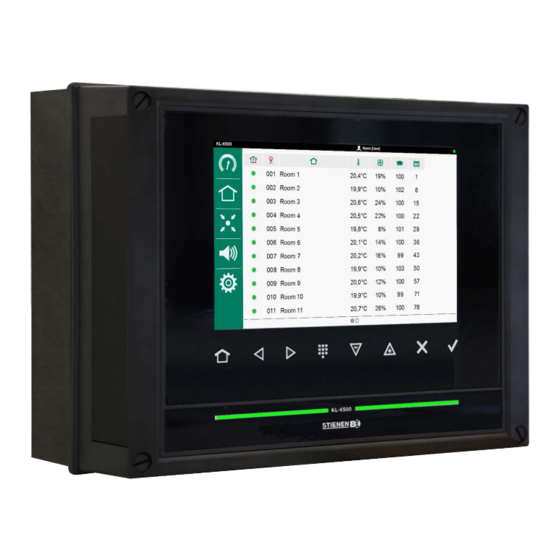

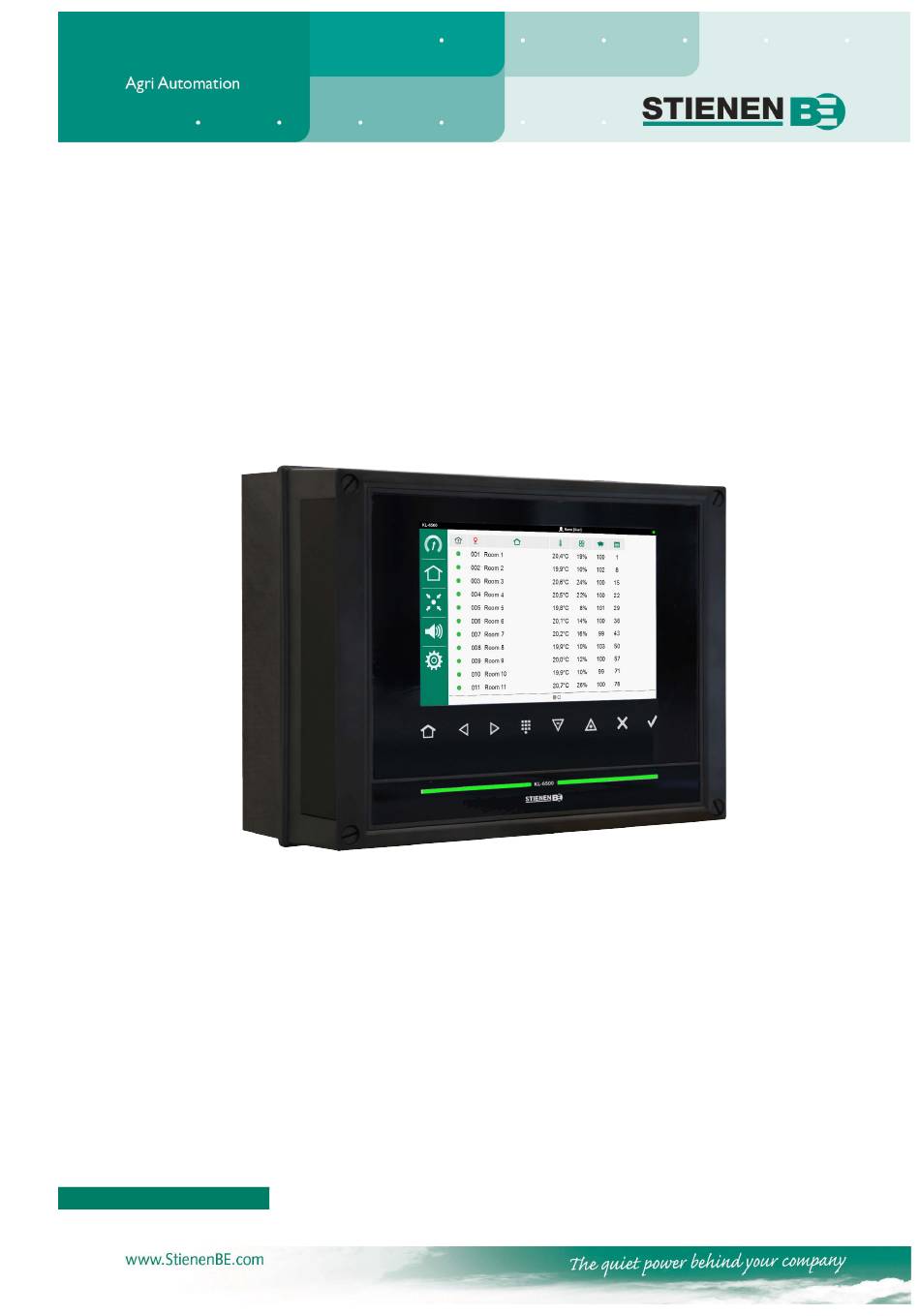

- Page 1 USER MANUAL KL-6500 (-i) CENTRAL COMPUTER KL-6500 © Stienen BE / KL-6500-G-NL01000...
- Page 2 Stienen BE cannot be held liable for any damage, loss or injury resulting from improper use or from use not in accordance with the instructions in this manual.
-
Page 3: Table Of Contents
OPERATION Changing languages Login Control keys Confirm change Led bar Room bar I/O terminal numbers MAIN MENU Overview screen MANAGEMENT Room Central ROOM CONTROLLER (KLD-100) Room ventilation Inlet flap Room heating Inlet heating Floor heating Cooling Alarm CENTRAL CONTROLLERS (KLC-100) Central ventilation Central heating Central inlet flap... -
Page 4: Operation
OPERATION CHANGING LANGUAGES Languages present: ENG ZHO JAP Back Next : select next language (see also “ System”, page 27). : select previous language. LOGIN : open login screen. : open numeric keypad. Enter the access code and touch CONTROL KEYS : return to the overview screen (HOME). -
Page 5: Confirm Change
: undo an option/selection in edit mode. : confirm an option/selection in edit mode. : add a breakpoint to or remove it from a list (curve, timer). : if a setting is followed by the “Link” symbol, use this link to access another screen. The upper right-hand corner of the “follow-up screen”... -
Page 6: Main Menu
MAIN MENU KL-6500 KLD-100 KLC-100 House temperature summary Outside temperature summary Summary of outside temperature Management Room heating operating hours Air scrubber pressure summary Room heating operating hours NH3 summary Reset min./max. table Reset min./max. table Ventilation Inlet flap Room heating... - Page 7 ADD MENU ITEM TO FAVOURITES BAR • Select the screen that should be added to the favourites bar. • Touch the menu item icon until the “add” window is displayed. • (OK) to add the menu item to the favourites bar. REMOVE MENU ITEM FROM FAVOURITES BAR Touch the icon of the menu item that you would like to remove until you see the “delete”...
-
Page 8: Management
MANAGEMENT ROOM Animal data: • Curve day number. Current number of animals in the house • MIN./MAX. TABLE Min./Max. house temperature table. Min./Max. outside temperature table. Reset min./max. value today (of all tables). HOURS COUNTER Room heating operating hours Inlet heating operating hours Floor heating operating hours CENTRAL HEATING... -
Page 9: Room Controller (Kld-100)
ROOM CONTROLLER (KLD-100) ROOM VENTILATION Maximum ventilation (with the room temperature + bandwidth settings chosen) Minimum ventilation (with the room temperature setting chosen) Room temperature setting Bandwidth Current room temperature Calculated ventilation Current ventilation Current outside temperature Current ventilation capacity Page 9 of 30... - Page 10 ROOM CURVE (TEMPERATURE, MINIMUM VENTILATION, MAXIMUM VENTILATION) Room temperature curve “On” Room temperature curve “Off” Breakpoint number Breakpoint day number (the value under is the current day number) Room temperature for the preset day number. Minimum ventilation for the preset day number. Maximum ventilation for the preset day number.
-
Page 11: Inlet Flap
Room temperature alarm “On” Room temperature alarm “Off” Current room temperature alarm Minimum room temperature alarm limit Maximum room temperature alarm limit Absolute room temperature alarm limit Ventilation alarm “On” Ventilation alarm “Off” Minimum ventilation limit Maximum ventilation limit Calculated and measured ventilation The ventilation alarm only shows if a measuring fan has been installed. -
Page 12: Room Heating
ROOM HEATING Room heating temperature setting • (temperature difference relative to room temperature setting, see screen 2.1.1.x page 9). Calculated room heating temperature. • Calculated room heating temperature from curve. • • Current room temperature. The room heating status is On •... - Page 13 Room heating curve “Off” Breakpoint number Breakpoint day number (the value under is the current day number) Room heating temperature for the preset day number. The day numbers can only be set in the “Room curve”. Page 13 of 30...
-
Page 14: Inlet Heating
INLET HEATING Inlet temperature setting • Calculated inlet temperature • • Inlet temperature setting from curve • Current inlet temperature Inlet heating status (“On/Off heating”) • Current inlet temperature • • Inlet heating status (heating is: “Off”) Current heating capacity (“controlled heating”) •... -
Page 15: Floor Heating
Breakpoint number Breakpoint day number (the value under is the current day number) Inlet temperature for the preset day number. The day numbers can only be set in the “Room curve”. INLET HEATING ALARM Inlet temperature alarm “On” Inlet temperature alarm “Off” Current inlet temperature alarm Minimum inlet temperature alarm limit Maximum inlet temperature alarm limit... - Page 16 Current floor temperature • Floor heating status (“On/Off heating”) • Current floor temperature • Floor heating status (heating is: “Off”) • Current heating capacity (“controlled heating”) • • Current floor temperature Floor heating status (heating is: “On”) • • Current heating capacity (“controlled heating”) FLOOR HEATING CURVE Breakpoint number Breakpoint day number (the value under...
-
Page 17: Cooling
Current floor heating temperature Minimum floor heating alarm limit Maximum floor heating alarm limit COOLING Cooling “On” Cooling “Off” Cooling temperature setting • • Calculated cooling temperature Cooling temperature setting from curve • Current cooling temperature • Cooling status “On” •... -
Page 18: Alarm
COOLING CURVE Cooling curve “On” Cooling curve “Off” Breakpoint number Breakpoint day number (the value under is the current day number) Cooling temperature for the preset day number. The day numbers can only be set in the “Room curve”. ALARM Page 18 of 30... - Page 19 Main alarm on/off Alarm temporarily off Siren test MAIN ALARM If the main alarm is off, the LED bar will flash red, at a regular frequency. No alarms will be generated then. See also LED bar page 5. ALARM TEMPORARILY OFF Temporarily disabling the main alarm (siren).
- Page 20 ALARM CODES Module not found Jumper A on RTCPU is in its lower position, set jumper A to its upper position or else the changes will not be saved. Communication error between devices. Communication error with WEB-485 (FramConnect) No data from climate controllers No ventilation (measurement = 0%).
-
Page 21: Central Controllers (Klc-100)
CENTRAL CONTROLLERS (KLC-100) CENTRAL VENTILATION Graphic view of the current ventilation. Current central ventilation. Ventilation correction by xxx% in xxx seconds. Average ventilation in the rooms Optimum valve position in the room Highest valve position xxx% in room xx Restart measuring fans in the rooms. Pressure in central duct. -
Page 22: Central Heating
CENTRAL ALARM Central ventilation control alarm on/off No data from climate controllers. No ventilation (measurement = 0%). Central ventilation pressure control alarm on/off (input R1) Pressure sensor faulty. Pressure too low. Pressure too high. Minimum central ventilation pressure control alarm limit. Maximum central ventilation pressure control alarm limit. -
Page 23: Central Inlet Flap
Room with the highest heat request. Central heating alarm on. No data from KLD-100 controllers. Water temperature sensor faulty. Central heating alarm off. CENTRAL INLET FLAP The flap controls on the basis of ventilation. Normally, the opening of the flap is directly proportional to the flap position as a %. -
Page 24: Pressure Measurement
PRESSURE MEASUREMENT Current pressure (R2) ALARM Pressure measurement alarm on. Pressure sensor faulty. Pressure too low. Pressure too high. Pressure measurement alarm off. Minimum central ventilation pressure control alarm limit. Maximum central ventilation pressure control alarm limit. Current pressure. Page 24 of 30... -
Page 25: Alarms
ALARMS ALARM STATUS Main alarm (on/off). Set the “off” slider to the position in order to temporarily switch off the main alarm (siren). All the alarms will be blocked temporarily. This does not apply to the hardware alarms; they cannot be switched off temporarily. -
Page 26: Alarm History
ALARM HISTORY The latest 5 alarm causes which caused the alarm relay to de-energize are shown. The dates and times of the alarms are listed in addition to their causes. Alarm 0: Shows the cause of the most recent alarm. The time until which the last alarm was (is) active is also indicated. -
Page 27: System
Package : This shows the package number of the compressed software files. RTCPU Type : Device type number (167 = KL-6500). Program version : Program version number of the embedded software (RTCPU processor PCB). Program date : Program date of the embedded software... -
Page 28: Date And Time
If the KL-6500 is connected to a network, an IP address (IPv4 address) will automatically be assigned to the controller after you have entered the codes. You need this IP address in order to connect to the device through the browser. - Page 29 LOGIN • Open the Internet browser. Enter the IP address in the address bar and press • ENTER. IP address Press the TAB key. • Enter the username and press the TAB key. • Enter the password and press the TAB key. •...
-
Page 30: Maintenance And Inspection
MAINTENANCE AND INSPECTION Regular maintenance and inspection of the equipment are essential for its proper operation. Do not forget to clean the ventilation system when cleaning the animal house. • To minimise the energy consumption, it is important that the fans are clean. This also applies to the flaps, measuring fans and the ventilation pipe Dust and dirt may affect the operation of the equipment.
