NIBE-BIAWAR HK 200S Installation And Operating Manual

Indoor unit cooperating with air heat pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

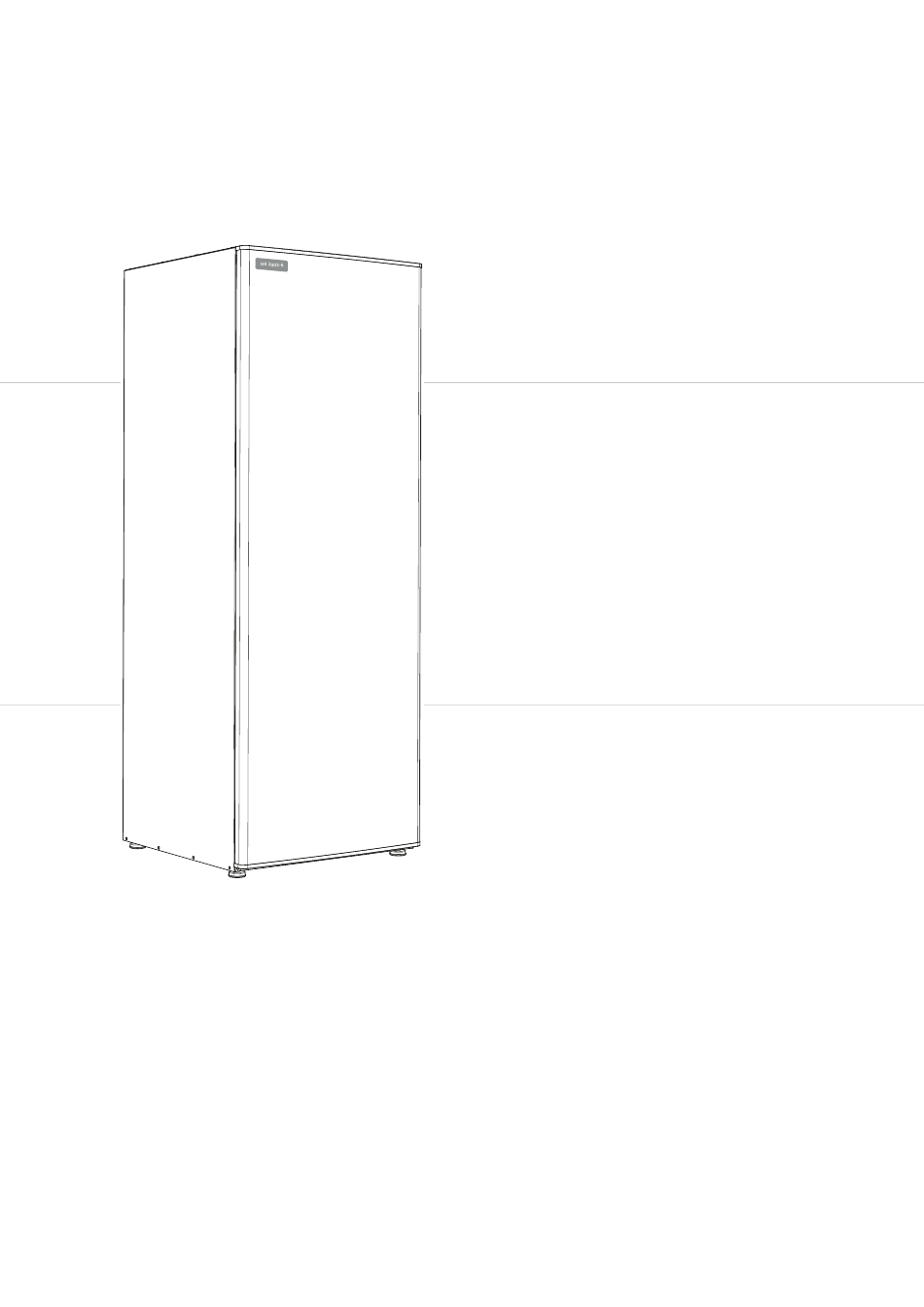

Installation and operating manual
HK 200S
HK 200S-6
Indoor unit
Cooperating with air
heat pumps
16.10.2018
25959

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HK 200S and is the answer not in the manual?

Questions and answers

Pawel
April 17, 2025

God morning/ afternoon . I have built a washing machine and dryer near HK 200S. Everything has been built in a wooden structure which is connected to HK 200S. I have noticed that vibrations during washing are transferred to HK200S. My question: is it safe for HK 200S? Regards Pawel

User image 6800b55d37c2f
0
1 comments:
Mr. Anderson
May 9, 2025

The HK 200S must be set on a solid, waterproof base to support its weight and ensure stability using its regulated legs. The context does not specifically mention vibration from nearby appliances like a washing machine or dryer. However, for safety and proper operation, placing it near sources of strong vibration is not recommended unless the base fully isolates the unit from those vibrations.

Therefore, while not explicitly prohibited, placing the HK 200S near vibrating appliances may affect stability and is best avoided.

This answer is automatically generated

0

Related Manuals for NIBE-BIAWAR HK 200S

Summary of Contents for NIBE-BIAWAR HK 200S

  • Page 1 Installation and operating manual HK 200S HK 200S-6 Indoor unit Cooperating with air heat pumps 16.10.2018 25959...
  • Page 2 Canceling the settings. SMO 40 The room temperature setting mode is selected by pressing the OK button twice from the start mode lev- el in the main menu. More information to be found in section Room temperature setting. HK 200S HK 200S-6...

  • Page 3: Table Of Contents

    Removal of the covers _________________6 8 Service ___________________ 32 3 Indoor module structure _____ 7 Maintenance service _________________32 HK 200S / HK 200S-6 _________________7 9 Distorted heat comfort ______ 33 4 Pipe connections ___________ 9 General pipe connections ______________9 Dimensions and pipe connections _______12...

  • Page 4: Important Information

    1 Important information Information regarding Serial number safety The serial number is located at the top of HK 200S / HK 200S-6 This manual contains installation and maintenance proce- dures for specialists. The device can be operated by childred aged over 8...
  • Page 5 Safety valve Power supply Communication connection Circuit fuses Fuses, internal module Building fuses Temperature sensor outdoor Room sensor Energy meter Emergency switch Switch differential Thermostat emergency mode setting Miscellaneous Connected to HK 200S Chapter 1 | Important information HK 200S-6...

  • Page 6: Supply And Operation

    Included items HK 200S / HK 200S-6 heat pump must be transported and stored vertically in a dry place. HK 200S / HK 200S-6 can be, however, carefully placed on the rear side of the casing when carrying the device into the building.

  • Page 7: Indoor Module Structure

    3 Indoor module structure HK 200S/ HK 200S-6 XL10 XL13 XL14 XL3 BT12 XL11 BT64 QN12 GP12 BT15 BT25 BT63 QN10 BT71 EB15 HK 200S Chapter 3 | Indoor module structure HK 200S-6...
  • Page 8 Submersible heater QN10 Isolation valve, domestic hot water / cen- tral heating Other QN12 Isolation valve, cooling/heating EB15 HK 200S / HK 200S-6 GP12 Circulation pump Serial number Heat exchanger Domestic hot water tank HK 200S Chapter 3 | Indoor module structure...

  • Page 9: Pipe Connections

    Recommended temper- heating system ature of the heating medium at minimum designed The inner capacity of HK 200S / HK 200S-6 for the outdoor temperature DOT must not exceed 55°C on purposes of calculating the diaphragm expansion supply, and 45 °C on return circuit from the heating...
  • Page 10 Installation diagram The HK 200S / HK 200S-6 indoor unit is equipped with a coil The connection of the outdoor unit and indoor unit HK water heater, diaphragm expansion vessel , safety group, 200S / HK 200S-6 with a system of pipes filled with...
  • Page 11 Indoor HK 200S / HK 200S-6 module It is recommended that the HK 200S / HK 200S-6 • module should be installed in a room with a floor drain, at best in a utility room or a boiler house. The floor must be solid, concrete at best.

  • Page 12: Dimensions And Pipe Connections

    XL10 Connection, cooling Ø22 mm XL11 Connection, safety group Ø22 mm, manometer XL13 Liquid cooling medium Connection ¼” (HK 200S-6) Connection ⅜” (HK 200S) XL14 Gas cooling medium Connection ½” (HK 200S-6) Other information Connection ⅝” (HK 200S) Serial number plate...

  • Page 13: Connection Options

    AMS 10-10 Condensate elimination More information about NIBE SPLIT to be found at The HK 200S / HK 200S-6 module is equipped with a condensate hose in the heat exchanger section. The www.nibe.eu and in relevant installation manuals for hose drains all condensate away from the device to accessories used.
  • Page 14 Bend pipes with maximum bending radius (at • Pipe dimensions and materials least R100~R150). Do not bend pipes many times. Use a bending machine. HK 200S • Connect the socket connection and tighten with appropriate torque. Apply the appropriate tight- HK 200S...
  • Page 15 When executing pipe connections, pressure tests, leakage tests and vacuum tests, maintenance IMPORTANT valves can be open to fill the pipes and HK 200S-6 / Pipe connections between devices must undergo a pressure test and leakage test after completing the in- HK 200S with a refrigerant medium.
  • Page 16 Max pressure, climate system 0.25 MPa (2.5 Bar) Highest recommended supply/return temperature at dimensioned out- 55/45 °C door temperature Max temperature in HK 200S / HK 200S-6 +65 °C Max flow line temperature with compressor +58 °C +7 °C Min supply temperature cooling Max supply temp.
  • Page 17 20 mm thickness. HK 200S-6 / HK 200S is not equipped with cut-off stat valves, in order to assure appropriate flow, install valves, which must be installed outside the indoor a discharge valve or a buffer in the parallel layout, or module to make future maintenance easier.
  • Page 18 DHW Circulation 3. Remove the plug from the circulation pipe (XL5). HK 200S-6 / HK 200S have possibility to connect DHW circulation. The circulation connection (XL5) is located at the top of the tank. 4. Install the elbow, facing the rear housing, on the circulation pipe.

  • Page 19: Electrical Connections

    0.5 mm² with the length of up to 50 m, for example EKKX or LiYY, or similar. When laying cables in HK 200S-6 / HK 200S, ap- • ply cable passes UB1 and UB2 (as marked in the illustration).

  • Page 20: Connections

    Temperature limiter (F3) cuts off the power supply of The system for automatic regulation of the heating, circulation pump, and their cabling at HK 200S / HK the electrical heating module if the temperature in- creases to the range of approximately 87 °C, and can 200S-6 are secured internally with a circuit breaker (F2).
  • Page 21 Power supply connection nected to the power supply clamp (TB) at AMS 10 SMO 20/40 must be connected to HK 200S-6 / HK 200S and to clamp (X2) at HK 200S-6 / HK 200S. with the 3-wire cable minimum 1,5 mm cross section.
  • Page 22 (A), X2:20 (B) and X2:21 (GND), while for SMO 40 to clamps X4:1 (A), X4:2 (B) and X4:3 (GND), according ing. to the drawing. SMO 20 SMO 20 HK 200S HK 200S HK 200S-6 HK 200S HK 200S-6 HK 200S...
  • Page 23 X2:4 and X2:6, while for SMO 40 to clamps section of at least 0.5 mm². X6:15 and X6:16.Use a two-wire cable with the cross- SMO 20 section of at least 0.5 mm². SMO 20 HK 200S HK 200S HK 200S-6 HK 200S-6 HK 200S HK 200S...
  • Page 24 AUX clamps, e.g.: X6:13 and X6:14, and then turn on sensor power supply - see SMO40 installation man- SMO 20 ual. Use a two-wire cable with the cross-section of at least 0.5 mm². SMO 20 HK 200S HK 200S-6 HK 200S HK 200S-6 HK 200S HK 200S-6...
  • Page 25 - see SMO (AA3). Turning the cooling function on in the heat installation manual. pump - see SMO installation manual. SMO 20 SMO 20 HK 200S HK 200S HK 200S-6 HK 200S-6 HK 200S HK 200S...
  • Page 26 (see SMO manual, Chapter Electrical connections, section Optional Connections). Isolation valve (QN10) HK 200S / HK 200S-6 is equipped with an isolation valve (QN10) for hot water regulation. Connect the isolation valve (QN10) to clamps X4:2 (N), X4:3 (control) and X4:4 (L) at motherboard (AA2), as shows in the drawings.
  • Page 27 For more information see SMO Installation manual. SMO 40 KVR 10 heating cable connection (ACCESSORY) HK 200S / HK 200S-6 is equipped with a terminal block in communication card (AA23) for a heating cable(EB14). The connection is fused with 10A (F2).The heating ca-...

  • Page 28: Settings

    The volume of domestic hot water is limited. Load sensor has not been connected. • • Constant temperature in the supply pipeline; more information to be found in the Chapter w Emergency Mode Thermostat. Electrical connections Chapter 5 | HK 200S HK 200S-6...

  • Page 29: Start-Up And Regulation

    Connection Options section. Filling and venting Filling the DHW heater at HK 200S / HK 200S-6 1. Open the hot water tap in the building. 2. Open the valve cutting off cold water. When doing so, the valve should be completely open.

  • Page 30: Start-Up And Acceptance

    Pump speed Start-up and acceptance The circulation pump in HK 200S / HK 200S-6 is con- Start-up wizard trolled by frequency, and is automatically regulated via control and based on the heating demand. IMPORTANT Before setting the SMO controller switch in the posi- tion „I”, fi ll the heating system with water.

  • Page 31: Control

    Service (Menu 5) Advanced settings. These settings are not available to the end user. This menu will be visible if the Back button is pressed in the start menu for 7 seconds. HK 200S Chapter 7 | Control HK 200S-6...

  • Page 32: Service

    IMPORTANT Maintenance service must only be performed by per- sons with the required technical knowledge. When replacing components in HK 200S / HK 200S-6, use exclusively original spare parts. Emergency mode Emergency mode is used in the event of problems with operation and during maintenance service.

  • Page 33: Distorted Heat Comfort

    Accessories that can be used depend on the applied Control Module SMO 20 or SMO 40. The list of all possible accessories can be found in the relevant manual of the Control Module applied. HK 200S Chapter 9 | Distorted heat comfort HK 200S-6...

  • Page 34: Technical Data

    11 Technical data Dimensions and layout of connections 93.5 92.5 87 63 600.5 20-40 Chapter 11 | Technical data HK 200S HK 200S-6...

  • Page 35: Technical Data

    Enamel + titanium anode Anticorrosive protection Mixed water quantity at 40°C 230 l Energy class (acc. to ErP, at supply temp. 55°C) (Applies to AMS 10 + HK 200S-6 + SMO) Performance class / Load profile (DHW) A/XL Unit Outdoor module...

  • Page 36: Performance

    39 (40) 39 (40) (Recommended fuse rating) Performance AMS 10-6 / SMO AMS 10-8 / SMO AMS 10-12 / SMO Outdoor module / HK 200S-6 / HK 200S-6 / HK 200S-6 / HK 200S-6 Outd. temp. / Nominal Nominal Nominal Heating Supply temp.

  • Page 37: Energy Labelling

    Supplier NIBE-BIAWAR Model AMS 10-6 / AMS 10-8 / AMS 10-12 / SMO 40 / SMO 40 / SMO 40 / HK 200S-6 HK 200S HK 200S Model hot water heater HK 200S-6 HK 200S HK 200S �C Temperature application...
  • Page 38 Technical documentation Model AMS 10-6/ HBS 05-12 / HK 200S-6 Model hot water heater HK 200S-6 Type of heat pump Air-water Exhaust-water Brine-water Water-water Low-temperature heat pump Integrated immersion heater for additional heat Heat pump combination heater Climate Average Cold...
  • Page 39 Technical documentation Model AMS 10-8/ HBS 05-12 / HK 200S Model hot water heater HK 200S Type of heat pump Air-water Exhaust-water Brine-water Water-water Low-temperature heat pump Integrated immersion heater for additional heat Heat pump combination heater Climate Average Cold...
  • Page 40 Technical documentation Model AMS 10-12/ HBS 05-12 / HK 200S Model hot water heater HK 200S Type of heat pump Air-water Exhaust-water Brine-water Water-water Low-temperature heat pump Integrated immersion heater for additional heat Heat pump combination heater Climate Average Cold...

  • Page 41: Diagram Of Electrical Connections, 3X400V

    Diagram of electrical connec- tions, 3 x 400 V HK 200S Chapter 11 | Technical data HK 200S-6...
  • Page 42 HK 200S Chapter 11 | Technical data HK 200S-6...
  • Page 43 HK 200S Chapter 11 | Technical data HK 200S-6...
  • Page 44 NIBE-BIAWAR Sp. z. o.o. 15-703 Białystok, al. Jana Pawła II 57 Tel. 85 662 84 90, fax. 85 662 84 09 e-mail: sekretariat@biawar.com.pl...
