NIBE-BIAWAR HK 200M Installation Manual

Indoor unit cooperating with air heat pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

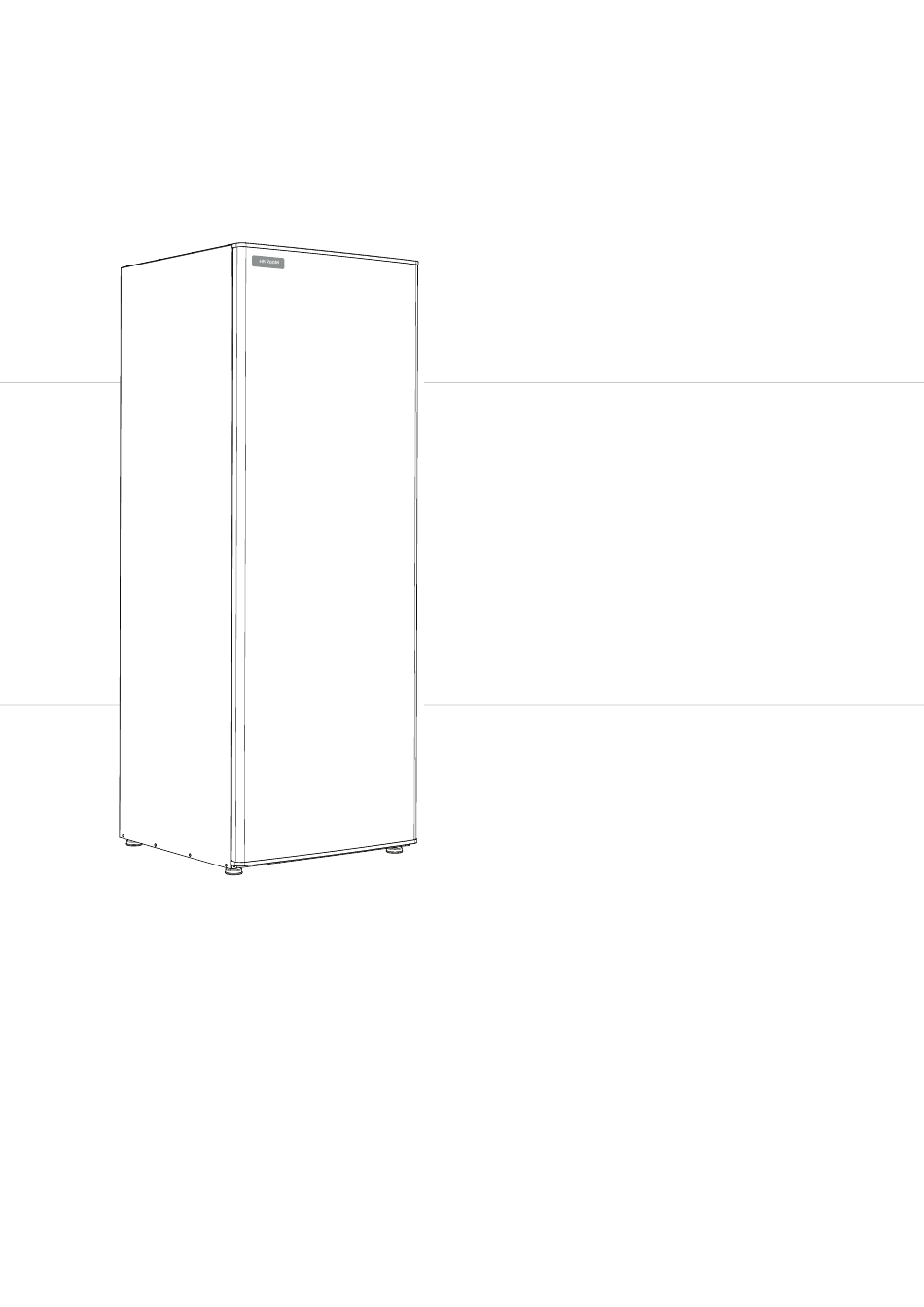

Installation manual
HK 200M
Indoor unit
cooperating with air
heat pumps
15.02.2017
25957

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HK 200M and is the answer not in the manual?

Questions and answers

Related Manuals for NIBE-BIAWAR HK 200M

Summary of Contents for NIBE-BIAWAR HK 200M

  • Page 1 Installation manual HK 200M Indoor unit cooperating with air heat pumps 15.02.2017 25957...
  • Page 2 Cancelling the settings. SMO 40 The room temperature setting mode is selected by pressing the OK button twice from the start mode lev- el in the main menu. More information to be found in section Room temperature setting. HK 200M...

  • Page 3: Table Of Contents

    11 Technical data ____________ 30 Dimensions and layout of connections ______ 31 5 Electrical connections ______ 16 Technical data _________________________ 31 General information _____________________ 16 Diagram of electrical connections __________ 32 Connections ___________________________ 17 Settings ______________________________ 24 HK 200M List of contents |...

  • Page 4: Important Information

    1 Important information Information regarding Serial number safety The serial number is located at the top of HK 200M. This manual contains installation and maintenance proce- dures for specialists. The device can be operated by children aged over 8 and persons with physical, sensory, or mental dis-...
  • Page 5 Mixing valve Safety valve Power supply Communication connection Circuit fuses Fuses, internal module Building fuses temperature sensor outdoor Room sensor Energy meter Emergency switch Switch differential Thermostat emergency mode setting Miscellaneous Connected to HK 200M Chapter 1 | Important information...

  • Page 6: Supply And Handling

    2 Supply and operation Transport Elements supplied HK 200M indor device must be transported and stored vertically in a dry place. HK 200M can be, however, carefully placed on the rear side of the casing when carrying the device into the building. Assembly Safety valve •...

  • Page 7: Construction Of The Internal Mod- Ule

    3 Indoor module structure HK 200M XL11 BT64 QN12 GP12 BT25 BT63 QN10 BT71 EB15 HK 200M Chapter 3 | Indoor module structure...
  • Page 8 Connection, supply of the heating medi- um from the external unit XL11 Connection, safety group, manometer Miscellaneous EB15 HK 200M HVAC elements Serial number Diaphragm expansion vessel, closed, heat medium Hot water tank QN10 Isolation valve, domestic hot water / cen-...

  • Page 9: Pipe Connections

    Recommended heating system temperature of the heating medium at minimum de- The inner capacity of HK 200M for the purposes of signed outdoor temperature DOT must not exceed calculating the diaphragm expansion vessel in the 55°C on supply, and 45°C on return circuit from the domestic hot water installation totals 180 l.
  • Page 10 Installation diagram The HK 200M indoor unit is equipped with a coil water The connection of the outdoor unit and indoor unit heater, diaphragm expansion vessel , safety group, HK 200M with a system of pipes filled with a cooling...
  • Page 11 The floor must be solid, concrete at best. • • The HK 200M module must be set with its back to the outer wall, at best in a room where noise is not a problem. If possible, do not place the device near a wall of a bedroom or another room where noise might be a problem.

  • Page 12: Dimensions And Pipe Connections

    Connection, cold water Ø22 mm Connection, circulation Ø15 mm Connection, supply of the heating medi- um from the external unit Ø22 mm Connection, discharge of the heating me- dium to the external unit Ø22 mm Chapter 4 | Pipe connections HK 200M...

  • Page 13: Connection Of Inner Unit

    Pipe connections of the heating system are to be made at the top. • All the required protections and cut-off valves must be installed as close to the HK 200M mod- ule as possible. Where necessary, install the vents. •...
  • Page 14 IMPORTANT If the supply pump is controlled from the outside, it must work even if the outdoor unit does not operate, to prevent damage as a result of freezing. HK 200M Chapter 4 | Pipe connections...

  • Page 15: Connection Options

    20mm thickness. remove several thermostats. HK 200M is not equipped with cut-off valves, which must be installed outside the indoor module to make future maintenance easier.

  • Page 16: Electrical Connections

    Minimum cross-section of power supply cables must total 0from 2.5 mm² to 4 mm². • For cabling in HK 200M, use cable passes UB1 and UB2 (as marked in the drawing). In UB1 and UB2, cables are input through the entire indoor module from the back wall towards the front wall.

  • Page 17: Connections

    The cable must be dimensioned according to the applicable standards. HK 200M must be connected to the power supply 400 V 3N AC 50Hz as specifi ed on the clamp (X2).
  • Page 18 Connections between HK 200M and SMO 20/40 Power supply connection SMO 20/40 must be connected via the cut-off switch Connect the control signal (GP12) for SMO 20 to clamps X2:1 (PWM) and X2:2 (GND), while for SMO with minimum contact-point gap of 3 mm. Minimum...
  • Page 19 0.5 mm². and X6:16.Use a two-wire cable with the cross-sec- SMO 20 tion of at least 0.5 mm². SMO 20 SMO 20 SMO 20 SMO 20 HK 200M SMO 20 HK 200M HK 200M HK 200M SMO 40 SMO 40 AA3-X6...
  • Page 20 - see SMO40 installation man- SMO 20 ual. Use a two-wire cable with the cross-section of at least 0.5 mm². SMO 20 SMO 20 SMO 20 SMO 20 HK 200M SMO 20 HK 200M HK 200M HK 200M BT25 BT63 SMO 40...
  • Page 21 SMO 20 AUX1 AUX2 AUX1 AUX3 AUX2 AUX3 AUX4 SMO 20 SMO 20 AUX4 SMO 20 SMO 20 SMO 20 HK 200M SMO 20 HK 200M HK 200M HK 200M BT64 BT71 SMO 40 SMO 40 AUX1 AUX2 AUX3 AA3-X6 AA3-X6...
  • Page 22 (see SMO manual, Chap- HK 200S ter Electrical connections, section Optional Connec- tions). K2 K3 AA7-X2 1 2 3 4 5 6 AA7-X2 SMO 20 SMO 40 SMO 20/40 HK 200M HK 200M K1 K2 K3 Chapter 5 | Electrical connections HK 200M...
  • Page 23 Isolation valve (QN10) SMO 40 HK 200M is equipped with an isolation valve (QN10) for hot water regulation. Connect the isolation valve (QN10) to clamps X4:2 AA3-X7 (N), X4:3 (control) and X4:4 (L) at motherboard (AA2), AA3-X7 SMO 40 as shows in the drawings.

  • Page 24: Settings

    The volume of domestic hot water is limited. • Load sensor has not been connected. Constant temperature in the supply pipeline; • more information to be found in the Chapter w Emergency Mode Thermostat. Chapter 5 | Electrical connections HK 200M...

  • Page 25: Start-Up And Regulation

    Connection Options section. Filling and venting Filling the DHW heater at HK 200M 1. Open the hot water tap in the building. 2. Open the valve cutting off cold water. When doing so, the valve should be completely open.

  • Page 26: Start-Up And Acceptance

    Pump speed Start-up and acceptance The circulation pump in HK 200M is controlled by fre- Start-up wizard quency, and is automatically regulated via control and based on the heating demand. IMPORTANT Before setting the SMO controller switch in the posi- tion „I”, fi ll the heating system with water.

  • Page 27: Control

    Service (Menu 5) Advanced settings. These settings are not available to the end user. This menu will be visible if the Back button is pressed in the start menu for 7 seconds. HK 200M Chapter 7 | Control...

  • Page 28: Maintenance Service

    Maintenance service IMPORTANT Maintenance service must only be performed by per- sons with the required technical knowledge. When replacing components in HK 200M, use exclu- sively original spare parts. Emergency mode Emergency mode is used in the event of problems with operation and during maintenance service.

  • Page 29: Distorted Heat Comfort

    Accessories that can be used depend on the applied Control Module SMO 20 or SMO 40. The list of all possible accessories can be found in the relevant manual of the Control Module applied. HK 200M Chapter 9 | Distorted heat comfort Chapter 10 |...

  • Page 30: Technical Data

    11 Technical data Dimensions and layout of con- nections 85 65 20-40 Chapter 11 | Technical data HK 200M...

  • Page 31: Technical Data

    Anticorrosive protection Enamel + titanium anode Maximum DHW capacity 230 l, 40°C Kit energy class 12 kW F2040 + HK 200M + SMO Energy class (acc. to ErP, at supply temp. 55°C) Performance class / Load profile (DHW) A/XL HK 200M...

  • Page 32: Diagram Of Electrical Connections

    Diagram of electrical connec- tions, 3 x 400 V HK 200M Chapter 11 | Technical data...
  • Page 33 HK 200M Chapter 11 | Technical data...
  • Page 34 Notes: HK 200M...
  • Page 36 NIBE-BIAWAR Sp. z. o.o. 15-703 Białystok, al. Jana Pawła II 57 Phone: 85 662 84 90, fax: 85 662 84 09 e-mail: sekretariat@biawar.com.pl...
