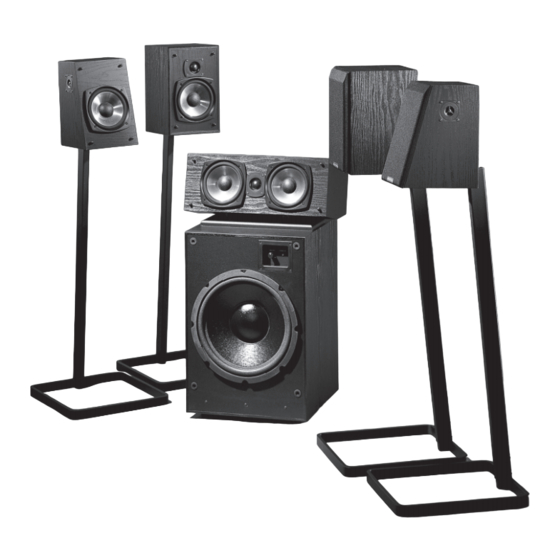

- Page 1 System T90 High Performance Compact Home Theater Loudspeaker System C o v e r s M o d e l s T 9 0 L R , T 9 0 C , a n d T 9 0 S R Atlantic Technology ®...
-
Page 2: Connecting Your System
YSTEM High Performance Compact Home Theater Loudspeaker System Thank you for choosing Atlantic Technology home theater products. Your new speaker system is precision crafted to give you years of enjoyable, trouble free service. This manual covers the Atlantic Technology T90 series of speakers for home theater. The T90 PBM Subwoofer is covered in detail in a separate manual. - Page 3 By convention, the marked wire is connected to the red (+) terminal. Atlantic Technology ®...
- Page 4 Models T90 LR, T90 C, and T90 SR Figure 2: Typical wiring To optional diagram for second speakers in a subwoofer home theater. surround sound, optimum placement of your T90 LR speakers is 2 to 3 feet to either side of the TV screen and 1 to 2 feet out from the wall, at ear height when you’re seated.
- Page 5 Center channel should be within should be 2' of front speaker tweeter height no closer than 2' from the ceiling Surround speaker Above ear level when seated Center of surround speaker in line with listening position Atlantic Technology ® Surround speaker...
- Page 6 On a bookshelf Self-adhesive rubber feet to protect the speaker and the shelf are included. On speaker stands Atlantic Technology’s optional ST 176 speaker stands provide a good height (29" above the floor) for most rooms. There are 1/4" x 20 bolts included in the stand hardware package that screw into the matching inserts in the back of the speakers.
- Page 7 In any case, save all packing materials until you are certain that the systems have suffered no damage in shipment. If you find such damage, either visible or internal, contact your dealer immediately for the proper return procedure. Atlantic Technology ®...
- Page 8 The terminals and terminal cups on the backs of the speakers protrude approximately .12in (3mm). Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or appearance at any time without notice.
