Summary of Contents for Atlantic Technology T70

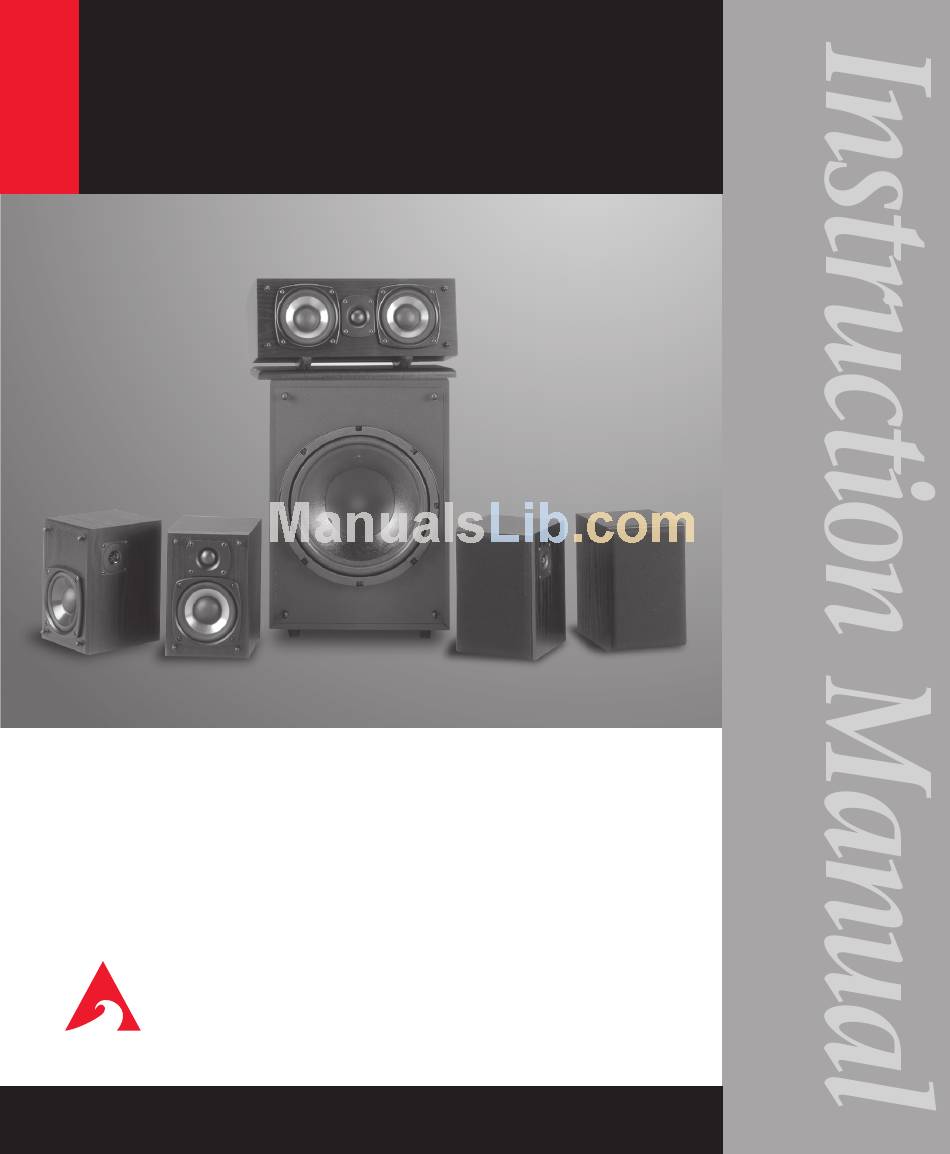

- Page 1 System T70 High Performance Ultra-Compact Home Theater Loudspeaker System C o v e r s M o d e l s T 7 0 L R , T 7 0 C , a n d T 7 0 S R Atlantic Technology ®...
-
Page 2: Connecting Your System
T70 C Center Channel Speaker The T70 C uses dual 4" TCMG woofers and the same 1" tweeter as the T70 LR speaker. The T70 C is designed for use only as a dedicated center channel speaker. - Page 3 It’s to make you believe you are in the scene taking place on the screen. For a home theater system, optimum placement of your T70 LR speakers is 2 to 3 feet to either side of the television and 1 to 2 feet out from the wall, at ear height when seated. The left and right front speakers should be far enough apart that you get a good stereo image, but not so far apart that the sound seems to come directly from the speakers, distracting you from the picture.
-
Page 4: Surround Effects
Important Note: Most surround sound decoders and receivers offer a choice of “Normal” or “Wide-band” or “Large” and “Small” modes for the some or all of the speakers in their setup menus. All T70 speakers must be used in the Normal or Small mode, if this choice is available. - Page 5 Center channel should be within should be 2' of front speaker tweeter height no closer than 2' from the ceiling Surround speaker Ear level Null point of surround speaker in line with listening position Atlantic Technology ® Surround speaker...
- Page 6 Models T70 LR, T70 C, and T70 SR Mounting The T70 LR and SR speakers can be mounted in a variety of ways: On a bookshelf Self-adhesive rubber feet to protect the speaker and the shelf are included. On speaker stands Atlantic Technology’s optional ST 166 speaker stands provide an ideal height (29"...
- Page 7 Weight (ea., unpacked) 4.7lbs; 2.13kg Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or appearance at any time without notice. Dolby Digital, AC-3, 5.1, Surround EX 6.1, Dolby Surround and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation.
- Page 8 Model Number Model Number Model Number The serial number is found on the back of the speaker near the connecting terminals. Serial Number Serial Number Serial Number Atlantic Technology ® Date of Purchase Date of Purchase Date of Purchase 010-1T70...
