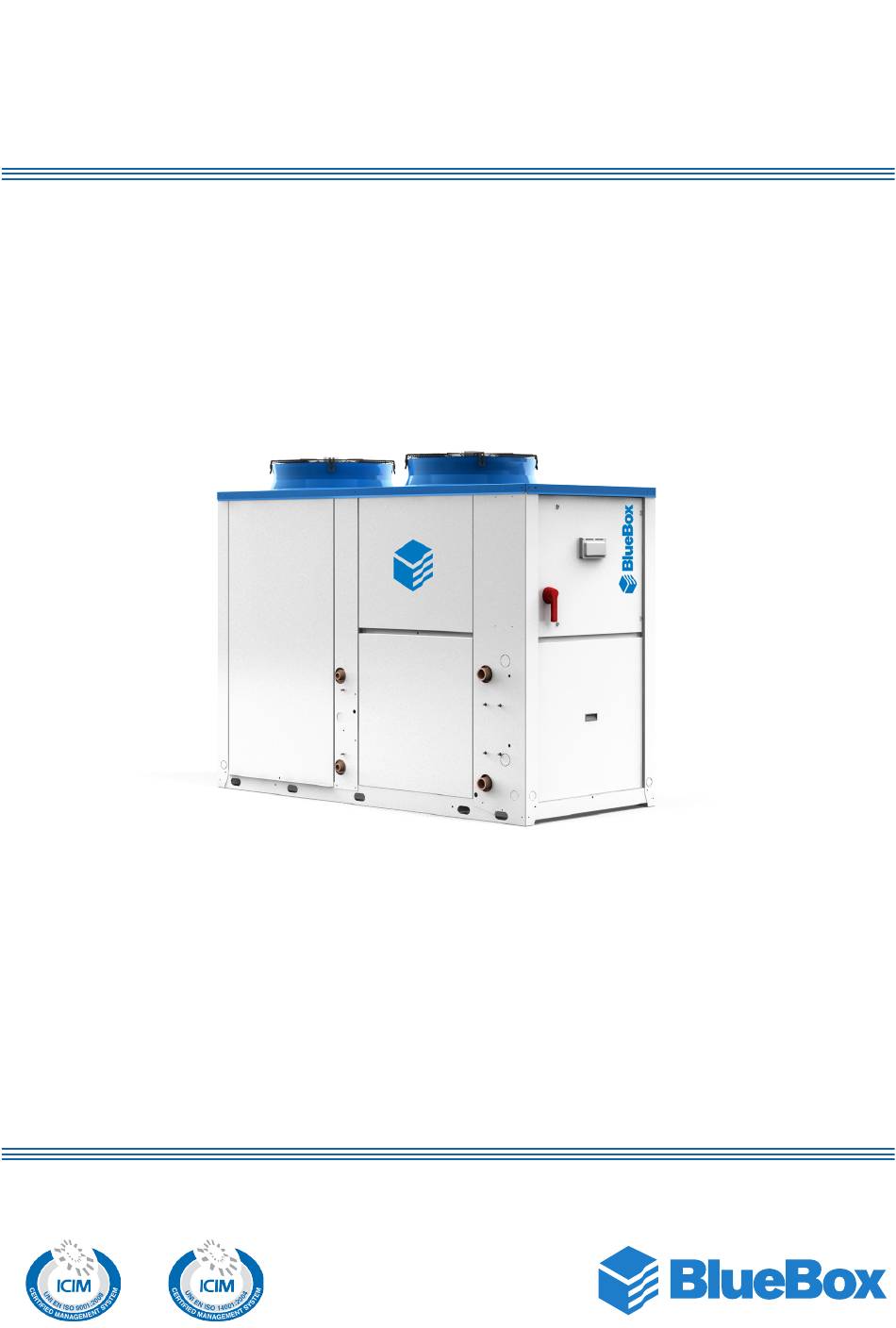

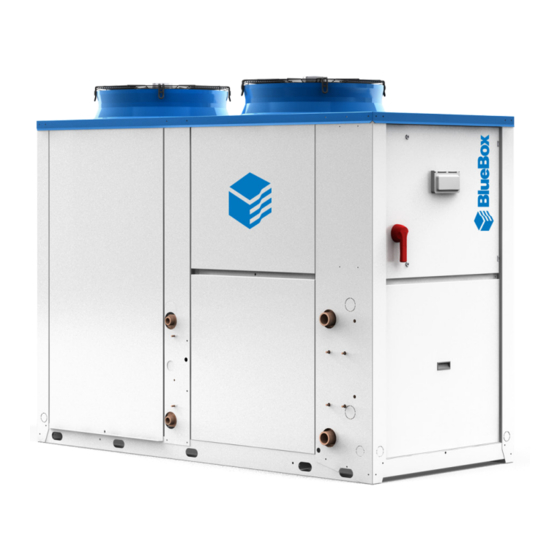

  • Page 1 Zeta Rev Installation, use and maintenance manual 26-10-2016...
  • Page 2 THANK YOU Thank you for choosing our product. It is the result of many years’ experience and careful design and has been built with first-class quality materials and advan- ced technologies. The CE marking also guarantees that the equipment meets the requirements of the European Machinery Safety Directive. The quality level is constantly monitored, and therefore our products are synonymous with Safety, Quality and Reliability.

  • Page 3: Table Of Contents

    Contents Introduction Conformity Description 1.2.1 Symbols 1.2.2 Labels Safety General safety precautions 2.1.1 Discharge of the safety valves 2.1.2 Emergency stop Basic rules 2.2.1 Water flow rate at the heat exchangers 2.2.2 Water composition 2.2.3 Minimum water content in the system 2.2.4 Installing the flow switch 2.2.5 Unit operating in heat pump mode 2.2.6 Operation with water to the evaporator at low temperature 2.2.7 Operation with water to the condenser at low temperature...
  • Page 4 4.7.2 Programmable control Wiring diagram Installation Dimensions and weight Installation site Installation 5.3.1 External positioning 5.3.2 Noise attenuation 5.3.3 Minimum distances Hydraulic connections Electrical connections Refrigeration connections 5.6.1 Piping implementation 5.6.2 LE version: unit installed at a higher level than the remote exchanger 5.6.3 LE version: unit installed at a lower level than the remote exchanger 5.6.4 LE/HP version: unit installed at a higher level than the remote exchanger 5.6.5 LE/HP version: unit installed at a lower level than the remote exchanger Expansion valve Vacuum and refrigerant charge Topping up with oil Commissioning Preliminary operations...
  • Page 5 7.2.3 Cleaning e-coated microchannel coils Internal cleaning 7.3.1 Cleaning the unit 7.3.2 Cleaning the plate heat exchangers Periodic checks Unscheduled maintenance 7.5.1 Special work Decommissioning We reserve the right to make changes without any prior notice. Translation from original instructions...

  • Page 6: Introduction

    INTRODUCTION 1.1 Conformity With regard to relevant regulations and directives, see the declaration of conformity that is an integral part of the manual. 1.2 Description 1.2.1 Symbols A description of the main symbols used in this manual and on the labels affixed to the unit is given below. Danger symbol;...

  • Page 7: Labels

    1.2.2 Labels For the constructional features, available models and technical data, please refer to the Technical Booklet. The model, serial number, features, power supply voltage and so on are shown on the labels affixed to the unit (the following illustrations are shown only as an example). The Manufacturer adopts a continuous development policy and, in this perspective, reserves the right to make changes and improvements to the documentation and to the units without prior notice.

  • Page 8: Safety

    SAFETY 2.1 General safety precautions A space of about 2 metres around the unit is identified as external danger zone. If the unit is positioned in an unprotected place that can be reached by unqualified persons, access to this area must be prohibited by special guarding.

  • Page 9: Discharge Of The Safety Valves

    In units with capacitors and/or inverters, certain components can remain live for several minutes even after having turned off the main switch. Wait 10 minutes before working on the electrical parts of the unit. Circuits supplied from external sources (made with orange cable) can remain live even after the power sup- ply to the unit has been turned off.

  • Page 10: Basic Rules

    2.2 Basic rules All the units are designed and built in compliance with Directive 2014/68/EU of the European Parliament and of the Council of 15 May 2014 on the approximation of the laws of the Member States relating to pressure equipment. To ensure maximum safety, in order to prevent possible risks, follow the instructions below: - this product contains pressurised vessels, live components, moving mechanical parts and very hot and cold surfaces that, in certain situations, can pose a risk: all maintenance work must be carried out by skilled personnel equipped with...

  • Page 11: Water Flow Rate At The Heat Exchangers

    2.2.1 Water flow rate at the heat exchangers It is necessary to ensure that the water flow rate during operation is no higher than 1.5 times and no lower than 0.5 times the nominal flow rate of the unit stated in the Technical Booklet. In any case, refer to the specific Technical Booklet for the allowed conditions for water flow in and out of the exchangers.

  • Page 12: Minimum Water Content In The System

    2.2.3 Minimum water content in the system For correct operation of the unit, it is necessary to ensure a buffering on the system such as to comply with the minimum operating time considering the greater between the minimum OFF time and the minimum ON time. In short, these contribute to limiting the number of times the compressors are switched on per hour and to preventing un- desired deviations from the set point of the delivered water temperature.

  • Page 13: Installing The Flow Switch

    2.2.4 Installing the flow switch Normally the units are equipped with a differential pressure switch between the inlet and the output of the evaporator or there is a flow switch mounted on the unit’s output. Where the differential pressure is normally present, a flow switch which must be connected by the installer can be provided as an accessory.

  • Page 14: Operation With Water To The Evaporator At Low Temperature

    2.2.6 Operation with water to the evaporator at low temperature With temperatures below 5°C, it is mandatory to work with water and anti-freeze mixtures, and also change the safety devi- ces (anti-freeze, etc.), which must be carried out by qualified authorised personnel or by the manufacturer. The glycol percentage by weight is determined based on the desired temperature of the chilled water (see table). Minimum ambient temperature or liquid outlet temperature (°C) Freezing point (°C)

  • Page 15: Condensate Drain (Only For Heat Pump Units)

    2.2.8 Condensate drain (only for heat pump units) Some heat pump version units are equipped, at the base of each condensing/evaporating coil, with a condensate collection tank with drain holes. If the holes are used to direct the water with pipes, they must be prevented from freezing. Fig.

  • Page 16: Hydraulic Connection To The Desuperheater (Ds Option)

    As an alternative to the 3-way modulating valve, it is possible to use a pressure switch valve for each refrigerant circuit that will ensure an average condensing temperature of at least 40°C. Fig. 3 Pressure switch valve installation layout Heat recuperator Pressure switch valve Well for water temperature probe 2.2.10 Hydraulic connection to the desuperheater (DS option)

  • Page 17: Noise

    2.3 Noise The starting of the unit, with activation of its components, emits a noise whose intensity varies depending on the operating level. The correct location choice and the correct installation prevent the unit causing annoying noise due to resonances, reflections and vibrations.

  • Page 18: Safety Information On The Refrigerant Fluid

    2.5 Safety information on the refrigerant fluid This product contains fluorinated greenhouse gases included in the Kyoto protocol. Do not release these gases into the atmosphere. Type of refrigerant: R410A GWP value: 2088. GWP is the global warming potential. The quantity of refrigerant fluid is indicated in the unit’s data label. Periodic inspections are necessary to check for refrige- rant fluid leaks in accordance with local and/or European regulations.

  • Page 19: Receiving The Product And Storage

    RECEIVING THE PRODUCT AND STORAGE 3.1 Reception On receiving the unit, check that it is undamaged, bearing in mind that it left the factory in perfect condition. Report any signs of damage immediately to the transporter and make a note of these on the Delivery Sheet before signing The relevant sales department or the manufacturer should be informed of the extent of the damage as soon as possible.

  • Page 20: Handling

    3.3 Handling Before each unit handling operation, check that the lifting capacity of the machinery used is compatible with the weight of the unit. Handling must be carried out by adequately equipped qualified personnel. In all lifting operations, make sure the unit is firmly secured in order to prevent accidental falls or overtur- ning.
  • Page 21 If you are using a crane, sling the unit with slings using suitable lifting tubes (not supplied with the unit) inserted in the slots on the base of the unit. Fig. 5 Detail of hooking the sling to the lifting tube It is mandatory to use a lifting beam adjusted to the width of the unit in order to ensure lifting stability.

  • Page 22: Storage

    3.4 Storage There are no special requirements if the unit has to be stored temporarily before installation. Since these units are intended for outdoor installation, they withstand normal atmospheric conditions without problem. The unit must be placed on a flat surface that is suitable for bearing its weight, in order to avoid deformation of the structure with consequent possible breakage.

  • Page 23: Product Description

    PRODUCT DESCRIPTION 4.1 Intended use These units are intended for cooling (unit in cooling only version) or for cooling/heating (heat pump version) of heat-carrying fluid; they are generally used in applications in the air-conditioning and refrigeration field. Their use is recommended within the operating limits indicated in the Technical Booklet. Use outside the operating limits stated in the Technical Booklet will cause the unit to stop.

  • Page 24: Control And Safety Devices

    4.3 Control and safety devices The unit is integrally managed by an electronic microprocessor control that, through the various temperature and pressure sensors installed in the unit, keeps its operation within the safety limits. All the parameters involved with control of the unit are shown in the “Control Manual” that is an integral part of the docu- mentation of the unit.

  • Page 25: Control Panels

    4.7 Control panels This line of units can be managed with two electronic microprocessor controls; one parametric and the other programmable. The next sections describe the basic operations for both controls, such as starting and stopping the unit, changing operation from cooling to heating and vice versa (in units with heat pump), and changing the set point.
  • Page 26 4.7.1.3 Display of the set point When you press and release button the icons identifying the circuits go out and the working set point is displayed. With the unit "OFF" or in standby mode, with the first press of button the lower display will show "SetC"...

  • Page 27: Programmable Control

    4.7.2 Programmable control For some configurations and functionalities, a programmable control is used Fig. 9 Programmable control display The reference for the following instructions is the main screen that is accessed, from any other screen, by pressing repea- tedly on the button 4.7.2.1 Switching the unit on/off In order to switch the unit on and off from the keypad, make sure the feature is active.

  • Page 28: Installation

    INSTALLATION During installation or whenever work must be carried out on the unit, it is essential to strictly follow the instructions in this manual, comply with the directions on the unit and in any case take all necessary precautions. The pressures in the refrigerant circuit and the electrical components can create risky situations during installation and maintenance work.

  • Page 29: Installation

    5.3 Installation The units are sent from the factory already tested and they need only the electrical and hydraulic connections for instal- lation, except the "LE" (motocondensing) versions and the "LE/HP" (reversible motocondensing) versions for which the refrigerant connections with the remote exchanger must also be made. 5.3.1 External positioning A solid base on which to position the unit must be created.
  • Page 30 5.3.1.1 Rubber anti-vibration mounts In order to reduce vibrations transmitted to the structure, it is advisable to install the unit on rubber or spring anti-vibration mounts, supplied as an accessory and to be requested when placing the order. The dimensional diagram with footprint shows the position and load of each anti-vibration mount. The anti-vibration mounts must be fixed on before positioning the unit on the ground.

  • Page 31: Noise Attenuation

    5.3.2 Noise attenuation The units are designed and built paying particular attention to keeping down noise emission during operation. In addition to the standard versions, there are “LN” (Low Noise) and “SLN” (Super Low Noise) versions for which further devices are used for lower noise emission. Correct installation for both the place and the components, as shown in the relevant chapter, prevents resonances, reflections and vibrations that can be particularly bothersome.

  • Page 32: Hydraulic Connections

    5.4 Hydraulic connections When preparing to connect the hydraulic circuit for the evaporator (refer to the diagrams included in the manual), it is good practice to comply with the following instructions and in any case to follow national or local regulations. Fit the pipes to the unit using flexible couplings in order to prevent transmission of vibrations and compensate thermal expansion.
  • Page 33 Fig. 12 Recommended hydraulic circuit Evaporator Water filter Thermometer Motor-driven pump Flow switch Flexible coupling System filling unit Water pressure gauge Valve Safety valve Storage tank Air valve Expansion vessel Check valve It is essential for the water to come in at the connection indicated in the dimensional diagram and with the relevant plate on the unit.

  • Page 34: Electrical Connections

    5.5 Electrical connections All electrical operations must be carried out by personnel having the necessary legal requirements, and trained and infor- med on the risks connected with these operations. The sizing and characteristics of the power lines and relevant components must be determined by staff qualified to design electrical systems, following the international and national regulations of the place of installation of the units in conformity with the regulations in force at the time of installation.

  • Page 35: Refrigeration Connections

    5.6 Refrigeration connections For the "LE" (motocondensing) versions and the "LE/HP" (reversible motocondensing) versions, the refrigerant connections must be made between the unit and the remote exchanger. The "LE" and "LE/HP" version units are "dry run" tested, and the refrigerant circuit is charged at the factory with a mixture of nitrogen and helium at a pressure of about 10 bar.

  • Page 36: Le Version: Unit Installed At A Higher Level Than The Remote Exchanger

    Recommended diameters for R410A - The thickness of the pipe must be compatible with the refrigerant used and with current regulations. Equivalent length 10 m Equivalent length 20 m Equivalent length 30 m Model Liquid Liquid Liquid 10.2 12.2 13.2 15.2 16.2 14.4 16.4 18.4 20.4 24.4 The above mentioned diameters were chosen in order to optimise the performance of the units, contem- poraneously ensuring the proper operation at the permissible conditions and to contain the refrigerant charge within reasonable limits.

  • Page 37: Le Version: Unit Installed At A Lower Level Than The Remote Exchanger

    5.6.3 LE version: unit installed at a lower level than the remote exchanger Fit a syphon on the highest suction line "G" of the evaporator in order to prevent liquid refrigerant from going towards the compressor when the unit is not running. In the horizontal sections of the suction line "G", it is advisable to have a slope of at least 1% to facilitate oil return to the compressor.

  • Page 38: Le/Hp Version: Unit Installed At A Lower Level Than The Remote Exchanger

    5.6.5 LE/HP version: unit installed at a lower level than the remote exchanger Fit a syphon on the highest suction/delivery line "G" of the evaporator in order to prevent liquid refrigerant from going towards the compressor when the unit is not running. There must be syphons on the vertical sections of the suction/delivery line "G" to facilitate oil return to the compressor. The height "h"...

  • Page 39: Vacuum And Refrigerant Charge

    5.8 Vacuum and refrigerant charge Open the taps of the unit and evacuate the pre-charge of nitrogen and helium before completing the refrigerant connections. Do not leave the refrigerant circuit open for more than 15-30 min as the high hygroscopic nature of the oil can cause it to absorb moisture that would be detrimental to the circuit.

  • Page 40: Topping Up With Oil

    Additional refrigerant charges R410A per linear metre of pipe Diameter (mm) Gas (kg/m) Liquid (kg/m) 0,014 0,139 0,019 0,182 0,029 0,285 0,045 0,445 0,074 0,729 0,111 1,082 0,182 1,779 0,289 2,825 5.9 Topping up with oil According to the length and diameter of the pipes made for remote exchanger connection, it may be necessary to increase the oil charge.

  • Page 41: Commissioning

    COMMISSIONING 6.1 Preliminary operations Make sure the main disconnect switch is in the OFF position. Before filling the hydraulic system, check that the drain valve is closed and that all the air valves are open. Open the shut-off devices of the system and start to fill it by slowly opening the water filling valve. When water begins to come out through the air valves, close them and continue filling until the pressure value envisaged for the system is reached.

  • Page 42: Checking The Pre-Charge Of The Expansion Vessel

    To avoid damage to the mechanical seals, do not start the circulation pump before completely filling the system with water. If a pump has to be replaced, after replacing it, make sure the valves are open and the pump is full of water before enabling its operation.

  • Page 43: Preliminary Instructions For Units With Remote Exchanger

    6.1.3 Preliminary instructions for units with remote exchanger In addition to the previous general checks, the units with remote exchanger require further investigation: - check the correct connection of the environment control to the terminals as in the wiring diagram; - make sure there is an air flow control switch in the remote exchanger (in the case of units with several remote exchan- gers, a flow control switch must be installed for each one);...

  • Page 44: First Starting

    6.2 First starting When the unit is started for the first time, some important tests and checks must be done. 6.2.1 Hydraulic tests So that the unit can operate, the external OK signal device must be closed (refer to the wiring diagram provided with the unit).

  • Page 45: Adjustment Of The Inverter Of The User-Side Pump

    6.2.3 Adjustment of the inverter of the user-side pump The adjustment made by the inverter on the pump is to obtain pump operation at a constant flow rate or pressure. The two adjustments are alternative to each other. The inverter installed in the unit is already factory preset for the required type of adjustment. It is however necessary to complete the calibration according to the specific requirements of the system by following the instructions given below.
  • Page 46 Do not set the water flow rate outside the operating limits allowed in the technical booklet. 6.2.4.1 Setting the values To set the values: 1. press “Menu”, go to “Parameters” using the arrow buttons and confirm with “Select”; 2. in the “Parameters” menu, select “Complete List” using the arrow buttons and confirm with “Select”; 3.

  • Page 47: Adjustment For Constant Water Pressure "Flowzer Vd

    6.2.5 Adjustment for constant water pressure "Flowzer VD" If the constant water pressure to the system is to be adjusted through adjustment of the speed of the pump present in the unit, the inverter that controls it must be suitably adjusted. The inverter installed in the unit is already factory preset to operate at constant pressure. The factory-set default pressure must be changed to the desired pressure.

  • Page 48: Calibration Of Safety Components

    6.3 Calibration of safety components Any work on the unit must be carried out by qualified authorised personnel. Incorrect calibration values can cause serious damage to the unit and harm people. The control and safety equipment is calibrated and tested in the factory before the unit is shipped. However, after the unit has been started, the safety devices must be checked (only the high and low pressure switches).

  • Page 49: Checks During Operation

    6.4 Checks during operation With the circuits operating at 100% and stable at working conditions near the nominal ones, check: - that the electrical absorption of the unit is close to the data shown in the wiring diagram. Considerably different values may be due to the reduced capacity operation of the unit, at working conditions very different from nominal ones, or to the malfunctioning of one or more components.

  • Page 50: Alarms And Malfunctions

    6.5 Alarms and malfunctions Possible malfunctions will trigger the protective devices and safety devices of the unit before serious faults occur. All the “warnings” and “alarms” are recorded in the memory of the control and displayed on the display of the unit. Before resetting an alarm, the cause that triggered it must be found and eliminated.

  • Page 51: Temporary Stop

    6.6 Temporary stop The stopping of the unit for a few hours in the day “during non-working hours” or for a few days “over the weekend” is con- sidered temporary. The unit must be stopped using the display of the control, the external OK signal or via serial if included. During the temporary stop, the unit must be powered correctly.

  • Page 52: Maintenance

    MAINTENANCE All the operations described in this chapter must always be carried out by qualified and authorised person- nel. Before carrying out any work on the unit or accessing internal parts, make sure you have turned off the power supply to it. The compressors and delivery pipes are very hot.

  • Page 53: External Cleaning

    7.2 External cleaning The component of the unit that needs most care is the finned pack heat exchanger. It is essential to keep it clean and free of dirt and/or deposits that can hinder or prevent air flow. Regular cleaning of the surface of the coil is essential for the unit to work correctly and also increases the operating life of the exchanger and the unit.

  • Page 54: Cleaning The Microchannel Coils

    7.2.2 Cleaning the microchannel coils Microchannel coils must be cleaned regularly (see Periodic checks section) In addition to the required periodic cleaning, if the unit is used seasonally, we strongly recommend cleaning the microchannel coils before starting the unit and at the end of seasonal use. The coils can be cleaned with a high-pressure jet of water by strictly following the instructions below: - Before using the jet of water, remove extraneous objects from the coil and any debris attached to its surface or stuck between the frame and the supports.
  • Page 55 7.2.3.4 Three-monthly cleaning of the coils Three-monthly cleaning is essential to prolong the life of an e-coated coil and is necessary to remain covered by the war- ranty. Failure to clean will void the warranty and can cause reduced efficiency and life in the envisaged environmental conditions. For routine three-monthly cleaning, if there is a film of grease or oil, it must first be removed from the coil with the detergent for coils approved below (see list of approved products) After cleaning the coils with the approved detergent, apply the approved product for removing any chlorides present.

  • Page 56: Internal Cleaning

    7.3 Internal cleaning It is essential to keep the installation site clean and tidy for correct maintenance of the unit and to keep it in good working order. 7.3.1 Cleaning the unit Keep the inside of the electrical control panel and (where present) the compressor compartment clean. After working on the unit, always clean the electrical control panel of any work remnants and extraneous components.

  • Page 57: Cleaning The Plate Heat Exchangers

    7.3.2 Cleaning the plate heat exchangers Thanks to the generally very high level of turbulence, in plate heat exchangers, a self-cleaning effect takes place in the channels. However, in some applications the tendency to scaling and/or the formation of deposits in the heat exchanger can be very high (e.g.

  • Page 58: Periodic Checks

    7.4 Periodic checks Carry out periodic checks to make sure the unit is working correctly: RECOMMEN- OPERATION DED FREQUEN- Check the operation of all the control and safety equipment as described previously. Monthly Check the tightness of the electrical terminals in the electrical control panel and in the terminal bo- ards of the compressors.

  • Page 59: Unscheduled Maintenance

    7.5 Unscheduled maintenance After correctly starting-up and carrying out the relevant checks, the units normally do not need any intervention by the cu- stomer service in order to check the charge of the refrigerant gas. 7.5.1 Special work With use of the unit, particular situations may occur that require work to be carried out promptly. Even in an emergency, work on the unit must be carried out by skilled personnel in safe conditions.

  • Page 60: Decommissioning

    DECOMMISSIONING This unit contains greenhouse refrigerant gas. It is prohibited to release it into the air, and it is mandatory to recover it and return it to the dealer or take it to special col- lection centres. The law regulating the use of greenhouse substances prohibits the release of refrigerant gases into the environment and obliges owners to recover and return them to the dealer or take them to special collection centres at the end of their ope- rational life.
  • Page 61 Page intentionally blank We reserve the right to make changes without any prior notice. Translation from original instructions...
  • Page 62 Page intentionally blank Translation from original instructions We reserve the right to make changes without any prior notice.
  • Page 63 Page intentionally blank We reserve the right to make changes without any prior notice. Translation from original instructions...
  • Page 64 Blue Box Group S.r.l. Via Valletta, 5 - 30010 Cantarana di Cona, (VE) Italy - T. +39 0426 921111 - F. +39 0426 302222 www.blueboxcooling.com - info@swegon.it Blue Box Group S.r.l. a socio unico - P.IVA 02481290282 Company directed and coordinated by Investment Latour (Sweden)
