Quick Install Guide For bwa™ Kit - BP500/600
TOOL YOU WILL
NEED
STEP
1
STEP
2
STEP
3

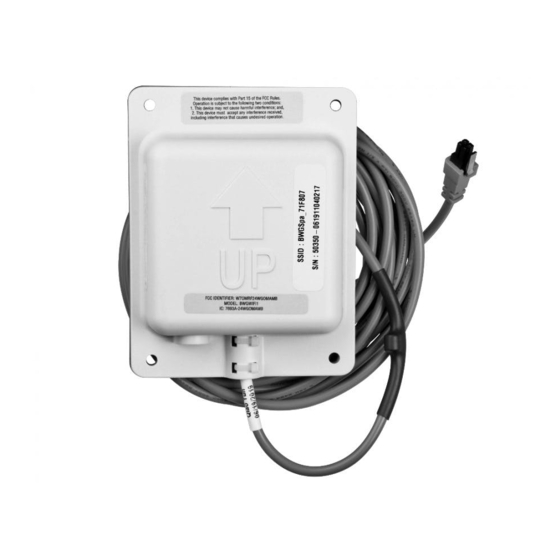

– Insert the Balboa Wi-Fi Cable into the first
end of the Y-Cable (25657) Panel Jack.
1
WARNING!
Please contact an electrician or your local electrical company to
connect the Wi-Fi connector for you. DO NOT OPEN THE SPA
SYSTEM AND ATTEMP TO CONNECT THE WI-FI CONNECTOR
YOURSELF. The high electrical voltage will harm or kill you.

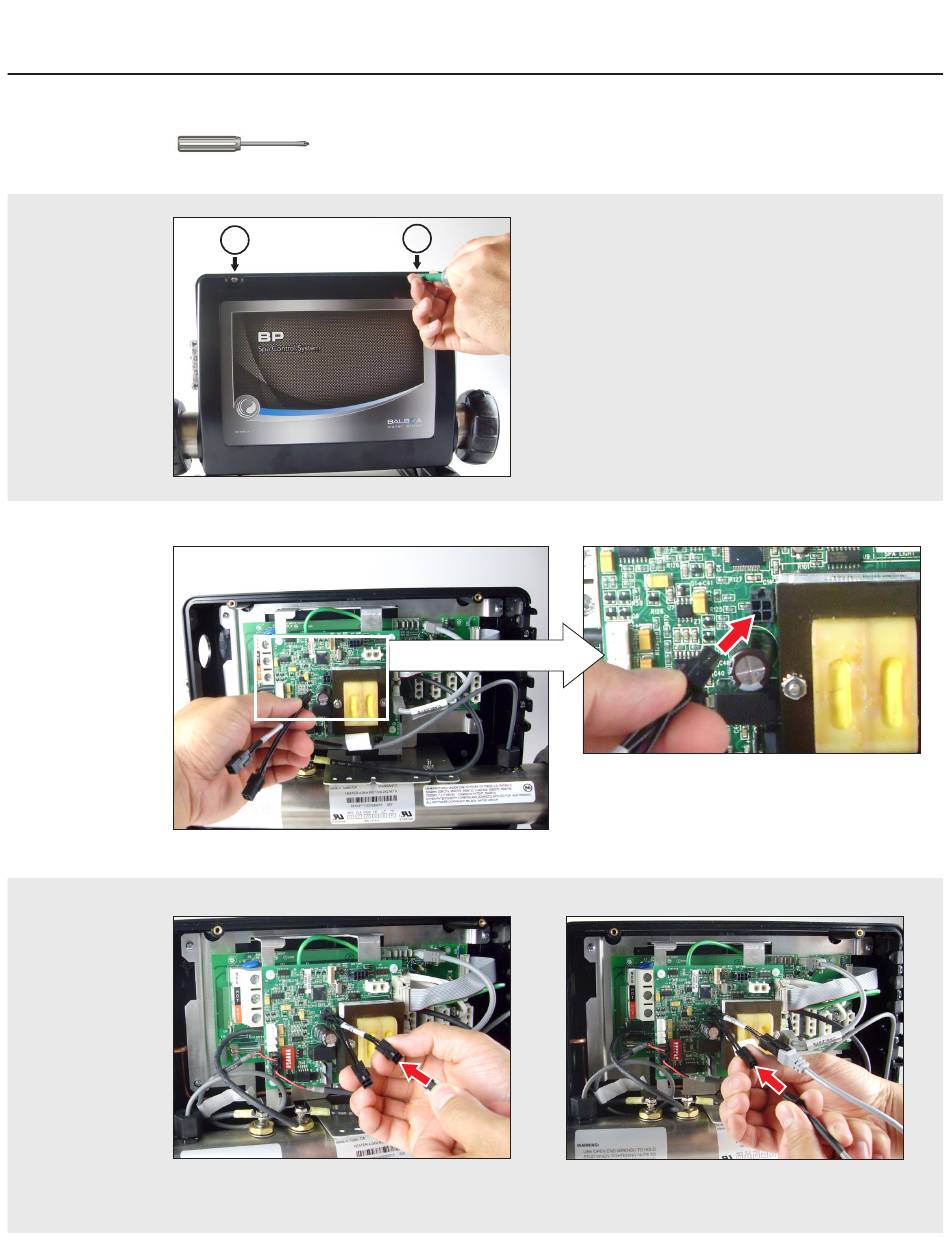

– Use a phillips screwdriver to remove
2
the 2 top screws that hold the system
cover in place.
ZOOM IN
– Insert the Y-cable (25657) in Panel Jack C14.
– Insert your Control Panel into the second
end of the Y-Cable Panel Jack.
