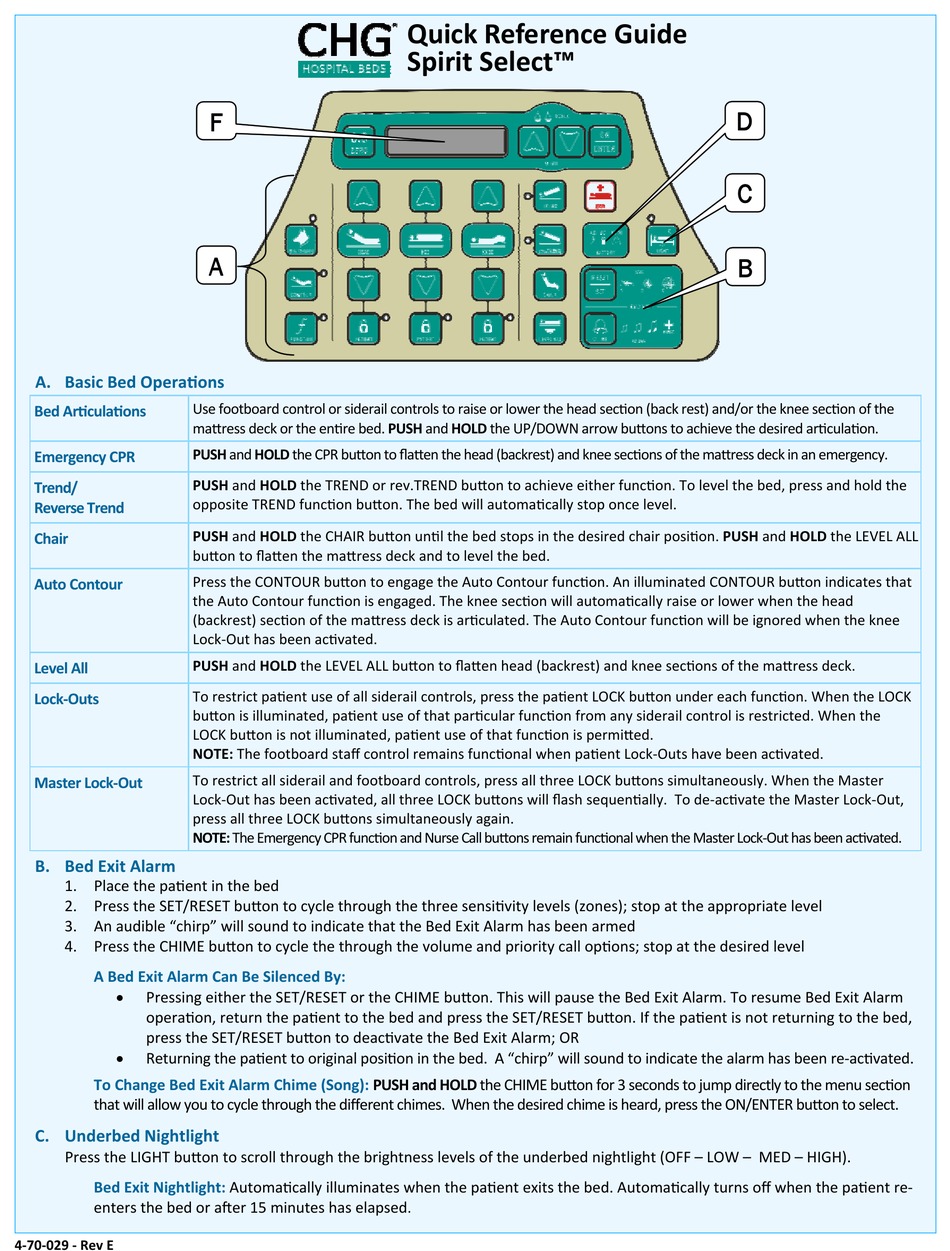

CHG Spirit Select Quick Reference Manual

A. Basic Bed Opera ons
Use footboard control or siderail controls to raise or lower the head sec on (back rest) and/or the knee sec on of the
Bed Ar cula ons
ma ress deck or the en re bed. PUSH and HOLD the UP/DOWN arrow bu ons to achieve the desired ar cula on.
PUSH and HOLD the CPR bu on to fla en the head (backrest) and knee sec ons of the ma ress deck in an emergency.
Emergency CPR
PUSH and HOLD the TREND or rev.TREND bu on to achieve either func on. To level the bed, press and hold the
Trend/
opposite TREND func on bu on. The bed will automa cally stop once level.
Reverse Trend
PUSH and HOLD the CHAIR bu on un l the bed stops in the desired chair posi on. PUSH and HOLD the LEVEL ALL
Chair
bu on to fla en the ma ress deck and to level the bed.
Press the CONTOUR bu on to engage the Auto Contour func on. An illuminated CONTOUR bu on indicates that
Auto Contour
the Auto Contour func on is engaged. The knee sec on will automa cally raise or lower when the head
(backrest) sec on of the ma ress deck is ar culated. The Auto Contour func on will be ignored when the knee
Lock‐Out has been ac vated.
PUSH and HOLD the LEVEL ALL bu on to fla en head (backrest) and knee sec ons of the ma ress deck.
Level All
To restrict pa ent use of all siderail controls, press the pa ent LOCK bu on under each func on. When the LOCK
Lock‐Outs
bu on is illuminated, pa ent use of that par cular func on from any siderail control is restricted. When the
LOCK bu on is not illuminated, pa ent use of that func on is permi ed.
NOTE: The footboard staff control remains func onal when pa ent Lock‐Outs have been ac vated.
To restrict all siderail and footboard controls, press all three LOCK bu ons simultaneously. When the Master
Master Lock‐Out
Lock‐Out has been ac vated, all three LOCK bu ons will flash sequen ally. To de‐ac vate the Master Lock‐Out,
press all three LOCK bu ons simultaneously again.
NOTE: The Emergency CPR func on and Nurse Call bu ons remain func onal when the Master Lock‐Out has been ac vated.
B. Bed Exit Alarm
1. Place the pa ent in the bed
2. Press the SET/RESET bu on to cycle through the three sensi vity levels (zones); stop at the appropriate level
3. An audible "chirp" will sound to indicate that the Bed Exit Alarm has been armed
4. Press the CHIME bu on to cycle the through the volume and priority call op ons; stop at the desired level
A Bed Exit Alarm Can Be Silenced By:

Pressing either the SET/RESET or the CHIME bu on. This will pause the Bed Exit Alarm. To resume Bed Exit Alarm
opera on, return the pa ent to the bed and press the SET/RESET bu on. If the pa ent is not returning to the bed,
press the SET/RESET bu on to deac vate the Bed Exit Alarm; OR

Returning the pa ent to original posi on in the bed. A "chirp" will sound to indicate the alarm has been re‐ac vated.
To Change Bed Exit Alarm Chime (Song): PUSH and HOLD the CHIME bu on for 3 seconds to jump directly to the menu sec on
that will allow you to cycle through the different chimes. When the desired chime is heard, press the ON/ENTER bu
C. Underbed Nightlight
Press the LIGHT bu on to scroll through the brightness levels of the underbed nightlight (OFF – LOW – MED – HIGH).
Bed Exit Nightlight: Automa cally illuminates when the pa ent exits the bed. Automa cally turns off when the pa ent re‐
enters the bed or a er 15 minutes has elapsed
