Summary of Contents for PCB Piezotronics EX378B02

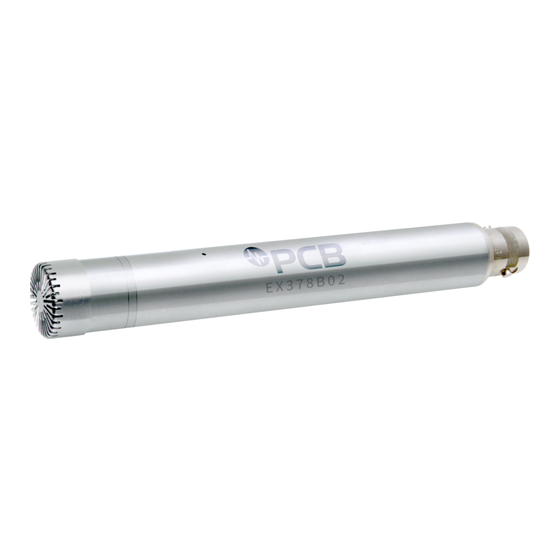

- Page 1 Model EX378B02 ICP Microphone System Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
- Page 2 Assistance is needed to safely operate equipment PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
- Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
- Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
-
Page 6: Table Of Contents
PRODUCT GUIDE 377 SERIES MICROPHONES 426 SERIES PREAMPLIFIERS Contents: Introduction ................1 Standards ..................1 Setting up a Microphone Measurement System ......1 Taking Measurements ..............3 Accessories and Miscellaneous ..........3 Maintenance ................4 Calibration .................. 5 Warranty and Service ..............5 1.0 Introduction Thank you for your purchase of a PCB high quality microphone. - Page 7 Phantom powered microphone systems use a 3 pin XLR connector. A phantom powered microphone sys- tem should use a 48V phantom power supply or signal conditioner for optimum performance; however these microphone systems may be powered with a 24V or a 12V phantom power supply, but this will limit the maximum output voltage.
-
Page 8: Taking Measurements
4.0 Taking Measurements The following formula is used to calculate the pressure measured by the microphone from the output voltage signal. The sensitivity of a microphone is typically measured at 250 Hz. Pressure (Pa) = Voltage (mV) / Sensitivity (mV/Pa). The lowest amplitude a healthy human ear can detect is 20 millionths of a Pascal (20Pa). -
Page 9: Maintenance
Windscreens and Nose cones Wind induced noise can be reduced by using a windscreen. This can offer some protection against dust particles and mechanical damage. In the presence of high-speed airflow from a well-defined direction, such as wind tunnels, a nose cone is recommended. When using windscreens and noise cones, the frequency response of the microphone will be attenuated at higher frequencies. -
Page 10: Calibration
Class1 and IEC 60942-2003, Class 1, Sound Calibrators. 8.0 Warranty and Service All equipment and repair services provided by PCB Piezotronics, Inc. are covered by a warranty against defective material and workmanship under a Total Customer Satisfaction policy. If, at any time, for any reason, you are not completely satisfied with any PCB product, PCB will repair, replace, or exchange it at no charge. - Page 11 Servicing Due to the sophisticated nature of the Microphone Systems and associated instrumentation provided by PCB Piezotronics, user servicing or repair is not recommended and, if attempted, may void the factory warranty. However, routine calibration of Microphone Systems and associated instrumentation is recommended as this helps build confidence in measurement accuracy and acquired data.
- Page 12 Repair In the event that equipment becomes damaged or ceases to operate, arrangements should be made to return the equipment to PCB Piezotronics for repair. User servicing or repair is not recommended and, if attempted, may void the factory warranty.
- Page 13 PCB PIEZOTRONICS INC. 3425 WALDEN AVE. DEPEW, NEW YORK 14043 Note: Literature (such as the manual or marketing materials) describing the equipment or protective system must not contradict the instructions with regard to safety aspects. 65238 3 of 3 Rev. NR...
- Page 14 PCB PIEZOTRONICS INC. 3425 WALDEN AVE. DEPEW, NEW YORK 14043 INSTRUCTIONS FOR USE - EX378XYYY Microphone System Series EX378XYYY Series where “X” is any letter A-Z, “YYY” is up to three numbers 0-999 Model(s) Markings Depew, NY LCIE 17 ATEX 3059 X...
- Page 15 Servicing Due to the sophisticated nature of the Microphone Systems and associated instrumentation provided by PCB Piezotronics, user servicing or repair is not recommended and, if attempted, may void the factory warranty. However, routine calibration of Microphone Systems and associated instrumentation is recommended as this helps build confidence in measurement accuracy and acquired data.
- Page 16 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. INITIAL RELEASE 47371 SCHEDULE DRAWING NO MODIFICATIONS PERMITTED...
- Page 17 Model Number Revision: NR ICP MICROPHONE SYSTEM EX378B02 ECN #: 47683 Performance ENGLISH OPTIONAL VERSIONS Nominal Microphone Diameter 1/2" 1/2" Optional versions have identical specifications and accessories as listed for the standard model except where noted below. More than one option may be used.
- Page 18 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. REMOVED HEAT SHRINK 47926 RELATED DRAWING NO MODIFICATIONS PERMITTED...
- Page 19 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. INITIAL RELEASE 45769 SCHEDULE DRAWING NO MODIFICATIONS PERMITTED...
