Gobius Pro, Instructions on paper, August 2020-1
Hi.
This information is for you who want them in writing and not just on your phone.
You will get the same and more updated info when downloading the App, Gobius,
from Internet, Google play and App Store.
Please note that you must get the App before installing the sensor. You do all
settings from the App.
If you connect a panel like our Gobius fish with 2 LEDs in red and green,
you do not need your phone to use the sensor.
1
Download the Gobius App from Google Play or App Store.
Note: The first time you start the App, you will get a question
"Gobius Pro would like to use Bluetooth".
Never "Don't Allow".
2
In the Gobius Pro box you get:
-

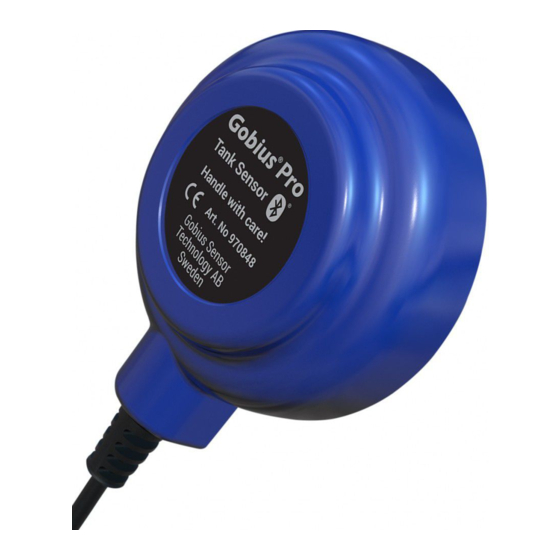

1 sensor with 2 m cable
-
1 tank surface 3M Cleaner
-
1 extra 3M sensor tape
-
1 panel (the Gobius fish) with
1 red and 1 green LED light
3
Check the tank wall thickness. If it is thicker than the specification,
Gobius Pro will not work.
-
Stainless Steel & Steel, max 3 mm
-
Polyethelene, max 12 mm
-
Aluminium, max 5 mm
-
Fibre Glass, max 8 mm
4
There are some more important things you have to consider
before mounting the sensor on the tank wall.
-
Do not put the sensor closer than 35 mm from an edge,
or another sensor and always on a vertical side of the
tank.
-
The tank wall temperature
If it is below the tape will not work satisfying.
Gobius Sensor Technology AB
Ljungåsvägen 2
302 91 Halmstad
Sweden
Please answer Ok
must be above + 20 C (+ 68 F).
Phone +46 (0)31 650170
www.gobius.se
.
Advertisement
Table of Contents
Related Manuals for Gobius Pro
Summary of Contents for Gobius Pro
- Page 1 Please note that you must get the App before installing the sensor. You do all settings from the App. If you connect a panel like our Gobius fish with 2 LEDs in red and green, you do not need your phone to use the sensor.
- Page 2 (If you connect the other way, nothing will be damaged). Your smart phone must have Bluetooth activated to get in contact with the sensor. Please have a look in your phones Configuration. The Gobius App will automatically connect to the sensor. You...
- Page 3 The App is now searching for your sensor. When you have your sensor Bluetooth connected, you can say “Hello” to the sensor. The sensor will give back an audible signal. If you cannot get in contact with the sensor, see also note 1, above. Now it is time for configuration.
- Page 4 o On when the level is below the sensor Digital output 2, select (yellow and red cable) o Always off o Always on o On when the level is above the sensor o On when the level is below the sensor Calibration, select (The fluid level must be above or below the sensor when performing the calibration) o Full tank...
- Page 5 Sharing Tank Settings You can always share your Gobius Pro with a friend. Sharing is only possible within the same operating system, iOS and Android. Ice not from an iPhone to an Android, or the other way around.
- Page 6 The products are easy to install, easy to use, reliable and are environmentally friendly. Gobius is marketed by distributors and dealers in 22 countries. The company started in 2008 and has launched products, which in an easy and effective way, from the outside of the tank, measure the level of waste, water, fuel and fluid tanks.
