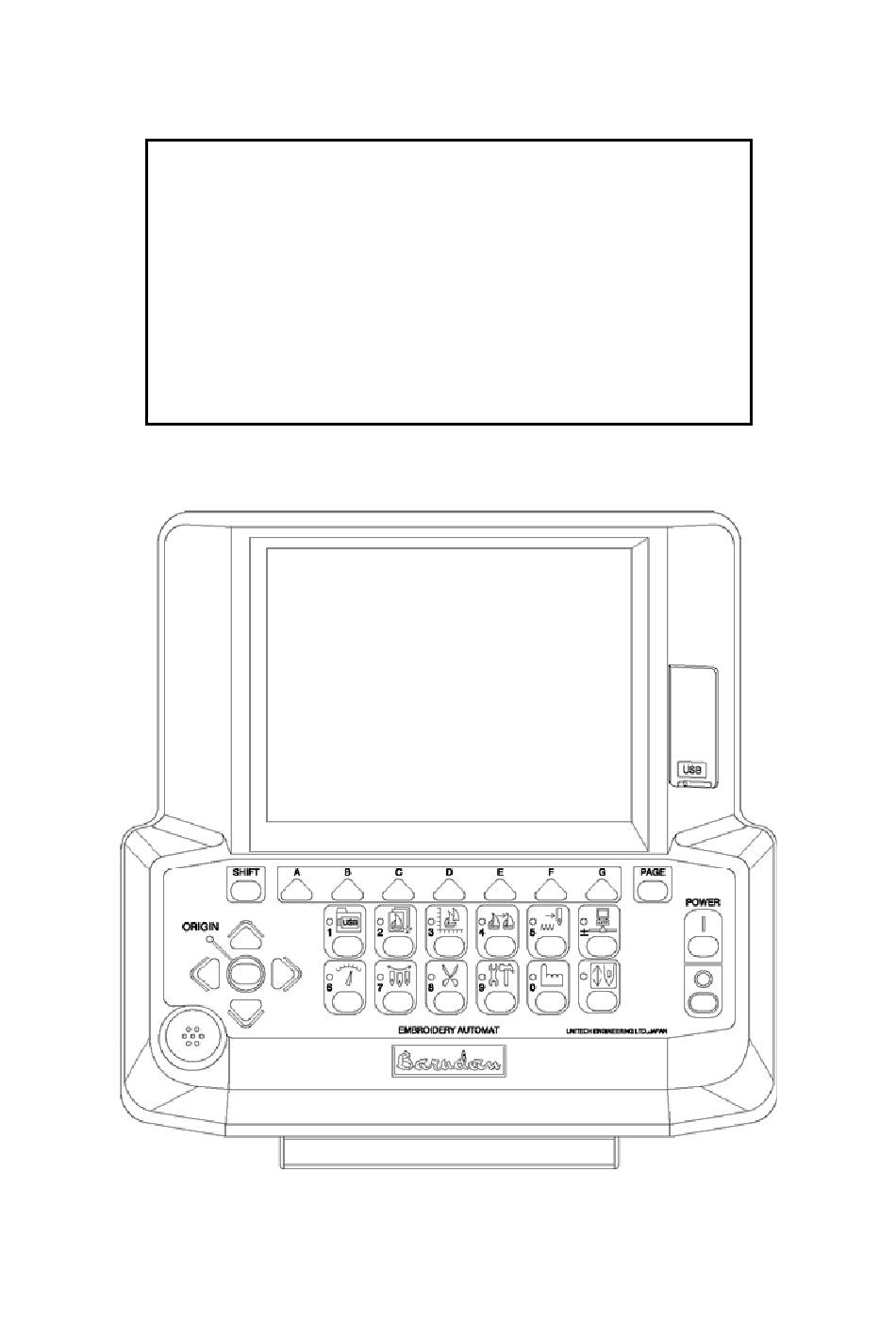

  • Page 1 B E X S Instruction Manual...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Safety Instructions ..........１‐ １ １．Important Safety Instructions ............ １‐ ２ ２．Grounding Instructions ............... １‐ ５ ３．Warning Labels ................１‐ ６ Chapter 2 Introduction ............２‐ １ １．Specification ................. ２‐ ２ ..................２．Features ２‐ ３ Chapter 3 Before Use ............
  • Page 3 ２．Presser Foot Height Adjustment ..........４‐ ４ ..................３．Trimmer ４‐ ５ ４．Thread Clamp ................４‐ ７ ..................５．Appliqué ４‐ ８ ６．Change Frame ................４‐ ９ ７．Bobbin Counter ................４‐１０ ８．Main Motor Brake ............... ４‐１２ ９．Lubrication (Machine Maintenance) .......... ４‐１３ １０．Holding the Needle at the Dead Bottom Center ......４‐１９...
  • Page 4 ７．Outline Stitching ................. ６‐１３ ８．Thread Consumption ..............６‐１５ Chapter 7 Programs ............７‐ １ １．Changing Program Settings ............７‐ ２ ２．Program List ................７‐ ４ ３．Setting the Sub-Soft Limit ............７‐ ７ ４．Matrix Embroidery Set Up (Design Repeats) ......７‐ ９ ５．Automatic Matrix Embroidery Set Up ........
  • Page 5 ..................５．Time-Out ９‐ ８ ６．Downloading Designs (Direct Downloading) ......９‐ ９ ７．Downloading Designs (Schedule Downloading) ......９‐１２ Chapter 10 Editing Memory Designs ......... １０‐ １ １．Color Change Function Codes ..........１０‐ ２ ２．All Function Codes ..............１０‐ ３ ３．Running Stitch Additions ............

  • Page 6: Chapter 1 Safety Instructions

    Chapter 1. Safety Instructions This chapter contains information on the following. 1. Important Safety Instructions 2. Grounding Instructions 3. Warning Labels １‐１...

  • Page 7: １．Important Safety Instructions

    1. Important Safety Instructions ■ Before using the machine, make sure to read this manual thoroughly and follow all instructions. ■ The icons in the manual show the importance of the contents. Acknowledge the following descriptions beforehand. Icons Safety information about protecting yourself. Warning ！...
  • Page 8 ！ Caution ◆ This machine is made for an industrial use. This is an embroidery machine. Do not use for other applications. ◆ Read the instruction manual thoroughly and acknowledge the operation before running the machine. ◆ Only those that know how to operate the machine should run the machine. Do not let other personnel operate the machine.
  • Page 9 Wait for more than 4 minutes before opening the cover. Some parts in the controller can be very hot. Be sure not to burn your hands. ◆ Use only attachment and parts recommended by Barudan. Wrong parts can damage the machine.

  • Page 10: ２．Grounding Instructions

    2. Grounding instructions Apply grounding to the machine. Grounding avoids electric shocks. Power cable on the machine has plug with a grounding terminal. Use appropriate plugs or outlet which conform to the requirements of the power company or the law. Danger! : Not grounding the machine may cause electrical shock.

  • Page 11: ３．Warning Labels

    3. Warning labels ■ Give attention during operation to the parts labeled. Warning Labels Contents Needle Hazard Warning Label Hair Warning Label Take-Up Lever Warning Label Frame Warning Label １‐６...
  • Page 12 Warning Labels Contents Hook Warning Label Belt Warning Label １‐７...

  • Page 13: Chapter 2 Introduction

    Chapter 2 Introduction This chapter contains information on the following. 1. Specifications 2. Features ２‐１...
  • Page 14 1. Specification 1. Design Capacity 100 designs 2. Stitch Capacity 1 design-1million stitches / Total capacity: 10 million stitches 3. Display 8.4 inch Color LCD 640 x 480 dots (VGA) 4. Temperature 5 – 45 Degree Centigrade (Active) -20 – 60 Degree Centigrade (Storage) 5.
  • Page 15 2. Features 1. Easy Operation The XS Automat is specially designed for Barudan embroidery machines. Linux is used for the OS, which allows high quality display and operation system. Graphic User Interface uses icons that are easily recognized for quicker learning of operations.
  • Page 16 9. Head Selection System Sewing Head switches can be turned On/Off individually depending on Design data. They can also be switched On/Off by programming on the Automat. 10. Stitch Length Adjuster Swing parameter allows satin stitches to be automatically sewn slightly wider or narrower depending on the setting.

  • Page 17: Chapter 3 Before Use

    Chapter 3 Before Use This chapter contains information on the following. 1. Appearance and Components 2. Panel Switches 3. Powering the Machine On / Off 4. Origin Set 5. Screen Structure 6. Information Screen 7. Design List Display Settings 8. Stand-By and Drive Mode 9.

  • Page 18: １．Appearance And Components

    1. Appearance and Components ⑩ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ３‐２...
  • Page 19 ⑪ ⑫ ⑬ ⑭ ⑮ ３‐３...
  • Page 20 1. LCD Display Shows machine status, icons, and design information. 2. Icon key – A, B, C, D, E, F, and G-keys Operation buttons assigned to functions displayed on screen above by icons. 3. Page key 9. Switching Screens Switches display screens. *Refer to 4.
  • Page 21 10. USB (Port 1) This is for a USB connection. It is used for uploading and downloading design data and also for updating the System software. 11. USB (Port 2) This is a secondary USB connection. It is used for uploading and downloading design data and also for updating the System software.
  • Page 22 2. Panel Switches Design Loading/Downloading Key Loads and downloads designs from the USB port etc. Numeric Key: 1 Design Memory Key Manages designs in memory. Numeric Key: 2 Design Edit Key Edits and copies designs. Numeric Key: 3 Color Change Key Lists the color change codes for designs in memory and allows them to be changed.
  • Page 23 Manual Key Shows manual operation and parameter setting functions. Numeric Key: 0 Drive Key Switches to and from stand-by and drive state modes. ３‐７...

  • Page 24: ３．Powering The Machine On / Off

    3. Powering the Machine On / Off Powering On 1. Turn the POWER SOURCE switch on the Driver box to the ON position. 2. Press the ON button on the Automat. The machine beeps loudly indicating it was powered on and the Origin Set screen will display. Powering OFF 1.

  • Page 25: ４．Origin Set

    4. Origin Set After powering the machine on, you will need to set the origin. 1. Turn the POWER SOURCE switch on the Driver box to the ON position. 2. Press the ON button on the Automat. After the beep, the following Origin Set screen will display. 3.

  • Page 26: ５．Screen Structure

    5. Screen Structure Here is the basic screen structure of the XS Automat. Visual display Design Information Machine information Main Screen Function keys Main screen. Date and time are shown at the bottom right corner. Start Screen is blank after first turning on the machine. Visual display Shows the selected design.

  • Page 27: ６．Information Screen

    6. Information Screen 6-1. Design Information screen Shows the information of the design selected. Design name Design condition Design memory No. Design repeat No. Total stitch number Design memory No. Shows the number of the design memory location. Design name Shows the name of the design.
  • Page 28 6-2. Machine Information screen Shows the condition of the machine. ：Shows TOP when the main shaft is at the correct stop position. when the network is connected. ：Shows Shows when the network is disconnected. ：The height of the presser foot (Optional device) ：The current number of the selected needle ：The number of the group registered (When WS system is active) F Shows the traveling distance of the pantograph frame.

  • Page 29: ７．Design List Display Settings

    7. Design List Display Settings Settings for the Design list display. *Memory design list and USB design list are individual settings. 1. Press either one of the Design Memory key , Design Edit key , or Design Loading/Downloading key 2. Press the Shift key. Press Shift key again to go back to the previous screen.
  • Page 30 4. Press the B-key, to show or hide the information screen. *B-key, will not be shown in the Design Loading/Downloading key, Press either one of the Design Memory key , Design Edit key , or Design Loading/Downloading key to go back to the Start screen. ３‐１４...

  • Page 31: ８．Stand-By And Drive Mode

    8. Stand-By and Drive Mode The XS Automat has 2 different modes, Stand-By mode and Drive mode. 1. Stand-By Mode: The machine is turned on and idle but NOT in Drive mode. This is the mode where sewing preparation takes place. In this mode, design data can be selected and loaded.

  • Page 32: ９．Switching Screens

    9. Switching Screens 9-1. Switching By pressing the Page key during the Drive mode, the display changes to the extension Chapter 8. 2. Drive Mode screens, 1 and 2 as shown below. *Refer to Basic screen Extension screen ３‐１６...
  • Page 33 9-2. Extension screens 1. Press the Page key once and it will switch from the basic screen to the following Extension screen. 2. Press the Page key again to go back to the basic screen. ３‐１７...

  • Page 34: １０．Numeric Entry Dialogue Box

    10. Numeric Entry Dialogue Box When changing values, the Numeric Entry Dialogue Box displays. Press the icon. By using the panel keys on the Automat as Numeric keys, you can enter a new value. The Upper box with the value 300 is the current value in the system. The Lower box with the value 700 is the value that is being entered.

  • Page 35: １１．Character Entry Dialogue Box

    11. Character Entry Dialogue Box When changing design names or needing to type words, press the Character Entry Dialogue Box displays. *The screen below is for changing design names. 1. Select a character using the Jog keys. 2. Press A, to delete the last character (backspace).

  • Page 36: １２．Confirmation Message

    12. Confirmation Message When changing each settings, or before initializing something, the following confirmation message displays to confirm if you are really willing to proceed. The confirmation message shows the setting you’re about to do. * The message above is shown when changing a Machine Drive Condition. 1.

  • Page 37: １３．Error Messages

    13. Error Messages When errors occur during Machine or Automat operations, an error message will display. In the Error message box, the Error number and Icon are shown. Chapter 13. 3. Error Messages *Refer to for more details on the error numbers. Press the G-key, to close the error message.

  • Page 38: Chapter 4 Manual Operations

    Chapter 4 Manual Operations This chapter contains information on the manual operations of the machine. 1. Color (Needle) Change 2. Presser Foot Height Adjustment. 3. Trimmer 4. Thread Clamp 5. Appliqué 6. Change Frame 7. Bobbin Counter 8. Main Motor Brake 9.

  • Page 39: １．Color (Needle) Change

    1. Color Change 1-1. Manual Color Change Instructions for changing a color (needle) manually 1. Press the Needle Change Key , and the following Color Change screen will display. 2. Change the needle number. Press the A-key, to go to the next smaller needle number. Press the B-key, to go to the next larger needle number.
  • Page 40 1-2. Direct Needle Instructions for selecting a specific needle 1. Press the Needle Change Key and the following Color Change screen will display. 2. The needle number in the box shown in parenthesis, is the new needle number you want to change to directly. Press the C-key to select the next smaller needle number.
  • Page 41 2. Presser Foot Height Adjustment (Optional Device) This feature is only for machines, which have the Presser Foot Height Adjustment option. 1. Press the Needle Change key and the Color Change screen will display. 2. Press the G-key below the icon and the screen for adjusting the Presser Foot Height will appear.
  • Page 42 3. Trimmer 3-1. Trimming the Top Thread and Bobbin Thread Instructions for trimming the top thread and bobbin thread manually 1. Press the Trimming Key 2. The D14 Start Switch message appears. Push the Start Switch to execute the trimming. To cancel trimming and go back to the Start screen, press the Trimming Key *The On/Off switch on each tension assembly (Head Switch) can also activate the trimming.
  • Page 43 3-2. Bobbin Thread Trimming Instructions for trimming the bobbin thread manually 1. Press the Trimming Key and the D14 Start Switch message appears. 2. Press the A-key below the icon to trim the Bobbin thread. *While Automending or stitch back without trimming, the bobbin thread may break. In order to avoid this, we suggest Bobbin thread trimming before automending or stitching back.

  • Page 44: ４．Thread Clamp

    4. Thread Clamp Instructions for releasing the thread clamp for easy threading 1. Press the Manual Key 2. Manual Operation screen displays. 3. Press the A-key below the icon to open or close the clamp Press the Manual Key again to go back to the Start screen. ４‐７...
  • Page 45 5. Appliqué Appliqué rotates the main motor so the presser foot can be pressed down manually, to accurately position the frame or appliqué. 1. Press the Manual Key and open the Manual operation screen. 2. Press the B-key below the icon and the following screen displays, indicating to push the Start switch to execute.

  • Page 46: ６．Change Frame

    6. Change Frame Change frame moves the pantograph forward to allow framing or positioning of an appliqué. This movement, called frame offset, is automatically set at the pattern height. A different frame offset distance can be set for each pattern in the Program Parameters. 1.

  • Page 47: ７．Bobbin Counter

    7. Bobbin Counter The Bobbin Counter stops the machine and trims the bobbins, when a preset number of stitches are sewn. By setting the number of stitches where a particular design normally runs out of bobbin, the bobbins can be replaced, avoiding missed stitches in the final sew out piece. When the machine stops for the bobbin counter, it shows the Bobbin counter message below and the Green LED on the Tension assembly is lit.
  • Page 48 4. Set the default value using the keys below. (A-key) : The default value decreases by 100 stitches. (B-key) : The default value increases by 100 stitches. (C-key) : Press this button with above. The default value decreases or increases by 1,000 stitches. (D-key) : Show the Numeric Entry Dialogue.

  • Page 49: ８．Main Motor Brake

    8. Main Motor Brake This feature is only for the machines, which have a main motor brake. The main shaft of the machine cannot be rotated while the brake is active. The following instructions explain how to release or activate the brake on the motor for maintenance reasons. 1.

  • Page 50: ９．Lubrication (Machine Maintenance)

    9. Lubrication (Machine Maintenance) NOTE! It is important to clean the machine before oiling. Keep all areas of the machine clean of built–up lint and dust. (Lubrication is required on the hook assembly and sewing head.) Different parts of the machine requires different types of lubricants and different lubrication frequencies and it is very important to follow these instructions in order to keep the machine running properly.
  • Page 51 9-1. Lubrication Menu 1. Press the Manual Key to open the Manual operation screen. 2. Press the G-key below the icon. 3. Press the B-key below the icon and the Lubrication Menu displays. Count value Default value ４‐１４...
  • Page 52 9-2. Manual Lubrication (Optional Lubrication Device installed) 1. Press the Manual Key to open the Manual operation screen. 2. Press the G-key below the icon. 3. Press the B-key below the icon and the Lubrication Menu displays. 4. To lubricate the sewing heads and hook assemblies, press and hold the A-key below the icon until the Automat makes a beep sound.
  • Page 53 9-3. Automatic Lubrication (Optional Lubrication Device installed) Instructions for setting the frequency of the automatic lubrication The frequency can be set by time and stitch count. When either the time or stitch counter, counts down to 0, this starts the lubrication and then resets the counter automatically. When the lubrication starts both the time and stitch counter are reset.
  • Page 54 9-4. Lubrication Alert A Lubrication Alert can be set to notify when the machine needs to be oiled manually. When the machine reaches the time or stitch count set, the machine automatically stops and the Automat displays a lubrication alert message. 1.
  • Page 55 9-5. Lubrication Setting Column Item Function Range Default M．Time 1-100 The time before the lubrication (Machine running time) Hours Stitch 1-100 The stitch count before the lubrication (Stitch count) 10000 stitches 10000 stitches The frequency of the lubrication to the sewing head.

  • Page 56: １０．Holding The Needle At The Dead Bottom Center

    10. Holding the Needle at the Dead Bottom Center This feature is only available for the Roll-to-Roll machines. 1. Press the Manual Key and open the Manual operation screen. 2. Press the C-key below the icon. 3. The following D14 Start Switch message appears. Push the Start Switch to execute the needle down function.
  • Page 57 11. Manual Roll-to-Roll Feature This feature is only available for the Roll-to-Roll machines. 1. Press the Manual Key to open the Manual operation screen. 2. Press the G-key below the icon. 3. Press the C-key below the icon. 4. The icons to operate the fabric clamp display as shown below. *Refer to the clamp operations functions on the next page before using them.
  • Page 58 Rear Front A：Clamp by needle D：Right and Left E：Support Clamp B：Front and Back C：Right and Left * A to E represents clamps. Clamp A Close / Open Clamp B and E Close / Open Clamp C and D Close / Open Clamp E Close / Open ４‐２１...

  • Page 59: １２．Laser Pointer

    12. Laser Pointer This function is only available on the machines with a laser pointer. Laser pointer irradiates the needle drop point. 1. Press the Manual Key 2. Press the G-key, 3. Press the A-key to ON or OFF the Laser Pointer. ４‐２２...

  • Page 60: Chapter 5 Loading / Saving Designs

    Chapter 5 Loading / Saving Designs This chapter explains how to load designs into machine memory. 1. Before Loading / Downloading Designs 2. Before Using a USB Flash Drive 3. Loading Designs from a USB Flash Drive 4. Saving Designs to a USB Flash Drive 5.

  • Page 61: １．Before Loading / Downloading Designs

    1. Before Loading / Downloading Designs These instructions explain how to use the Design Loading Key and are not necessarily repeated over and over again in the following chapters of Loading /Download Designs. So please refer to these instructions for details using this key. 1-1.
  • Page 62 1-2. Pause / Cancel The Pause / Cancel function shows up in the following chapters of loading and saving designs. This function if not specifically called out in these chapters, so please refer to these instructions for using this feature. Press the B-key, to pause.

  • Page 63: ２．Before Using A Usb Flash Drive

    2. Before Using a USB Flash Drive 1. Outline The USB Flash Drive can be used for not only saving data but also for the following: 1. Storing Design Files -Save / load design files in FDR format (.U01). -Save / load design files in the Network format (.PRJ). *1 -Store design files in TFD format (.DST and .DSB).
  • Page 64 2. USB Flash Drive Basics The USB Flash Drive needs to have specific folders to store files. (Max. 100 designs） FDR Folder ・ FDR Folder ・ ・ ・ ・ ・ * Inactive ・ PRJ Folder ・ ・ ・ ・ ・ (Max.
  • Page 65 Folders are divided into the following 4 types. 1) FDR Folder - This folder is shown as on the Automat. - Stores design data in FDR format (.U01) - 100 designs can be saved in a FDR folder. 2) PRJ Folder - This folder is shown as on the Automat.

  • Page 66: ３．Loading Designs From A Usb Flash Drive

    3. Loading Designs from a USB Flash Drive Instructions for loading a design from a USB Flash Drive to the XS Automat. 3-1. Loading a New Design 1. Press the Design Loading/Downloading Key 2. Check that the USB Flash Drive is selected. Press the D-key is to access the other USB ports if necessary (There are 3 USB ports available).
  • Page 67 6. Use the Jog Keys to select the design you want to load. *If you want to select several designs for downloading, see the following procedure: 1. Select a design and press ORIGIN key. After that an (*) is shown beside the design to indicate it’s been chosen.
  • Page 68 3-2. Adding a Design Press the Design Loading/Downloading Key Use the Jog keys and select the folder that has the design you want to load. Press the Origin key or the F-key, to display the list of designs in the folder. Use the Jog keys and select the Design you want to load.
  • Page 69 3-3. Loading a Back-up Design Folder This function restores all the designs as they were, when the XSB memory backup folder was saved. Important Notice: When this function is executed, all designs (in the memory) will be overwritten by the backup memory.
  • Page 70 3-4. Displaying Design Information 1. Press the Design Loading/Downloading Key 2. Use the Jog keys and select the folder that has the design you want to show the design information. 3. Press the Origin key or the F-key, to show the list of designs in the folder. 4.

  • Page 71: ４．Saving Designs To A Usb Flash Drive

    4. Saving Designs to a USB Flash Drive Instructions for storing designs from a BEXS Automat to an USB Flash Drive 4-1. Saving Designs 1. Press the Design Loading/Downloading Key 2. Press the A-key, to display the Memory to USB Flash Drive downloading screen.
  • Page 72 5. Use the Jog keys and select a design in memory to download to the USB Flash Drive. *If you want to select several designs for downloading, see the following procedure: 1. Select a design and press ORIGIN key. After that an (*) is shown beside the design to indicate it’s been chosen.
  • Page 73 4-2. Back-up the designs in memory Backs up all the designs in memory. 1. Press the Design Loading/Downloading Key 2. Press the A-key, to display the Memory to USB Flash Drive downloading screen. 3. Use the Jog keys and select an empty XSB folder you want use for a Back-up. See chapter 5.5-1 Creating a folder.

  • Page 74: ５．Usb Administration

    5. USB Administration Administration instructions for USB Flash Drives on the BEXS Automat 5-1. Creating a Folder Instructions for creating folders on a USB Flash Drive 1. Press the Design Loading/Downloading Key The Design Loading/Downloading screen will display. 2. Press the C-key below the icon and the USB Administration screen displays.
  • Page 75 5-2. Deleting Folders Instructions for deleting folders on the USB Flash Drive 1. Press the Design Loading/Downloading key The Design Loading/Downloading screen will display. 2. Use the Jog keys and select the folder that you want to delete. 3. Press the C-key, to view the USB Flash Drive Administration screen.
  • Page 76 5-3. Deleting designs on a USB Flash Drive Instructions for deleting designs in design folders on a USB Flash Drive 1. Press the Design Loading/Downloading Key The Design Loading/Downloading screen will display. 2. Use the Jog keys and select the folder that has the design you want to delete. 3.
  • Page 77 6. Press the A-key, and the following confirmation dialogue box will appear. 7. Press the F-key, to proceed and delete the selected design(s). Press the E-key and the F-key, to delete all the designs in the folder. Press the A-key, or the G-key, to cancel deleting and go back to the USB Design Administration screen.
  • Page 78 5-4. Changing a Folder Name 1. Press the Design Loading/Downloading key The Design Loading/Downloading screen will display. 2. Use the Jog keys and select the folder that you want to change the name. 3. Press the C-key, and the USB Administration screen will display. 4.

  • Page 79: ６．Abc Drive

    6. ABC Drive ABC Drive is a function to automatically load a design into memory using the COM port. A memory location is selected for ABC mode and it’s the only memory location to be sewn in this mode. After sewing this design in this memory, you take the machine out of Drive mode.
  • Page 80 7. Loading through the COM port A COM connector is located on the back of the BEXS Automat. Designs can be loaded from a device connected to the COM port. Devices using RS-232C can be connected and used. *Note: Please use a (null modem) crossover cable for the connection.
  • Page 81 9. Prepare the device or software program that has the design you want to download, and send the design. *The following Loading speeds (BAUD rates) can be set. Number Speed（bps） 9600 19200 38400 57600 115200 ５‐２２...
  • Page 82 7-2. Adding a Design through the COM port. 1. Press the Design Loading/Downloading key, 2. Use the Jog keys and select a design in Memory to add the design to. 3. If the selected Memory location has a design loaded in it, the icon will show above the D-key.

  • Page 83: ８．Saving Through The Com Port

    8. Saving a Design through the COM port. A COM connector is located on the back of the BEXS Automat. Designs can be loaded from a device connected to the COM port. Devices using RS-232C can be connected and used.

  • Page 84: Chapter 6 Memory Designs

    Chapter 6 Memory Designs This chapter contains information on the followings. 1. Selecting a Design 2. Design Information 3. Changing Design Names 4. Production Counts 5. Deleting Designs from Memory 6. Changing Color Codes of a Design 7. Outline Stitching 8.

  • Page 85: １．Selecting A Design

    1. Selecting a Design Instructions for selecting a design to embroider from Machine Design Memory * Designs cannot be edited while in Drive mode. 1. Press the Design Memory Key or Design Edit key 2. Design data for all the memory locations displays. 3.

  • Page 86: ２．Design Information

    2. Design Information Instructions for viewing design information 1. Press the Design Memory Key Design data for all the memory locations displays. 2. Select a design to view and press the B-key below the icon. 3. The design information of the selected design will appear. *The design shown will reflect any program changes.
  • Page 87 The design information screen has the following contents. Design No. ：Memory location of the design Design Name：Name of the design Stitch Count ：Total stitch count of the design SIZE ：Distance between the overall dimensions of the design measured in tenths of millimeters. PASS ：Distance between the start and end points, shown as horizontal and vertical values, measured in tenths of millimeters.

  • Page 88: ３．Changing Design Names

    3. Changing Design Names Instructions for changing design names 1. Press the Design Memory Key Design data for all the memory locations displays. 2. Select the design to change the name and press the C-key below the icon. 3. A Character Entry dialogue box will appear. Chapter 3.

  • Page 89: ４．Production Counts

    4. Production Counts Instructions for displaying Production counts for the design selected 1. Press the Design Memory Key Design data for all the memory locations displays. 2. To view the production counts of all the designs press the D-key below the icon.
  • Page 90 5. To reset the stitch counts of all designs, press the G-key below the icon. 6. A screen to confirm if it is okay to reset will appear. Press the A-key below the icon to confirm and reset. Press the B-key below the icon or G-key below the icon to cancel.

  • Page 91: ５．Deleting Designs From Memory

    5. Deleting Designs from Memory Instructions on how to delete a design from Memory 1. Press the Design Memory Key Design data for all the memory locations displays. 2. Select a design to delete with the Jog keys and press the A-key below the icon.

  • Page 92: ６．Changing Color Codes Of A Design

    6. Changing Color Codes of a Design Instructions on how to change color codes 6-1. List display and making changes 1. Press the Design Edit key 2. Select the design that you want to see the Color codes and press the C-key below the icon.
  • Page 93 5. Press the A-key below the icon or B-key below the icon to change the Color change function code. The new Changed code will be shown in black. For machines with special devices (Loop/Cord/Sequin etc…) Press C-key below the icon and Sub-function is now available to change. Use A-key below the icon or B-key below the icon to change the code.
  • Page 94 6-2. List display and making changes Batch changing for Color Change Functions 1. Press the Design Edit key 2. Select the design that you want to see the Color codes and press the C-key below the icon to show the Color change function list. 3.
  • Page 95 6. Press D-key below the icon or E-key below the icon to go back to the Color change function Batch changing screen. Press F-key below the icon to show the design preview of both before and after changing the Sub-functions. 7.

  • Page 96: ７．Outline Stitching

    7. Outline Stitching Instructions for creating outline stitching data for designs This feature has 2 useful purposes. When used with a boring needle for sewing, the outline stitch can be used to cut a hole in a • piece of stable hooped material. Afterwards, a garment can be held to the hooped material by adhesive, and sewn thru the hole.
  • Page 97 Memory ：Sets the Memory location where the outline stitching design is saved Space ：Sets the space around the design to the outline Pitch ：Set the stitch length for the running stitches used in the design Start color ：Sets the needle number for sewing. Style ：Sets the form of the outline 0: Outline data is made according to the actual border of the design.

  • Page 98: ８．Thread Consumption

    8. Thread Consumption Instructions for thread consumption simulation 1. Press the Design Memory Key, 2. Press the E-key below the icon and the Thread consumption screen appears. Simulates thread consumption for each needle. Press the E-key below the icon to go back to the Memory design data list. 3.
  • Page 99 5. Select the item that you want to change the value. 6. Press the A-key below the icon to decrease the value. Press the B-key below the icon to increase the value. When there are any changes made, a confirmation screen appears. Chapter 3.

  • Page 100: Chapter 7 Programs

    Chapter 7 Programs This chapter contains the instructions on Program parameters. 1. Changing Program Settings 2. Program List 3. Setting the Sub-Soft Limit 4. Matrix Embroidery Set Up (Design Repeats) 5. Automatic Matrix Embroidery Set Up ７‐１...

  • Page 101: １．Changing Program Settings

    1. Changing Program Settings Instructions for changing Program settings for a selected design *Program settings cannot be changed while in Drive mode. 1. Press the Design Edit Key, 2. Select a design and press the B-key below the icon. 3. Program list of the selected design displays. 4.
  • Page 102 6. Press the C-key below the icon to show the design preview of before and after changes. Press the C-key below the again to go back to the Program list. Press the Design Edit Key, again to go back to the Start screen. 7.

  • Page 103: ２．Program List

    2. Program List Default No. & Icon Parameter Function Range of Values Value V scale Width Scale Scales the pattern size between 50% 50％ ～200％ and 200% of its original size. H scale Height Scale Rotates pattern counterclockwise, 1： 0° in 90 degrees increments.
  • Page 104 Default No. & Icon Parameter Function Range of Values Value Moves the pantograph forward for easy placement of appliqué fabric. 0: On The default movement is 1-1/2 times Appliqué the height of the pattern. A new 1: Off value can be programmed in the A. Offset parameter.
  • Page 105 Default No. & Icon Parameter Function Range of Values Value Sets the number of times a pattern 1 ～201 will be repeated. Set at 201, the Repeat pattern will sew an infinite number (201: infinite) of repeats. Pattern arrangement controlling the 0：OFF Matrix number of times a pattern repeats...

  • Page 106: ３．Setting The Sub-Soft Limit

    3. Setting the Sub-Soft Limit The machine software allows 3 embroidery areas to be programmed to limit the movement of the Pantograph. This feature is called the Sub-Soft Limit. Program the lower left corner (P1) and the upper right corner (P2) for each area. The pantograph movement will be limited to the rectangular area created by these 2 corners.
  • Page 107 6. Press the G-key below the icon to enter the position as P1. The screen automatically toggles to the P2 setting for you to program it. *P2 (V, H display) should have a Bold Underline under it. 7. Program 2. Move the Pantograph to find the upper right corner of the area (P2).

  • Page 108: ４．Matrix Embroidery Set Up (Design Repeats)

    4. Matrix Embroidery Set Up (Design Repeats) This feature automatically repeats the design in the Embroidery area. The layout is calculated from the distance between the centers of the pattern and the quantity entered. *This setting resets the Program setting #06: Socks and #15: Repeat. 1.
  • Page 109 Press the E-key below the icon when finished to go back to the Program list. 7. Use the up and down Jog keys to select the item you want to change. ：Sets the border width around the pattern in millimeters. ：Sets the border height around the pattern in millimeters.

  • Page 110: ５．Automatic Matrix Embroidery Set Up

    5. Automatic Matrix Embroidery Set Up The feature automatically lays out the maximum number of patterns in the embroidery area. *This setting resets Program settings #06: Socks and #15: Repeat. 1. Press the Design Edit Key, 2. Select a design and press the B-key below the icon.
  • Page 111 ：Sets the distance between designs in the H(Y) direction in millimeters. ：Sets the inside margin of the frame in the V(X) direction in millimeters. ：Sets the inside margin of the frame in the H(Y) direction in millimeters. 8. Press the A-key below the icon for smaller numbers.

  • Page 112: Chapter 8 Embroidery

    Chapter 8 Embroidery This chapter contains information on sewing patterns in memory. 1. Start Point Drive Mode Speed Trace Float High Speed Float (By Stitch Count) High Speed Float (By Color Change) Color Change Code (Teaching) Function Codes Stitch Back Automending Stand-By Mode (Resume) ８‐１...

  • Page 113: １．Start Point

    1. Start Point Instructions on registering the design start point. Each design can have its own start point. 1. Select a design from the Memory. Use the Jog keys and move the pantograph to the location where you want to start the design. 2.

  • Page 114: ２．Drive Mode

    2. Drive Mode Instructions for putting the machine in Drive mode The machine can only sew when the machine is in Drive mode. 1. Press the Drive Key 2. The following Drive mode screen appears. *The screen color changes. R.Time ：Estimated remaining time to the end of sewing Bobbin ：Remaining stitch count for Bobbin counter...
  • Page 115 3. Speed Instructions on changing the machine speed The sewing speed can also be changed while the machine is sewing. 1. Press the Speed key 2. Speed Menu appears. 3. Press the A-key below the icon to reduce the speed by 10 rpm. Press the B-key below the icon to increase the speed by 10 rpm.
  • Page 116 4. Trace 4-1. Perimeter trace *Be sure the Frame Limit parameters in the MC (Machine Condition) are correctly set before using this feature. *The 4-corner trace takes into consideration any of the Program parameters that may have been altered. The Pantograph make a 4 corner trace of the design to ensure proper placement of the Pantograph.
  • Page 117 *If the design interferes with the border, the machine makes a beep sound and stops the trace in that direction. Relocate or resize the design so it fits in the border. 4-2. Outline Trace *Be sure the Frame limit parameters in the MC (Machine Condition) are correctly set before using this feature.
  • Page 118 5. Float Float moves the Pantograph through the design without sewing. *This function is only available in Drive Mode. 1. Press the Float key and the Float screen appears. 2. Push the Start switch to start Float. 3. To end the Float, stop the machine with the Stop switch and then press the Float key, ８‐７...

  • Page 119: ６．High Speed Float (By Stitch Count)

    6. High Speed Float (By Stitch Count) Instructions on floating to a specific stitch count *This function is only available when operating Float in Drive mode. 1. Press the Float key and the Float screen appears. 2. Press the A-key below the icon for a smaller stitch number.

  • Page 120: ７．High Speed Float (By Color Change)

    7. High Speed Float (By Color Change) Instructions on floating to a specific color change in the design data *This function is only available when operating Float in Drive mode. 1. Press the Float key and the Float screen appears. 2.

  • Page 121: ８．Color Code Change (Teaching)

    8. Color Code Change (Teaching) Instructions on changing the color sequence while sewing 1. Press the Drive Key and the Drive mode screen appears. 2. Press the Color Change key 3. Push the Start Switch. 4. The sewing stops at the stitch count where the Color Codes or the Stop Codes are set in the pattern.

  • Page 122: ９．Function Codes

    9. Function Codes Instructions on changing all function codes while the machine is sewing Use this feature with the High Speed Float (By Stitch Count) to change the Function code of Chapter 13 1. Function Codes the desired stitch. *Refer to for the details of the Function codes.

  • Page 123: １０．Stitch Back

    10. Stitch Back Instructions on backing up the machine to repair a missed stitch 1. If sewing, stop the machine with the Stop switch. 2. Push and hold the Stop switch to start the stitch back. 3. If you Stitch back past 30 stitches, the machine will continue to stitch back if you release the Stop switch.
  • Page 124 11. Automending Automending is the Stitch back feature for one or more appointed sewing heads. In other words, not all the sewing heads, like the Stitch back feature. Press and hold the Automending switch on the Tension Box for the appointed head, while the machine is stopped.

  • Page 125: １２．Stand-By Mode (Resume)

    12. Stand-By Mode (Resume) When the power to the machine is cut while in Drive mode, the machine can resume sewing in the position where it had left off. This is called Stand-By. 1. Turn ON the power to the machine. 2.

  • Page 126: Chapter 9 Network

    Chapter 9 Network This chapter contains information on use the Network program. 1. Before Using the Network System 2. Registering the Operator Code 3. Break Call 4. Operator Call 5. Time-Out 6. Downloading Designs (Direct Downloading) 7. Downloading Designs (Scheduled Downloading) ９‐１...

  • Page 127: １．Before Using The Network System

    4. To use the network system, following things will be required. - BEXS Automat [Barudan Options] - Barudan LEM Server software [The items to be prepared by Users] - Personal Computer with Windows 2000, Windows 2003, Windows XP or Windows Vista LEM-Server Instruction Manuals with a LAN connections.
  • Page 128 Example 1: One server PC and one Barudan XS series embroidery machine (Using a Cross LAN cable.) Server PC XS Automat Cross LAN cable Example 2: One server PC and multiple Barudan XR series embroidery machines (Using a straight LAN cable.)

  • Page 129: ２．Registering The Operator Code

    2. Registering the Operator Code Instructions for registering the operator code with the Automat LEM –Server Instruction manuals *Refer to the for its operation. 2-1 Reporting the Operator Code Reporting the current operator to the server. 1. Press the Network key 2.
  • Page 130 2-2. Entering a new Operator Code Instructions on entering a new operator code or changing one with the Automat 1. Press the Network key . When the Network screen displays, press view the Operator Code list. 2. Use the Jog keys and select the operator code to register or change. 3.

  • Page 131: ３．Break Call

    3. Break Call Instructions on how an operator reports that they are on break and that the machine is not LEM-Server Instruction Manual sewing. *Refer to for its operation. 1. Press the Network key to open the Network screen. 2. Press the C-key below the icon to start Break.

  • Page 132: ４．Operator Call

    4. Operator Call Instructions on placing a call to the server LEM-Server Instruction Manuals *Refer to the for its operations. 1. Press the Network key to open the Network screen. 2. Press the D-key below the icon to call the server. ９‐７...

  • Page 133: ５．Time-Out

    5. Time-Out Instructions on reporting that the machine is not in production LEM-Server Instruction Manuals *Refer to the for its operation. 1. Press the Network key to open the Network screen. 2. Press the G-key below the icon. 3. Press the A-key below the icon to report the Time-Out.
  • Page 134 6. Downloading Designs (Direct Downloading) Instructions on downloading designs that are saved on the server Designs that will be downloaded need to be stored in the correct folders before downloading. Set the Network server application to Direct Download Mode beforehand. LEM-Server Instruction Manuals *Refer to the for its operation.
  • Page 135 5. Press the G-key below the icon to start downloading. The following information screen will be shown during downloading. The name of the design and total stitch number Width Width of the design Height Height length of the design Pass Distance between the start and end points, shown as horizontal and vertical values, measured in tenths of millimeters.
  • Page 136 6-2. Downloading from the Download History 1. Press the Network key to open the Network screen. 2. Press the A-key below the icon. 3. Press the E-key below the icon. 4. Download History displays. 5. Use the Jog keys and select the design to download from the history list in the Main menu.
  • Page 137 7. Downloading Designs (Schedule Downloading) Instructions on downloading scheduled designs registered on the server. Set the Network server application to Scheduled Download Mode beforehand. LEM-Server Instruction Manuals *Refer to the for its operation. 1. Press the Network key to open the Network screen. 2.

  • Page 138: Chapter 10 Editing Memory Designs

    Chapter 10 Editing Memory Designs This chapter contains information about editing designs. 1. Color Change Function Codes 2. All Function Codes 3. Running Stitch Additions 4. DSP (Design Stitch Processor) １０‐１...

  • Page 139: １．Color Change Function Codes

    1. Color Change Function Codes Instructions for searching and changing a color change function of the memory design selected. This operation is not available in Drive mode, and it only applies to Color Change function codes. Chapter 13 1. Function Codes *Please refer to for information on color change function codes.

  • Page 140: ２．All Function Codes

    2. All Function Codes Instructions for searching and changing All function codes in the memory design selected. This operation is not available in Drive mode. *Please refer to Chapter 13 1. Function Codes for information on function codes. 1. Press and hold the Color Change key until it beeps.

  • Page 141: ３．Running Stitch Additions

    3. Running Stitch Additions Instructions for adding running stitches in a design This function is not available during Drive mode. 3-1. Adding running stitches using the Jog keys Using the Jog keys adds running stitches, and at the same time, moves the pantograph. 1.
  • Page 142 3-2. Design Additions Instructions for combining 2 designs together into one memory location. Both designs must be in memory, and you import one of the designs into the other design location. 1. Press the Design Edit key and then, press the A-key below the icon to open the Running stitch addition menu.

  • Page 143: ４．Dsp (Design Stitch Processor)

    4. DSP (Design Stitch Processor) 4-1. Changing DSP Instructions for making the selected design larger or smaller without changing the density of the design. Also, the Maximum stitch length, Satin and Tatami spacing, and Running stitch length can be changed. 1.
  • Page 144 7. After changing the values, press the G-key below the icon to save the new design. 8. If you want to pause saving, press the B-key below the icon. To cancel saving: Press the A-key below the icon. To continue saving: Press the B-key below the icon.
  • Page 145 4-2. Stitch Processor List No. (Icon) Item Function Range Default Changes the design scale larger or Scale smaller. 50～200％ 100％ （Size） Sets the longest stitch length in the 40～127 MAX length design. Use this setting to shorten the longest stitches in the design. Sets the Spacing of the Satin and Tatami SATIN space stitches.

  • Page 146: Chapter 11 Preference

    Chapter 11 Preference This chapter contains the following information. 1. Changing Machine Conditions (MC) 2. MC List 3. Sequin Adjusting Mode 4. Setting the Screen Color 5. Setting the Design Color 6. Network 7. Date Setting 8. Software Version １１‐１...

  • Page 147: １．Changing Machine Conditions (Mc)

    1. Changing Machine Conditions (MC) Instructions on how to change the Machine Condition 1. Press the Preference key 2. Preferences setting screen below displays with various options. 3. Press the A-key below the icon. The Machine conditions displays MC set up screen.
  • Page 148 Press the E-key below the icon. Numeric Entry dialogue box appears. 3 10. Numeric Entry Dialogue Box Refer to Chapter and enter the value. 6. Press the G-key below the icon. Confirmation dialogue displays. Chapter 3 12. Confirmation Message. *Refer to 7.
  • Page 149 2. MC List Range Of Default Icons Parameter Function/Action Values Value Switches off the thread break detector of a needle 0 – 15 Borer 1 fitted with a boring device. Enter the number of the needle that has the borer. Set to 0 if a boring [Needles] device is not in use.
  • Page 150 Range Of Default Icon Parameter Function/Action Value Value 0 = Trimmers OFF Trim Type 1 = Pantograph moves 0.4 mm to the left before needle penetrates and thread is trimmed. 2 = Pantograph moves backwards, then needle penetrates and the thread is trimmed. 3 = Same as 1, but slider pulls thread before 0 –...
  • Page 151 Range Of Default Icon Parameter Function/Action Value Value Controls number of stitches m/c will automatically back up at a thread break. If the Stitch Back function is off, m/c will not back up at a thread break. Otherwise, m/c backs up the number of stitches entered in this parameter.
  • Page 152 Range Of Default Function/Action Icon Parameter Value Value The distance in tenths of millimeters that is added or subtracted from the length of a stitch. This Swing added or subtracted length is only applied to stitches that have a change in direction from the previous stitch.
  • Page 153 Range Of Default Icon Parameter Function/Action Value Value Sets pressure foot height when the Appliqué command is executed. Parameter is set in degrees, Appliqué referring to the pressure foot height as shown on 60 – 120 the degree wheel. [degree] *This method may be used for verification of start position.
  • Page 154 Range Of Default Icon Parameter Function/Action Value Value Sets right soft limit – allowable distance pantograph can move to the right of the Right Limit 0 – 3200 mechanical origin. [mm] Sets left soft limit – allowable distance pantograph can move to the left of the Left Limit 0 –...
  • Page 155 Range Of Default Icon Parameter Function/Action Value Value Sets WS System Active. WS System 0 : OFF 1 : ON 0 - 1 Not Used Clamp Frame ------- ----- Not Used Warm Up ------- ----- Speed Not Used Warm Up End ------- ----- Sets the gain parameter automatically...
  • Page 156 Range Of Default Icon Parameter Function/Action Value Value Sets the Sequin Size Change on Right side Sequin size 0-50 Not Used Network Type ------- ----- Laser Marker operation Marker Type 1: Turns ON when the machine is not sewing. 2: Turns On only in “Drive mode” and not sewing. 3: Same as above item 1 + it resets to ON when the machine is powered ON.
  • Page 157 Rotary sequin control Rotary Sequin 0: The last number of needle is available for the sequin device 1: All needles are available for the sequin device. Parts needs to be changed to sequin parts on using needle number. This is used to change the Parameters of SMC, Special MC SMSU -------...

  • Page 158: ３．Sequin Adjusting Mode

    3. Sequin Adjusting Mode Instructions on the Sequin devices and adjusting mode operations 1. Press the Preference key . Preferences setting screen below displays with various options. Press the A-key below the icon. The Machine conditions displays MC set up screen. 2.

  • Page 159: ４．Setting The Screen Color

    4. Setting the Screen Color Instructions on setting the screen color 4-1. Setting by RGB Color number 1. Press the Preference key, . Preference setting screen below displays with various options. 2. Press the C-key below the Main icon of .
  • Page 160 4. Use the Jog keys and select the item that you want to change the color. 5. Press the A-key below the Main icon of , or the Origin key. Following dialogue box appears. The color details will be shown in RGB. Left shows the color before the change and right shows the color after the change.
  • Page 161 4-2. Easy Settings Instructions on selecting a design color from the color list 1. Press the Preference key, . Preference setting screen below displays with various options. 2. Press the C-key below the Main icon of to view the Screen Color setting screen. 3.

  • Page 162: ５．Setting The Design Color

    5. Setting the Design Color 5-1. Instructions on setting the design color by the value Colors can be changed by changing the value of R (red), G (green) and B (blue). 1. Press the Preference key, . Preference setting screen below displays with various options.
  • Page 163 Press the A-key below the Main icon of to cancel the changes and close the dialogue box. 5. Use the Jog keys and enter the value that you want to change to from RGB. Press the B-key below the Main icon of for smaller value.
  • Page 164 5-2. Easy Settings Instructions on selecting a design color from the color list 1. Press the Preference key, . Preference setting screen below displays with various options. 2. Press the D-key below the Main icon of to view the Design Color setting screen.
  • Page 165 6. Network Instructions on setting Network configurations 1. Press the Preference key, . Preferences setting screen displays. 2. Press the E-key below the Main icon of to display the Network Menu. 3. Select the item that you want to change from the Network setting item list. Network ：Input the “1”...
  • Page 166 5. When changing IP Address, following dialogue appears. -Use the left and right Jog keys to select the item to change the value. -Use the top and bottom Jog keys to change the value. Press the C-key below the Main icon of again to cancel the changes and go back to the Network setting menu.

  • Page 167: ７．Date Setting

    7. Date Setting Instructions on setting the Automat date and time 1. Press the Preference key, . Preferences setting screen displays. 2. Press the F-key below the Main icon of . Date setting menu appears. 3. Select the item, year, month, date, hour and minute. Press the A-key below the Main icon of , or B-key below , to change the...

  • Page 168: ８．Software Version

    8. Software Version Instructions on seeing BEXS software version 1. Press the Preference key, . Preferences setting screen below displays with various options. 2. Press the G-key below the Main icon of 3. Press the A-key below the Main icon of .

  • Page 169: Chapter 12 System

    Chapter 12 System This chapter contains instructions on System programs. 1. System Structuring 2. Updating System software 3. Initializing Memory １２‐１...

  • Page 170: １．System Structuring

    1. System Structuring BEXS is composed of 2 system programs. Each system needs to be updated when there are updated versions. To check the software version loaded on the machine, see the Version information screen. Chapter 11 8. Software Version...

  • Page 171: ２．System Software Update

    2. System Software Update Instructions for updating the system software on the machine 1. Turn Off the power. 2. Insert the USB Flash Drive that contains the Software update. 3. While the machine is Off, press and hold the Origin key. 4.
  • Page 172 6. Press the B-key below the icon to display the Control System Update screen. 7. Press the A-key below the icon to display the Operation System Update screen. 8. Use the D-key below the icon and the E-key below the icon and select the System to update.

  • Page 173: ３．Initializing Memory

    3. Initializing Memory Instructions to initialize the machines memory. *Be sure to back up the data before the initialization. 1. Turn Off the power. 2. Press and hold the Origin key and Jog Up key and turn ON the machine. 3.

  • Page 174: Chapter 13 Appendix

    Chapter 13. Appendix This chapter contains the following reference information. 1. Function Codes Sub-Function Codes Error Messages １３‐１...
  • Page 175 1. Function Codes Code Function Code Function Normal Stitch Sequin OFF Jump Stitch Sequin ON Low Speed Sequin Jump Low Speed Jump Chain Stitch High Speed Loop Stitch High Speed Jump Presser foot height Top Thread Trimming Normal Embroidery Taping & Cording Bobbin Threading Embroidery (R) Taping &...
  • Page 176 2. Sub-Function Codes Sub Function Sub Function Codes Function Sewing Pattern 1 Sewing Pattern 2 Looper（L） Needle Height（H） Chain stitch Chenille Loop stitch “－－” ，1～6 “－－” ，1～10 Height adjustment （ P） Presser foot height “－－－” “－－” ，1～10 Normal embroidery “－－－” “－－－”...

  • Page 177: ３．Error Messages

    PC must match the setting set on the machine in “IN COM” mode, otherwise you’ll get this error. Barudan = U code Tajima = EL code ZSK = F code Make sure the PC transfer machine setting matches the Machine “In COM”...
  • Page 178 Message Description Trouble shooting (Code) This is not an error. It’s a message that the memory Memory Slot Empty slot you’ve selected is empty and you cannot make any changes to it. This is not an error. It’s a message indicating that all All Memory Slots are the memory locations are empty.
  • Page 179 Retry using the USB memory or try another USB USB Read/Write Error memory device. This error occurs when using Barudan’s DFS Network Error (Design File Server) or LEM Networking Software to connect to the machine. It means the machine is disconnected from the network.
  • Page 180 Message Description Trouble shooting (Code) Color Change Lock sensor is not engaged or not Needle Bar Not Locked working properly. Manually rotate the Color change assembly so the sensor plate engages the Lock sensor and retry. If still a problem look to see if the Sensor LED is working.
  • Page 181 Message Description Trouble shooting (Code) Try to restart the machine. If still getting error, turn Main Motor Trip Error Off and try rotating sewing head by hand and check for binds (To rotate the sewing head, remove the main drive pulley cover to get to the degree wheel and turn the degree wheel).
  • Page 182 Message Description Trouble shooting (Code) No further Stitch Back or Message that machine cannot stitch back or Automending due to 1600 automend any further due to 1600 Stitch limit. If stitch limit needing to stitch back/automend further, use float operation, and float back where needed. See operation manual for Float instructions.
  • Page 183 Message Description Trouble shooting (Code) Message that machine stopped due to thread break. Stopped for Thread Break Fix thread break and continue. If thread is not broke (false thread break) check that thread is wrapped around the thread detect wheel on the tension assembly.
  • Page 184 Message Description Trouble shooting (Code) Stopped for Sub End Code Message that Roll to Roll feature is turned On, and machine stopped due to Sub End code in design data. Power Interrupt Error A power interruption to the machine has occurred. Power down the machine, then back On to re-set.
  • Page 185 Message Description Trouble shooting (Code) Chenille Needle Height This error occurs when the needle bar height or Error cancel position is wrong. Turn off the machine and reboot. If still a problem, turn off the machine. Then manually rotate the (needle bar) leveling shaft on the problem head and see if the needle bar drive levers inside move smoothly and freely and not in a bind.
  • Page 186 Embroidery Machine BEXR BEXS BEXY series Mechanical Guide...
  • Page 187 Table of Contents Chapter 1 Machine Basics Machine Installation ......1-1 Important Safety Instructions ..... . . 1-3 Danger .
  • Page 188 Needles/Backing Chart ..... . . 1-30 Chapter 2 Machine Care Cleaning the Machine ......2-1 Bobbin Case Maintenance .

  • Page 189: Chapter 1 Machine Basics

    Chapter 1 Machine Basics Machine Installation Normally, your machine is installed by a technician. Instructions are provided if the machine ever needs to be moved. Check that you have all accessories from the installation kit: • Leveling Bolts Arm type machine: four (4) leveling feet, ten/twelve (10/12) leveling bolts for the twelve and fifteen head machines.
  • Page 190 Leveling an Arm Type Machine Mount the four (4) leveling feet, one on each corner of the machine frame. Use a manual or hydraulic jack capable of lifting the weight of the machine to raise it. Place the machine on the floor and level the machine at the four corners first. Leave at least 2 feet of open floor space around the machine.

  • Page 191: Important Safety Instructions

    Important Safety Instructions When using an embroidery machine, basic safety precautions should always be followed. This machine is intended for commercial use. Read all instructions before using this machine. Save these instructions. Danger To reduce the risk of electric shock: •...

  • Page 192: Warning

    • Never operate this embroidery machine if it has a damaged cord or plug, if it is not working properly, if it has been damaged or is wet. Contact Barudan America technical support. • Never operate the embroidery machine with any air openings blocked.

  • Page 193: Grounding Instructions

    • Connect this embroidery machine to a properly grounded outlet only. See Grounding Instructions. • Always unplug before relamping. Replace bulb with same type rated Watts. • Keep fingers away from moving parts, especially the area near trimmer blades. Grounding Instructions This product must be grounded.
  • Page 194 X Series Mechanical Guide...

  • Page 195: Sewing Head Components

    Sewing Head Components There are several types of Barudan sewing heads, i.e. Y7, Y9, Z9, Z15. However, basic components are the same for each. Thread Guide Felt Pad Cover - Holds thread in place to prevent tangling and keep thread clean.
  • Page 196 X Series Mechanical Guide...

  • Page 197: Threading The Sewing Head

    Threading the Sewing Head The machine is shipped with each needle pre-threaded. To quickly change the thread, place the new cone on the thread stand. Blow the thread through the tube and tie the end to the thread that is threaded through the tension unit with a square knot and gently pull it through the sewing head.
  • Page 198 Reach underneath the thread keep apron and push the thread keep pin forward, so the thread can go through the hole, then pass the thread through the last eyelet. Optionally, thread the small pigtail that circles the needle, immediately below the apron.
  • Page 199 X Series Mechanical Guide 1-11...
  • Page 200 Threading a Y9 Head with Rotary Thread Break Sensors Take the thread through the slotted post of first tensioner. Take the thread to the right side of the sensor wheel and wrap clockwise one turn. Pull the thread to the right of the tensioner assembly and wrap it clockwise one and one-half times around the metal wheel and over the take-up spring.
  • Page 201 X Series Mechanical Guide 1-13...
  • Page 202 Threading the Z9 Head with Rotary Thread Break Sensors Take the thread through the slotted post of first tensioner. Take the thread to the right side of the sensor wheel and wrap clockwise one turn. Pull the thread to the right of the tensioner assembly and wrap it clockwise one and one-half times around the metal wheel and over the take-up spring.

  • Page 203: Sewing Head Controls

    Sewing Head Controls When using the machine, you may need control over whether thread breaks are detected and which heads will sew. Thread Break Detection Thread Break The Thread Break Switch enables both the top and bobbin thread Switch detection. It is located on the front of the sewing head. The thread break switch is on when the switch is in the up position and off in the down position.
  • Page 204 Disengaging a Sewing Head Press the Stop button to stop the machine from sewing. CAUTION! A sewing head must never be turned off while the machine is sewing. Switch off the appropriate thread break switch. This will cancel the thread break detection on this head. Engage the head shut-off pin to prevent the needles from moving up and down.

  • Page 205: Replacing Bobbins

    Replacing Bobbins The machine is shipped to you with bobbins in place, ready to sew. Follow these steps when you need to replace a bobbin. The bobbins are enclosed in the bobbin cases, which must be removed in order to replace the bobbin. Removing the Bobbin Case Pull the bobbin case latch toward you, and the case will slide out of the hook assembly.

  • Page 206: Needle Anatomy

    Needle Anatomy The anatomy of the needle is an important factor in forming stitches. Carries the top thread through the fabric and into the Hook Assembly. Scarf Small notch, or cutout, on the back of the needle that provides the clearance needed for the hook point to pass without striking the needle during stitch formation.

  • Page 207: Important Conditions For Forming Stitches

    An excellent way to test the tensions is by using an H or I test. Turn the sample over and look at the back of the stitching. Proper tension would show two thirds top thread color and one third bobbin thread. Barudan supplies several sew test designs on a CF card for new machines.
  • Page 208 Well Balanced The top row of I’s in the illustration above show properly adjusted Tension tension. Slight variations will occur, depending on the fabric, backing, thread type and letter size. Bobbin Tension The middle row of I’s in the illustration above shows little bobbin Problem thread.

  • Page 209: Adjusting The Top Tension

    When different problems show up on different letters, the problem is in the top tensions. Letters #1, #2 and #7 need the top tension loosened so the bobbin can pull more of the top thread to the back. Letters #3, #4 and #9 need the top tension tightened because there is too much of the top thread being pulled to the back.

  • Page 210: Adjusting The Bobbin Tension

    embroidery, causing the thread to loop on either the top side or the back side of the garment, possibly both. The monogram will look rough, and will not lie smoothly on the fabric. The bobbin tension on the back side of the garment will look very narrow. You may find it necessary to adjust the top tension to compensate for variances in material or thread.

  • Page 211: Take-Up Spring Adjustment

    Adjusting the Bobbin Tension Turn the screw on the bobbin case clockwise to tighten bobbin tension. Turn the screw on the bobbin case counterclockwise to loosen the bobbin tension. Once the tensions have been adjusted for the type of thread you plan to use, only minor changes will be needed as the fabric, letter size, and alphabet style changes.

  • Page 212: Sewing Preparation

    Adjusting the Take-up Spring Loosen the take-up spring by inserting a screwdriver into the post and turn counterclockwise, until the take-up spring has moved off of the detection bracket.. Then, turn the screwdriver clockwise until the take-up spring touches the detection bracket. Turn approximately ¼...
  • Page 213 EMBROIDERY PLACEMENT GUIDELINES WASH CLOTHS 1-1/2" above hem or 1" above border HAND TOWELS 2" above hem or 1-1/2" above border BATH TOWELS 4" above hem or 2" above border SHEETS The bottom of the monogram should be centered about 2" above the wide hem line on the top side of the sheet.

  • Page 214: Millimeter Conversion Chart

    Millimeter Conversion Chart The chart below will help you convert fractional inches to millimeters. FRACTIONAL MILLIMETER INCH EQUIVALENT 1/16 1.5875 3.175 3/16 4.7625 6.3500 5/16 7.9375 9.525 12.700 15.875 19.050 22.2250 25.400 Backing Materials The use of backing materials and/or toppings will enhance your embroidery. The type of backing needed is determined by the fabric being embroidered.

  • Page 215: Softouch

    Too much backing is just as bad as not enough. Use one piece of medium-weight backing or two pieces of light-weight backing as a general rule. Heavier fabrics generally have a tighter weave and will need less backing. Backing should be cut to completely fit in the hoop, not just as a strip to fit across the center of the hoop.

  • Page 216: Nylon Backing

    Nylon Backing Nylon backing is used with many knits and stretch fabrics. Use nylon as a substitute for Softouch if the design is not worn against the skin. Hooping procedures for nylon are identical to those for Softouch backing. Backing Paper Backing paper is used beneath fabrics with a looped or rough texture, e.g., towels or canvas, and with garments that have a rubber lining, e.g., rain slickers or waterproof bags.

  • Page 217: Needle Insertion

    Ball Ball point needles deflect and slip between the threads of the fabric. Point They are best suited to fine knits and wovens, which have a tendency to snag or run. Sharp Sharp point needles have a cutting edge to penetrate non-woven Point materials.

  • Page 218: Needles/Backing Chart

    Needles/Backing Chart The following chart was taken from Stitches magazine. Use it as a quick reference for the material covered in this chapter. NEEDLES/BACKING CHART NEEDLE FABRIC BACKING TOPPING COMMENTS SIZE/TYPE Canvas 80/12SP or NP Hoop tightly to keep canvas from slipping in hoop.
  • Page 219 NEEDLES/BACKING CHART NEEDLE FABRIC BACKING TOPPING COMMENTS SIZE/TYPE 70/10 to Optional Use round hoop. Stretch the garment to Lycraâ or 80/12BP wearing size in hoop so finished embroi- Spandexâ dery will not be distorted when garment is worn. Explain to customer that though the embroidery may look puckered, it will stretch into shape when the garment is worn.

  • Page 220: Chapter 2 Machine Care

    Chapter 2 Machine Care Cleaning the Machine It is important to clean the machine before oiling. Keep all areas of the machine clean of built-up lint and dust. • You should have both soft-bristle and stiff-bristle brushes and a shop vac available for routine cleaning.

  • Page 221: Machine Lubrication

    The machine should always be turned off before it is oiled. Oiling procedures are based on an 8-hour workday. Barudan America supplies machine oil and bearing oil with all new machines. Lithium Grease Spray has to be purchased by the customer.

  • Page 222: Y Type Head

    Y Type Head The head cover on a Y head machine has a small removable door that lets you oil many head components without removing the entire cover. THE MACHINE SHOULD ALWAYS BE TURNED OFF BEFORE IT IS OILED. OILING PROCEDURES ARE BASED ON AN 8 HOUR WORKDAY. X Series Mechanical Guide...
  • Page 223 Y TYPE HEAD OILING PART IDENTIFICATION LUBRICANT FREQUENCY Rotating Hook Barudan machine oil Every 4 to 6 Clear (mineral) oil for sewing machinery hours Drive Shaft Barudan machine oil Once a week Clear (mineral) oil for sewing machinery Hook Shaft Bushing...
  • Page 224 Z Type Head THE MACHINE SHOULD ALWAYS BE TURNED OFF BEFORE IT IS OILED. OILING PROCEDURES ARE BASED ON AN 8 HOUR WORKDAY. BEVS/VY Oiling Diagram X Series Mechanical Guide...

  • Page 225: Z Type Head

    Z TYPE HEAD Oiling Chart PART IDENTIFICATION LUBRICANT FREQUENCY Rotating Hook Barudan machine oil Every 4 to 6 Clear (mineral) oil for sewing machinery hours Drive Shaft Barudan machine oil Once a week Clear (mineral) oil for sewing machinery Hook Shaft Bushings (3)

  • Page 226: Chapter 3 Troubleshooting

    Chapter 3 Troubleshooting Quick Fixes There are a number of problems that you may encounter while sewing that can be simply remedied. PROBLEM CAUSE SOLUTION Fabric Puckering Garment hooped too loosely Rehoop the garment, making sure it is taut. No backing Backing helps stabilize most fabrics - use the appropriate backing for the application.
  • Page 227 PROBLEM CAUSE SOLUTION NOTE: Whenever you break a needle, make sure you find all parts of it before you continue sewing. A needle point that gets lodged in the hook assembly of the machine can cause the machine to bind up and stop running, possibly causing serious damage.
  • Page 228 PROBLEM CAUSE SOLUTION Thread Breaks cont’d Machine running too fast for the par- Reduce speed. ticular application Burr on bobbin case Buff burr with emery and crocus cloth (available at hardware stores) or replace bobbin case. Burr or excessive wear on hook Hooks are not always repairable and buffing the hook may alter the timing.

  • Page 229: Take-Up Spring Replacement

    T ake-Up Spr ing R eplacement A fter repeated adjustments, the take-up spring may begin to show wear. Y ou may notice that adjusting the take-up spring no longer corrects tension problems. In this case, you need to C omplete Tens ion As s embly C omplete Tens ion As s embly replace the take-up spring.

  • Page 230: Hook Timing

    Replace theRatchet Washer. Take-Up S pring Bracket Take-Up S pring Bracket Replace theTension knob, turningit clockwise until it is ½ way turneddownonto thetensionassemblypost. Adjust thenew Take-Up Spring as instructed on page1-24 of theMechanical Guide. Tension Assembly Post Tension Assembly Post Hook Timing Hook timing is probablythemostmisunderstood aspectof embroiderymachinemechanics.It has nothingto do with thetypeof fabric, tensionor synchronizationof theheadson a...
  • Page 231 Rotate theMain Drive Pulley to wheretheindicatorpointto 24 degrees(Arm type heads)25 degrees(Bridge typeheads). The pointof thehook shouldbe directly behindthescarf of theneedleandabovetheneedleeye. Check thehook-to-needleclearance.There should Adjustment Screws Adjustment Screws be approximately½ of a needles-widthclearance (third screw not shown) (third screw not shown) betweenthehook pointandtheback of theneedle.

  • Page 232: Position Finger Bracket Adjustment

    Position F inger B r acket A djustment T he adjustable Position Finger is mounted in front of the hook assembly to secure the hook basket in place and balance the bobbin thread down the center of the embroidery. T he Position Finger is adjustable in two directions, left to right, and front to back.
  • Page 233 Trade Marks Windows is the trademark of the Microsoft Inc. １３‐１...

Table of Contents

Save PDF
