Summary of Contents for ProBreeze AF-04

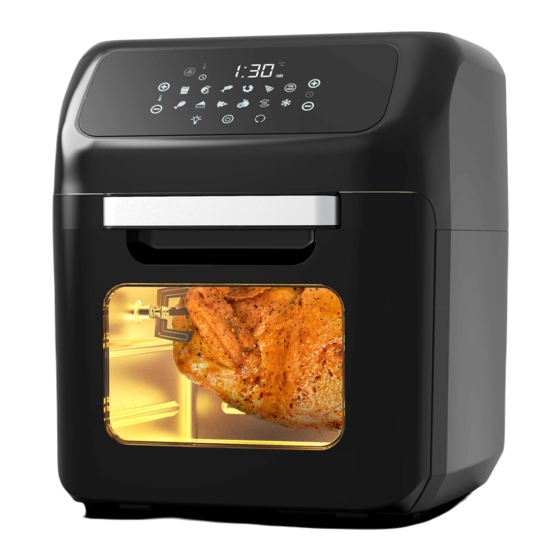

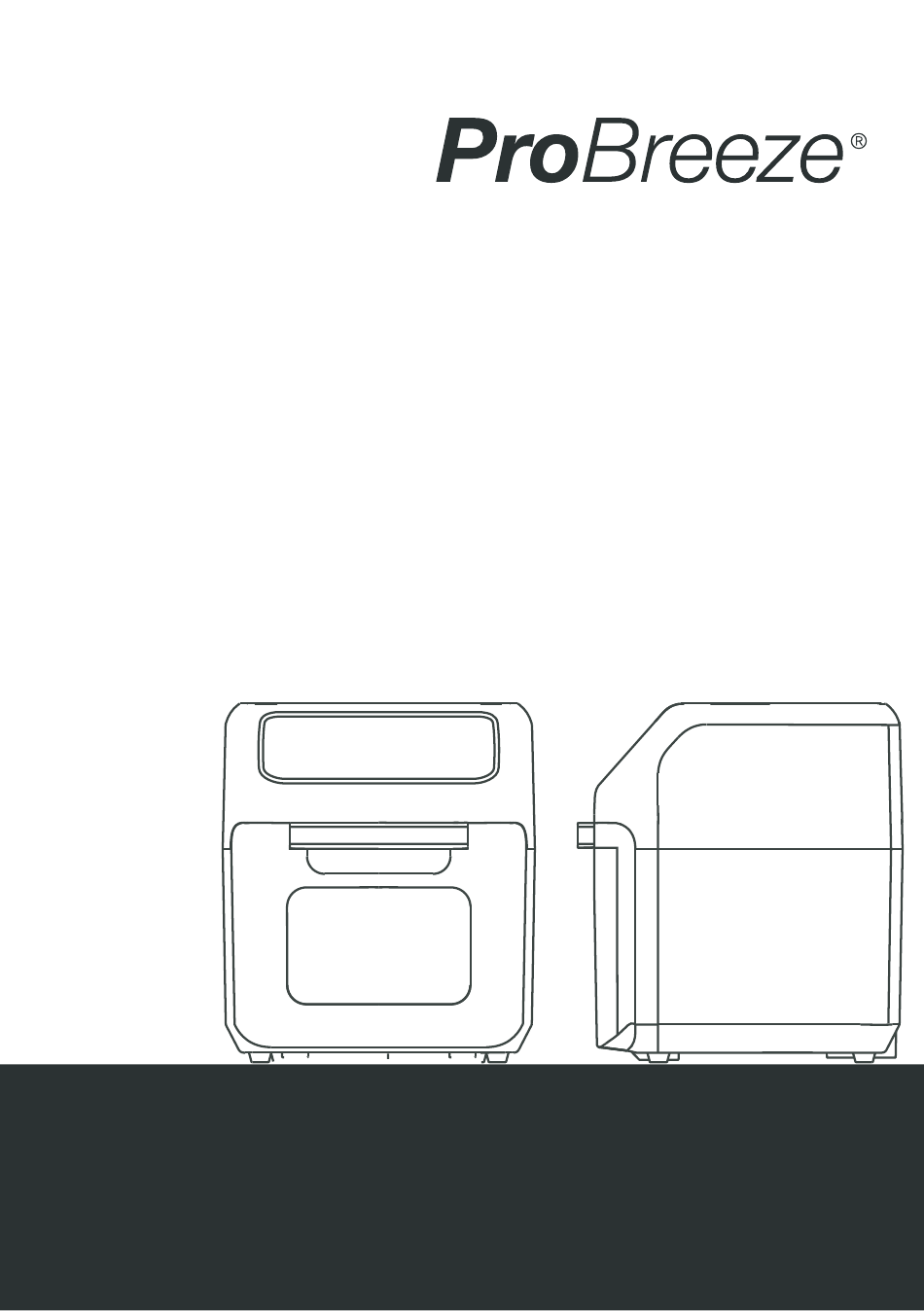

- Page 1 Instruction manual MODEL AF-04 12.7 Quart Digital Air Fryer Oven IMPORTANT INSTRUCTIONS - RETAIN FOR FUTURE USE.
-
Page 2: Safety Instructions
12.7 Quart Digital Air Fryer Oven| Model AF-04 Thank you for choosing to purchase a product from ProBreeze. Please read the entire manual carefully prior to first use and keep in a safe place for future reference. SAFETY INSTRUCTIONS WARNING: Read all safety notices, instructions, illustrations, and technical data provided with this appliance. - Page 3 The ventilation slots on the appliance must never be covered or blocked as this can cause the appliance to overheat. Do not place the appliance against a wall or other appliances. Do not operate the appliance under any surfaces, such as a kitchen cabinet. Always place the appliance on heat resistant mat or heat pad to prevent any potential damage to your worktop.
-
Page 4: Specifications
Make sure that the connected mains cable does not present a trip hazard. The mains cable may not hang down from the surface on which the appliance is placed in order to prevent the appliance from being pulled down. SPECIFICATIONS Model: AF-04-US Voltage: 120V~ Frequency: 60Hz Power: 1700W Capacity: 12.7 Quart... -
Page 5: Control Panel
PARTS 1 / 2 Control panel Digital display Air inlet Air outlet Upper housing Power cable CONTROL PANEL 12 8 16 19 Power On / Off: once the air fryer oven is plugged in, the on/off button will light up. Press the on/off button to illuminate the full panel and to activate the default cooking process (365°F for 15 minutes). - Page 6 Internal Light: press this button to check the cooking progress while the oven is in operation. Rotating Button: press this button when cooking anything using the rotisserie. This function can be used with any of the pre-set modes. The icon will blink while in use. Temperature Control Buttons: these buttons enable you to raise or lower the cooking temperature by 5°F intervals ranging from 180°F to 400°F in all modes, except the dehydrating mode where the temperature ranges from 90°F -170°F.
-
Page 7: Before First Use
BEFORE FIRST USE Read all the ‘Safety Instructions’ listed in this manual prior to first use. Remove all packaging materials from the air fryer oven and accessories supplied. Wipe the inside and outside of the appliance with a damp cloth. Thoroughly wash the spare parts with warm, soapy water, then rinse and dry thoroughly. - Page 8 OPERATING INSTRUCTIONS Place the air fryer oven on a flat, stable, heat-resistant surface. Insert the power plug into a power socket. When the door is open, the light will turn on. This will turn off when the door closed. Insert the drip tray into bottom of the appliance. This is used to collect oil from the cooking food and will make cleaning the device easier.
- Page 9 If the temperature or time needs to be adjusted during use, simply use the temperature and time increase and decrease buttons as required and the air fryer oven will automatically adjust. Once the timer comes to an end, the internal fan will continue to operate for 10 seconds to cool the air fryer down.
- Page 10 Carefully poke skewers through food. Insert each skewer point through holes on the left skewer rack. Squeeze the clip end of each skewer as you insert into the opposite skewer rack slot to secure. Release clip to securely rest in slot. Repeat steps 3-6 in a uniform manner around the skewer rack.
- Page 11 3./ 4. Round Rotating Basket Open the door of the air fryer oven and tilt the round basket to insert into the oven. Be sure the rotisserie stick is in place to engage rotation grooves. Place the right side onto the hangover. There are L and R marked on each side of round basket.
- Page 12 COOKING MODE GUIDE Note: This is a cooking guideline only and cooking should always be monitored. Pre-set Cooking Mode Pre-set Mode Time (Min) Temperature (°F) Fries Steaks/ Chops Fish Shrimp Pizza Chicken Baking Rotisserie Dehydrator 120 (2Hr) Keep Warm Pre-heat Frozen Food Potatoes and Chips Food...
- Page 13 Meat and Poultry Food Amount (g) Time (Min) Temperature (°F) Steak 400-700 10-15 Lamb chops 400-700 10-15 Pork chops 400-700 10-15 Hamburger 400-700 10-15 Sausage roll 400-700 13-15 Chicken breast 400-700 15-25 Chicken wings 400-700 20-25 Frozen chicken nuggets 400-700 10-15 Fish Food...
-
Page 14: Cleaning, Maintenance And Storage
CLEANING, MAINTENANCE & STORAGE WARNING: Always turn the appliance OFF, unplug the power cord from the electrical outlet and allow the appliance to completely cool down before handling, cleaning or storing. CAUTION: Do not immerse the appliance in water or any other liquid. Do not allow water or other liquids to run into the interior of the appliance, as this could create a fire and/or electrical hazard. -
Page 15: Fcc Statement
FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 16 One Retail Group, Ryland House, 24A Ryland Road, Kentish Town, London, NW5 3EH © Copyright 2020...
