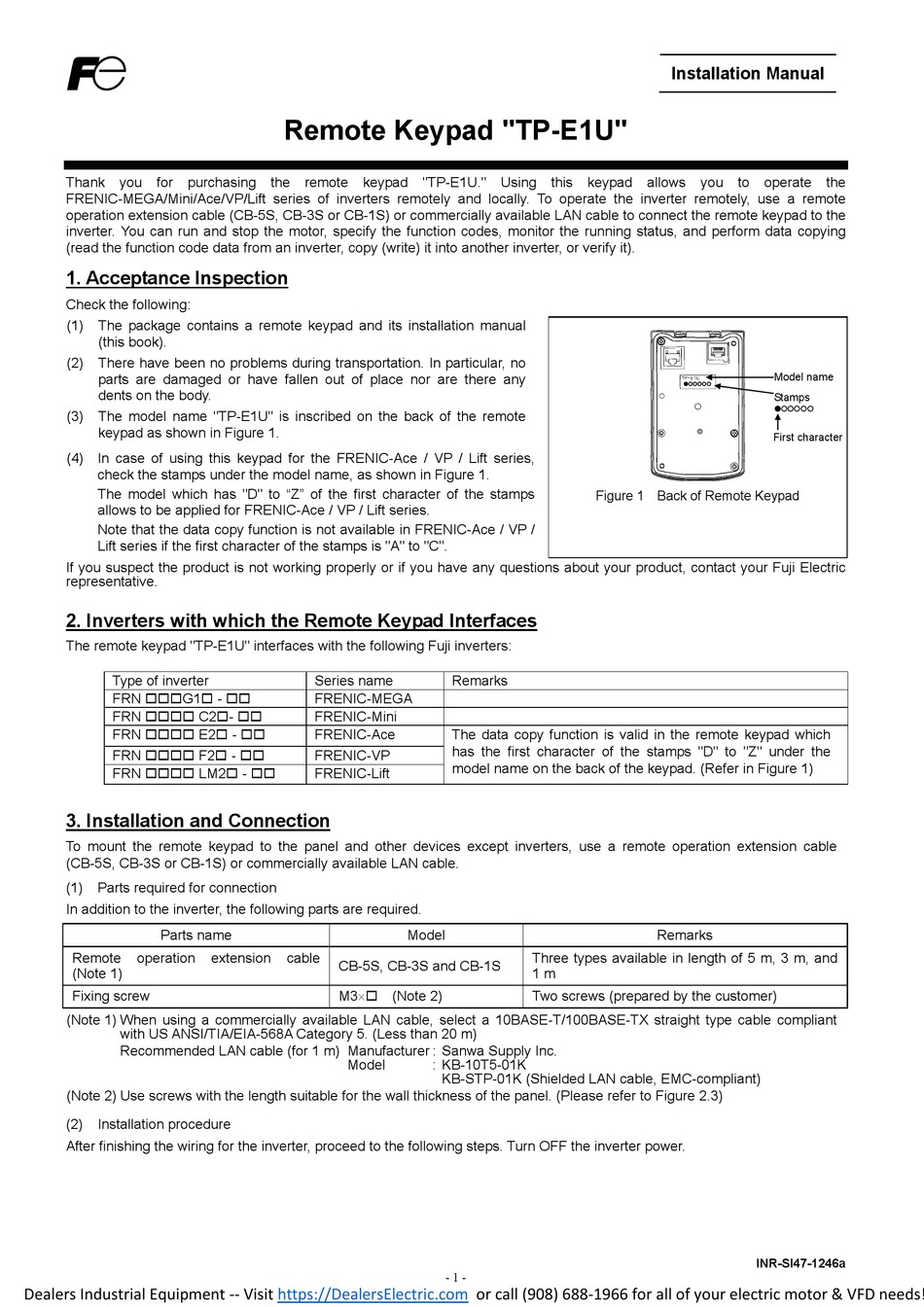

FE TP-E1U Installation Manual

Thank you for purchasing
FRENIC-MEGA/Mini/Ace/VP/Lift series of inverters remotely and locally. To operate the inverter remotely, use a remote
operation extension cable (CB-5S, CB-3S or CB-1S) or commercially available LAN cable to connect the remote keypad to the
inverter. You can run and stop the motor, specify the function codes, monitor the running status, and perform data copying
(read the function code data from an inverter, copy (write) it into another inverter, or verify it).
1. Acceptance Inspection
Check the following:
(1) The package contains a remote keypad and its installation manual
(this book).
(2) There have been no problems during transportation. In particular, no
parts are damaged or have fallen out of place nor are there any
dents on the body.
(3) The model name "TP-E1U" is inscribed on the back of the remote
keypad as shown in Figure 1.
(4) In case of using this keypad for the FRENIC-Ace / VP / Lift series,
check the stamps under the model name, as shown in Figure 1.
The model which has "D" to "Z" of the first character of the stamps
allows to be applied for FRENIC-Ace / VP / Lift series.
Note that the data copy function is not available in FRENIC-Ace / VP /
Lift series if the first character of the stamps is "A" to "C".
If you suspect the product is not working properly or if you have any questions about your product, contact your Fuji Electric
representative.
2. Inverters with which the Remote Keypad Interfaces
The remote keypad "TP-E1U" interfaces with the following Fuji inverters:
Type of inverter
FRN G1 - 
FRN  C2- 
FRN  E2 - 
FRN  F2 - 
FRN  LM2 - 
3. Installation and Connection
To mount the remote keypad to the panel and other devices except inverters, use a remote operation extension cable
(CB-5S, CB-3S or CB-1S) or commercially available LAN cable.
(1) Parts required for connection
In addition to the inverter, the following parts are required.
Parts name
Remote operation
(Note 1)
Fixing screw
(Note 1) When using a commercially available LAN cable, select a 10BASE-T/100BASE-TX straight type cable compliant
with US ANSI/TIA/EIA-568A Category 5. (Less than 20 m)
Recommended LAN cable (for 1 m) Manufacturer : Sanwa Supply Inc.
(Note 2) Use screws with the length suitable for the wall thickness of the panel. (Please refer to Figure 2.3)
(2) Installation procedure
After finishing the wiring for the inverter, proceed to the following steps. Turn OFF the inverter power.
Dealers Industrial Equipment -- Visit
Remote Keypad "TP-E1U"
the remote keypad
Series name
FRENIC-MEGA
FRENIC-Mini
FRENIC-Ace
FRENIC-VP
FRENIC-Lift
extension cable
CB-5S, CB-3S and CB-1S
M3 (Note 2)
Model
https://DealersElectric.com
"TP-E1U." Using this
Remarks
The data copy function is valid in the remote keypad which
has the first character of the stamps "D" to "Z" under the
model name on the back of the keypad. (Refer in Figure 1)
Model
Three types available in length of 5 m, 3 m, and
1 m
Two screws (prepared by the customer)
: KB-10T5-01K
KB-STP-01K (Shielded LAN cable, EMC-compliant)
- 1 -
or call (908) 688-1966 for all of your electric motor & VFD needs!
Installation Manual
keypad allows you to
Figure 1 Back of Remote Keypad
Remarks
INR-SI47-1246a
operate the
Model name
Stamps
First character
