Page 1: Notebook Pc User Manual

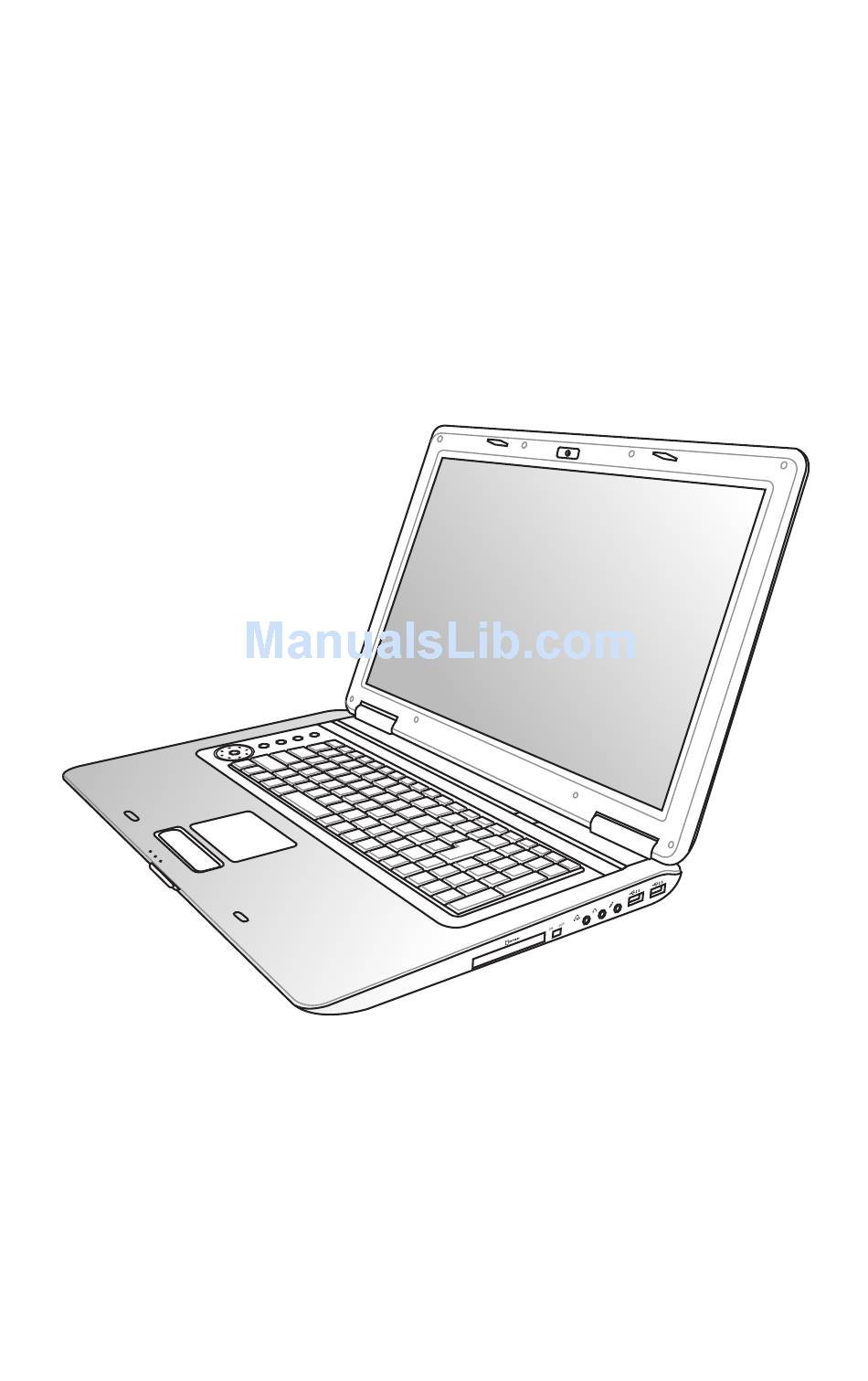

E4458 Notebook PC User Manual March 2009... -
Page 2: Table Of Contents
Table of Contents Safety Precautions ... 3 Preparing your Notebook PC ... 5 Using the Touchpad ... 7 Knowing the Parts ... 8 Left Side ... 8 Right Side ...10 Rear Side ...12 Front Side ...14 Recovering Your Notebook PC ...15 Using Recovery Partition ...15 Using Recovery DVD (on selected models) ...17 Declarations and Safety Statements ...18... -
Page 3: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the Notebook PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Disconnect the AC power and remove the battery pack(s) before cleaning. - Page 4 SAFE TEMP: This Notebook PC should only be used in environments with ambient temperatures between 10°C (50°F) and 35°C (95°F) DO NOT carry or cover a Notebook PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.
-
Page 5: Preparing Your Notebook Pc
Preparing your Notebook PC These are only quick instructions for using your Notebook PC. Installing the Battery Pack Connecting the Power Adapter HDMI 1 1 0 V - 2 2 0 V Notebook PC User Manual... - Page 6 Opening the LCD display panel Press the display panel button to open the display panel. Carefully lift up the display panel with your thumb. Slowly tilt the display panel forward or backward to a comfortable viewing angle. Turning on the Power Push and release the power button located beneath the LCD display panel.
-
Page 7: Using The Touchpad
Using the Touchpad A. Slide your finger across the touchpad to move the pointer. You can also hold the left button and slide your finger to drag the selected item. Use the left and right buttons like a standard mouse. Slide your finger up or down on the right side to scroll up or down a window. -
Page 8: Knowing The Parts
Knowing the Parts Left Side Flash Memory Slot Normally an external memory card reader must be purchased separately in order to use memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs. This Notebook PC has a built-in high-speed memory card reader that can conveniently read from and write to many flash memory cards as mentioned later in this manual. - Page 9 Optical Drive Electronic Eject The optical drive eject has an electronic eject button for opening the tray. You can also eject the optical drive tray through any software player or by right clicking the optical drive in Windows “Computer” and selecting Eject. This eject also functions as the optical drive activity indicator which shows when data is being transferred by the optical disk drive.
-
Page 10: Right Side
Right Side ExpressCard Slot One 2pin Express card slot is available to support one ExpressCard/34mm or one ExpressCard/54mm expansion card. This new interface is faster by using a serial bus supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC card slot. - Page 11 Headphone Output Jack The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers. Microphone Input Jack The mono microphone jack (1/8 inch) can be used to connect an external microphone or output signals from audio devices.
-
Page 12: Rear Side
Rear Side Power (DC) Input The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Notebook PC and charges the internal battery pack. To prevent damage to the Notebook PC and battery pack, always use the supplied power adapter. - Page 13 HDMI HDMI Port HDMI (High-Definition Multimedia Interface) is an uncompressed all-digital audio/video interface between any audio/video source, such as a set-top box, DVD player, and A/V receiver and an audio and/or video monitor, such as a digital television (DTV). Supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable.
-
Page 14: Front Side
Front Side Audio Speaker System The built-in stereo speaker system allows you to hear audio without additional attachments. The multimedia sound system features an integrated digital audio controller that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled. -
Page 15: Recovering Your Notebook Pc
Using the Recovery Partition: Press [F9] during bootup. Press [Enter] to select Windows Setup [EMS Enabled]. Read the ASUS Preload Wizard screen and click Next. Select a partition option and click Next. Partition options: Recover Windows to first partition only. - Page 16 This option deletes all partitions from your hard drive and creates two new partitions “C” (0%) and “D” (40%). Follow the onscreen instructions to complete the recovery process. Visit the ASUS website at www.asus.com for updated drivers and utilities. Notebook PC User Manual...
-
Page 17: Using Recovery Dvd (On Selected Models)
Follow the onscreen instructions to complete the recovery process. WARNING: Do not remove the Recovery disc, unless instructed to do so, during the recovery process or else your partitions will be unusable. Visit the ASUS website at www.asus.com for updated drivers and utilities. Notebook PC User Manual... -
Page 18: Declarations And Safety Statements
Declarations and Safety Statements Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Fcc Radio Frequency (Rf) Exposure Caution Statement
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.) FCC Radio Frequency (RF) Exposure Caution Statement Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. -
Page 20: Ce Mark Warning
CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. IC Radiation Exposure Statement for Canada This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. -
Page 21: Wireless Operation Channel For Different Domains
Wireless Operation Channel for Different Domains N. America 2.412-2.42 GHz Japan 2.412-2.484 GHz Europe ETSI 2.412-2.472 GHz France Restricted Wireless Frequency Bands Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are: • 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz) •... - Page 22 0 Oise 4 Pyrénées Atlantique 8 Haut Rhin 71 Saône et Loire 82 Tarn et Garonne 89 Yonne 94 Val de Marne This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom.fr) Your WLAN Card transmits less than 100mW, but more than 10mW.
-
