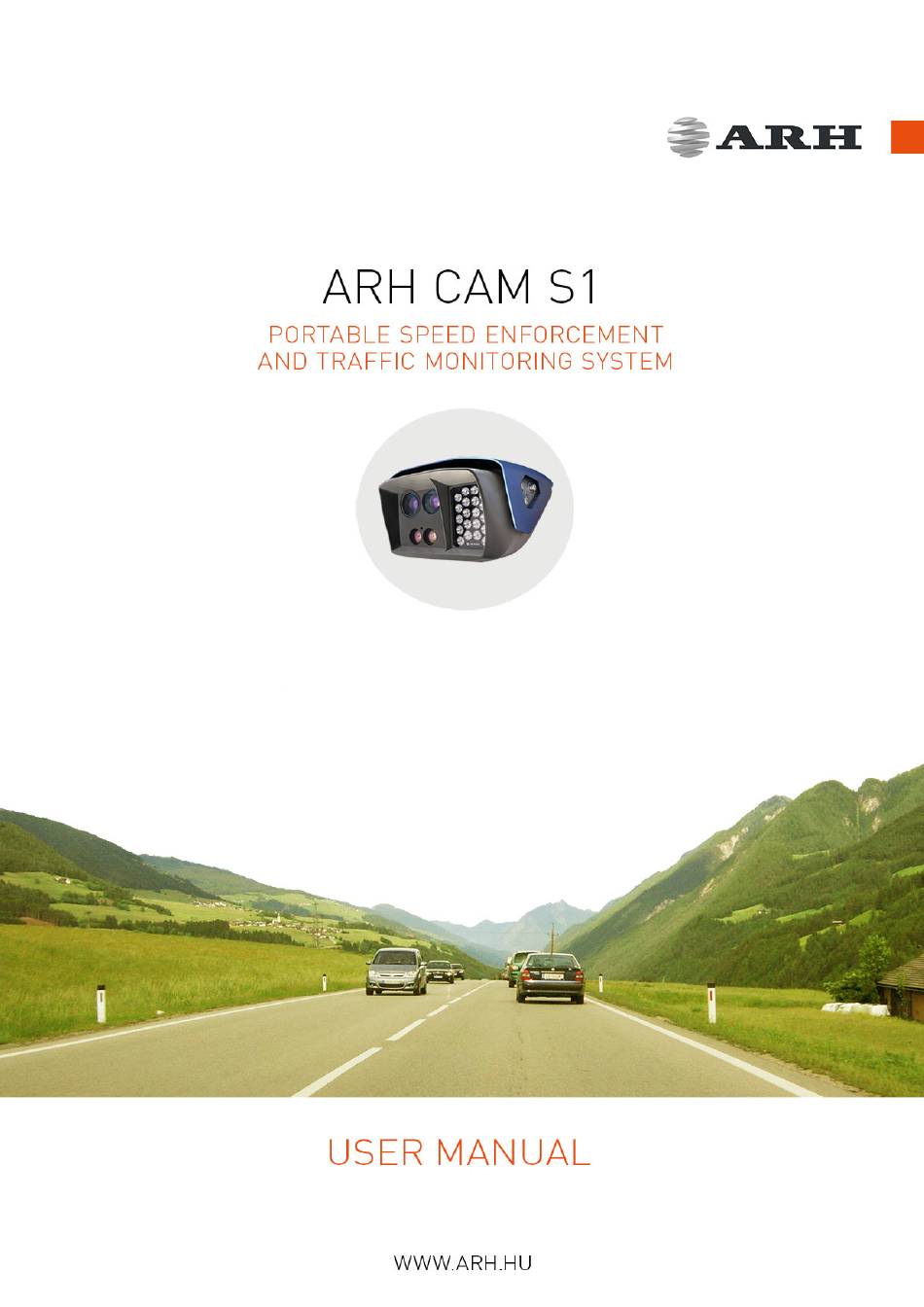

ARH CAM S1 User Manual

Portable speed enforcement and traffic monitoring system
Hide thumbs Also See for CAM S1:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARH CAM S1

Summary of Contents for ARH CAM S1

  • Page 2: Table Of Contents

    ARH CAM S1 USER MANUAL Version: 2.02.00 Document version: 2020.03.23. Table of Contents INTRODUCTION ................................... 2 SETUP ARH CAM S1 ................................3 LOGIN ....................................... 4 SETUP ENFORCEMENT ..............................5 STOP ENFORCEMENT ................................ 8 INTRODUCTION TO THE MAIN SCREEN ........................9 BOTTOM INFORMATION BAR ........................

  • Page 3: Introduction

    INTRODUCTION S1 is a mobile no-staff speed and traffic enforcement camera with on-board ANPR. It is capable of spotting a violator from 1200 meters (4000 feet) away and returning certified speed measurement result from 600 meters (2000 feet) away. The unique high-precision built-in laser technology reaches as far as no other speed monitoring camera on the market.

  • Page 4: Setup Arh Cam S1

    SETUP ARH CAM S1 1. Connect external battery to ARH CAM S1. Power cable plug has a red straight sign to show the proper way of connecting to the camera. It must be on the top. 2. Turn on external battery.

  • Page 5: Login

    LOGIN After the start-up process, the Login screen will appear. On the Login screen, select “Data Center” icon, type in Username and Password (click in to the empty field, touch-screen keyboard will pop-up, enter necessary characters, then press “Next” button), press OK, “Main” screen will appear. Page 4/27 S1 USER MANUAL 2.00.01...

  • Page 6: Setup Enforcement

    SETUP ENFORCEMENT 1. Position camera properly so as to the white or green circle with cross must be in the level of the number plates. Hereinafter we call it marker. On the “Main” screen, click on “Enforcement” floating menu, located on the upper left side of the screen. “Enforcement” menu contains “Select location and method”...
  • Page 7 To exactly measure the "Offset from lane center", touch the ruler icon to help you accurately measure the distance from the center of the lane. Point the device at the center of the lane, then touch the ruler icon next to field A to insert the measured distance. You will see that the value of A is the same as the distance displayed in the lower left corner of the screen.
  • Page 8 13. ARH CAM S1 device is started measurement. First, split window will appear with the live view on the left side and 3 small windows with the last 3 detected events. By tapping on the left live view image, it will guide you back to the main window.

  • Page 9: Stop Enforcement

    STOP ENFORCEMENT If you have finished the measurement, click on “Stop enforcement” icon, then “Log out” icon and finally tap “Power off” icon on the Login window to switch off the device. Page 8/27 S1 USER MANUAL 2.00.01...

  • Page 10: Introduction To The Main Screen

    INTRODUCTION TO THE MAIN SCREEN After login, the Main screen will appear. The live view is situated in the center of the screen with the information bar. • Marker in the middle of live view shows: a. Red cross - no reflected signal or targeted object is outside of the adjusted parameters.

  • Page 11: Bottom Information Bar

    1. BOTTOM INFORMATION BAR In the bottom information bar, you can see the vehicle’s data which was reached by the laser beam: speed, direction, distance. By tapping on “Start recording”, you can record a 15 second video from the enforcement. It will guide you next to the “Setting of manually recorded event”...
  • Page 12 The date and the current time can be seen on the upper edge of the screen: * The software version, containing the test and educational profiles, are developed in case of occasional usage! Signal strength of the data connection (signal strength): weak, good, excellent Speed of the data connection: 2G, 3G, 4G GPS connection indicator, white if it is connected, grey if it is not.

  • Page 13: Enforcement Menu

    3. ENFORCEMENT MENU Select, add and edit all measurement function which is crucial for the enforcement. • New enforcement: start adding new measurement parameters after a finished enforcement. • Select location and method: enter related location and task data to the measurement method.

  • Page 14: Information Menu

    4. INFORMATION MENU • Enforcement information: Parameters and settings of the actual measurement can be seen • Start/End of Enforcement, • GPS coordinates, • Distance and speed data, • Status informations Page 13/27 S1 USER MANUAL 2.00.01...

  • Page 15: Events Menu

    • recordings (pictures, videos) and data are listed for the selected events 6. DEVICES • ARH CAM S1: camera data is displayed • INFO: status of the device is displayed Page 14/27 S1 USER MANUAL 2.00.01...

  • Page 16: Options

    7. OPTIONS • Image on display can be adjusted according to the environment light conditions. During night measurement, brightness reduction of display is advisable to not be disturbing. • License plate detection area can be set for more accurate setup (green light indicates it’s working) During night measurement, it is recommended to reduce brightness of the display to not be disturbing.

  • Page 17: Camera

    8. CAMERA • Focus: set focus to the required sharpness with automatic focus button, or with the manual focus setting, and the vehicles license plate seen on the livestream should be readable • Focus fine tuning: adjust focus with finer scale. •...

  • Page 18: Detailed Description Of The Speed Measurement

    DETAILED DESCRIPTION OF THE SPEED MEASUREMENT There are two measurement versions: • Automatic speed measurement: there is no need for the operator during the measurement. • Manual speed measurement: this function requires an operator. In addition, the camera must not be fixed, since the purpose of this type of speed measurement is that the camera must be point to the target vehicle in order to track the vehicles passing by.
  • Page 19 Marker: follow-up tracking, a green frame is displayed around the marker during continuous targeting. Category: before targeting, it must be set to the appropriate vehicle category. The followed-up vehicle being tracked and judged by the category indicated on the button. Interrupt follow-up: This button will appear if the target vehicle speed has exceeded the documentation speed limit for the selected category.
  • Page 20 • Vehicle monitoring: creating an event of all passing vehicle with number plate, nationality, vehicle class, speed and distance. • Vehicle counting: counting all passing vehicle. It can only be used together with “Automatic speed measurement” and “Vehicle monitoring” function. •...
  • Page 21 • Motorway service lane: it is inspecting vehicles passing in the service lane. Setup is the same as described as “Prohibited overtaking”. • Bus lane: Same method as “Motorway service lane”. Page 20/27 S1 USER MANUAL 2.00.01...

  • Page 22: Control Functions Pairing

    CONTROL FUNCTIONS PAIRING 1. Top line „Automatic speed control”+”Vehicle monitoring”+”Vehicle counting”+”ADR” “Manual speed control”+”Vehicle monitoring”+”ADR” 2. Bottom line „Automatic speed control”+one function from the bottom line Page 21/27 S1 USER MANUAL 2.00.01...

  • Page 23: Usage Of Tripod

    Clicking sound confirm right position of camera on the rail. 10. Ran fixing screw of the camera. You can position ARH CAM S1 vertically and horizontally by release level handle under the rail of tripod. Page 22/27...
  • Page 24 Page 23/27 S1 USER MANUAL 2.00.01...
  • Page 25 Page 24/27 S1 USER MANUAL 2.00.01...

  • Page 26: Fold Up Of Tripod

    2. FOLD UP OF TRIPOD 1. Release knob of the camera. 2. Pull off camera from rail by pressing the auto lock safety pin on the left side. 3. Release screw on horizontal spreader (3 pcs). 4. Fold up legs. Level handle under the rail of tripod must be straight when fold it up I order to fit in the hole between legs.
  • Page 27 Page 26/27 S1 USER MANUAL 2.00.01...

  • Page 28: Contact Information

    Web: www.adaptiverecognition.com ARH Technical Support System (ATSS) is designed to provide you the fastest and most proficient assistance, so you can quickly get back to business. For further technical information about our products, please visit our official website. Information regarding hardware, software, manuals and FAQ are easily accessible for customers who previously registered to enter the dedicated ATSS site.
