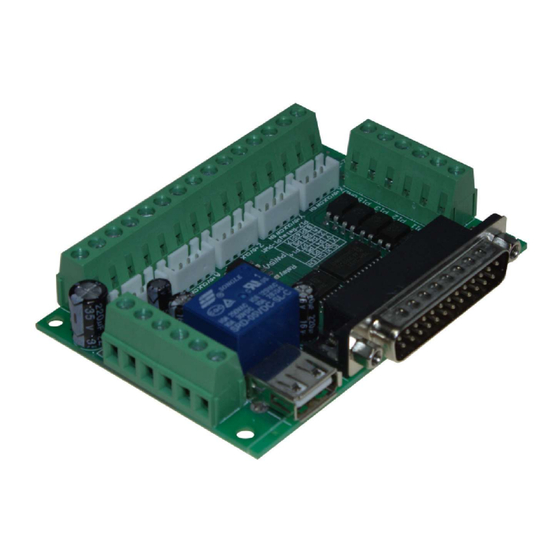

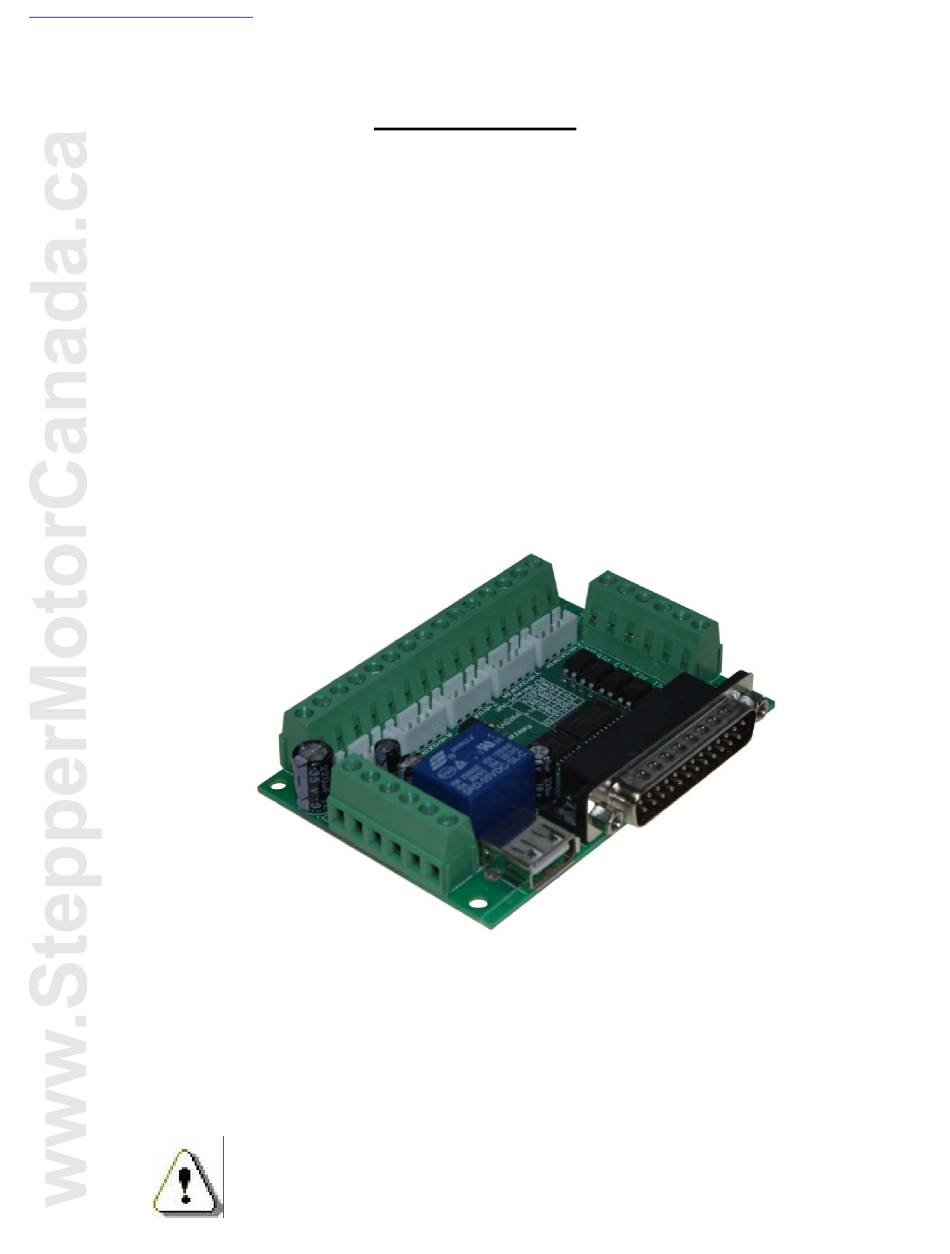

- Page 1 1-905-442-5550 Manual 5 Axis CNC Interface Breakout Board Model#-DB25-1R5AM ead this manual carefully before making connections to the board. Store this manual away for further reference.
- Page 2 It can not be used with serial printer cables, usb to serial printer cord adapters, or any other cable that is not a parallel printer cable . If your computer does not come with a DB25 parallel printer port, one may be installed. To avoid frustration be sure you have the right cable. Model#-DB25-1R5AM...
- Page 3 CNC lathes CNC lasma cutting machine CNC laser engraving machine CNC milling machine etc. The use of the DB25-1R5AM is designed to put an isolation buffer between the computers sensitive electronics and the high current and voltages of the control (motor) drivers. The board also aids in making easy connections of the line printer port and to help boost signal strength.
- Page 4 7 The CNC control board can control step motor diver with common cathode or common an ode connections . It also can control servo motor with digital signal . Model#-DB25-1R5AM...
- Page 5 P8 is for A axis pulse, P9 is for A axis direction. P14 Enable P16 is for B axis pulse, P17 is for B Axis direction NOTE: P17 can be used for controlling the onboard relay. Removing jumper: P17 as B axis direction. Connecting jumper: P17 as Relay control. Model#-DB25-1R5AM...
- Page 6 Signal inputs P10 - P15 can connect to a sensor or switch. The inputs then can be recognized by the software. Example of connection: P10 Emergency Stop P11 Tool Setting P12 X axis limit switch P13 Y axis limit switch P15 Z axis limit switch Model#-DB25-1R5AM...
- Page 7 1-905-442-5550 Stepper Driver Model#-DB25-1R5AM...
