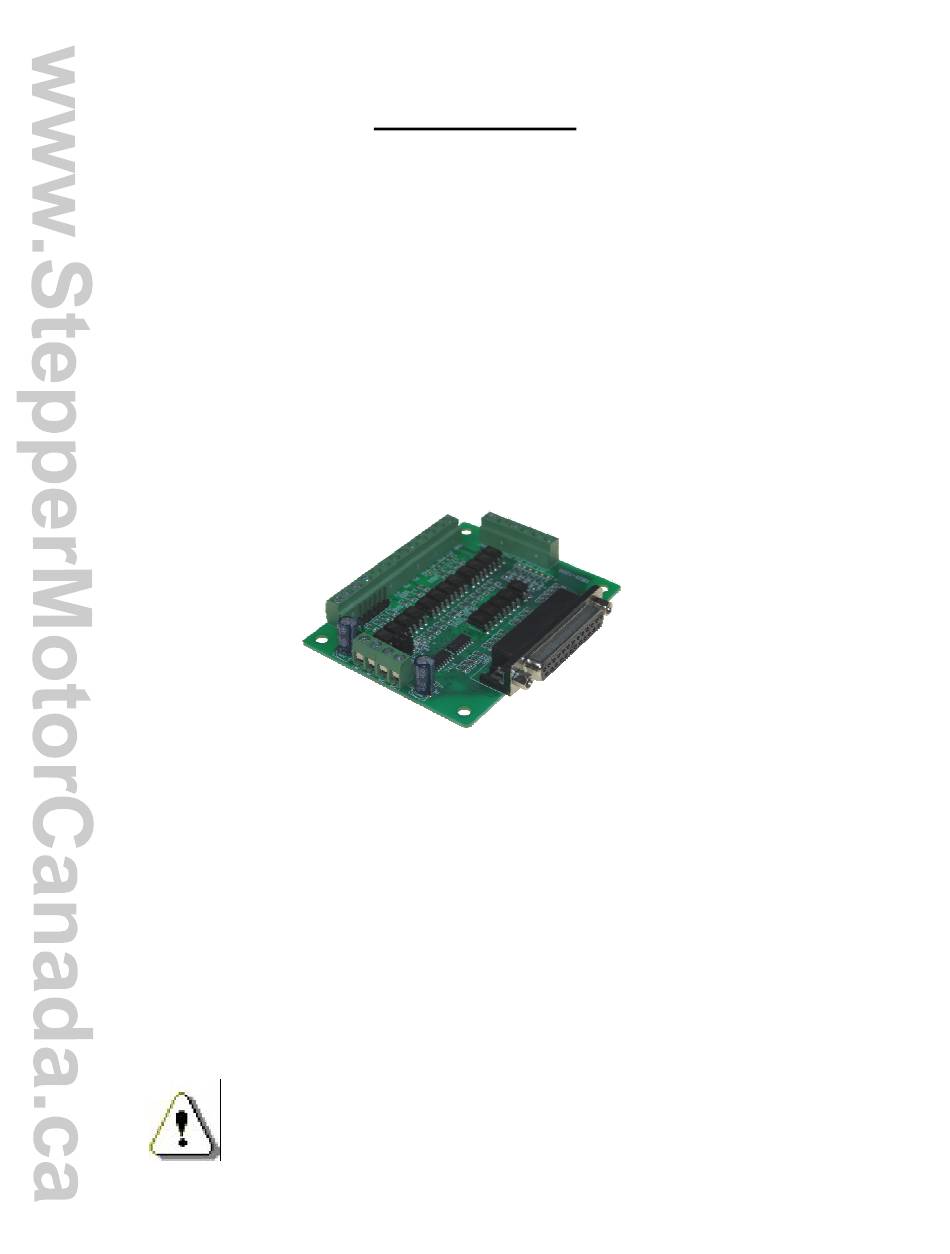

- Page 1 Manual 6 Axis CNC Interface Breakout Board Model#-DB25-1205F ead this manual carefully before making connections to the board. Store this manual away for further reference.
- Page 2 Keep the board in adequate ventilation. Keep the board from mechanical damage. Note: the DB25-1205F, has a female 25 pin line printer port input to be used with a male parallel printer cable. It can not be used with serial printer cables, usb to serial printer cord adapters, or any other cable that is not a parallel printer cable .

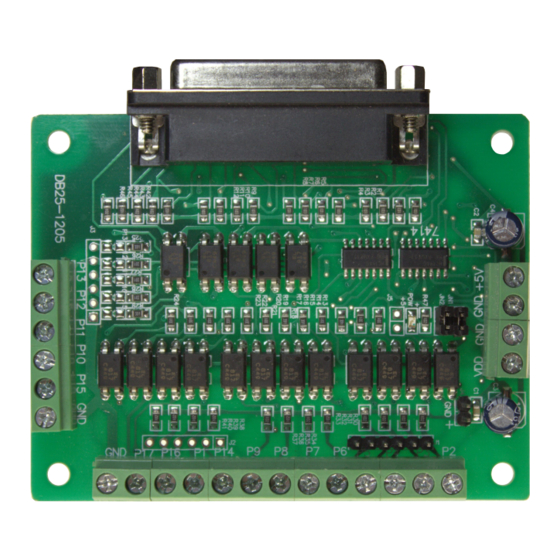

- Page 3 Model#-DB25-1205F DB 25 Male Connector DB 25 Female Connector Signal Inputs Power In P17 P16 P1 P14 P9 P8 P7 P6 P5 P4 P3 P2 Signal Outputs P2 is for X axis pulse, P3 is for X a is direction...
- Page 4 The +5V and the isolating source (+) will NOT be connected. The GND and the isolating source (GND) will NOT be connected J1 is the contact pin output. It is the same as signal outputs P2 - P7 Designed to be used with 6 pin connector for small drivers. Model#-DB25-1205F...
- Page 5 Signal inputs P10 - P15 can connect to a sensor or switch. The inputs then can be recognized by the software. Example of connection: P10 Emergency Stop P11 Tool Setting P12 X axis limit switch P13 Y axis limit switch P15 Z axis limit switch Model#-DB25-1205F...
