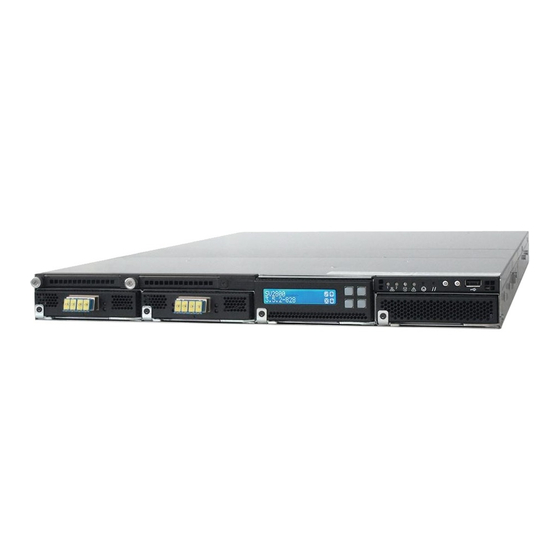

- Page 1 Symantec™ Appliance — SSL Visibility SV800/1800/2800/3800 CRU Installation Guide 231-03213 Rev CA...
- Page 2 Copyright © 2019 Symantec Corp. All rights reserved. Symantec, the Symantec Logo, the Checkmark Logo, Blue Coat, and the Blue Coat logo are trademarks or registered trademarks of Symantec Corp. or its affiliates in the U.S. and other countries. Other names may be trademarks of their respective owners. This document is provided for informational purposes only and is not intended as advertising.
-
Page 3: Table Of Contents
Contents Chapter 1: Preface..................5 Electrostatic Discharge (ESD) ..................... 5 Online Documentation Information..................7 Chapter 2: About This Guide................9 CRU Kits .............................. 9 Chapter 3: CRU Installation Instructions..........11 SV800 CRU Installation........................12 SV1800 CRU Installation ......................13 SV2800/SV3800 CRU Installation ....................14 Chapter 4: Component Transfer............... 15 Transfer SV1800 Power Supplies.....................16 Transfer SV2800/3800 Power Supplies .................17 Transfer SV2800/3800 Network Modules ................18... - Page 4 Contents...
-
Page 5: Chapter 1: Preface
CHAPTER Preface This preface provides prerequisite safety, warning, and background information about replacing your orig- inal appliance chassis with a chassis replacement unit (CRU). Important: Review “Safety Warnings and Cautions” in the appliance’s Safety and Conformity Guide before servicing your appliance. Electrostatic Discharge (ESD) CAUTION ESD can damage disk drives, boards, and other parts. - Page 6 ATTENTION Les DES peuvent endommager les lecteurs de disque, les cartes, ainsi que d'autres éléments. Nous vous recommandons d'exécuter toutes les procédures depuis une station de travail dotée d'une protection contre les DES. En son absence, prévoyez une protection contre les DES en por- tant un bracelet antistatique relié...
-
Page 7: Online Documentation Information
Additional documentation and electronic copies of printed materials can be found online for your appli- ance. This documentation is periodically revised to include new and updated information and might not be identical to the original printed documentation. To view or download Symantec documentation, visit: https://support.symantec.com/en_US/Documentation.html Chapter 1 Preface... - Page 8 Chapter 1 Preface...
-
Page 9: Chapter 2: About This Guide
Available SSL Visibility CRU kits are listed below. Verify that your CRU matches the kit contents listed and go to the installation procedure in the right-most column. SSL Visibility appliances support a number of Symantec product platforms. Consult the software release notes for release information and other up- grade-related materials. - Page 10 Chapter 2 About This Guide...
-
Page 11: Chapter 3: Cru Installation Instructions
CHAPTER CRU Installation Instructions SSL Visibility CRU instructions are documented in the following sections: • “SV800 CRU Installation” on page 12 • “SV1800 CRU Installation” on page 13 • “SV2800/SV3800 CRU Installation” on page 14... -
Page 12: Sv800 Cru Installation
CRU. For more information, see “Back Up and Restore Configuration” on page 25 and “Download and Install License” on page 26. Repackage the original appliance in the CRU shipping container and return it to Symantec. Chapter 3 CRU Installation Instructions... -
Page 13: Sv1800 Cru Installation
CRU. For more information, see “Back Up and Restore Configuration” on page 25 and “Download and Install License” on page 26. Repackage the original appliance in the CRU shipping container and return it to Symantec. Chapter 3 CRU Installation Instructions... -
Page 14: Sv2800/Sv3800 Cru Installation
CRU. For more information, see “Back Up and Restore Configuration” on page 25 and “Download and Install License” on page 26. Repackage the original appliance in the CRU shipping container and return it to Symantec. Chapter 3 CRU Installation Instructions... -
Page 15: Chapter 4: Component Transfer
CHAPTER Component Transfer When replacing an appliance chassis with a CRU, the original chassis components—power supplies, net- work modules, and chassis rails—must be transferred to the CRU. Instructions for transferring components are documented in the following sections: • “Transfer SV1800 Power Supplies” on page 16 •... -
Page 16: Transfer Sv1800 Power Supplies
Transfer SV1800 Power Supplies SV1800 power supplies are hot swappable. However, if the appliance is powered by a single power supply, removing that power supply will cause the system to fail. Powering off the appliance in this manner could cause disk corruption. SV1800 power supplies are secured with retention latches. To transfer SV1800 power supplies from the original appliance to the CRU: 1 Power off the original appliance and unplug the power supply cables. -
Page 17: Transfer Sv2800/3800 Power Supplies
Transfer SV2800/3800 Power Supplies SV2800 and SV3800 power supplies are hot swappable. However, if the appliance is powered by a single power supply, removing that power supply will cause the system to fail. Powering off the appliance in this manner could cause disk corruption. SV2800 and SV3800 power supplies are secured with a retainer bar and retention latches. -
Page 18: Transfer Sv2800/3800 Network Modules
SV2800 and SV3800 appliances do not include network modules; if your deployment requires them, they must be purchased separately from Symantec. Network modules are installed in the appliance’s front bays, which are numbered left to right and top to bottom. - Page 19 • While continuing to pull the ejector handle forward, remove the network module from the original appliance. 3 Insert the network module in the CRU: • If necessary, remove the blank panel covering the empty slot in the CRU. • Insert the network module in the empty slot until the protrusion on the right side of the module (the ejector latch) touches the chassis.
-
Page 20: Transfer Sv1800, Sv2800, And Sv3800 Rack Rails
Transfer SV1800, SV2800, and SV3800 Rack Rails The slide-rail mounting kit included with SV1800, SV2800, and SV3800 appliances allows them to be rack- mounted in a four-post equipment rack with a depth of 27.75” to 37.00” with square mounting holes. Caution: If you are installing the appliance in an enclosed equipment rack, make sure to provide sufficient airflow to prevent the appliance from overheating, which can cause damage. - Page 21 3 Attach the inner chassis rails to the CRU by aligning them with the chassis posts and sliding them toward the front of the appliance. Note: The inner chassis rails are symmetrical and can be installed on either side of the appliance. 4 Install the CRU in the rack by aligning and inserting the inner chassis rails into the rack rails.
- Page 22 Chapter 4 Component Transfer...
-
Page 23: Chapter 5: Software Maintenance
CHAPTER Software Maintenance When replacing an original chassis with a CRU, you will need to restore the original configuration, license the CRU, and, if necessary, update the SSL Visibility software. This chapter includes the following topics: • “Update SSL Visibility Software” on page 24 •... -
Page 24: Update Ssl Visibility Software
• A MySymantec account. For help on creating a MySymantec account, refer to the Getting Started page available at: https://www.symantec.com/support-center/getting-started To download the SSL Visibility software update: 1 Log in to your MySymantec account. 2 Go to the My Products tab to display a list of entitlements associated with your account. -
Page 25: Back Up And Restore Configuration
Back Up and Restore Configuration Make sure to back up the SSL Visibility configuration before replacing the original appliance with the CRU. After installing the CRU, make sure to restore the configuration from the original appliance. It’s important to back up your SSL Visibility configuration settings on a regular basis. Back Up Configuration To back up the SSL Visibility configuration: 1 Select (Platform Management) >... -
Page 26: Download And Install License
Chassis FRU Info. • A MySymantec account. For help on creating a MySymantec account, refer to the Getting Started page available at: https://www.symantec.com/support-center/getting-started Download License To download the SSL Visibility license: 1 Log in to your MySymantec account. - Page 28 www.symantec.com...
