MULLIGAN ASSOCIATES Ceado ES500 Instructions

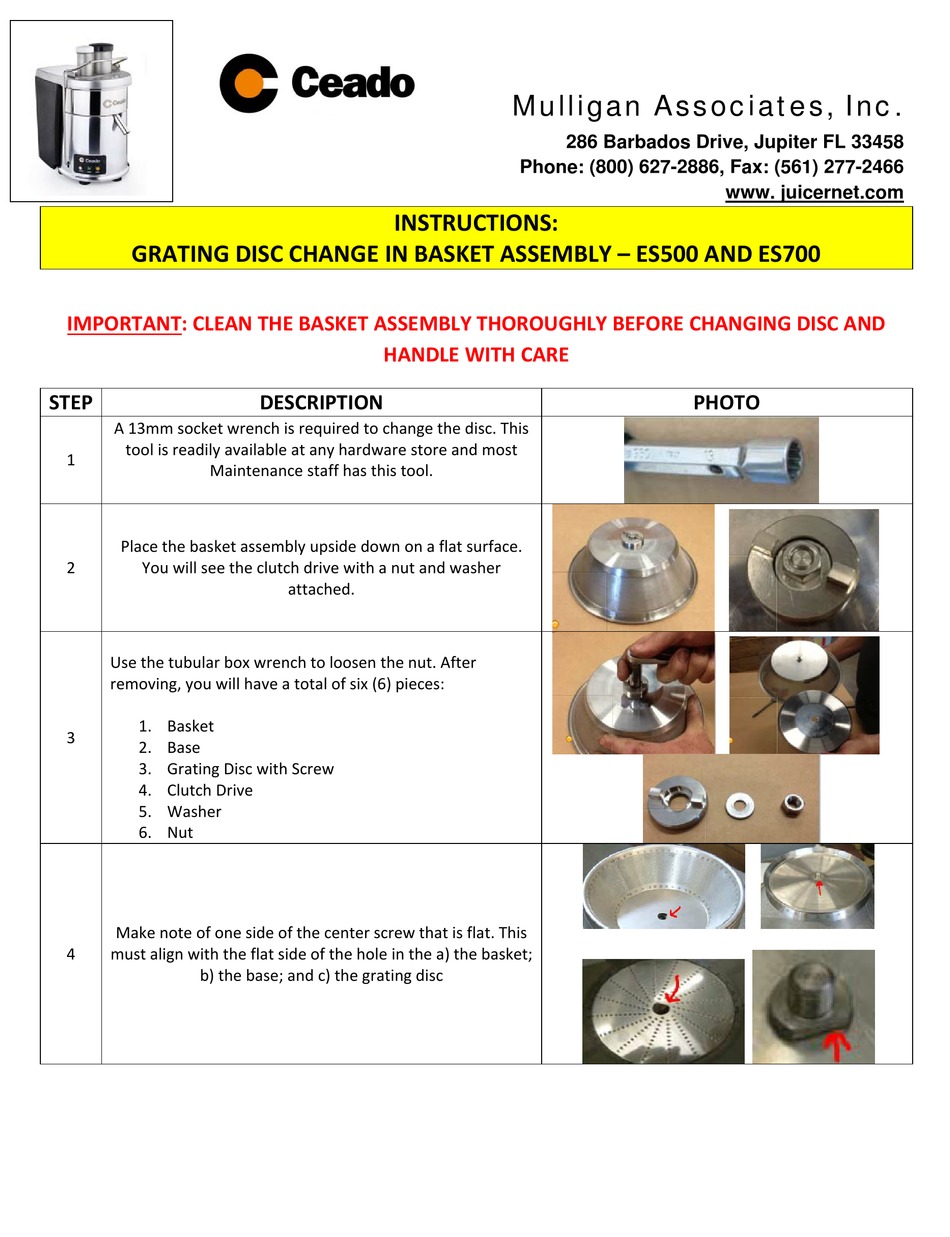

GRATING DISC CHANGE IN BASKET ASSEMBLY – ES500 AND ES700

IMPORTANT: CLEAN THE BASKET ASSEMBLY THOROUGHLY BEFORE CHANGING DISC AND

STEP

A 13mm socket wrench is required to change the disc. This

tool is readily available at any hardware store and most

Maintenance staff has this tool.

Place the basket assembly upside down on a flat surface.

You will see the clutch drive with a nut and washer

Use the tubular box wrench to loosen the nut. After

removing, you will have a total of six (6) pieces:

1. Basket

2. Base

3. Grating Disc with Screw

4. Clutch Drive

5. Washer

6. Nut

Make note of one side of the center screw that is flat. This

must align with the flat side of the hole in the a) the basket;

b) the base; and c) the grating disc

INSTRUCTIONS:

HANDLE WITH CARE

DESCRIPTION

attached.

Mulligan Associates, Inc.

286 Barbados Drive, Jupiter FL 33458

Phone: (800) 627-2886, Fax: (561) 277-2466

www. juicernet.com


Table of Contents

Need help?

Do you have a question about the Ceado ES500 and is the answer not in the manual?

Page 1 Mulligan Associates, Inc. 286 Barbados Drive, Jupiter FL 33458 Phone: (800) 627-2886, Fax: (561) 277-2466 www. juicernet.com INSTRUCTIONS: GRATING DISC CHANGE IN BASKET ASSEMBLY – ES500 AND ES700 IMPORTANT: CLEAN THE BASKET ASSEMBLY THOROUGHLY BEFORE CHANGING DISC AND HANDLE WITH CARE STEP DESCRIPTION PHOTO A 13mm socket wrench is required to change the disc. This tool is readily available at any hardware store and most 1 Maintenance staff has this tool. Place the basket assembly upside down on a flat surface. 2 You will see the clutch drive with a nut and washer attached. Use the tubular box wrench to loosen the nut. After removing, you will have a total of six (6) pieces: ...
Page 2 Take the replacement grating disc and place it in the base 5 of the basket, aligning the flat side of the hole. Insert the special screw. Assemble the flat side of the base against the bottom of the basket assembly (outer edge turned down). 6 Holding the nut in the upside down basket with one hand, replace the clutch drive, washer and nut. Tighten the nut with the socket wrench. ...
