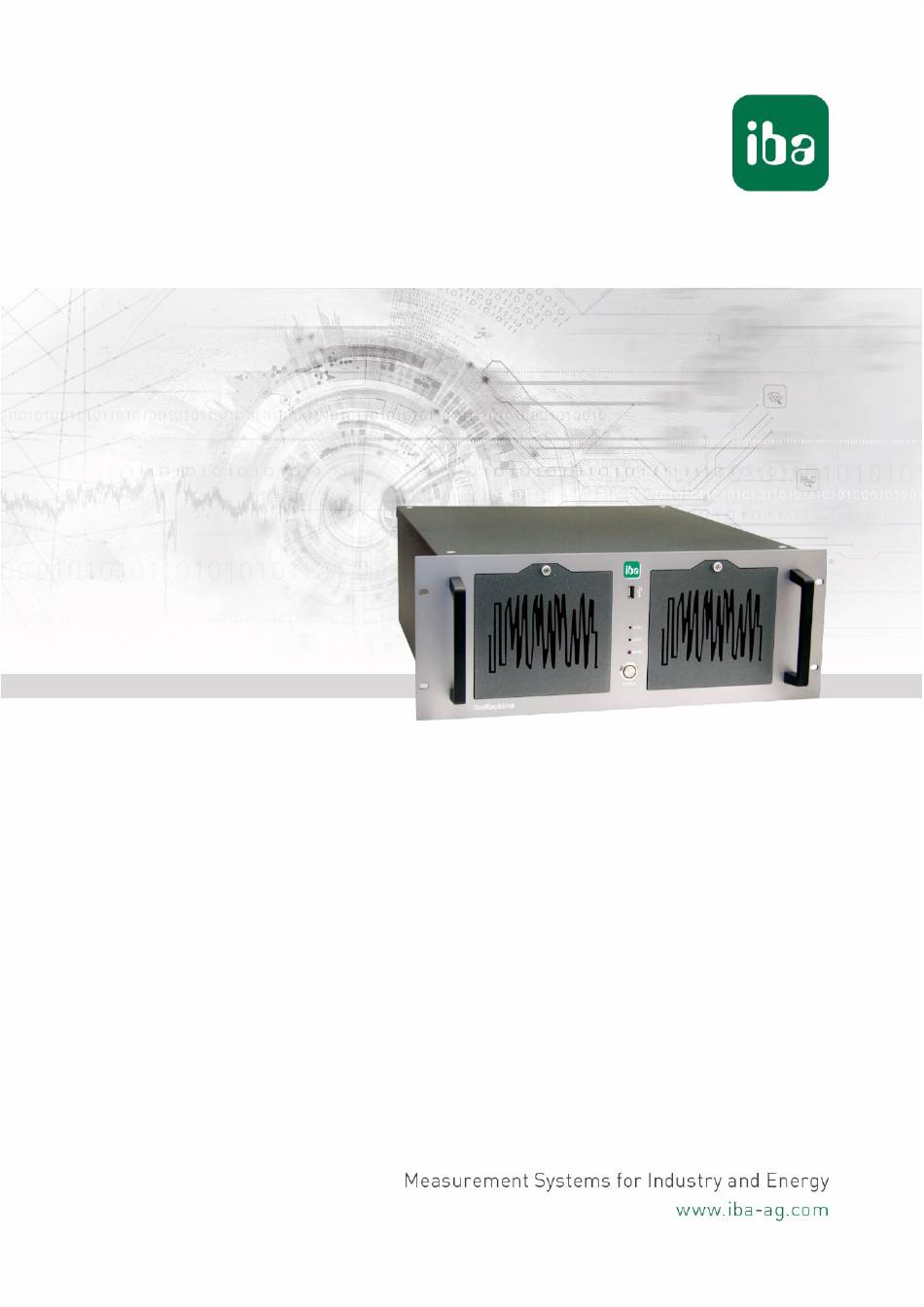

- Page 1 CAM/HD iba Industrial Computer Manual Issue 1.1...
- Page 2 Required corrections are contained in the following regulations or can be downloaded on the Internet. The current version is available for download on our web site http://www.iba-ag.com. Windows® is a label and registered trademark of the Microsoft Corporation. Other product and company names mentioned in this manual can be labels or registered trademarks of the corresponding owners.
-
Page 3: Table Of Contents
Restoring of a RAID system during operation ..........28 8.5.1 System with Onboard RAID ................. 28 8.5.2 System with RAID controller plugged in ............30 Installing operating system and iba software ..........35 Installation ....................35 Installing Windows with the Recovery medium ..........35 9.2.1 General ....................... 35... - Page 4 Enter the product key .................. 36 9.2.4 Partitioning ....................37 9.2.5 Completing installation ................39 Windows Updates ..................39 Antivirus Software ..................39 Installing iba software .................. 39 Technical data ....................40 10.1 Main data ....................40 10.2 Electronic components and interfaces ............40 10.3 Products ......................
-
Page 5: About This Manual
CAM/HD Manual About this manual This manual describes operation of the industrial PCs ibaRackline-PC CAM and ibaRackline-PC HD. Target group This manual addresses in particular the qualified professionals who are familiar with han- dling electrical and electronic modules as well as communication and measurement tech- nology. -
Page 6: Symbols Used
- By an electric shock! - Due to the improper handling of iba software products which are coupled to input and output procedures with control function! If you do not observe the safety instructions regarding the process and the system or... -
Page 7: Scope Of Delivery
iba software, optional order Hardware driver (motherboard, graphics card) 1 iba software license key (dongle), optional with iba software product and installed inside of the device on request of the client Serial number (iba-S/N) -
Page 8: Versions
CAM/HD Versions ibaRackline-PC CAM: RAID 5 system with 5 3,5“ SAS hard disks, 1 redundant power supply unit, 1 RAID controller, external DVD drive ibaRackline-PC HD: RAID 5 system with 5 3,5“ SAS hard disks, 1 NVMe-SSD, 1 re-... -
Page 9: Safety Instructions
The device may be used only for the following applications: Machine test and commissioning of industrial systems Measurement data logging and analysis Applications of iba software products (ibaPDA, ibaLogic etc.) Proper installation site The device can be installed only according to manufacturer's specifications: ... -
Page 10: Description
6 Power button 7 Plug-in slots for hard disks Note On delivery of the device the iba software license key is in the documentation or on client's request plugged-in in the device. Display elements The display consists of 2 LEDs:... -
Page 11: Rear View
Manual Rear view 1 2x Power supply with switch and plug for non-heating appliances, replaceable 2 Slots X20 to X26 (iba-cards for rackline slot) 3 Connections for external devices (keyboard, mouse, network etc.) 4 Slot for controller 5 Free slots X3 to X7 (PCIe), X8 (PCI) -
Page 12: Internal View
CAM/HD Internal view 1 PCI Express slots 2 Controller 3 Slots for iba-cards for rackline slot 4 Power supply unit (for RAID systems redundant) 5 Drive frame 6 Fan ( Ø 12 cm), mounting angle for redundant power supply unit... -
Page 13: Error Monitoring
CAM/HD Manual Error monitoring ibaOut-Temp card installed illustrated by ibaRackline-PC The temperature and the status of the power supply unit can be monitored with the slot cards ibaOut-Temp and ibaOut-State. The cards can be ordered separately. If one of the cards is ordered with a PC, it is installed by default in slot X20. -
Page 14: Ibaout-State
Manual ibaRackline-PC CAM/HD ibaOut-Temp can be used in the same way, when both outputs are connected to one output (parallel circuit). Wiring diagram of the parallel circuit: 5.4.2 ibaOut-State ibaOut-State provides an output (6-pin connector) which can be used to indicate errors. -
Page 15: Default Installation Position For Cards
Default installation position for cards On delivery, the data acquisition cards and additional cards are installed by default in the slots described below. Backview ibaRackline-PC CAM/HD Specfic slots for the mainboards Slot X2: controller Installation slots for data acquisition cards (X3 - X7) ... -
Page 16: Installation, Connection And First Switching On
(fiber optic and copper data cable) are plugged in. The device is delivered pre-installed and configured. Refer to the relevant manuals or online help for the settings of the operating system and the iba software. 1. Connect all cables. -
Page 17: Installation Of Measuring Or Additional Boards
CAM/HD Manual Installation of measuring or additional boards Safety instructions and notes Electric Shock! Before opening shut down the device! After that disconnect it from the mains and pull out the mains plug from the socket equipped with earthing contact! -
Page 18: Opening The Device
Manual ibaRackline-PC CAM/HD Opening the device 1. Turn the screws located on the upper side of the cover a quarter of a turn counter- clockwise. 2. Lift the housing cover. Issue 1.1... -
Page 19: Installing Ibaout-Temp/Ibaout-State
CAM/HD Manual Installing ibaOut-Temp/ibaOut-State The temperature and the status of the power supply unit can be monitored with the slot cards ibaOut-Temp and ibaOut-State, see also chapter 5.4. The installation procedure is identical for both cards. The installation is described below using the example of ibaOut-Temp in an ibaRackline system. - Page 20 Manual ibaRackline-PC CAM/HD Electrostatic discharge! Touch the components only in electrostatically discharged state! Hold the card cautiously at the edges and at the slot bracket. 4. Insert the card in the respective slot. The bar at the bottom is used to fix the card.
- Page 21 CAM/HD Manual (1): Connection of redundant power supply unit: If a redundant power supply unit is to be monitored, connect the twisted cable (black/red) of the power supply unit (1 – picture above) to the 2-pin connector (1 – picture below) of the card. This connec- tion is not necessary, when a standard power supply unit is used.
- Page 22 Manual ibaRackline-PC CAM/HD 7. Properly installed card: 8. Fix the cable with a cable tie and close the housing cover. Issue 1.1...
-
Page 23: Maintenance Work
1. Loosen the fastening screw which is used to fix the grid and open the grid. 2. Take the dust filter out of the grid. 3. Clean the dust filter or insert a new one (iba filter mat: Order number 43.000360). 4. Close the grid again and fasten the screw. -
Page 24: Cleaning And Replacing The Fan
Manual ibaRackline-PC CAM/HD Cleaning and replacing the fan Depending on the installation site it is necessary to clean or replace the fan. First, remove the grid as described above and proceed as follows: 1. Loosen all 4 fastening screws which are used to fix the fan. -
Page 25: Power Supply Slide-In Module For Replacement Of Redundant Power Supply Unit
CAM/HD Manual 8.4.1 Power supply slide-in module for replacement of redundant power supply unit If the green lamp of a switched-on power supply unit does not light up during operation, the appropriate power supply slide-in module must be replaced. - Page 26 Manual ibaRackline-PC CAM/HD 3. Loosen both screws inside, which are used to fix the power supply unit inside the housing. 4. Loosen 2 screws each on the left and the right side, which are used to fix the bar (1) and remove the bar.
- Page 27 CAM/HD Manual 7. Remove the mounting angles on the left and right side from the power supply unit by loosening 2 screws from the inner side. 8. In order to install a new power supply unit, proceed in reversed order.
-
Page 28: Restoring Of A Raid System During Operation
Manual ibaRackline-PC CAM/HD Restoring of a RAID system during operation Only qualified professionals are allowed to replace a hard disk unit during operation! Electrostatic discharge! Touch the components only in electrostatically discharged state! 8.5.1 System with Onboard RAID Open the Intel® Rapid Storage Technology enterprise console by double-clicking the icon in the task bar. - Page 29 CAM/HD Manual Click on "Rebuild" to start the process. The duration of the process varies depending on the hard disk capacity. Note System performance may be affected during the rebuild process. Issue 1.1...
-
Page 30: System With Raid Controller Plugged In
Manual ibaRackline-PC CAM/HD After the process is complete, the status in the volume properties must be "normal" again and the icon in the task bar must look like this: 8.5.2 System with RAID controller plugged in Important Note The RAID system is not automatically restored after having changed the hard disk. Use the program "maxView Storage Manager". - Page 31 CAM/HD Manual 4. Mark the hard disk, which is available (“Device 1” in the example above) and click on the „Locate“ icon in the “Physical device” section. The available hard disk blinks in the drive frame. 5. Replace the defective hard disk.
- Page 32 Manual ibaRackline-PC CAM/HD 6. The new hard disk is indicated in the „maxView Storage Manager“. But the hard disk has not been registered in the system. 7. Mark the new hard disk („Device 2“ in the example above) and click on the „Initialize“...
- Page 33 CAM/HD Manual 10. Confirm the following overview with <Finish>. 11. The following message appears when the operation was successful. Otherwise an error message appears. Issue 1.1...
- Page 34 Manual ibaRackline-PC CAM/HD 12. The progress of the rebuild process is displayed under “Tasks”. 13. As soon as the hard disk has been successfully registered in the system, the pro- gram can be closed. Issue 1.1...
-
Page 35: Installing Operating System And Iba Software
Manual Installing operating system and iba software Installation For the installation of the operating system and the iba software there are 2 possible ways: Install the Windows operating system and the required device drivers (graphic card, hard disk controller etc.). -
Page 36: Select The Language
Manual ibaRackline-PC CAM/HD Important note No liability is assumed for the loss of data due to incorrect handling. Always make sure, that you select the correct drives and partitions. Note The recovery process takes approx. 50 minutes. It is possible that only a black or green screen is visible during the process. -
Page 37: Partitioning
CAM/HD Manual 9.2.4 Partitioning There are several possibilities to set up partitions: Set up a new drive completey as system drive Set up partitions on a new drive Install an operating system on a drive already used (Windows 10 Enterprise or Win- dows Server) ... - Page 38 Manual ibaRackline-PC CAM/HD 1. Click <New> 2. Enter the partition size 3. Confirm with <Apply> 4. Confirm the next dialog with <OK> 5. Mark the partition, where the operating system should be installed. 6. Click <Next> and continue with chapter 9.2.5 „Completing installation“.
-
Page 39: Completing Installation
The procedure takes 30-40 min. depending on the hardware. Windows Updates The automatic search for updates is deactivated by default on iba systems, as iba does not know which Windows update policies apply in your company. Please adjust the settings according to the update policies in your company. Consult your IT department if necessary. -
Page 40: Technical Data
Ethernet on board 2x 10 Mbps/100 Mbps/1000 Mbps HD audio on board Realtek ALC892 Main memory 32 GB DDR4 PCI Express x16: Microsemi Adaptec SmartRAID 3102-8i SAS controller PCI Express, free 5x for iba measuring cards PCI, free Issue 1.1... -
Page 41: Products
External DVD drive (USB connection, included in delivery) * only included in ibaRackline-PC HD 10.3 Products PC systems Order number ibaRackline-PC CAM, XEON E, Win 10 40.005021 ibaRackline-PC HD, XEON E, Win10 40.005031 Enhancement options Upgrade to Server Operating System 43.000380... -
Page 42: Device Dimensions
Manual ibaRackline-PC CAM/HD 10.4 Device dimensions (Dimensions given in mm) Issue 1.1... -
Page 43: Support And Contact
Mailing address iba AG Postbox 1828 D-90708 Fuerth Germany Delivery address iba AG Gebhardtstrasse 10 DE-90762 Fuerth Germany Regional and Worldwide For contact data of your regional iba office or representative please refer to our web site www.iba-ag.com. Issue 1.1...
