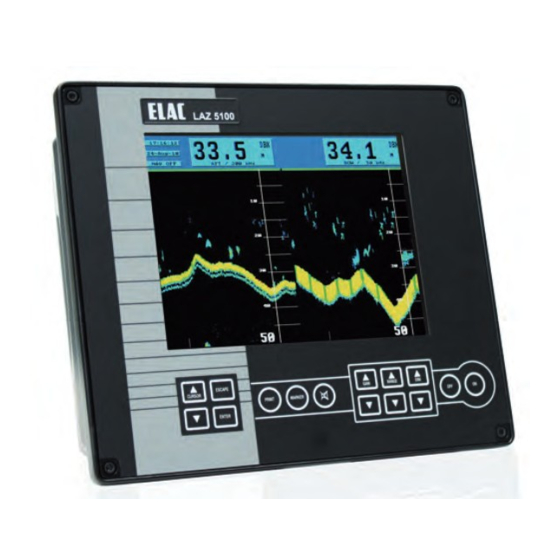

- Page 1 Navigation Echo Sounder LAZ 5100 Reliable Depth Information for Safe Navigation...
- Page 2 Navigation Echo Sounder LAZ 5100 Reliable Depth Information for Safe Navigation The LAZ 5100 is the latest navigation echo sounder of L-3 ELAC Nautik, available as single- or dual-frequency unit. Various transducers with frequencies from 24 kHz to 200 kHz can be operated and the maximum measuring range is 2,000 m.
- Page 3 Transducers L-3 ELAC Nautik has developed special transducers for the operation with the LAZ 5100. Together with the transducer LSE 297 (50 kHz), LSE 329 (100 kHz) and LSE 313 (200 kHz) the echo sounder system provides an excellent perfor- Optional slave display DAZ 25 mance and combines long ranges with high resolution.
- Page 4 Power consumption approx. 35 W L-3 Communications ELAC Nautik GmbH | Neufeldtstrasse 10 | 24118 Kiel | Germany | Tel. +49 (0)431-883 0 | Fax +49 (0)431-883 496 elac.marketing@L-3com.com | www.elac-nautik.de | Design changes and errors reserved. Rev. A 07/04/2011...
