Washing Machine ASKO W620

Advertisement

Table of Contents
loading

Related Manuals for Asko W620

Summary of Contents for Asko W620

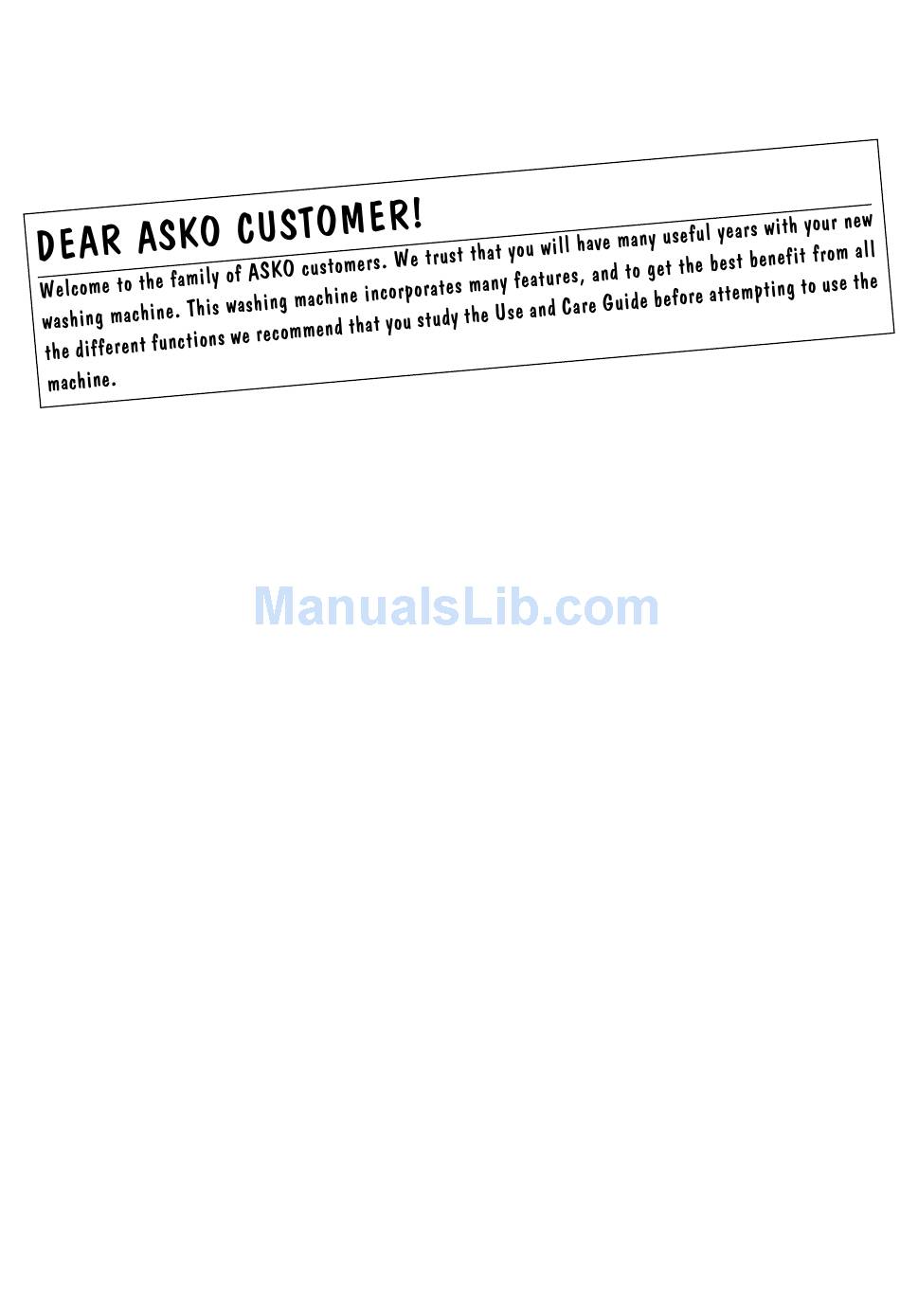

  • Page 1 Washing Machine ASKO W620...

  • Page 2: Table Of Contents

    CONTENTS READ FIRST 1 Before washing the first time 2 Safety instructions General. Installation. Washer door. In- terrupting a program. Overfill protection. Packing material. Transport/Winter sto- rage. Disposal. 3 Children’s safety Child-safe washing. Protect children. Child safety catch on detergent compartment. Child safety catch on temperature knob 4 Parts of the washer 5 Detergent compartment...

  • Page 3: Before Washing The First Time

    1 BEFORE WASHING THE FIRST TIME CAUTION WITH CERTAIN MATERIALS Always check and adhere to recommended washing marking on the items concerned. If no recommendations are given, refer to those in Chapter 7, Before washing. TRANSPORT SUPPORTS Are the transport supports (three screws at the back of the machine) removed? If not, see the Installation instructions.

  • Page 4: Safety Instructions

    2 SAFETY INSTRUCTIONS GENERAL • Study and save this Use and Care Guide for future reference. • Electrical and water installation, if required, must be carried out by authorized persons. • The machine may only be used for washing in accordance with this Use and Care Guide - not for dry cleaning.

  • Page 5: Children's Safety

    3 CHILDREN’S SAFETY CHILD-SAFE WASHING Always close the washer door and start the pro- gram immediately after filling the detergent. Do not allow children to play with the wash- ing machine. PROTECT CHILDREN Keep detergents and conditioner out of the reach of children.

  • Page 6: Parts Of The Washer

    4 PARTS OF THE WASHER 1. DETERGENT COMPARTMENT 2. MAIN POWER SWITCH 3. PROGRAM PANEL 4. DATA PLATE 5. COVER - DRAIN PUMP 6. DRAIN PUMP (BEHIND THE COVER) 7. WASHER DOOR 8. OUTER DOOR 5 DETERGENT COMPARTMENT 1. DETERGENT COMPARTMENT - PRE-WASH 2.

  • Page 7: Panel

    6 PANEL 1. DETERGENT COMPARTMENT 2. INDICATING LAMP ON/OFF 3. MAIN POWER SWITCH 4. DOOR OPENING 5. SUPER RINSE 6. ECONOMY AND EFFICIENCY 7. DELAYED START - 5 HOURS 8. SPIN-DRY SELECTION KNOB 9. TEMPERATURE KNOB 10. PROGRAM KNOB...

  • Page 8: Washing

    7 BEFORE WASHING Before you start washing, here is some advice that can be useful. SORTING THE WASHING Sort garments in relation to: • How soiled they are • Colour • Material GARMENTS • Close zip-fasteners so that they do not chafe against other items.
  • Page 9 Wool and silk Sometimes marked machine wash and someti- mes hand wash. The Wool/hand wash program of the machine is at least as gentle as washing by hand. Wool is particularly sensitive to mechanical processing. If you wish to avoid spin drying, press out the water thoroughly using terry to- wels.

  • Page 11: Washing

    8 WASHING Step by step instructions to help you achieve the best washing results. 1 - PRESS THE BUTTON Press the button to open the door and put the washing in. 2 - PUTTING IN THE DETERGENT AND CON- DITIONER Follow the recommendations on the detergent packet for how much detergent should be used.
  • Page 12 If you choose , the program will end by draining off the water but without spinning. Options Super rinse Gives you a washing program with extra rin- sing. Four rinses are added to programs 1 (Hea- vy wash), 2 (Normal wash) and 3 (Light wash). Two rinses are added to the other programs.
  • Page 13 Putting in more washing Turn the program knob to position 10, Drain, to interrupt the washing program. Any water in the machine will be pumped out. Press the button to open the door. Put the extra washing in, fill new detergent if needed, close the door, set a new program and the machine will start.

  • Page 15: Consumption Values

    9 CONSUMPTION VALUES The following conditions apply for the consump- tion values indicated below: Temperature of incoming water: 20ºC. Element power: 2200 W, 240 V. Options: None PROGRAM MATERIAL/WASHING TEMPERATURE ° Cotton, linen, 60 Heavy wash ° Cotton, linen, 60 Normal wash °...

  • Page 16: Care And Cleaning

    10 CARE AND CLEANING CLEANING THE NEEDLE TRAP AND THE DRAIN PUMP The washing machine has a trap in which coins, hairpins and similar items fasten. Clean the need- le trap and the drain pump as follows: 1. Ensure that the machine is drained and the main power switch is turned OFF.

  • Page 17: Hard Water

    CLEANING HOLES UNDER THE RIDGES If you suspect that objects, eg, nails, paperclips, pins and so on, have fallen through the washing drum you should check the space underneath the ridges. Such items can corrode and cause rust stains on your washing. Nails and other sharp objects can tear fabrics.

  • Page 18: Trouble Shooting

    11 TROUBLE SHOOTING MACHINE WILL NOT START 1. Is the door properly closed? Press it shut firm- 2. Check to make sure that the button for De- layed start, , is not pressed in. 3. Is power cut off? Check the fuses. DOOR WILL NOT CLOSE If the door opens again immediately when you try to close it, check to make sure that you have...
  • Page 19 FAULT INDICATION Faults that occur while a program is running will be indicated by the program knob moving to its position C or S at the end of the program or when it is interrupted. Knob moves to position S at end of program or when interrupted This indicates motor fault or level sensing error during the program.

  • Page 20: Technical Information

    12 TECHNICAL INFORMATION TECHNICAL DATA Height: Width: Depth: Weight: Drum volume: Washing capacity: Spin speed, r/min: Rated power, connection: Rated power, element: Water pressure: Material: Washing drum and fluid container Material: Outer cover Positioning: Water connection: Drain: STANDARD TESTS Australia: Washing program: Connection: Procedure for acoustic measurement:...

  • Page 21: Service And Guarantee

    See chapter 13, Trouble shoo- ting. If you do require service, telephone your lo- cal ASKO retailer or the ASKO representative for your country. See guarantee card for address and telephone number. GUARANTEE...

  • Page 22: Quick Guide

    14 QUICK GUIDE 1. SORT THE WASHING. 2. PRESS THE MAIN POWER S W I T C H , , A N D O P E N THE DOOR, Load the washing. 3 . F I L L W I T H D E T E R G E N T A N D C O N D I T I O N E R REQUIRED.

  • Page 23: Index

    15 INDEX Chapter cetate Acrylate Allergy Altering settings after starting Amount of washing 7,14 leach Burling Children’s safety Cleaning hole Cleaning Colours Conditioner 5,8,14 Consumption values Cotton 7,14 Cover, drain pump 4,10,11 Crease free, see No drain ata plate Delayed starting Delicate garments Delicate washing Depth...
  • Page 24 Art. No. 80 638 43. The right to make changes is reserved. Printed on environment friendly paper.
